SPKA-NCTP-IWLCR52
New-Construction Speaker Template
Installation Guide
Description
The Crestron SPKA-NCTP-IWLCR52 is designed to be
®
attached to the studs of a wall or ceiling prior to
installation of drywall, in preparation for the installation
of SAROS_IWLCR52 speakers (sold separately).
Additional Resources
Visit the product page on the
Crestron website (www.crestron.com)
for additional information and the
latest rmware updates. Use a QR
reader application on your mobile
device to scan the QR image.
Installation
Whether mounted horizontally or vertically, the
SPKA-NCTP-IWLCR52 is intended to mark the desired
cutout location prior to wall surface installation.
Speaker wiring can be af xed to the
SPKA-NCTP-IWLCR52 with a wire tie for easy retrieval
once the wall surface is installed.
Horizontal Orientation
The SPKA-NCTP-IWLCR52 ts into a wall with standard
16" center-to-center stud spacing. In this orientation
there are four countersunk mounting holes for
attachment to the studs with drywall screws (not
included).

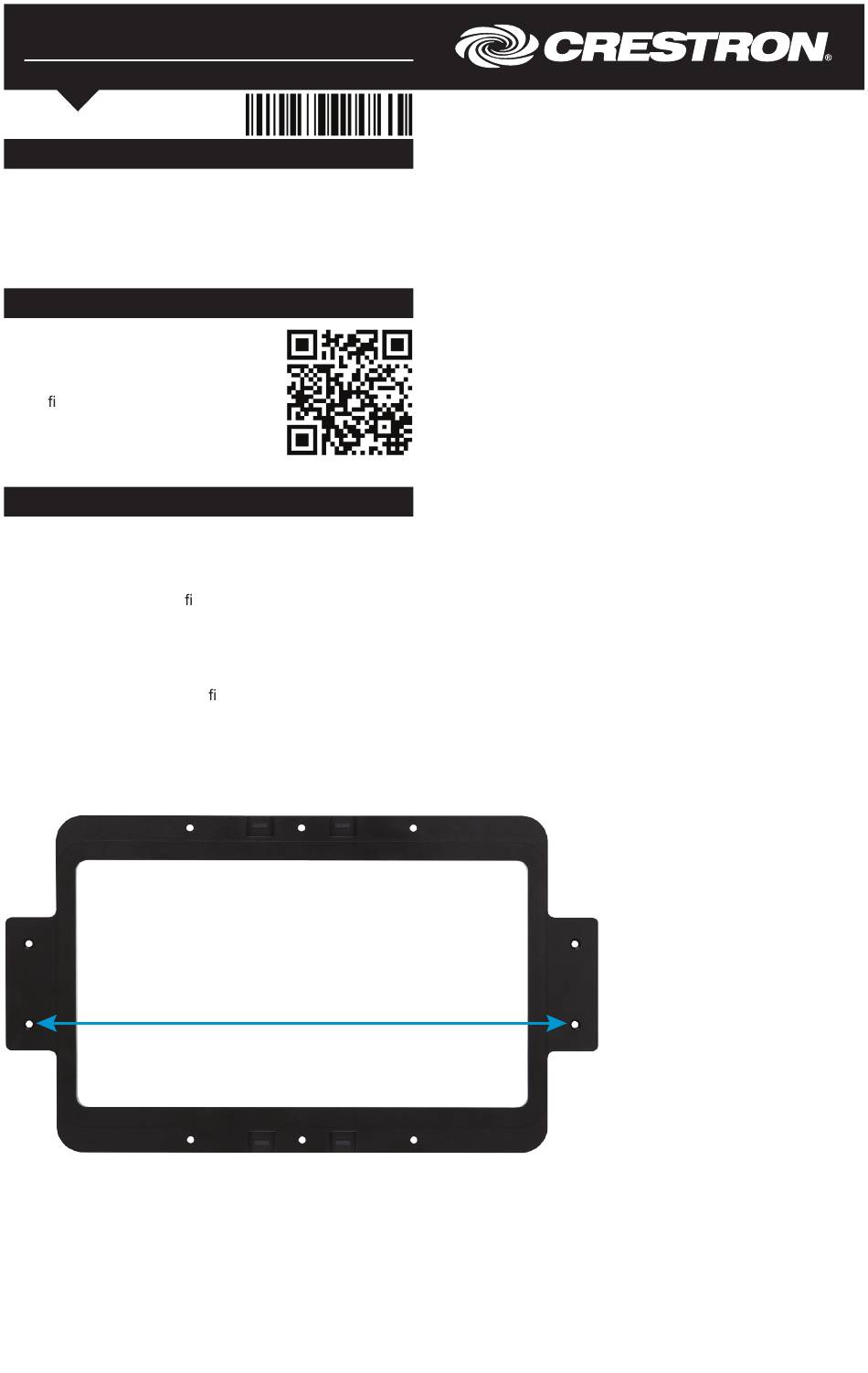

SPKA-NCTP-IWLCR52 in Horizontal Orientation
16"
