Crestron PMK-3000L Installation Manual

Description
The PMK-3000L is a pre-construction mount kit for the
Crestron Isys™ TPS-3000L, wall mounted touchpanel.
The PMK-3000L includes an 18 AWG bus wire to secure
touchpanel cabling during drywall installation and to
avoid damaging the cables when the opening is routed.
Refer to the physical views (top, side, and front) of the
PMK-3000L, shown after this paragraph. The table that
follows lists all parts included with the PMK-3000L.

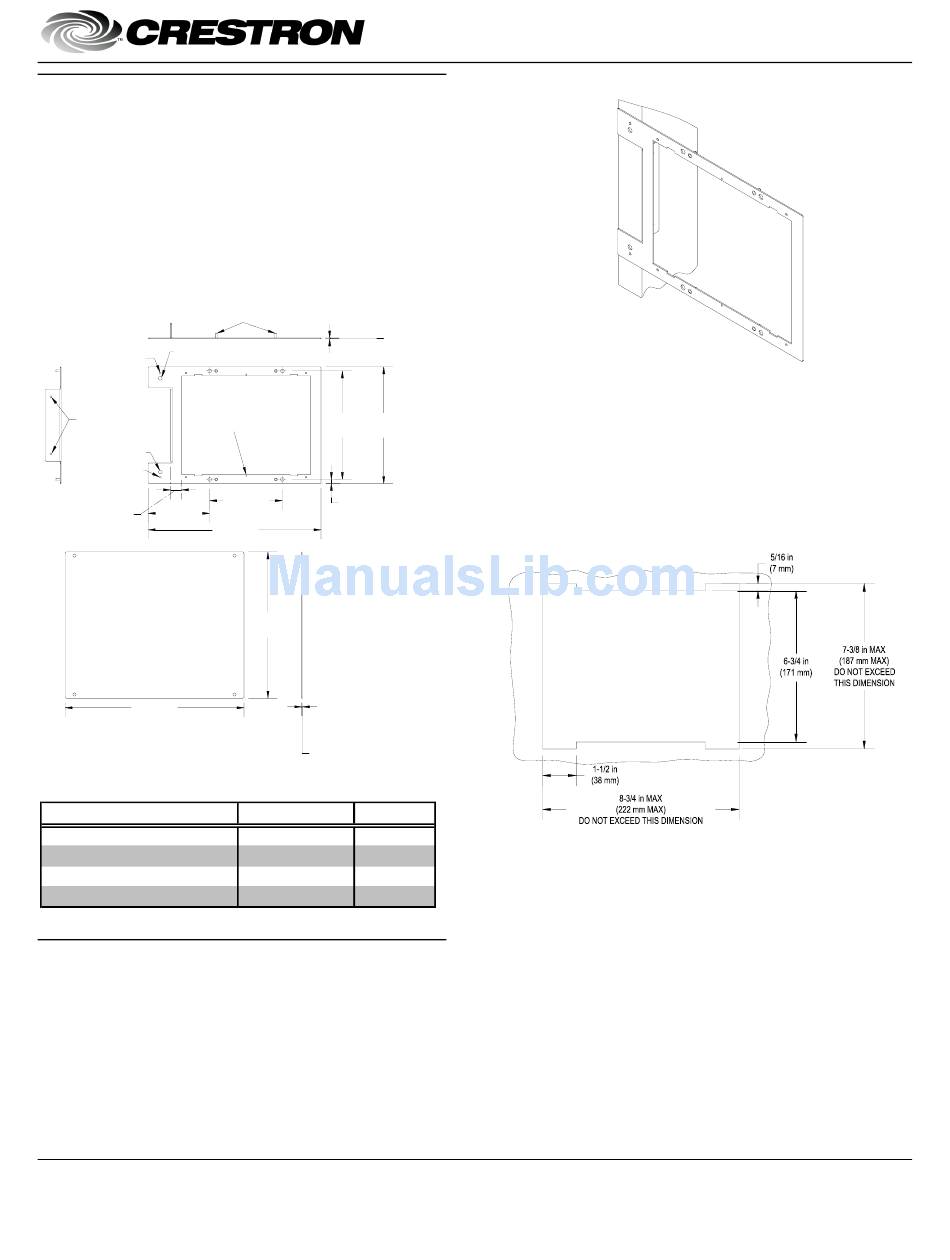

PMK-3000L Physical Views
PINS USED WITH OPTIONAL MUDRING (MTPL02850-1)
FOR DRYWALL SCREW
FOR DRYWALL NAIL
(PROVIDED BY OTHER)
(PROVIDED BY OTHER)
SECURE 18 AWG BUS WIRE
FOR DRYWALL NAIL
IN NOTCH TO HANG CABLE AWAY
(PROVIDED BY OTHER)
FROM DRYWALL CUTTING TOOLS
FOR DRYWALL SCREW
(PROVIDED BY OTHER)
FOR DRYWALL NAIL
(PROVIDED BY OTHER)
4.12 in
21/32" STUD OFFSET
(10.47 cm)
(17 mm)
(29.44 cm)
COVER PLATE MTCV02883-1
9.00 in
(22.86 cm)
Supplied Components
DESCRIPTION
Metal, Plate, Mounting
Metal, Plate,Cover
Screw, #6-32, 1 1/2"Lg, Pan, Phil SR06-32-1R5000-2
Jumper wire, 12"Lg, 18AWG,
Bl k
Installation
The PMK-3000L consists of a single metal plate, which
fastens to the stud of a framed wall prior to hanging
drywall (shown after this paragraph). Standard drywall
nails or screws to attach the PMK-3000L are not supplied
(length can vary).
Crestron Electronics, Inc.
15 Volvo Drive Rockleigh, NJ 07647
Tel: 888.CRESTRON
Fax: 201.767.7576
www.crestron.com
0.06 in THICK
(0.15 cm)
7.30 in 7.84 in
(18.54 cm) (19.91 cm)
4.88 in
0.27 in
(12.38 cm)
(0.69 cm)
11.59 in
7.375 in
(18.73 cm)
0.03 in
(0.08 cm)
PART NUMBER QUANTITY
MTPL02849-1 1
MTCV02883-1 1
4
WCUSJU18-5 1
Pre-Construction Mount Kit: PMK-3000L
Metal Plate Secured to Stud
The plate is designed to provide the necessary support for
a single touchpanel and can mount to the right or left side
of a stud. Confirm that the PMK-3000L is level before
application of drywall. A rectangular opening with the
dimensions shown in the illustration after this paragraph
must be made in the drywall. Verify that the opening
exposes the #6-32 tapped holes in each corner.
Dimensions for Drywall Cutout
If the opening for the touchpanel in the drywall is too
large, two pre-construction accessories are available to
make adjustments. Use the optional TMK-3000L (Trim
Ring Kit) to provide a smooth edge at the opening. This
option provides a finished appearance and is preferred
when wallpaper is hung. Use the optional MMK-3000L
(Mud Ring Kit) to fill in larger irregularities around the
opening (requires plastering).
Complete the installation by either installing the
touchpanel, leaving the hole open (if permitted by local
building codes), or installing the supplied cover plate with
#6-32 x 1½" screws (shown after this paragraph).
Installation Guide – DOC. 6024
