Crestron PMK-4000L Installation Manual

Description

The PMK-4000L is a pre-construction mount kit for the
®
Crestron Isys TPS-4000L series of wall mounted
touchpanels. The PMK-4000L is used for installation on a
stud. For custom touchpanel placement without a stud,
use the WMKT-4000L or the WMKM-4000L. The PMK-
4000L includes an 18 AWG bus wire to secure
touchpanel cabling prior to drywall installation and to
avoid damaging the cables when the opening is routed.
Refer to the physical views (bottom, side, and front) of
the PMK-4000L, shown after this paragraph. The table
that follows lists all parts included with the PMK-4000L.
NOTE: This mounting kit is to be used only with the
TPS-4000L series of touchpanels.

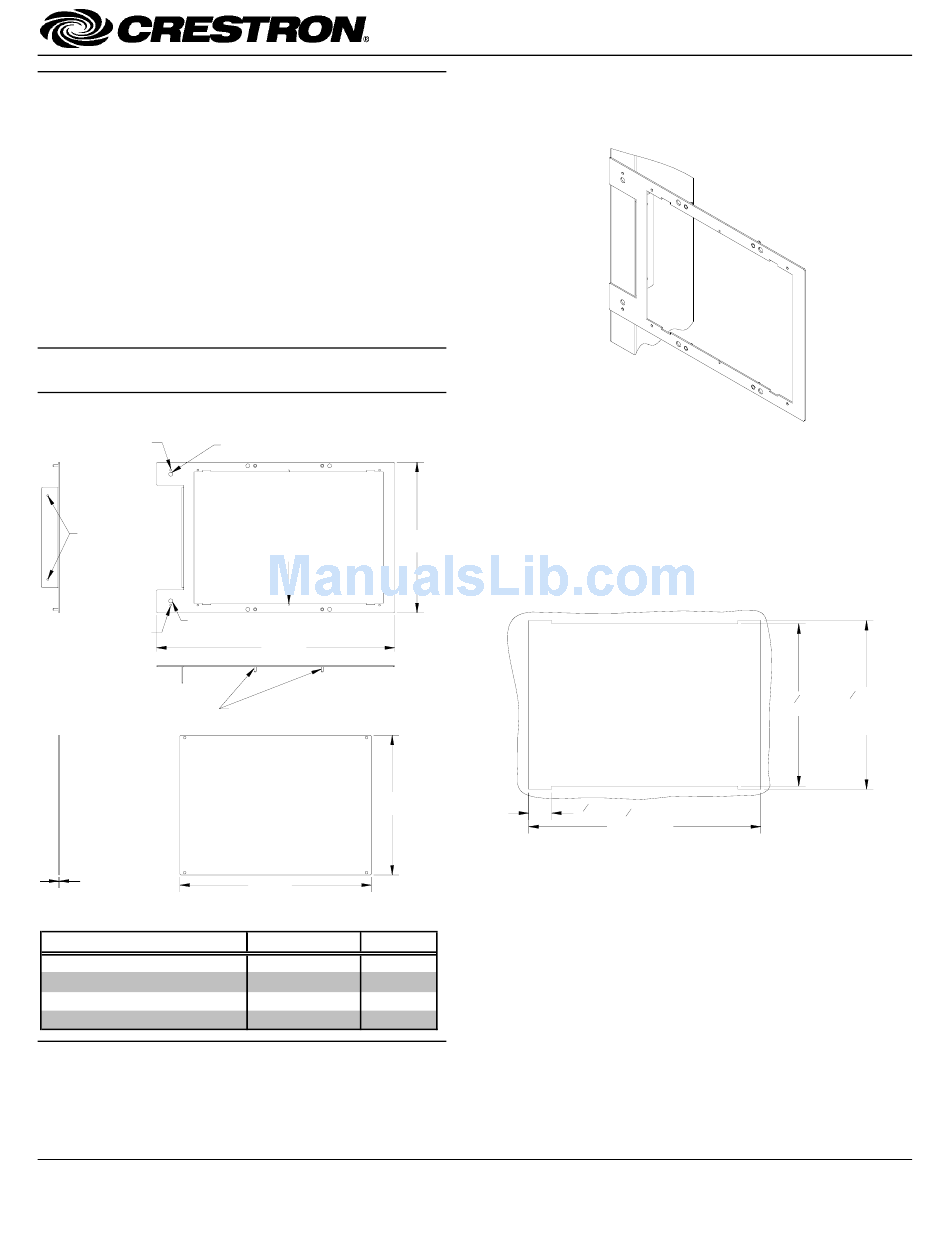

PMK-4000L Physical Views

FOR DRYWALL NAIL
(PROVIDED BY OTHER)
FOR DRYWALL NAIL
(PROVIDED BY OTHER)
DRYWALL SCREW
FOR DRYWALL NAIL
(PROVIDED BY OTHER)
(PROVIDED BY OTHER)
0.03 in
(0.08 cm)

Supplied Components

DESCRIPTION
Metal, Plate, Mounting
Metal, Plate,Cover
Screw, #6-32, 1-1/2"L, Pan, Phil
Jumper wire, 12"L, 18AWG, Black

Installation

The PMK-4000L consists of a single metal plate, which
fastens to the stud of a framed wall prior to hanging
drywall (shown after this paragraph). Standard drywall
Crestron Electronics, Inc.
15 Volvo Drive Rockleigh, NJ 07647
Tel: 888.CRESTRON
Fax: 201.767.7576
www.crestron.com
DRYWALL SCREW
(PROVIDED BY OTHER)
SECURE 18 AWG BUS WIRE
IN NOTCH TO HANG CABLES
AWAY FROM DRYWALL
(22.84 cm)
CUTTING TOOLS.
14.19 in
(36.04 cm)
PINS USED WITH OPTIONAL MUD RING 2011517
(PART OF MMK/WMKM-4000L)
8.34 in
(21.18 cm)
11.42 in
(28.99 cm)
PART NUMBER QUANTITY
2011514 1
2011423 1
2007254 4
2007838 1
Pre-Construction Mount Kit: PMK-4000L
nails or screws to attach the PMK-4000L are not supplied
(length can vary).

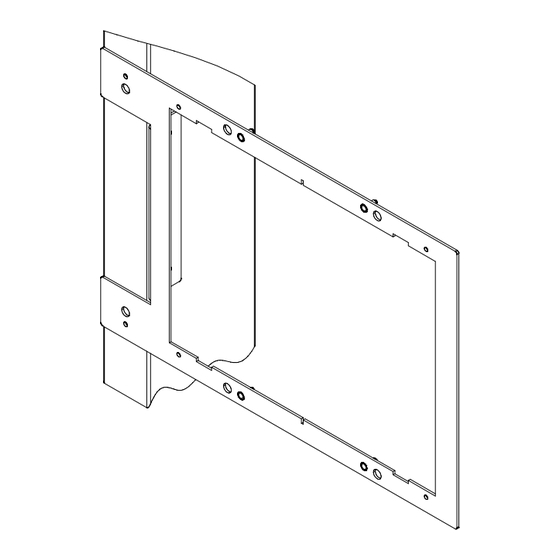

Metal Plate Secured to Stud

The plate is designed to provide the necessary support for
a single touchpanel and can mount to the right or left side
of a stud. Confirm that the PMK-4000L is level before
application of drywall. A rectangular opening with the
dimensions shown in the illustration after this paragraph
8.99 in
must be made in the drywall. Verify that the opening
exposes the #6-32 tapped holes in each corner.

Dimensions for Drywall Cutout

1
1
(28 mm)
If the opening for the touchpanel in the drywall is too
large, two pre-construction accessories are available to
make adjustments. Use the optional TMK-4000L (Trim
Ring Kit) to provide a smooth edge at the opening. This
option provides a finished appearance and is preferred
when wallpaper is hung. Use the optional MMK-4000L
(Mud Ring Kit) to fill in larger irregularities around the
opening (requires plastering).
Complete the installation by either installing the
touchpanel, leaving the hole open (if permitted by local
building codes), or installing the supplied cover plate with
the included #6-32 x 1½" screws (shown after this
paragraph). If the touchpanel is to be installed, refer to the
latest revision of the TPS-4000L Operations &
in
8 13
11 in MAX
32
(290 mm MAX)
DO NOT EXCEED
THIS DIMENSION
Installation Guide – DOC. 6304
Specifications subject to
change without notice.
8 19 in MAX
7 31 in 64
32
(211 mm MAX)
(202 mm)
DO NOT EXCEED
THIS DIMENSION
10.04
