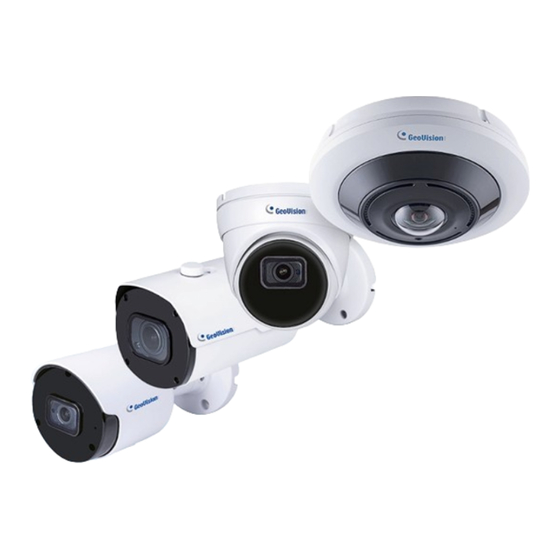

GeoVision GV-R Series Manual
  1. Manuals
  2. Brands
  3. GeoVision Manuals
  4. Security Camera
  5. GV-R Series
  6. Manual

GeoVision GV-R Series Manual

Hide thumbs Also See for GV-R Series:
Table of Contents

Advertisement

Quick Links

Download this manual
1. Camera Connection Diagram ............................................................................. 1
2. Camera Overview ................................................................................................ 2
2.1 GV-RBL5800 / RBL5802 ......................................................................................... 2
2.2 GV-RBL5811 ........................................................................................................... 3
2.3 GV-RDR5800 .......................................................................................................... 4
2.4 GV-REB5800 / REB5801 ........................................................................................ 5
2.5 GV-RFER12700 ...................................................................................................... 6
2.6 GV-RMS32810 ....................................................................................................... 7
2.6.1 GV-RMS32810 Packing List ..................................................................................... 7
2.6.2 GV-RMS32810 Overview .......................................................................................... 8
2.6.3 GV-RMS32810 Camera Lens Location .................................................................... 9
3. Installation ......................................................................................................... 10
3.3 Dome Camera Installation (For GV-RDR5800) ..................................................... 14
3.4 Fisheye Camera Installation (For GV-RFER12700) .............................................. 15
3.5 Dome Camera Installation (For GV-RMS32810) ................................................... 17
4. Accessing the Network Camera ...................................................................... 26
4.1 Looking Up the Dynamic IP Address ..................................................................... 26
4.2 Configuring the IP Address ................................................................................... 28
5. The Web Interface ............................................................................................. 29
6. Upgrading System Firmware ........................................................................... 32
7. Restoring to Factory Default ............................................................................ 33
Contents
i

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GV-R Series and is the answer not in the manual?

Questions and answers

Related Manuals for GeoVision GV-R Series

Summary of Contents for GeoVision GV-R Series

  • Page 1: Table Of Contents

    Contents 1. Camera Connection Diagram ................1 2. Camera Overview ....................2 2.1 GV-RBL5800 / RBL5802 ..................2 2.2 GV-RBL5811 ......................3 2.3 GV-RDR5800 ......................4 2.4 GV-REB5800 / REB5801 ..................5 2.5 GV-RFER12700 ...................... 6 2.6 GV-RMS32810 ....................... 7 2.6.1 GV-RMS32810 Packing List ..................

  • Page 2: Camera Connection Diagram

    1. Camera Connection Diagram Attention: There are two connection modes: For non-PoE router, connect the camera by a PoE switch or a PoE injector. For a POE NVR, connect the camera directly to the POE NVR.

  • Page 3: Camera Overview

    2. Camera Overview 2.1 GV-RBL5800 / RBL5802 Description Description IR LED x 2 Default button Built-in microphone SD card slot Note: Press the default button for 15 seconds to reboot the camera.

  • Page 4: Gv-Rbl5811

    2.2 GV-RBL5811 Description Description IR LED x 4 Audio output Default button LAN / PoE port SD card slot Alarm in / GND / COM / Alarm out Audio Input Power connector (DC 12 V) Note: Press the default button for 15 seconds to reboot the camera.

  • Page 5: Gv-Rdr5800

    2.3 GV-RDR5800 Description Description IR LED x 10 SD card slot Default button Built-in microphone Note: Press the default button for 15 seconds to reboot the camera.

  • Page 6: Gv-Reb5800 / Reb5801

    2.4 GV-REB5800 / REB5801 Description Description IR LED x 2 Default button Built-in microphone SD card slot Note: Press the default button for 15 seconds to reboot the camera.

  • Page 7: Gv-Rfer12700

    2.5 GV-RFER12700 Description Description IR LED x 3 LAN / PoE port Built-in microphone Default button Built-in speaker Alarm in / GND / COM / Alarm out SD card slot Power connector (DC 12 V) Note: Press the default button for 15 seconds to reboot the camera.

  • Page 8: Gv-Rms32810

    2.6 GV-RMS32810 2.6.1 GV-RMS32810 Packing List  GV-RMS32810 Main Body  (wall mount plate pre-installed) Screw Kit   Pendant Mount Plate Wall Mount Bracket  Waterproof Rubber Set  Waterproof Rubber Connector  Torx Wrench T20  Drill Template Paster ...

  • Page 9: Gv-Rms32810 Overview

    2.6.2 GV-RMS32810 Overview Description Description IR LED / Warm LED x 8 Alarm in / Alarm out SD card slot Power connector (DC 12 V, AC 24 V) Default button Audio out LAN / PoE port Audio in Note: Press the default button for 15 seconds to reboot the camera.

  • Page 10: Gv-Rms32810 Camera Lens Location

    2.6.3 GV-RMS32810 Camera Lens Location To see the location of each lens, first unscrew the transparent cover of the camera using the supplied torx wrench. The angles are marked on the side, as indicated in red circles in the figure below. The camera lenses are positioned counterclockwise.

  • Page 11: Installation

    3. Installation This section introduces the standard camera installation. For optional installations with GV-Mount accessories, see GV-R Series IPCam Mount Installation Guide. 3.1 Bullet Camera Installation (For GV-RBL5800 / RBL5802 / RBL5811) Ceiling Mounting Insert three expansion bolts in place into the ceiling and fix the equipment with three mounting screws.

  • Page 12: Eyeball Camera Installation (For Gv-Reb5800 / Reb5801)

    3.2 Eyeball Camera Installation (For GV-REB5800 / REB5801) Ceiling Mounting Paste the sticker in place at the proper position as selected. Remove the collar off the camera by rotating it down.
  • Page 13 Fix the pedestal by drilling locking holes around the sticker and inserting three expansion bolts into the holes and fastening it with three locking screws. Mount the collar back by rotating it up.
  • Page 14 Adjust it to an appropriate angle. Completion of installation.

  • Page 15: Dome Camera Installation (For Gv-Rdr5800)

    3.3 Dome Camera Installation (For GV-RDR5800) Ceiling Mounting Apply the position sticker to the desired camera mounting position. Mount the main camera body.

  • Page 16: Fisheye Camera Installation (For Gv-Rfer12700)

    3.4 Fisheye Camera Installation (For GV-RFER12700) Ceiling Mounting Remove the plastic base press the release clip towards the camera, it will flex slightly. Turn back anti-clockwise as illustrated above to release. Install memory card by removing the cover plate two screws: Push the metal card holder towards center of camera, lift-up the holder which is on a hinge bracket and insert card and push holder back to original fixed position.
  • Page 17 Selected the proper position to fix the pedestal by drilling locking holes and inserting two expansion bolts into the holes and fastening it with two locking screws. Install Main Camera Body: Mount the Main Camera Body back by rotating it up. Rotating the main camera body to an appropriate angle.

  • Page 18: Dome Camera Installation (For Gv-Rms32810)

    3.5 Dome Camera Installation (For GV-RMS32810) Wall Mounting Stick the mounting template to the wall, and drill 4 expansion screw holes. Hammer the 4 expansion screws into the drilled wall holes. Align the 4 expansion screws with the holes of the bracket, install the gasket and the spring washer, and lock the 4 nuts.
  • Page 19 Fasten the anti-dropping rope of the locked dome camera into the suspending rope loop of the bracket. After the tail cable of the panoramic dome camera passes through the bracket, align the notch of the adapter cover with the rivet position of the bracket and insert it into the bracket hole.
  • Page 20 After rotating the dome camera to the proper position, tighten the 2 socket head cap screws M6*16 on the bracket. Ceiling Mounting Rotate to remove the pre-installed wall mount plate, and remove the safety rope.
  • Page 21 Determine a hard surface on the ceiling location. Mark and drill four mounting holes. Install the wall mount plate to the ceiling location by securing it with the 4 supplied screws. Hook the safety rope, and install the waterproof rubber set.
  • Page 22 Connect power or I/O wires, and use foam tapes or seal foam to ensure the back-end connection is waterproof. Rotate the camera to the appropriate position to lock it.
  • Page 23 After aligning, tighten the four head cap screws on the main body. Ensure to insert the memory SD card at this step. Adjust to the appropriate viewing angle first.
  • Page 24 Align the locating pins on the top cover with the markings on the main body, then tighten the six hex socket screws on the top cover.
  • Page 25 Installation Requirements When installing the dome camera, in order to avoid reflections, which may occur when Image Control is set to Full Color Mode, or when it is set to Day/Night Mode at night, ensure that the following requirements are met: (A) If the camera is installed in the center of the room (as opposed to being close to the wall): ⚫...
  • Page 26 (B) If the camera is installed close to the wall (as opposed to being in the center of the room): 1. To avoid reflected glare by IR LED: (a) The space between the camera body and the wall has to be equal to or wider than 1 meter.

  • Page 27: Accessing The Network Camera

    4. Accessing the Network Camera 4.1 Looking Up the Dynamic IP Address By default, when the camera is connected to a LAN with the DHCP server, it is automatically assigned with a dynamic IP address. Follow the steps below to look up its IP address.
  • Page 28 4. For first-time users, you are requested to create a password. 5. Type a new password and click OK. 6. Click on its IP address again and select Webpage to open its Web interface. 7. Type the set password on the login page and click Login.

  • Page 29: Configuring The Ip Address

    4.2 Configuring the IP Address If the camera is connected to a LAN without the DHCP server, the default IP address will be 192.168.0.10. Follow the steps below to modify the IP address to avoid IP conflict with other GV-IP devices on the same LAN. 1.

  • Page 30: The Web Interface

    5. The Web Interface The web client enters the login live view upon login, as shown in the figure below. Note: Features may differ depending on product models. Recording and Fisheye dewarping are only supported in IE mode in Microsoft Edge. For GV-RMS32810 For GV-RBL5802 / RDR5800 / REB5801...
  • Page 31 Other Models Name Description You can switch the picture quality of the current live view at the upper left corner: ⚫ Main Stream: HD picture, but higher requirements on bandwidth and PC performance Stream Switching Menu ⚫ Sub Stream: Moderate requirements on bandwidth and PC performance, but lower picture quality when compared with main stream ⚫...
  • Page 32 Name Description Used to switch between main stream and sub stream in the Bitrate current live view Users can click this icon to select different layouts to display Division Screen them in live view. Used to play streams of all channels in live view (only for Play GV-RMS32810) Used to stop streams of all channels in live view (only for...

  • Page 33: Upgrading System Firmware

    6. Upgrading System Firmware GeoVision periodically releases updated firmware on the company website. To load the new firmware into the camera, follow the instructions below. 1. On the Web interface, click Remote Setting > System > Maintenance > Upgrade. 2. Place the firmware file (.sw) into the HDD of your PC.

  • Page 34: Restoring To Factory Default

    7. Restoring to Factory Default If for any reason the camera is not responding correctly, you can restore the camera back to its factory default settings using the Web interface or the Load Default Button. On the Camera 1. Find the Load Default button on the camera (see 2. Camera Overview in the Quick Start Guide).
