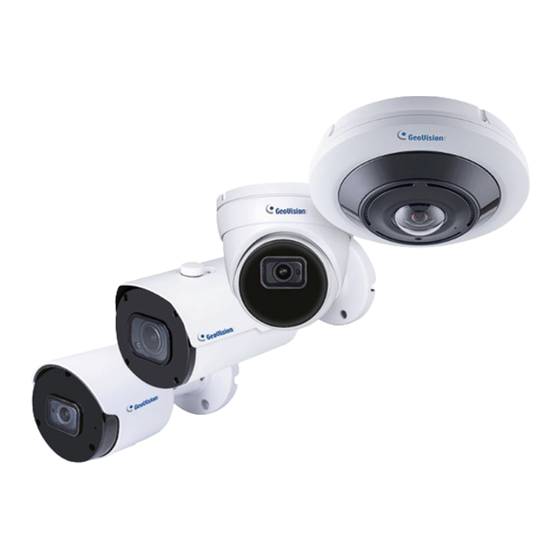

GV-RBL5800 / RBL5811
GV-REB2500
GV-RFER12700
Before attempting to connect or operate this product,
please read these instructions carefully and save this manual for future use.
Quick Start Guide
GV-R Series IP Camera
RBLEBFER-QG-A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GV-R Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for GeoVision GV-R Series

Summary of Contents for GeoVision GV-R Series

  • Page 1 Quick Start Guide GV-R Series IP Camera GV-RBL5800 / RBL5811 GV-REB2500 GV-RFER12700 Before attempting to connect or operate this product, RBLEBFER-QG-A please read these instructions carefully and save this manual for future use.
  • Page 2 GeoVision. Every effort has been made to ensure that the information in this manual is accurate. GeoVision, Inc. makes no expressed or implied warranty of any kind and assumes no responsibility for errors or omissions. No liability is assumed for incidental or consequential damages arising from the use of the information or products contained herein.

  • Page 3: Table Of Contents

    Contents 1. Camera Connection Diagram ................1 2. Camera Overview ....................1 2.1 GV-RBL5800 ......................1 2.2 GV-RBL5811 ......................2 2.3 GV-REB5800 ......................3 2.4 GV-RFER12700 ......................4 3. Installation ......................1 3.1 Bullet Camera Installation (For GV-RBL5800 / RBL5811) .......... 1 3.2 Dome Camera Installation (For GV-REB5800) ............

  • Page 4: Camera Connection Diagram

    1. Camera Connection Diagram Attention: There are two connection modes: For non-PoE router, please connect the camera by a PoE switch or a PoE injector. For a POE NVR, please connect the camera directly to the POE NVR, then follow the below steps.

  • Page 5: Camera Overview

    2. Camera Overview 2.1 GV-RBL5800 Description Description IR LED x 2 Default button Built-in microphone SD card slot Note: Press the default button for 15 seconds to reboot the camera.

  • Page 6: Gv-Rbl5811

    2.2 GV-RBL5811 Description Description IR LED x 4 Audio output Default button LAN / PoE port SD card slot Alarm in / GND / COM / Alarm out Audio Input Power connector (DC 12 V) Note: Press the default button for 15 seconds to reboot the camera.

  • Page 7: Gv-Reb5800

    2.3 GV-REB5800 Description Description IR LED x 2 Default button Built-in microphone SD card slot Note: Press the default button for 15 seconds to reboot the camera.

  • Page 8: Gv-Rfer12700

    2.4 GV-RFER12700 Description Description IR LED x 3 LAN / PoE port Built-in microphone Default button Built-in speaker Alarm in / GND / COM / Alarm out SD card slot Power connector (DC 12 V) Note: Press the default button for 15 seconds to reboot the camera.

  • Page 9: Installation

    3. Installation 3.1 Bullet Camera Installation (For GV-RBL5800 / RBL5811) Ceiling Mounting Insert three expansion bolts in place into the ceiling and fix the equipment with three mounting screws. Completion of installation.

  • Page 10: Dome Camera Installation (For Gv-Reb5800)

    3.2 Dome Camera Installation (For GV-REB5800) Ceiling Mounting Paste the sticker in place at the proper position as selected. Remove the collar off the camera by rotating it down.
  • Page 11 Fix the pedestal by drilling locking holes around the sticker and inserting three expansion bolts into the holes and fastening it with three locking screws. Mount the collar back by rotating it up.
  • Page 12 Adjust it to an appropriate angle. Completion of installation.

  • Page 13: Optional Installation

    4. Optional Installation 4.1 Straight Tube GV-Mount108 Packing List GV-Mount108 Expansion bolt x 4 Allen wrench x 1 Note: GV-Mount108 must be used with GV-Mount504-1.
  • Page 14 Dimension Applicable Models GV-RFER12700 GV-Mount108 + GV-Mount504-1 Installation See 4.4 Wall Bracket Mounting with GV-Mount504-1 for details.

  • Page 15: Wall Pendant Mounting With Gv-Mount210-2

    4.2 Wall Pendant Mounting with GV-Mount210-2 Packing List GV-Mount210-2 Expansion bolt x 4 Short screw (10 mm) x 1 Long screw (35 mm) x 4 Colloidal particle x 4 Note: GV-Mount210-2 must be used with GV-Mount504-1.
  • Page 16 Dimension Applicable Models GV-RFER12700 GV-Mount210-2 + GV-Mount504-1 Installation See 4.4 Wall Bracket Mounting with GV-Mount504-1 for details.

  • Page 17: Wall Box Mounting With Gv-Mount213-1

    4.3 Wall Box Mounting with GV-Mount213-1 Packing List GV-Mount213-1 Base x 1 Allen wrench x 1 Socket screw (14 mm) x 3 Colloidal particle x 4 Long screw (35 mm) x 4 Screw waterproofing ring x 4 Waterproof joint rubber ring x 1 Waterproof connector x 1 10.
  • Page 18 Applicable Models: GV-RFER12700 GV-Mount213-1 Installation Place the template paster on the wall surface where installation is needed. Drill four self-tapping screw holes, and hammer four colloidal particles into the drilled wall holes. Align the four screw holes of GV-Mount213-1 base with the wall screw holes and tighten them with self-tapping screws.
  • Page 19 Thread the network cable through the waterproof connector and pull it out from the central hole of the adapter board. Connect the tail cable of the fisheye camera and the network cable, place them in GV-Mount213-1, and align the fisheye camera with the buckle on the adapter board.

  • Page 20: Wall Bracket Mounting With Gv-Mount215-1

    4.4 Wall Bracket Mounting with GV-Mount215-1 Packing List GV-Mount215-1 Short screw (10 mm) x 3 Allen wrench x 1 Long screw (25 mm) x 4 Colloidal particle x 4 Drill Template Paster Dimension Applicable Models: GV-REB5800...
  • Page 21 GV-Mount215-1 Installation Drill holes according to the drill template paster on the wall and insert the colloidal particles. Secure the bottom plate of GV-Mount215-1 on the wall using the supplied screws.
  • Page 22 Fix the camera’s collar onto GV-Mount215-1 with supplied screws. Thread the camera’s cables inside GV-Mount215-1 and mount the whole camera onto GV-Mount215-1.
  • Page 23 Connect the cables from the side hole of UA-Mount215 and tighten the bottom screw to complete the installation.

  • Page 24: Corner Mounting With Gv-Mount311

    4.5 Corner Mounting with GV-Mount311 Packing List GV-Mount311 Colloidal particle x 8 Long screw (35 mm) x 8 Socket screw (M6 x 16 mm) x 4 Spring washer (M6) x 4 Conical spring washer (M6) x 4 Socket screw (M4 x 16 mm) x 4 Spring washer (M4) x 4 Conical spring washer (M6) x 4 Note: GV-Mount311 must be used with GV-Mount213-1.
  • Page 25 Dimension Applicable Models: GV-REB5800...
  • Page 26 GV-Mount311 Installation Refer to the installation method mentioned above, drill four holes on each side of the wall at the wall corners, hammer four colloidal particles into the drilled wall holes, and then align the GV-Mount311 (port #2 as indicated below) with the wall screw holes and tighten it with self-tapping screws.
  • Page 27 See Step 3 ~ 4 in 4.3 Wall Box Mounting with GV-Mount213-1 for the subsequent installation steps.

  • Page 28: Wall Bracket Mounting With Gv-Mount504-1

    4.6 Wall Bracket Mounting with GV-Mount504-1 Packing List GV-Mount504-1 Base x 1 Allen wrench x 1 Socket screw (14 mm) x 3 Note: GV-Mount504-1 must be used with GV-Mount108 or GV-Mount210-2.
  • Page 29 Dimension Applicable Models: GV-RFER12700 GV-Mount108 + GV-Mount504-1 Installation Install the fisheye camera adapter board onto the concealed wiring box.
  • Page 30 Thread the tail cable of the fisheye camera through the central hole of GV-Mount504-1 base. Rotate the camera clockwise to ensure that the latch on the bottom of the camera and the latch on the adapter board are fully engaged.
  • Page 31 Drill four screw holes on the wall where installation is needed. Hammer four expansion screws into the drilled wall holes. Then, thread the main cable connector out from the center of the suspension rod. Align the suspension rod base with the four wall screw holes and tighten with screws.
  • Page 32 After connecting the main cable connector and fisheye camera tail cable, place them into the concealed wiring box. Then, insert the concealed wiring box bottom cover connector into the suspension rod interface and tighten the side machine screws. This completes the installation.
  • Page 33 GV-Mount210-2 + GV-Mount504-1 Installation Install the fisheye camera adapter board onto the concealed wiring box. Thread the tail cable of the fisheye camera through the central hole of the concealed wiring box. Rotate the camera clockwise to ensure that the latch on the bottom of the camera and the latch on the adapter board are fully engaged (as shown in Figure 1).
  • Page 34 Drill four screw holes on the wall where installation is needed. Hammer four expansion screws into the drilled wall holes. Then, thread the main cable connector out from the center of the bracket. Align the bracket base with the four wall screw holes and tighten with screws (as shown in Figure 2).

  • Page 35: Wall Box Mounting With Gv-Mount505

    4.7 Wall Box Mounting with GV-Mount505 Packing List GV-Mount505 Short screw (8 mm) x 3 Long screw (35 mm) x 3 Colloidal particle x 3 Allen wrench x 1 Screw waterproofing ring x 3 Waterproof joint rubber ring x 1 Waterproof connector x 1 Dill template paster 10.
  • Page 36 Dimension Applicable Models: GV-RBL5800 / RBL5811 GV-Mount505 Installation Drill holes according to the drill template paster on the wall and insert the colloidal particles.
  • Page 37 Secure the bottom of GV-Mount505 on the wall using the supplied screws. Thread the necessary cables from the bottom hole of GV-Mount505.
  • Page 38 Connect the camera’s cables inside GV-Mount505 and fix the camera onto the upper part of GV-Mount505 using the supplied screws. Assemble GV-Mount505 to complete the installation.
