Installation, Continued
G

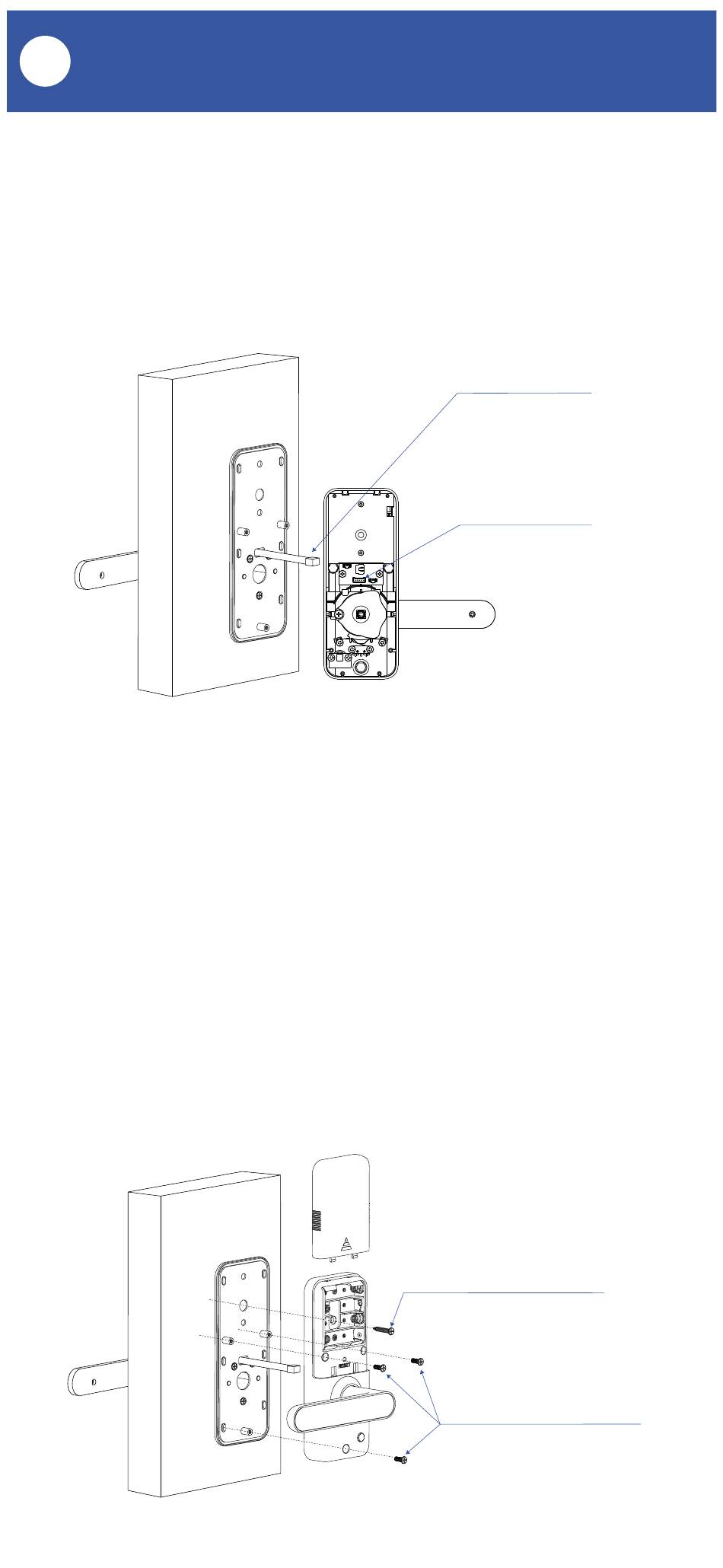

11. Install the main cable
Plug the main cable into the back panel main
cable interface.
12. Install the back panel
a. Insert the square spindle into that square
hole of the back panel.
b. Then install the back panel assembly to the
back mounting plate, Tighten panel
mounting screw A2. Install the Lock Body
Mounting Screw by electric screwdriver, if
needed.
Main Cable
Main Cable
Interface
Lock Body Mounting Screw
Panel Mounting Screws
Type A2
21
