Installation, Continued
G

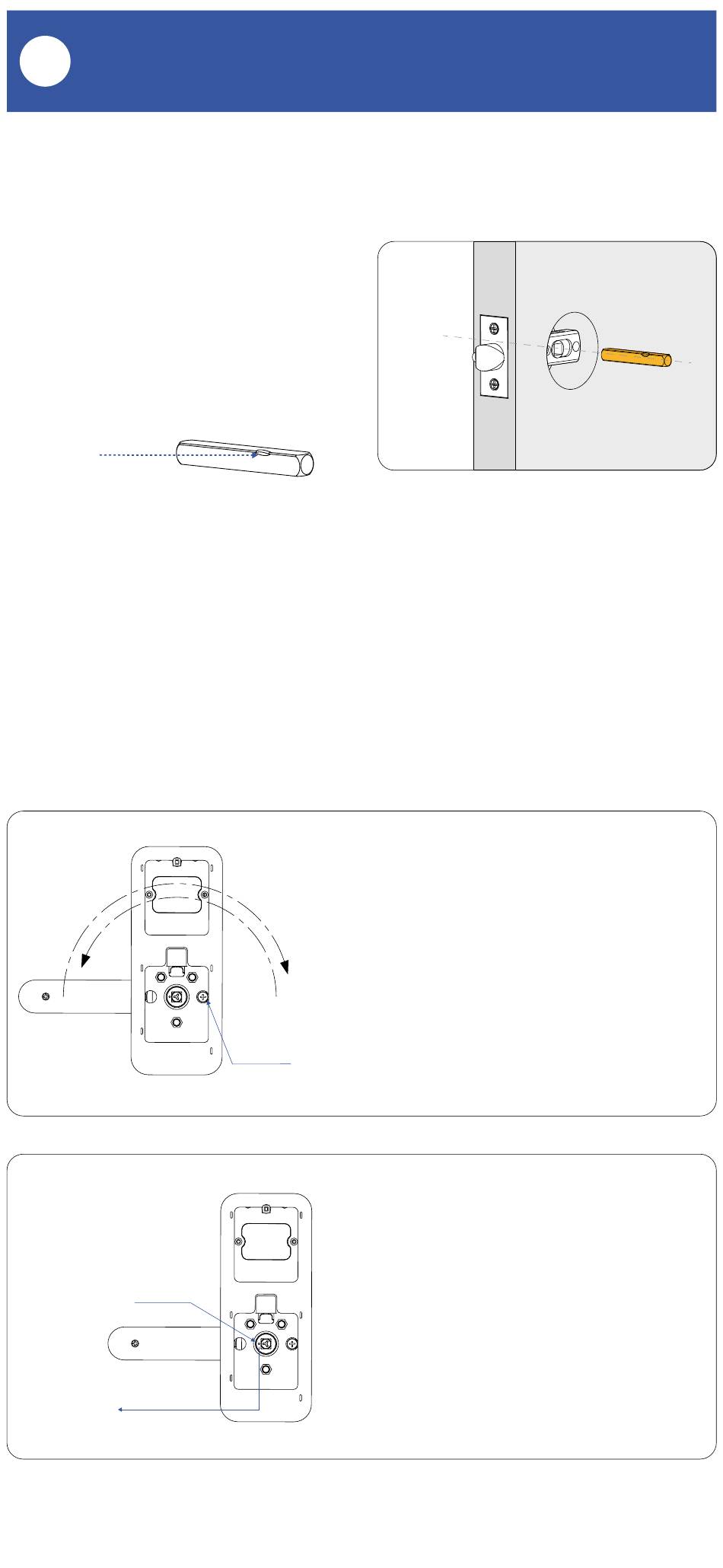

5. Install the square spindle
The dot short side
stands the outside of
the door, and insert the
square spindle into the
square hole of the lock
body
6. Adjust the front handle.
must be same as the handle
- If the lock has the correct door handle, you can
just go to step 6-2.
Small Dot
same direction
Reversing
screw
The Dot direction
6-1
Unscrew the reversing screw,
adjust the direction of handle by
rotating it as needed, tighten the
reversing screw after adjusting.
Press the handle times to ensure
it is smooth, then install the
mounting plate of the front plate.
6-2
According to the direction of the
handle to choose the direction of
the small dot.
