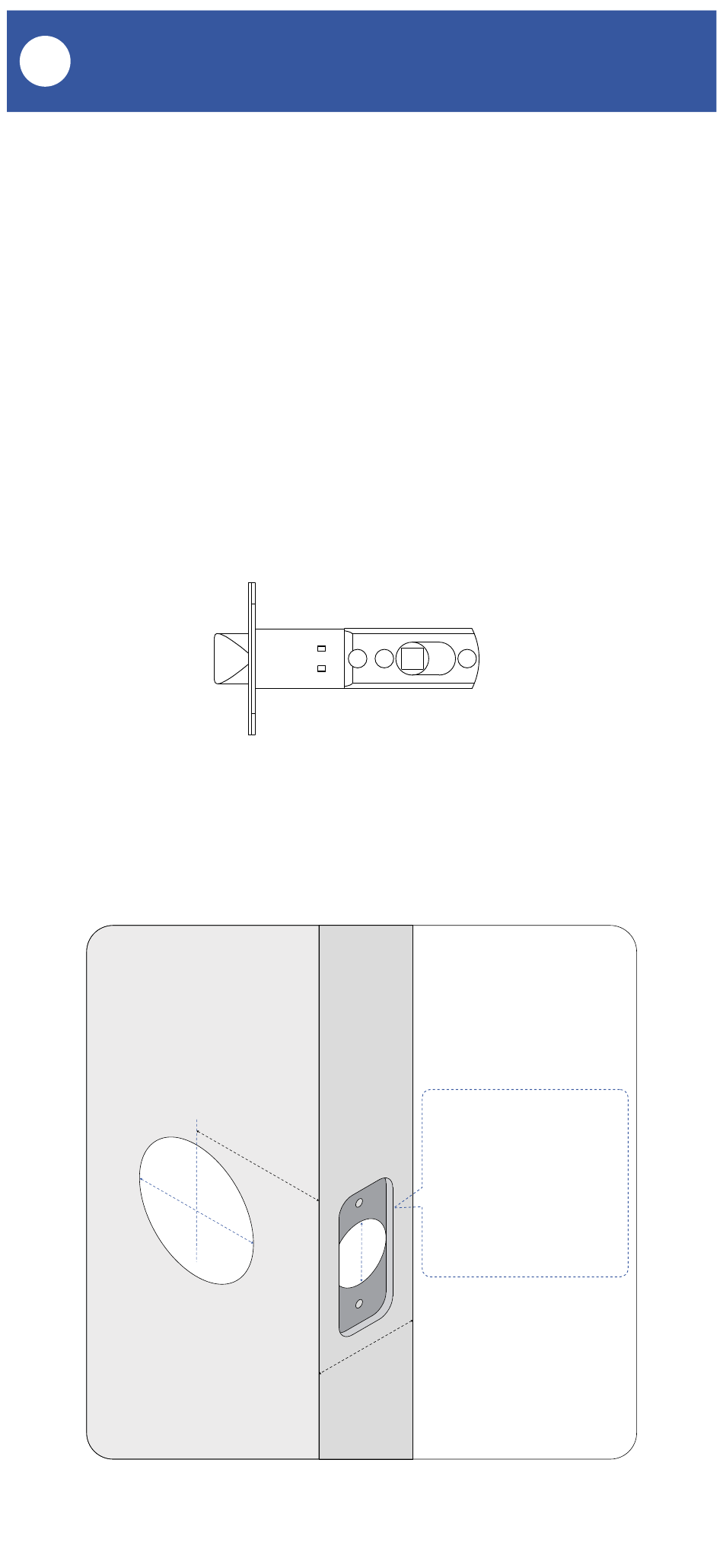

1. Prepare the door and check dimensions
a. Measure to confrm that the hole in the door
2.17" (55mm)
b. Measure to confrm that the backset is either
2.3" or 2.76" (60mm or 70mm)
c. Measure to confirm that the hole in the door
is 0.98" (25mm)
d. Measure to confrm that door thickness is
between 1.57" to 2.16"(40mm to 55mm)
a.
b.
c.
d.
Door thickness:
1.57" to 2.16"
(40mm to 55mm)
Deep: 4mm
Wide: 26mm
Length: 57.5mm
14
