YoLink Smart Lock

(Deadbolt)

YS7616-UC

Installation & User Guide

Revision Aug. 22, 2024

Table of Contents

Need help?

Do you have a question about the YS7616-UC and is the answer not in the manual?

Questions and answers

Summary of Contents for Yolink YS7616-UC

Page 1 YoLink Smart Lock (Deadbolt) YS7616-UC Installation & User Guide Revision Aug. 22, 2024...
Page 2: Table Of Contents
. Before You Begin . In the Box . Get to Know Your YoLink Smart Lock . Install the App . Add Your YoLink Smart Lock to the App . Installation . Operations . App Functions: Device Screen . App Functions: Device Details Screen .
Page 3: Welcome
Welcome Thank you for purchasing YoLink products! We appreciate you trusting YoLink for your smart home & automation needs. Your 100% satisfaction is our goal. If you experience any problems with your installation, with our products or if you have any questions that this manual does not answer, please contact us right away.
Page 4: Before You Begin
Before You Begin Visit our YoLink Smart Lock (Deadbolt) support page on our website, for the latest installation guides, additional resources, information and videos by visiting: https://www.yosmart.com/support/YS7616-UC Or by scanning the QR code: Download the most current version of the user...
Page 5 ﬁngerprint, keypad, IC card, YoLink Fob, and the YoLink App. By adding the smart lock to the YoLink App, you can lock or unlock the door remotely and view historical unlock records, including details such as member, method, date, and time.
Page 6: In The Box
In the Box Front Panel Back Panel Hole Drawing Paper Lock Body key (2) IC Card (2) Strike Plate & Buckle Box Quick Start Guide...
Page 7 In the Box, Continued AA Battery (4, Non-rechargeable) Lock Body Mounting Screws (4) A1. ST4×20 (NO TOP HOLE) A2. M4×40 (OPEN THE TOP HOLE) A3. Mounting Stud (OPEN THE TOP HOLE) A4. M6×50 Screws (2)
Page 8: Get To Know Your Yolink Smart Lock

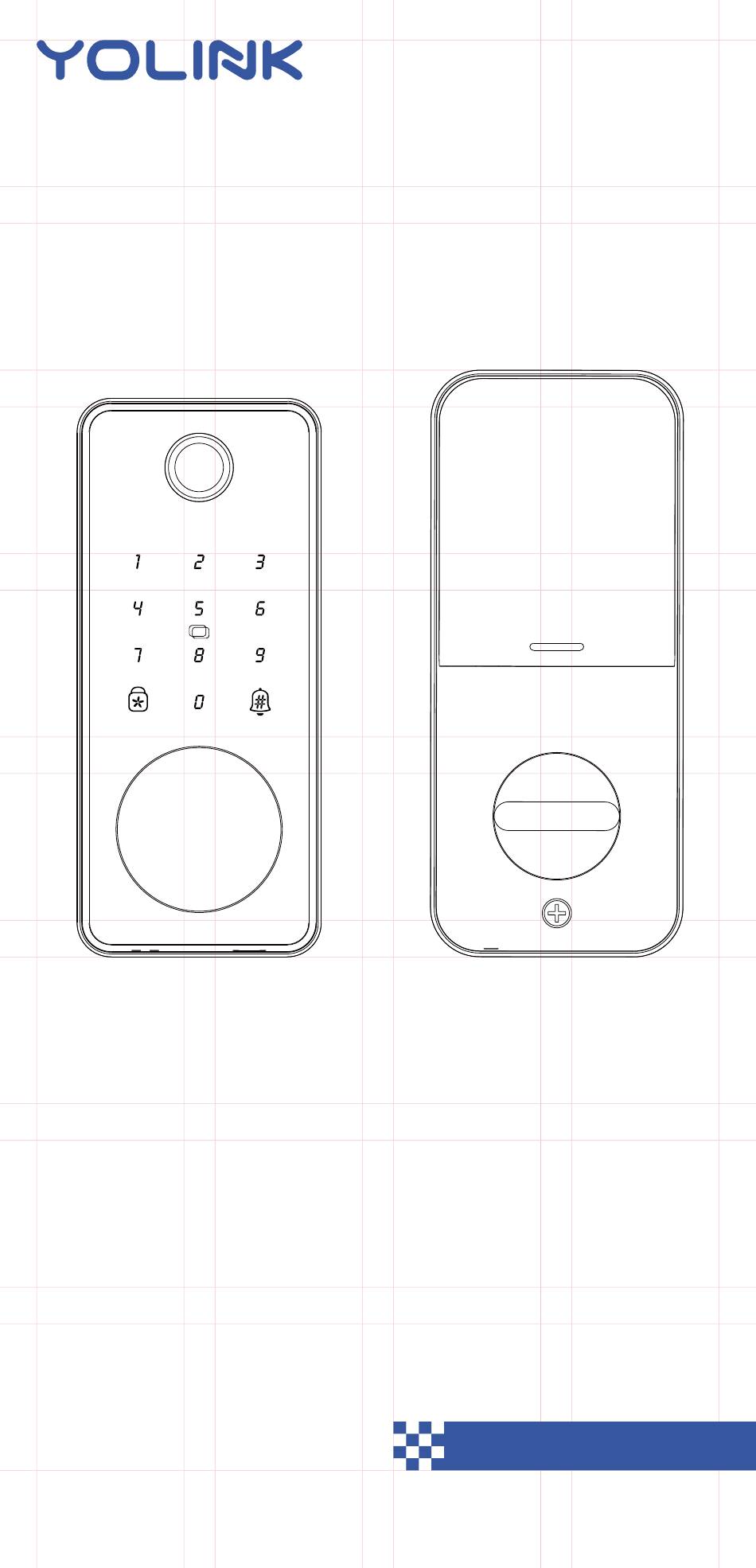

Get to Know Your YoLink Smart Lock (Deadbolt) Front Panel: Fingerprint Scanner Keyboard RFID Scanner Doorbell Button Cylinder (Cover Open) Lock Button The bottom of front panel: Type C port Speaker...
Page 9 Get to Know Your YoLink Smart Lock (Deadbolt), Continued Back Panel: Battery Cover Battery Compartment Housing four AA non-rechargeable batteries Lock Switch The bottom of back panel: SET Button...
Page 10 Get to Know Your YoLink Smart Lock (Deadbolt), Continued 1) Front Panel 9) Battery box (Turn down to release the 2) Assemble Screw Bolt buckle) 3) Installation Ccrew 10) Inner Panel Assemble (Do Not Disassemble) Screw 2 (OPEN THE TOP HOLE OR NO...
Page 11: Install The App
Install the App If you are new to YoLink, please install the app on your phone or tablet, if you have not already. Otherwise, please proceed to the next section. Scan the appropriate QR code below or ﬁnd the “YoLink app” on the appropriate app store.
Page 12: Add Your Yolink Smart Lock To The App
Add Your YoLink Smart Lock (Deadbolt) to the App 1. Tap Add Device (if shown) or tap the scanner icon: Scanner icon 2. Approve access to your phone’s camera, if requested. A viewﬁnder will be shown on the app. 3. Hold the phone over the QR code so that the code appears in the viewﬁnder.
Page 13 Add Your YoLink Smart Lock (Deadbolt) to the App, Continued 4. You can change the device name and assign it to a room later. Tap Bind device. 5. If successful, the screen will appear as shown. Tap Done.
Page 14: Installation
Installation Door thickness: 1.38" to 2.16" (35mm to 55mm) a. Diameter of Front door Small hole 0.78" (20mm) - OPEN THE TOP HOLE OR NO TOP HOLE b. Diameter of Lockset Front door hole 2.17" (55mm) c. Backset thickness: 2.3" or 2.76" (60mm or 70mm) d.
Page 15 Installation, Continued Place the hole drawing papare on the door - OPEN THE TOP HOLE OR NO TOP HOLE OPEN THE TOP HOLE NO TOP HOLE...
Page 16 Installation, Continued 1. Prepare the door and check dimensions a-1. Measure to confrm that the hole in the door is 2.17" (55mm) a-2. Measure the small hole on the front door diameter is 0.78” (20 mm), if OPEN THE TOP HOLE b.
Page 17 Installation, Continued 2. Open the strike hole, deep 25 mm, and install it with screw 25mm 3. Install the Lock Body a. The lock body can rotate to lengths of 60mm and 70mm, with 60mm as the default length. Please choose according to the length of the door panel opening.
Page 18 Installation, Continued b. Adjust the bar is c. Install the lock vertical when body into the door installing panel 4. Install the mounting stud a. Install the mounting stud OPEN THE TOP HOLE √ NO TOP HOLE × b. Adjust the bar is vertical when installing...
Page 19 Installation, Continued 5. Install the Front Panel a. Thread the cable under the lock body OPEN THE TOP HOLE √ NO TOP HOLE × b. Keep the locking bar vertical when installing c. Make the panel close to the door surface...
Page 20 Installation, Continued 6. Install the Back Monuting plate a. Unscrew the back panel screw, remove the back panel parts b. Remove the mounting plate c. Place the cable like this in the mounting plate d. Secure the mounting plate with the supplied screws...
Page 21 Installation, Continued 7. According to your actual door open direction to adjust the knob dot direction Left opening Way door: The Back panel knob adjusted to horizontal Horizontal Left-opening door: points next to “L"...
Page 22 Installation, Continued Right opening Way door: The Back panel knob adjusted to horizontal Vertical Right-opening door: points next to “R"...
Page 23 Installation, Continued 8. Install the Back Panel a. Connect the main cable b. Insert the Back panel with direction of correspondence c. Test if the switch can rotate to open the door. If not, the direction of the knob is incorrect, return to last step to adjust the direction...
Page 24 Installation, Continued 9. Install the battery a. Push upwards to open the battery cover b. Install 4 batteries in the battery compartment C. Install the battery cover Please press and hold the SET button, next install the batteries, then release the SET button, so that the lock can automatically recognize the door swing direction, whether it opens to the left or to the right.
Page 25: Operations
Operations 1. Set the Local Password Each YoLink Smart Lock (Deadbolt) support only one local password. You will need to set the local password physically. - Steps: After waking up the keypad, press *#*#, then enter a 4-8 digit password, and ﬁnally press # to conﬁrm.
Page 26 Operations, Continued 2. Unlock the Door a) Place your ﬁnger on the ﬁngerprint scanner. Once the lock successfully recognizes the ﬁngerprint, the door will unlock. b) Enter a password on the front module followed by the # button. When the password is correct and valid, the door will unlock.
Page 27 The Lock will be automatically locked for 90 seconds after the wrong password is entered for 5 times in 5 minutes, you can’t deal with any operations with the lock. You can unlock the door using a mechanical key or through YoLink app.
Page 28 Operations, Continued 3. Lock the Door Method A: Press the“ " button Method B: Use a mechanical key Method C: Rotate the knob...
Page 29 4. Doorbell There will be an alert notiﬁcation sent to your YoLink account to notice you someone is pressing down the doorbell button. Repeatedly pressing the doorbell within 10 seconds will not trigger another notiﬁcation.
Page 30: App Functions: Device Screen
App Functions: Device Screen In the app, tap on your YoLink Smart Lock (Deadbolt) icon. Your YoLink Smart Lock (Deadbolt) main screen should be similar to the one shown below. Tap to Exit This Screen Device Name Tap for Contact & Support...
Page 31: App Functions: Device Details Screen
App Functions: Device Details Screen Tap the three dots (in the upper right corner) to open the YoLink Smart Lock (Deadbolt) Details screen. Your Smart Lock‘s screen should be similar to the one shown below. Device Type Device Name (Tap to Edit)
Page 32 App Functions: Device Details Screen, Continued Model Number Device EUI Unique Identiﬁer Number Device Serial Number Signal Intensity (From YoLink Hub) Battery Firmware Revision (Refer to page 43) Remove Device from Current Account Tap to delete the device from your YoLink account...
Page 33: App Functions: Temporary Code Manage
App Functions: Temporary Code Management Screen Temporary Code includes One-Time Code, Time-limited Code and Custom Code. Each type of temporary code can be added up to four. One-Time Code is a four-digit number randomly generated by the system and is valid for 24 hours and can only be used once before it expires.
Page 34: App Functions: Member Manage
App Functions: Member Management Screen By default, there is one administrator who cannot be deleted; up to 11 additional members can be added. Clicking on a member's avatar allows you to delete the member. Each member supports four unlocking methods: ﬁngerprint, code, card, and fob.
Page 35: App Functions: Alarm Strategy Screen
App Functions: Alarm Strategy Screen You can set up notiﬁcations in Alarm Strategy settings, make sure you have enabled App, Email, SMS notiﬁcation from the app->Menu-> Settings->Account Settings->Advanced Settings, and veriﬁed your email address and added your phone number in the app. Strategy Name Tap to edit the name Related Devices...
Page 36 Send SMS Tap to select Admin to enable limited text messages, select All (subscribe required-starter or standard plan), if desired to send to all members Trigger Action Tap to choose trigger actions (YoLink sirens, YoLink SpeakerHubs, scene)
Page 37: App Functions: Smart - Scene
App Functions: Smart - Scene Go to App Menu->Settings->Account-> Advanced Settings->Enable the control of security devices, then you can set up scene for your YoLink Smart Lock (Deadbolt). Tap to view the scene history Tap to save the settings Name...
Page 38: App Functions: Smart - Automation
App Functions: Smart - Automation The YoLink Smart Lock (Deadbolt) can be set up as condition or action in automation. To set up as an action, ﬁrstly go to App Menu->Settings-> Account->Advanced Settings->Enable the control of security devices. Tap to save the settings...
Page 39: Control D2D
YS7103 Siren or YS6803 Plug. When the door is unlocked, the Siren will alarm or the Plug will turn on. You can set this up physically or through the app. The following instructions use pairing your smart lock with a YoLink Siren physically as an example.
Page 40 Control D2D, Continued 1. To conﬁgure your Smart Lock as a controller, press and hold the SET button for 5-10 seconds until you hear “Device to Device Pairing Mode,” then release the button. SET Button 5-10 seconds 2. To conﬁgure a Siren as the responder, press and hold the SET button for 5-10 seconds until the LED quickly blinks green, then release the button.
Page 41: App & 3Rd-Party Services
10 to 15 seconds until the LED quickly blinks red, then release the button. App & 3rd-Party Services The YoLink Smart Lock (Deadbolt) works with several voice assistants, including Alexa and Google, and it works with other automation platforms such as IFTTT and Home Assistant.
Page 42: Battery Replacement
Battery Replacement Push upwards to open the battery cover Install 4 batteries in the battery compartment...
Page 43 Battery Replacement, Continued Install the battery cover...
Page 44: Factory Reset
Factory Reset Factory reset will erase device settings and restore it to factory default settings. Doing a factory reset will not remove the device from your account and it will not harm the device, or lose any data or require you to redo your automations, etc.
Page 45: Firmware Update
Firmware Update Your YoLink products are constantly being improved, with new features added. It is periodically necessary to make changes to your device's ﬁrmware. For optimal performance of your system, and to give you access to all available features for your devices, these ﬁrmware updates should be installed when they...
Page 46: Specifications
Speciﬁcations Working Voltage: 4 AA Alkaline Batteries Low Voltage Alarm: 4.8 ± 0.2V Working Temperature: -13°F ~ 158°F (-25°C ~ 70°C) Working Humidity: 25-95% Non-Condensing Backup Power Supply: USB 5V/1A (Type C Port)
Page 47 Speciﬁcations, Continued 1.18” (30.1mm) 2.70” (68.8mm) 3.61” (91.7mm) FRONT SIDE 1.70” (43.4mm) 2.76” (70.3mm) 1.78” (45.4mm) FRONT SIDE...
Page 48: Warnings
Environmental section in Speciﬁcations, on page 44 If your YoLink Smart Lock (Deadbolt) gets dirty, please clean it by wiping it down with a clean, dry cloth. Do not use strong chemicals or detergents, which may...
Page 49 Warnings, Continued Do not install or use this device where it will be subjected to high temperatures and/or open fame Do not install or use this device where it will be subjected to physical impacts and/or strong vibration. Physical damage is not covered by the warranty To avoid damaging the device, if storing the device for an extended period, remove the...
Page 50: Warranty
Warranty 1 Year Limited Electrical Warranty YoSmart Inc. warrants to the original user (“customer”) of this product that it will be free from defects in materials and workmanship, under normal use, for 1 years from the date of purchase. This warranty does not apply to devices that have been improperly installed, modiﬁed, put to a use other than designed, or subjected to acts of God (such as floods,...
Page 51: Fcc Statement
FCC Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Page 52 RF exposure requirement. The device can be used in portable exposure condition without restriction. PRODUCT NAME: SMART LOCK (DEADBOLT) PARTY: YOSMART, INC. TELEPHONE: 831-292-4831 MODEL NUMBER: YS7616-UC ADDRESS: 25172 ARCTIC OCEAN DRIVE, SUITE 106, LAKE FOREST, CA 92630 USA EMAIL: SERVICE@YOSMART.COM...
Page 53: Contact Us
Support Home Page Finally, if you have any feedback or suggestions for us, please email us at feedback@yosmart.com Thank you for trusting YoLink! YoLink Customer Support 25172 Arctic Ocean Drive, Suite 106, Lake Forest, CA 92630 © 2024 YOSMART INC. CALIFORNIA, USA...
