Installation, Continued
G

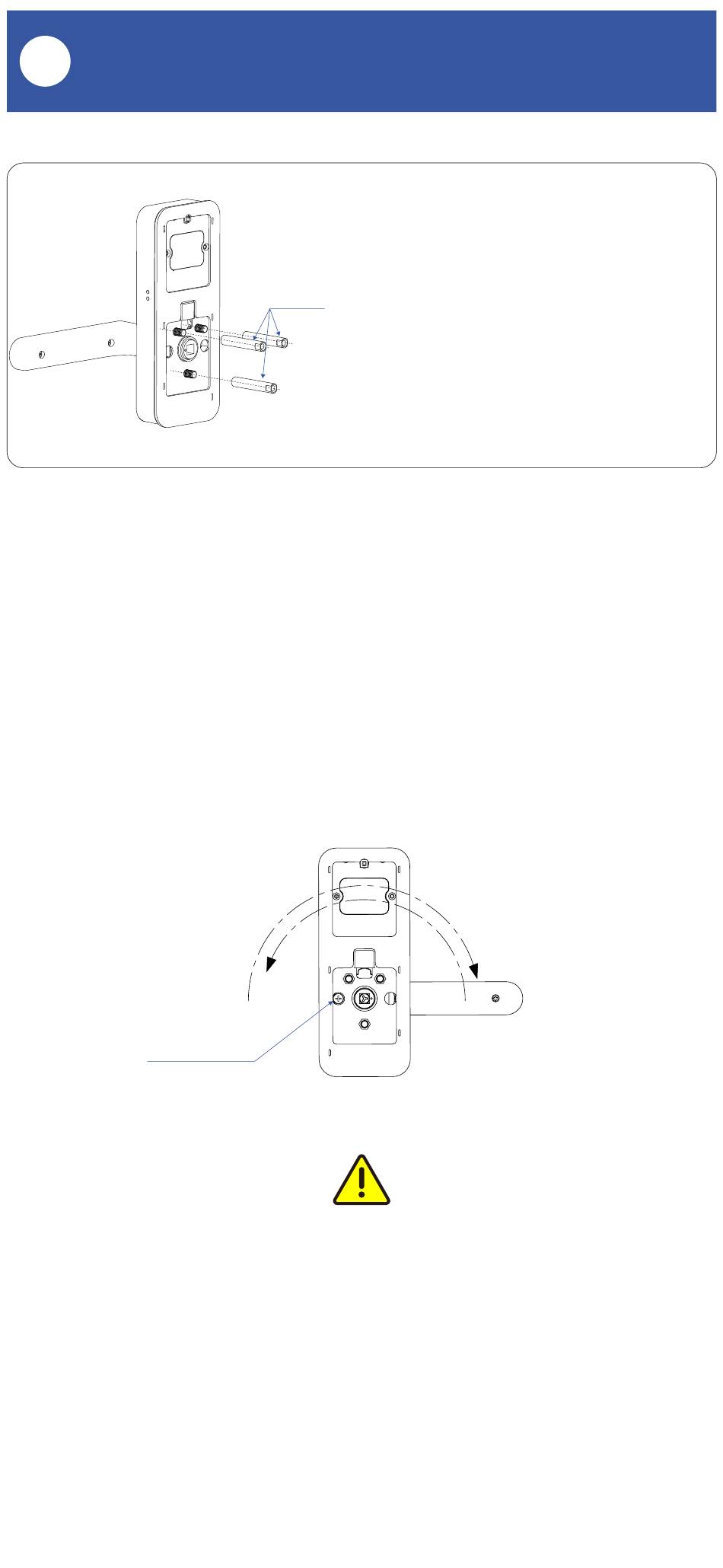

7. Adjust the back handle
Unscrew the reversing screw, adjust the direction
of handle by rotating it as needed, tighten the
reversing screw after adjusting. Press the handle
times to ensure it is smooth.
Reversing
screw
If the lock has the correct door handle, you can
skip straight to step 9.
Mounting
Studs Type
6-3
After door handle reversal is
complete, put mounting studs
onto the front panel.
