Summary of Contents for Leica GS05

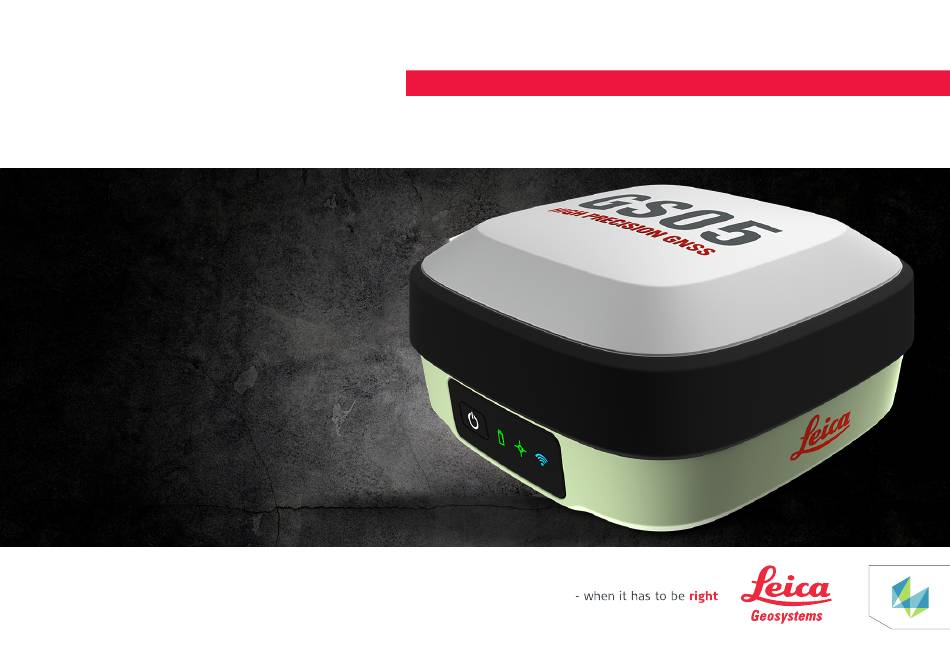

- Page 1 Leica GS05 Quick Guide Version 1.0 English...
- Page 2 Important Information about your Instrument Important Information about your Instrument Read and follow the User Manual on the accompanying data storage device before using the product. ☞ Keep for future reference! Intended use Computing with software • Recording measurements • Carrying out measurement tasks using various GNSS measuring techniques •...
- Page 3 ▶ Do not open the system when it is connected to the power source. ▶ Only open the product if you have completed Leica Geosystems service training. Hereby, Leica Geosystems AG declares that the radio equipment type GS05 is in compliance with Directive 2014/53/EU and other applicable European Directives.
- Page 4 Important Information about your Instrument This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful inter- ference in a residential installation.
- Page 5 Canada Compliance Statement This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: This device may not cause interference This device must accept any interference, including interference that may cause undesired operation of the device Canada Déclaration de Conformité...
-
Page 6: Instrument Components
Instrument Components Instrument Components GS05 components LEDs and ON/OFF button USB-C port Antenna Reference Plane (ARP) RP-SMA connector for external UHF or LTE antenna 27407_001... - Page 7 Keyboard GS05 ON/OFF button 27412_001 Instrument Components...
-
Page 8: Technical Data
Technical Data Technical Data Environmental Temperature specifications Type Operating temperature [°C] Storage temperature [°C] GS05 With internal power: −40 to +80 −30 to +55 With external power: −40 to +65 Protection against water, dust and sand Type Protection GS05 IP66 & IP68, dust tight IEC 60529 MIL STD 810H 506.6 Proc II... - Page 9 Pollution degree Type Pollution GS05 Electrical equipment for outdoor use Humidity Protection Up to 95% The effects of condensation are to be effectively counteracted by periodically drying out the instrument. Altitude Type Protection GS05 Unrestricted Technical Data...
- Page 10 Technical Data Sound level Type Value All instruments No sound emitted or no physical moving parts...
-
Page 11: Care And Transport
Care and Transport Care and Transport Carry the product in its original container or carry the tripod with its legs splayed across your shoulder, to protect the product against shock and vibration. Care and Transport... -
Page 12: Operation
Operation Operation ☞ The battery must be charged before using it for the first time. Turning on and off the instrument 27576_001... - Page 13 Position and Connectivity LEDs light up sequentially one at a time. If GS05 is off Battery status of GS05 is shown when the button is pressed for < 1 s. If GS05 is on Turns off GS05 when held for 2 s.
- Page 14 Operation Button Function If GS05 is on Press and hold button for 7 s. System configuration and network settings on the GNSS instrument are reseted. After the reset, the GNSS instrument is rebooted. ☞ The Position and Connectivity LEDs flash...
- Page 16 989238-1.0.0en Original text (989238-1.0.0en) Printed in Switzerland, © 2024 Leica Geosystems AG Leica Geosystems AG Heinrich-Wild-Strasse 9435 Heerbrugg Switzerland www.leica-geosystems.com...
