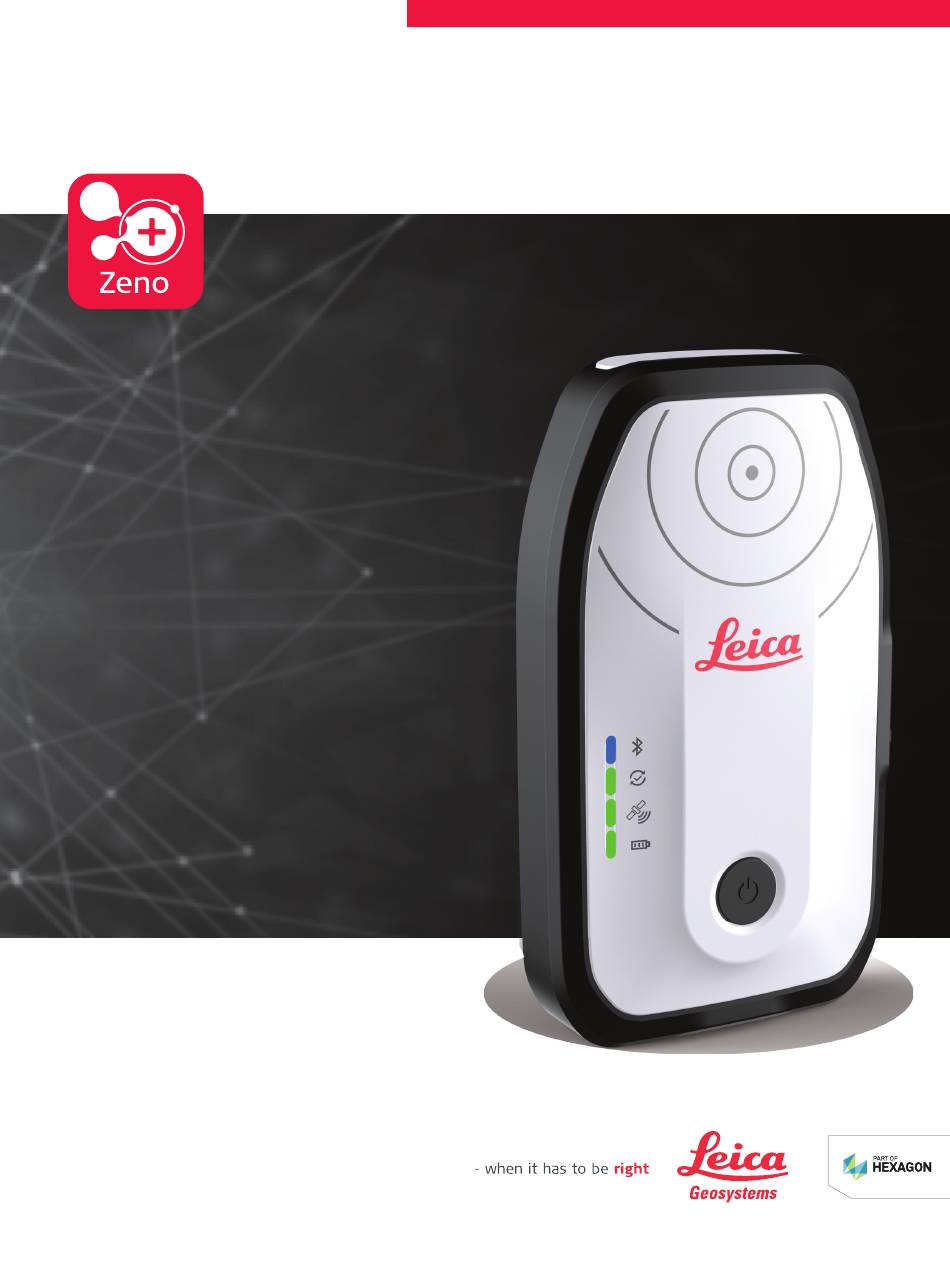

- Page 1 Leica Zeno FLX100 plus Smart Antenna User Manual Version 1.0 English...
- Page 2 Introduction Purchase Congratulations on the purchase of the Leica Zeno FLX100 plus smart antenna. This manual contains important safety directions as well as instructions for setting up the product and operating it. Refer to 1 Safety Directions for fur- ther information.
- Page 3 User Manual. Provides an overview of the product antenna together with technical data and safety directions. User Manual Refer to the myWorld web page for all Leica FLX100 plus smart antenna documentation/software: https://myworld.leica-geosystems.com • https://myworld.leica-geosystems.com offers a wide range of services, inform- ation and training material.
- Page 4 Service Description myDownloads Downloads of software, manuals, tools, training material and news for Leica Geosystems products.
-
Page 5: Table Of Contents
Care and Transport Transport Storage Cleaning and Drying Technical Data Accessories Conformity to National Regulations Dangerous Goods Regulations Leica FLX100 plus Smart Antenna Bundle Standard Configuration Accessories Packages for the FLX100 plus Smart Antenna Software Licence Agreement/Warranty Table of Contents... -
Page 6: Safety Directions
Safety Directions General Introduction Description The following directions enable the person responsible for the product, and the person who actually uses the equipment, to anticipate and avoid opera- tional hazards. The person responsible for the product must ensure that all users understand these directions and adhere to them. -
Page 7: Definition Of Use
Responsibilities Manufacturer of the Leica Geosystems AG, CH-9435 Heerbrugg, hereinafter referred to as Leica product Geosystems, is responsible for supplying the product, including the User Manual and original accessories, in a safe condition. -
Page 8: Hazards Of Use
To be familiar with local regulations relating to safety and accident pre- • vention To stop operating the system and inform Leica Geosystems immediately if • the product and the application become unsafe To ensure that the national laws, regulations and conditions for the oper- •... - Page 9 DANGER Risk of electrocution Because of the risk of electrocution, it is dangerous to use poles, levelling staffs and extensions in the vicinity of electrical installations such as power cables or electrical railways. Precautions: ▶ Keep at a safe distance from electrical installations. If it is essential to work in this environment, first contact the safety authorities responsible for the electrical installations and follow their instructions.
- Page 10 Risk of injuries to users and equipment destruction due to lack of repair knowledge. Precautions: ▶ Only authorised Leica Geosystems Service Centres are entitled to repair these products. For the AC/DC power supply: WARNING Electric shock due to missing ground connection If unit is not connected to ground, death or serious injury can occur.
- Page 11 • Precautions: ▶ Do not open the product! ▶ Only Leica Geosystems authorised service centres are entitled to repair these products. CAUTION Unapproved chargers or cables Connecting the charger improperly may cause serious damage to the device. Any damage caused by misuse is not covered by the warranty. Unapproved chargers or cables can cause the battery to explode or damage the device.
- Page 12 Before any cleaning procedure, ensure that the instrument is switched off and the battery has been removed. CAUTION Unused connectors must be protected using the attached dust cap. NOTICE Rooting your Android device will void your right for any warranty services and support by Leica! Safety Directions...
-
Page 13: Description Of The System
Is designed to be used on the pole or on the Universal Handheld Tray. It • calculates a position from the computed ranges to all visible and activated GNSS satellites Can communicate with Leica Zeno GIS software: • Zeno Mobile, •... -
Page 14: Instrument Components

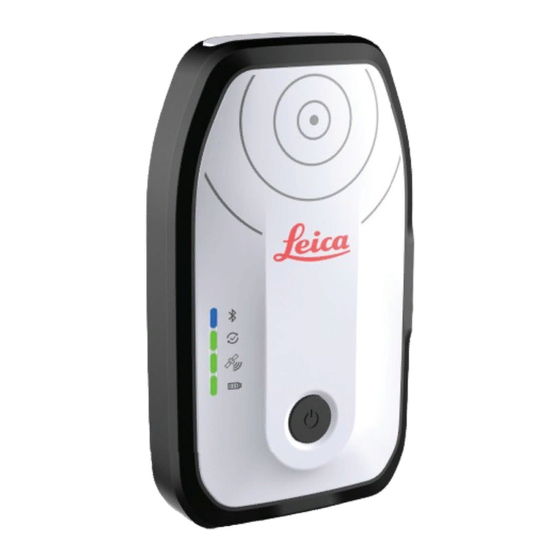

Instrument Components Description 25020_001 Connection LED – blue when Bluetooth connected GNSS correction indicator – green when receiving correction data Satellite LED – green when position available Battery LED indicator – Green during normal operation – Red when power < 10% –... -
Page 15: Accessories
Accessories Operation with pole Pole setup. Leica FLX100 plus smart antenna AZ219 Pole Mount GLS30 Carbon Pole 25023_001 Operation with Using the AZ220 Universal Handheld Tray for FLX100 plus smart antenna. smartphone Leica FLX100 plus smart antenna AZ220 Universal Handheld... -
Page 16: Operation
Operation Power On/Off, Reset, Charging Description Power on/off button Battery LED indicator 25013_001 Function Description Power on/off Turn on: Press and hold the power button until all LEDs switch on. The device sounds a beep when ready for use. ☞ The device starts booting after the LEDs switch on. - Page 17 Setup with Universal Use the Universal Handheld Tray to attach the FLX100 plus smart antenna with Handheld Tray phone/tablet. The Universal Handheld Tray keeps the FLX100 plus smart antenna and phone/ tablet together. This setup maximises the productivity in the field. The Uni- versal Handheld Tray has a spring-loaded frame to hold a phone/tablet of different sizes.
-
Page 18: Phase Centre Of The Flx100 Plus Smart Antenna
Phase Centre of the FLX100 plus Smart Antenna Phase centre The phase centre of the FLX100 plus smart antenna location is at the dot near the top of the device. Pole mode In pole mode, the offset from the phase centre to the top of the pole, includ- ing the pole adapter mount, is automatically accounted. -
Page 19: Configure Real-Time Corrections
Configure Real-time Corrections Step-by-step This step-by-step procedure describes the configuration of the real-time cor- rection in Zeno Mobile and Zeno Connect. RTK Profile Wizard In Zeno Mobile Go to Settings within a project. Access GPS and then Realtime Cor- rections. In Zeno Connect Open the app and go to Settings. -
Page 20: Firmware Upload
Download Firmware ☞ The latest firmware is always available on myWorld. https://myworld.leica-geosystems.com Download the firmware ZIP file from the FLX100 Firmware option in the Software section of the antenna in myWorld. Send Firmware to FLX100 plus smart antenna by Bluetooth Unzip the file "update.bin"... -
Page 21: Care And Transport
Shipping When transporting the product by rail, air or sea, always use the complete original Leica Geosystems packaging, container and cardboard box, or its equi- valent, to protect against shock and vibration. Shipping, transport of When transporting or shipping batteries, the person responsible for the... -
Page 22: Cleaning And Drying
Cleaning and Drying Product and Use only a clean, soft, lint-free cloth for cleaning. If necessary, moisten • accessories the cloth with water or pure alcohol. Do not use other liquids; these may attack the polymer components. Damp products Dry the product, the container, the foam inserts and the accessories at a temperature not greater than 40 °C/104 °F and clean them. -
Page 23: Technical Data
139 × 80.6 × 31 Weight Weight [g] Connector 1 USB-C connector, supports USB 2.0 Mounting Universal Handheld Tray Snap on handheld device and Leica FLX100 plus smart antenna Pole Leica FLX100 plus smart antenna mounted on Pole Adapter/Pole System Processor... -
Page 24: Accessories
USB cable, Arm/Belt pouch Optional accessories Carbon fiber pole, telescopic pole, bracket 5/8", soft bag Universal Handheld Tray Conformity to National Regulations Labelling Leica FLX100 plus smart antenna Model: Zeno FLX100 plus Smart Antenna Art. No.: 958981 Input: 2A DC Battery: 3.85V 6120mAh /23.562Wh... - Page 25 20 cm between you (or any other person in the vicinity) and the instrument. Hereby, Leica Geosystems AG declares that the radio equipment type FLX100 plus smart antenna is in compliance with Direct- ive 2014/53/EU and other applicable European Directives.
-
Page 26: Dangerous Goods Regulations
Leica Geosystems has developed Guidelines on “How to carry Leica ☞ products” and “How to ship Leica products” with Lithium batteries. Before any transportation of a Leica product, we ask you to consult these guidelines on our web page (IATA Lithium... - Page 27 Damaged or defective batteries are prohibited from being carried or ☞ transported onboard any aircraft. Therefore, ensure that the condi- tion of any battery is safe for transportation. Technical Data...
-
Page 28: Leica Flx100 Plus Smart Antenna Bundle
AZ222 Arm/Belt pouch Soft bag for Leica FLX100 plus smart antenna, black Cardboard box Accessories Overview List of accesories available for the Leica FLX100 plus smart antenna: Part number Description AZ219 Pole Mount to attach the Leica FLX100 plus smart... -
Page 29: Packages For The Flx100 Plus Smart Antenna
The Pole is an optional accessory for the Leica FLX100 plus smart antenna. To use the Leica FLX100 plus smart antenna on a Pole, the appropriate adapter is required. This mounting allows customers to use the instrument vertically for precise and stable support. - Page 30 Part number, Description Package 6015970 Leica Zeno FLX100 plus smart antenna including: FLX100 plus Pole Multi-constellation support, • Start package GPS, GLONASS, Galileo and BeiDou with Zeno Mobile Power adapter • USB-C charging cable • USB-C/USB-A cable • Arm/Belt pouch arm bag •...
-
Page 31: Software Licence Agreement/Warranty
Property Rights, Limitation of Liability, Exclusion of other Assurances, Govern- ing Law and Place of Jurisdiction. Please make sure, that at any time you fully comply with the terms and conditions of the Leica Geosystems Software Licence Agreement. Such agreement is provided together with all products and can also be referred to and downloaded at the Leica Geosystems home page at Hexagon −... - Page 32 970060-1.0.0en Original text (970060-1.0.0en) Published in Switzerland, © 2022 Leica Geosystems AG Leica Geosystems AG Heinrich-Wild-Strasse 9435 Heerbrugg Switzerland www.leica-geosystems.com...
- Page 33 Specific Absorption Rate (SAR) information: This Smart Phone meets the government's requirements for exposure to radio waves. The guide lines are based on standards that were developed by independent scientific organizations through periodic and thorough evaluation of scientific studies. The standards include a substantial safety margin designed to assure the safety of all persons regardless of age or health.
