Version 1.0
English
Leica GeoPRO antenna
Installation guide

Advertisement

loading
Need help?

Need help?

Do you have a question about the GeoPRO and is the answer not in the manual?

Questions and answers

Summary of Contents for Leica GeoPRO

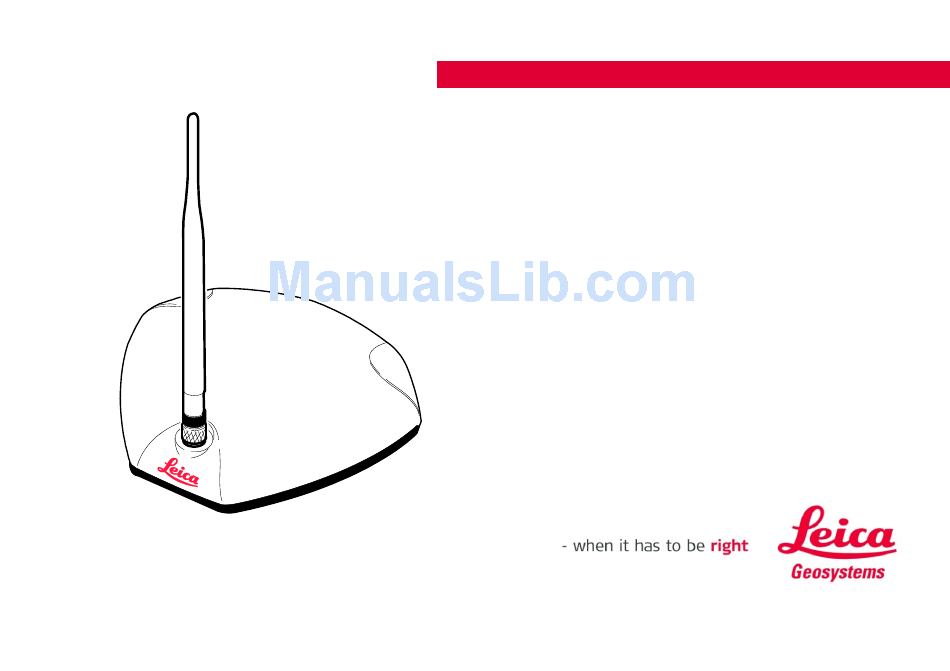

  • Page 1 Leica GeoPRO antenna Installation guide Version 1.0 English...
  • Page 2 Leica GeoPRO antenna – Installation Guide Table of contents     Leica GeoPRO Antenna Installation ....................3     Redeeming a System Option Voucher ....................7     Entering a Feature Unlock Code ...................... 9...
  • Page 3 This manual contains instructions for installing and setting up the product to operate with a Leica mojo3D. Read carefully though this manual before starting the installation. As this product is used solely with the Leica mojo3D it is mandatory to observe the safety directions and instructions contained in the corresponding user manual.
  • Page 4 5. You have several options for how you want the cables to exit the antenna cover. Choose whatever works best for your application. 6. Install the whip antenna on the GeoPRO antenna. Keep in mind that the whip antenna should be mounted on the GeoPRO antenna to...
  • Page 5 GeoPRO antenna The GeoPRO antenna should be mounted on the vehicle roof: position • on the centre line of the implement, which may not necessarily be the centre of the vehicles roof • as far forward as possible on the flat level part of the roof •...
  • Page 6 3. Mount the GeoPRO antenna on the vehicle roof. Keep in mind that the GeoPRO antenna should mount with the whip antenna in the forward position.
  • Page 7 Redeeming a System Option Voucher General information If the Leica GeoPRO antenna was purchased as a bundle with GLONASS the kit will include a voucher. To enable the GLONASS option on the mojo3D, enter the voucher code on http://www.virtualwrench.com/redeem along with the serial number of the mojo3D. A device specific code will be generated which can be entered onto the mojo3D to unlock the feature.
  • Page 8 Leica GeoPRO antenna – Installation Guide 2. Visit http://www.virtualwrench.com/redeem and follow the instructions on screen. 3. On successful completion a feature unlock code will be provided. This unlock code is unique to the device with the serial number entered. •...
  • Page 9 3. To activate a new feature, tap the enter new code button. Use the on-screen keyboard to enter the new code. 4. Tap to save the settings and return to the main navigation screen. Leica GeoPRO antenna – Installation Guide...
  • Page 10 Leica Geosystems AG Heinrich-Wild-Strasse CH-9435 Heerbrugg Switzerland Phone: +41 71 727 31 31 www.leica-geosystems.com...
