- Page 1 All manuals and user guides at all-guides.com Leica Zeno GG04 User Manual Version 1.0 English...
- Page 2 Product Identifica- The model and serial number of your product are indicated on the type plate. tion Always refer to this information when you need to contact your agency or Leica Geosystems authorised service centre. Trademarks • Windows is a registered trademark of Microsoft Corporation in the United States and other countries ®...
- Page 3 Add all products that you and your company own and explore your world of Leica Geosystems: View detailed information on your prod- ucts and update your products with the latest software and keep up- to-date with the latest documentation.
-
Page 4: Table Of Contents
Transport Storage Cleaning and Drying Technical Data Tracking Characteristics GG04 Accuracy Technical Data Conformity to National Regulations 5.4.1 Dangerous Goods Regulations Software Licence Agreement Appendix A Firmware Upgrade Appendix B Pin Assignments and Sockets Leica Zeno GG04, Table of Contents... -
Page 5: Safety Directions
• Measuring raw data using carrier phase and code signal from GNSS satellites. • Computing with software. • Recording measurements. • Recording GNSS and point related data. • Carrying out measurement tasks using various GNSS measuring techniques. • Data communication with external appliances. Leica Zeno GG04, Safety Directions... -
Page 6: Limits Of Use
• To ensure that it is used in accordance with the instructions. • To be familiar with local regulations relating to safety and accident prevention. • To inform Leica Geosystems immediately if the product and the application becomes unsafe. • To ensure that the national laws, regulations and conditions for the operation of the product are respected. - Page 7 Precautions: Make sure that the battery terminals do not come into contact with metallic objects. Leica Zeno GG04, Safety Directions...
- Page 8 Always prevent access to the product by unauthorised personnel. Product-specific treatment and waste management information can be received from your Leica Geosystems distributor. Only Leica Geosystems authorised service centres are entitled to repair these prod- WARNING ucts. If the accessories used with the product are not properly secured and the product is...
-
Page 9: Electromagnetic Compatibility Emc
Electromagnetic radiation can cause disturbances in other equipment. WARNING Although the product meets the strict regulations and standards which are in force in this respect, Leica Geosystems cannot completely exclude the possibility that other equipment may be disturbed. Leica Zeno GG04, Safety Directions... - Page 10 Precautions: Although the product meets in combination with radio or digital cellular phone devices recommended by Leica Geosystems the strict regulations and standards which are in force in this respect, Leica Geosystems cannot completely exclude the possibility that other equipment may be disturbed or that humans or animals may be affected.
-
Page 11: Fcc Statement, Applicable In U
This Class (B) digital apparatus complies with Canadian ICES-003. WARNING Cet appareil numérique de la classe (B) est conforme à la norme NMB-003 du Canada. Changes or modifications not expressly approved by Leica Geosystems for compliance WARNING could void the user's authority to operate the equipment. -

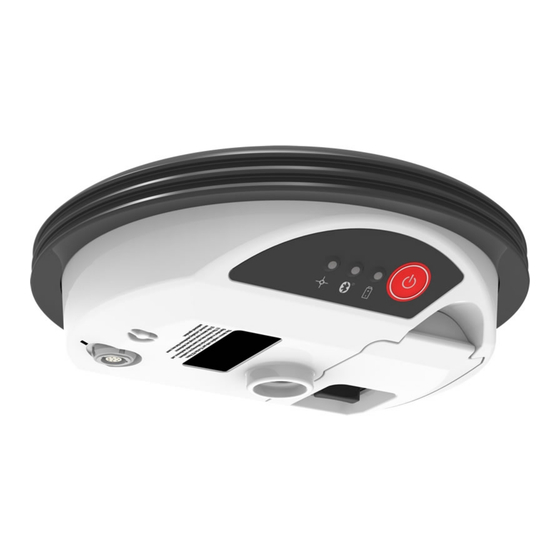

Page 12: Description Of The System
The instrument is delivered with the latest firmware version installed. If a new firm- ware version is released at a later point in time, use the Leica Zeno GIS software on Windows to upload this version by a Bluetooth connection. Refer to "Appendix A Firm- ware Upgrade"for firmware upgrade of the instrument. -
Page 13: Data Collection
Power is low (<5%). Data Collection Live and raw data The instrument can be connected with Leica Zeno GIS software and Leica Zeno hard- collection ware or selected Android or Windows devices to collect or verify assets in the field and to collect raw data. -
Page 14: Power Concept
Leica Zeno GIS Software Description All Leica Zeno GIS hardware and software can utilise the GG04 with a survey pole. The compatible hardware includes the Zeno 5, Zeno 10, Zeno 15, CS25, CS25 plus, CS25 GNSS, CS25 LRBT and selected Android or Windows devices. -
Page 15: Operation
• It is normal for the battery to become warm during charging. Using the chargers recommended by Leica Geosystems, it is not possible to charge the battery once the temperature is too high. • For new batteries or batteries that have been stored for a long time (> three months), it is effectual to make only one charge/discharge cycle. -
Page 16: Battery For Gg04
Place the battery into the battery compartment, ensuring that the contacts are facing outward. Click the battery into position. Close the battery compartment. Lock the battery compartment by pushing the slide fastener in the direction of the arrow with the close-lock symbol. Leica Zeno GG04, Operation... -
Page 17: Equipment Setup As A Real-Time Rover
Description This chapter shows a possible pole setup with Leica Zeno GIS hardware and software. Connection between the GG04 instrument and the field controller is made through Bluetooth. All hardware is fixed on a Leica carbon pole in this example. -
Page 18: Setup With Third-Party Android Mobile Devices
Zeno Connect to utilise the position in a third-party software. Connection between the GG04 instrument and the mobile device is made through Bluetooth. All hardware is fixed on a Leica carbon pole in this example. • The antenna is mounted directly using screw fitting. -
Page 19: Connection With Leicazeno Gis Software
All manuals and user guides at all-guides.com Connection with Leica Zeno GIS Software Description The GG04 is fully supported from: • Zeno Field V3.4 onwards • Zeno Mobile V1.7 onwards • Zeno Connect V2.5 onwards Consult the corresponding documentation for detailed help with software installation and instructions. -
Page 20: Care And Transport
Shipping When transporting the product by rail, air or sea, always use the complete original Leica Geosystems packaging, container and cardboard box, or its equivalent, to protect against shock and vibration. Shipping, transport When transporting or shipping batteries, the person responsible for the product must... -
Page 21: Technical Data
Baseline mode L1 Phase 10 mm + 2 ppm RMS Measurement precision, accuracy and reliability depend upon various factors including number of available satellites, geometry proximity to base station, multipath effects or ionospheric conditions. Leica Zeno GG04, Technical Data... -
Page 22: Technical Data
), voltage range 10.5–28 V Internal battery Type: Li-Ion Voltage: 7.4 V Capacity: GEB212 - 2.6 Ah Typical operating time*: GNSS only - 10 h RTK - 8 h * May vary with temperature, battery age or usage. Leica Zeno GG04, Technical Data... - Page 23 Tested for 2 hours in 1.40 m depth. Dust tight. Humidity Up to 100%. Periodically drying out the instrument effectively counteracts the effects of condensation. Serial ports Description Default setting Baud rates 4800–230400 baud, incl. RTS/CTS 115200/N/8/1/N Leica Zeno GG04, Technical Data...
-
Page 24: Conformity To National Regulations
• FCC Part 15, 22 and 24 (applicable in US) national regulations • Hereby, Leica Geosystems AG, declares that the product Leica GG04 is in compli- ance with the essential requirements and other relevant provisions of Directive 1999/5/EC. The declaration of conformity can be consulted at http://www.leica- geosystems.com/ce. -
Page 25: Dangerous Goods Regulations
Leica Geosystems has developed Guidelines on “How to carry Leica products” and “How to ship Leica products” with Lithium batteries. Before any transpor- tation of a Leica product, we ask you to consult these guidelines on our web page (http://www.leica-geosystems.com/dgr) to ensure that you are in accord- ance with the IATA Dangerous Goods Regulations and that the Leica products can be transported correctly. -
Page 26: Software Licence Agreement
Leica Geosystems. Such software is protected by copyright and other laws and its use is defined and regulated by the Leica Geosystems Software Licence Agreement, which covers aspects such as, but not limited to, Scope of the Licence, Warranty, Intellectual Property Rights, Limitation of Liability, Exclusion of other Assurances, Governing Law and Place of Jurisdiction. -
Page 27: Appendix A Firmware Upgrade
Connect the GG04 to your computer by Bluetooth. Use Leica Zeno Firmware Upload Tool to upgrade the latest firmware version. Refer to the corresponding software documentation on how to connect the instrument to your device and how to use Leica Zeno GIS Tools. -
Page 28: Appendix B Pin Assignments And Sockets
RS232, receive data PIN_001 RS232, transmit data Identification pin In or out Power input, 10.5 V-28 V TRM_ON/USB_ID RS232, general purpose signal In or out Sockets 8 pin LEMO-1: LEMO-1, 8 pin, LEMO EGI.1B.308.CLN Leica Zeno GG04, Pin Assignments and Sockets... - Page 29 All manuals and user guides at all-guides.com...
- Page 30 All manuals and user guides at all-guides.com 845811-1.0.0en Original text Published in Switzerland © 2017 Leica Geosystems AG, Heerbrugg, Switzerland Leica Geosystems AG Heinrich-Wild-Strasse CH-9435 Heerbrugg Switzerland Phone +41 71 727 31 31 www.leica-geosystems.com...
