Summary of Contents for Leica Zeno FLX100

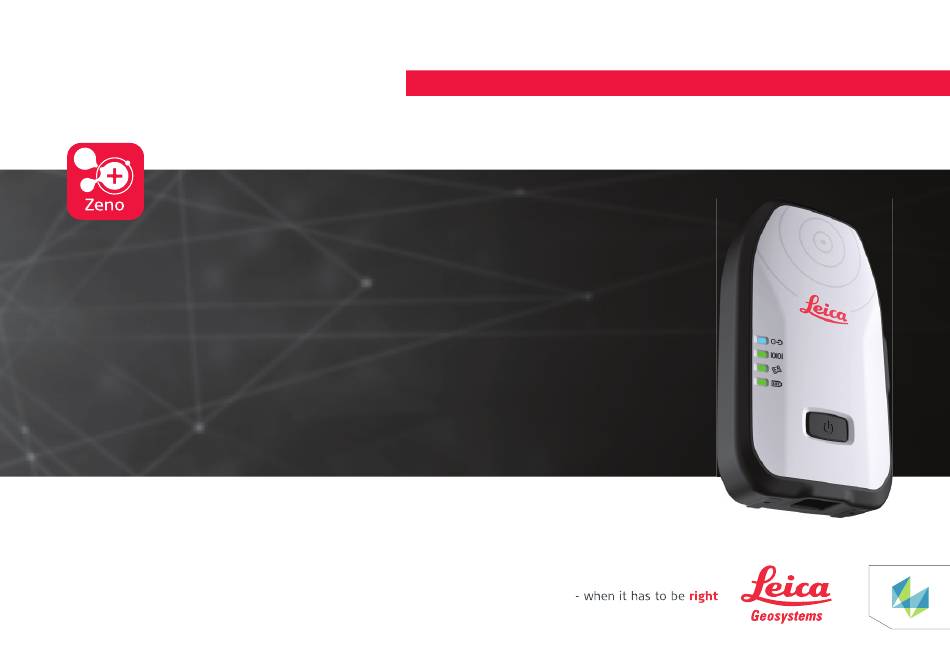

- Page 1 Leica Zeno FLX100 Smart Antenna Quick Guide Version 1.0 English...
- Page 2 Important Information about your Instrument Important Information about your Instrument Read and follow the User Manual from the myWorld web page before using the product. myWorld@Leica Geosystems https://myworld.leica-geosystems.com ☞ Keep for future reference! Intended use Measuring raw data and computing coordinates using carrier phase and •...
- Page 3 Touching live components • Using the product after incorrect attempts were made to carry out repairs. • Precautions: ▶ Do not open the product! ▶ Only Leica Geosystems authorised service centres are entitled to repair these products. Important Information about your Instrument...
- Page 4 Important Information about your Instrument Conformity to FCC Part 15 (applicable in US) • national Hereby, Leica Geosystems AG declares that the radio equipment type • regulations FLX100 smart antenna is in compliance with Directive 2014/53/EU and other applicable European Directives.
-
Page 5: Instrument Components
Instrument Components Description Connection LED Data link LED Satellite LED Battery LED indicator Power button USB type-C port 21306_002 Description Holes for the screws to fix the pole adapter 21307_001 Important Information about your Instrument... -
Page 6: Technical Data
Technical Data Technical Data Power Internal battery 3.8 V, 6120 mAh Type-C charging, support 1.44 A fast charge Input voltage 5 V DC/2 A Power consumption 1.8 W Working time Up to 10 hours (post processing) Up to 8 hours (RTK with GSM) Charge time Typically 6 hours Environmental... -
Page 7: Care And Transport
External influences Protection Shock resistance Designed to endure to a 2 m pole drop and 1.2 m free drop on concrete floor with no damage Care and Transport Care and transport Carry the product in its original container to protect the product against shock and vibration. -
Page 8: Operation
Operation Operation ☞ The battery must be charged before using it for the first time. Turning on/off the Turn on: instrument Press and hold the power button until the battery LED goes green and the device sounds a beep. Turn off: Press and hold the power button until the battery LED goes out and the device sounds a beep. - Page 9 Search for your FLX100 smart antenna with its serial number. Find target FLX100 smart antenna serial number. Push Connect. Connect the Handheld to the Pole Step-by-step Follow these steps to connect the handheld to the pole. 21376_001 Use a slot screwdriver to fix the pole adapter with both screws to the FLX100 smart antenna.
- Page 10 922524-1.0.0en Original text (922524-1.0.0en) Printed in Switzerland © 2020 Leica Geosystems AG, Heerbrugg, Switzerland www.leica-geosystems.com...
-
Page 11: Fcc Warning Statements
FCC warning statements: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. - Page 12 IC warning statements: -English Warning Statement: “This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device." The digital apparatus complies with Canadian CAN ICES-3 (B)/NMB-3(B).
