Sloan Optima Plus 8110 Installation Instructions Manual

Sensor activated battery powered flushometer

Advertisement

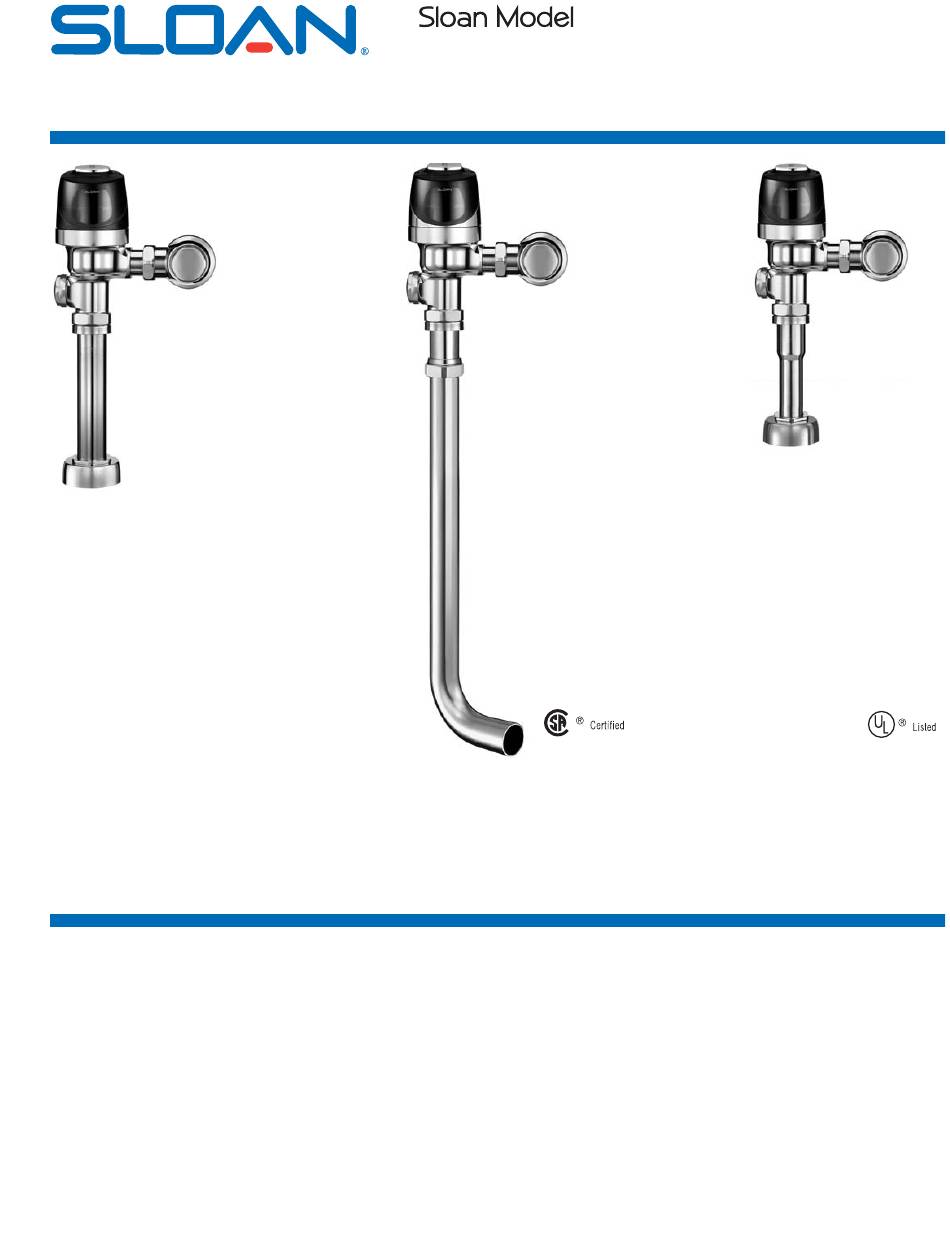

Exposed
Closet Flushometer
1-1/2" Top Spud
Model 8110/8111
Model 8113
Model 8115
Model 8116
Optima Plus Water Closet Models can be furnished for the following:
1.6 gpf/6.0 Lpf
For Low Consumption Bowls
2.4 gpf/9.0 Lpf
For 9 Liter European Water Closets
3.5 gpf/13.2 Lpf
For older Water Closets
Made in the U.S.A.
Sloan Valve Company warrants its Sloan Optima Plus Flushometers to be made of first class materials, free from defects of material or workmanship under normal use and to perform the
service for which they are intended in a thoroughly reliable and efficient manner when properly installed and serviced, for a period of three years (1 year for special finishes) from date of
purchase. During this period, Sloan Valve Company will, at its option, repair or replace any part or parts which prove to be thus defective if returned to Sloan Valve Company, at customer's
cost, and this shall be the sole remedy available under this warranty. No claims will be allowed for labor, transportation or other incidental costs. This warranty extends only to persons or
organizations who purchase Sloan Valve Company's products directly from Sloan Valve Company for purpose of resale. This warranty does not cover the life of the batteries.
THERE ARE NO WARRANTIES WHICH EXTEND BEYOND THE DESCRIPTION ON THE FACE HEREOF. IN NO EVENT IS SLOAN VALVE COMPANY RESPONSIBLE FOR ANY
CONSEQUENTIAL DAMAGES OF ANY MEASURE WHATSOEVER.
PRIOR TO INSTALLING THE SLOAN OPTIMA PLUS
FLUSHOMETER
Prior to installing the Sloan Optima Plus Flushometer, install the items listed
below as illustrated in the Rough-in Diagram. (New installations only.)
• Closet or Urinal fixture
• Drain line
• Water supply line
Important:
• INSTALL ALL PLUMBING IN ACCORDANCE WITH APPLICABLE CODES
AND REGULATIONS.
• WATER SUPPLY LINES MUST BE SIZED TO PROVIDE AN ADEQUATE
VOLUME OF WATER FOR EACH FIXTURE.
• WHEN INSTALLING A FLUSHOMETER, IT IS IMPORTANT THAT THE FLUSH
MODEL MATCHES THE REQUIREMENTS OF THE PLUMBING FIXTURE.
• FLUSH ALL WATER LINES PRIOR TO MAKING CONNECTIONS.
INSTALLATION INSTRUCTIONS FOR SENSOR ACTIVATED
BATTERY POWERED FLUSHOMETER
Exposed
Closet Flushometer
1-1/2" Back Inlet
Squat Toilet
Model 8137
LIMITED WARRANTY
The Sloan Optima Plus is designed to operate with 15 to 100 PSI (104 to
689 kPa) of water pressure. THE MINIMUM PRESSURE REQUIRED TO THE
VALVE IS DETERMINED BY THE TYPE OF FIXTURE SELECTED. Consult
fixture manufacturer for pressure requirements.
Most Low Consumption water closets (1.6 gallon/6.0 liter) require a
minimum flowing pressure of 25 psi (172 kPa).
TOOLS REQUIRED FOR INSTALLATION
• Slotted screwdriver to adjust control stop.
• Sloan A-50 Super-Wrench™, Sloan A-109 Plier Wrench or smooth jawed
spud wrench for couplings.
• Trimpot adjustment screwdriver (supplied) to adjust range, if necessary.
• Strap wrench (supplied) to install Optima Plus to valve body.
• 7/64" hex wrench (supplied) to secure Optima Plus cover to base plate.
Urinal Flushometer
Optima Plus Urinal Models can be furnished for the following:
0.5 gpf/1.9 Lpf
For Wash Down Urinals
1.0 gpf/3.8 Lpf
For Low Consumption Urinals
1.5 gpf/5.7 Lpf
For older Siphon Jet Urinals
3.5 gpf/13.2 Lpf
For older Blow Out Urinals
Code No. 0816701
Rev. 0a (02/08)
Exposed
1-1/4" Top Spud
Model 8180
3/4" Top Spud
Model 8186

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Optima Plus 8110 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Sloan Optima Plus 8110

  • Page 1 (1 year for special finishes) from date of purchase. During this period, Sloan Valve Company will, at its option, repair or replace any part or parts which prove to be thus defective if returned to Sloan Valve Company, at customer's cost, and this shall be the sole remedy available under this warranty.
  • Page 2 24” - 27” (610 mm - 686 mm) above the top of the (121 mm) water closet. C/L OF “Y” FIXTURE For new installations, Sloan strongly recommends the use of our Model 8111 which has a shorter installation height. “X” Use the Model 8113 when Model “X”...
  • Page 3 Chamfer O.D. and I.D. !!! IMPORTANT !!! of water supply pipe. Protect the chrome or special finish of Sloan Flushometers — DO NOT USE toothed tools to install or service these valves. Slide Threaded Adapter Use a Sloan A-50 Super-Wrench™, Sloan A-109 Plier Wrench or fully onto pipe.
  • Page 4 8113, 8115, 8116 NOTE VACUUM VACUUM BREAKER BREAKER Maximum adjustment of the Sloan Adjustable Tailpiece is TUBE TUBE 1/2" (13 mm) IN or OUT from the standard 4-3/4" (121 mm) (centerline of Flushometer to centerline of Control Stop). SPUD SPUD If roughing-in measurement exceeds 5-1/4”...
  • Page 5 Install Flushometer — Continued Assemble Flex Tube Diaphragm to Optima Plus Assembly TAILPIECE COUPLING Push Diaphragm securely against underside of OPTIMA PLUS ASSEMBLY FLUSHOMETER Optima Plus Assembly. BODY Place entire Assembly onto the Valve Body. CHROME HANDLE CAP WITH GASKET CONTROL STOP O-RING ADJUSTABLE...
  • Page 6: Operation

    Adjust Control Stop after each flush until the rate of flow delivered properly cleanses the fixture. Important: The Sloan Flushometer is engineered for quiet operation. Excessive water flow creates noise, while too little water flow may not satisfy the needs of the fixture. Proper adjustment is made when plumbing fixture is cleansed after each flush without splashing water out from the lip AND a quiet flushing cycle is achieved.
  • Page 7: Battery Replacement

    ORIFICE. Replace Flex Tube Diaphragm if cleaning does not correct the problem. B. Dirt or debris fouling Stem or Flex Tube Diaphragm. Remove Flex Tube If further assistance is required, please contact the Sloan Valve Company Diaphragm and wash under running water. Installation Engineering Department at: C.
  • Page 8: Parts List

    Chloramine resistance. Manufactured in the U.S.A. by Sloan Valve Company under one or more of the following patents: U.S. Patents: 4,893,039; 5,169,118; 5,244,179; 5,295,655; Des. 345,113; Des. 355,478. Other Patents Pending. BAK-CHEK ®...
