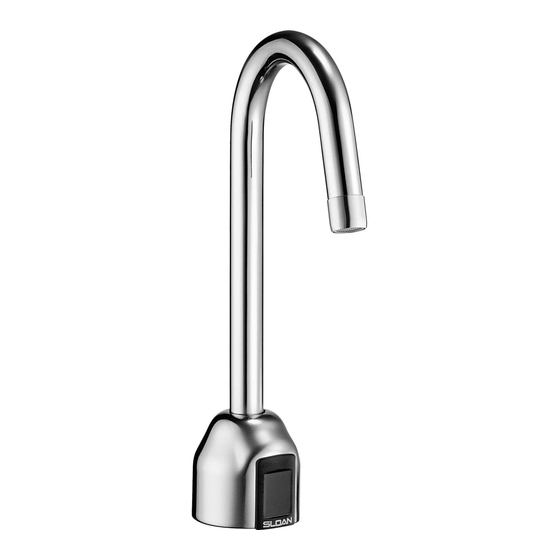

Sloan Optima EBF-750 Repair Parts And Maintenance Manual

3
EBF-615
1A
20
3
2
20
15/16
3
2
1
5
1
EBF-650
4B
EBF-615 EBF-650
4A
5
4A
4B
8
6
8
6
5A
5A
5
11
13
12
13
Optional Trim Plate Kits
9
10A 10C
10B
10A
10E
The information contained in this document is subject to change without notice.
10D
20
3
3
2
2A
1
4
2B
EBF-650
1B
19
2
19
15/16
3
2
1
5
4A
1
6
6
5A
11
13 8 7
12
9
9
11
10A
12
10D
10C
Repair Parts and Maintenance Guide
Optima EBF-750
®
PARTS LIST—EBF-750 FAUCET
Item
No. Code No. Part No.
1A. 0315100PK EBF-140-A
1B. 0315101PK EBF-141-A
2A. 3365147
0365793
2B. 0328134
3. 0305784
4. 0305927
5. 0365110
19
6. 0365758
2
0365752
7.
3365461
8.
1
3365302
9.
0365838 ETF-1003
—.
For additional information about Sloan Mixing
Valves or Trim Plates, consult our Installation
Instructions and Maintenance Guides.
The current parts breakdown shown on the
left has been in production since September
2009. For earlier EBF-650/615 faucet
models, please refer to the parts breakdown
below and right or consult your nearest
Sloan representative.
Note: earlier faucet models are not
8
compatible with the current models.

PARTS PRIOR TO SEPTEMBER 2009

9
11. 0315104
12. 0315254
13. 3315029
14. 3315018
15. 9103292
16. 0315057
— = Not shown in illustration
10C
188
Description
Faucet/Sensor Assembly with Standard Gooseneck
Spout (EBF-750) w/ ETF-178.
Faucet/Sensor Assembly with Surgical Bend
Gooseneck Spout (EBF-750-S) w/ ETF-178.
ETF-621-A 2.2 gpm (8.3 Lpm) Aerator Spray Head with Key
(female thread)
ETF-839 0.35 gpm (1.3 Lpm) Multi-Lam Spray Head
AC-55-A Shower Spray Head Assembly, 2.2 gpm (8.3 Lpm)
ETF-178 Adapter for Spray Heads (not required for
AC-55-A Shower Spray Head)
ETF-435 Replacement Key Only
ETF-503-A Spout Mounting Kit includes Rubber Gasket, Flat
Washer, Lockwasher, Mounting Nut, and Union
Compression Fitting
ETF-740-A 6 VDC Solenoid Assembly
ETF-735-A Control Module
ETF-617-A Bak-Chek Tee Assembly
®
ETF-607-A Optional 4" (102 mm) Centerset Trim Plate Kit
includes Trim Plate Spacer and Single Hole Trim
Plate Assembly
36" Extension Cable (Optional) for Sensor
13
12
13
EBF-60-A Control Module assembly
EBF-1011-A Solenoid replacement kit
EBF-113-A Single solenoid supply compression nut kit
EBF-79-A Mounting hardware kit
EBF-236-A Sensor (New Style) Replacement Kit ONLY
includes Sensor Housing and Cable Assembly
(Phone Jack)
EBF-138-A Sensor (Old Style) (Prior to September 2009)
Replacement Kit ONLY includes Sensor Housing
and Cable Assembly
(Flat Wire Black Plug)
11
