Sloan OPTIMA plus ERF-885 Installation Instructions Manual

Installation of the Sloan OPTIMA Plus
Activated Wireless Lavatory Faucet makes wash-up totally "hands-free,"
providing the ultimate in sanitary protection and automatic operation. The
OPTIMA Plus ® Faucet uses Active and Passive Infrared sensing technology to
sense the user's presence and turn on a water supply that has been pre-mixed to
the desired water temperature. When the user's presence is no longer sensed, the
water flow automatically stops.
The ERF-885 Faucet is powered by four C-size batteries which eliminates the
need to run any electrical lines to the system. In addition, the Faucet uses an RF
signal between the sensor and valve module which eliminates the need to
connect any electrical or optical line between the two components. These
features provide easier installation in less time!
Sloan Valve Company warrants its ERF-885 Faucet to be made of first class materials, free from defects of material or workmanship under normal use and to
perform the service for which it is intended in a thoroughly reliable and efficient manner when properly installed and serviced, for a period of three years (1 year
for special finishes) from date of purchase. During this period, Sloan Valve Company will, at its option, repair or replace any part or parts which prove to be thus
defective if returned to Sloan Valve Company, at customer's cost, and this shall be the sole remedy available under this warranty. No claims will be allowed for
labor, transportation or other incidental costs. This warranty extends only to persons or organizations who purchase Sloan Valve Company's products directly from
Sloan Valve Company for purpose of resale. This warranty does not cover the life of the batteries.
T T H H E E R R E E A A R R E E N N O O W W A A R R R R A A N N T T I I E E S S W W H H I I C C H H E E X X T T E E N N D D B B E E Y Y O O N N D D T T H H E E D D E E S S C C R R I I P P T T I I O O N N O O N N T T H H E E F F A A C C E E H H E E R R E E O O F F . . I I N N N N O O E E V V E E N N T T I I S S S S L L O O A A N N V V A A L L V V E E C C O O M M P P A A N N Y Y R R E E S S P P O O N N S S I I B B L L E E F F O O R R
A A N N Y Y C C O O N N S S E E Q Q U U E E N N T T I I A A L L D D A A M M A A G G E E S S O O F F A A N N Y Y M M E E A A S S U U R R E E W W H H A A T T S S O O E E V V E E R R . .
WIRELESS
® ERF-885 Battery Powered, Sensor

LIMITED WARRANTY

INSTALLATION INSTRUCTIONS

BATTERY POWERED
SENSOR ACTIVATED
WIRELESS LAVATORY FAUCET
ERF-885
Battery Powered,
Sensor Activated
Lavatory Faucet
Made in the U.S.A.
Compliant to:
ANSI/ASME A112.18.1M
CSA B125

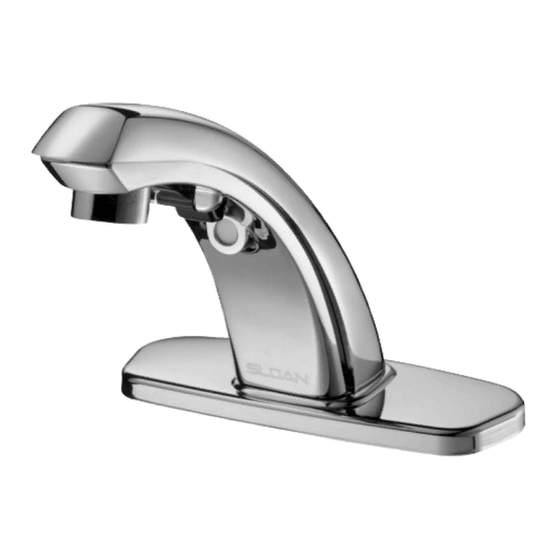

The Sloan ERF-885 Battery Powered, Sensor Activated Wireless Lavatory Faucet
comes complete with an integral faucet and sensor assembly, trim plate, control
module, four Duracell alkaline batteries — Size C (for control module), two
DL123A lithium batteries (for spout), Bak-Chek
mounting hardware. Available with 4 inch or 8 inch trim plate. Also available as
optional equipment is a grid strainer and mixing valves. 3/8 inch copper supply
tube or flexible hose connections to be supplied by the installer.
The following instructions will serve as a guide when installing the Sloan
ERF-885 Faucet. As always, good safety practices and care are recommended
when installing your new Faucet. If further assistance is required, contact your
nearest Sloan Representative office or the Sloan Installation Engineering
Department at 1 1 - - 8 8 8 8 8 8 - - S S L L O O A A N N - - 1 1 4 4 ( ( 1 1 - - 8 8 8 8 8 8 - - 7 7 5 5 6 6 - - 2 2 6 6 1 1 4 4 ) ) .
ERF-885 I.I. — Rev. 0 (09/05)
Code No. 0816493
® compression tee and all
