MEGA QA GO
User Instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MEGA QA GO and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ADJ MEGA QA GO

Summary of Contents for ADJ MEGA QA GO

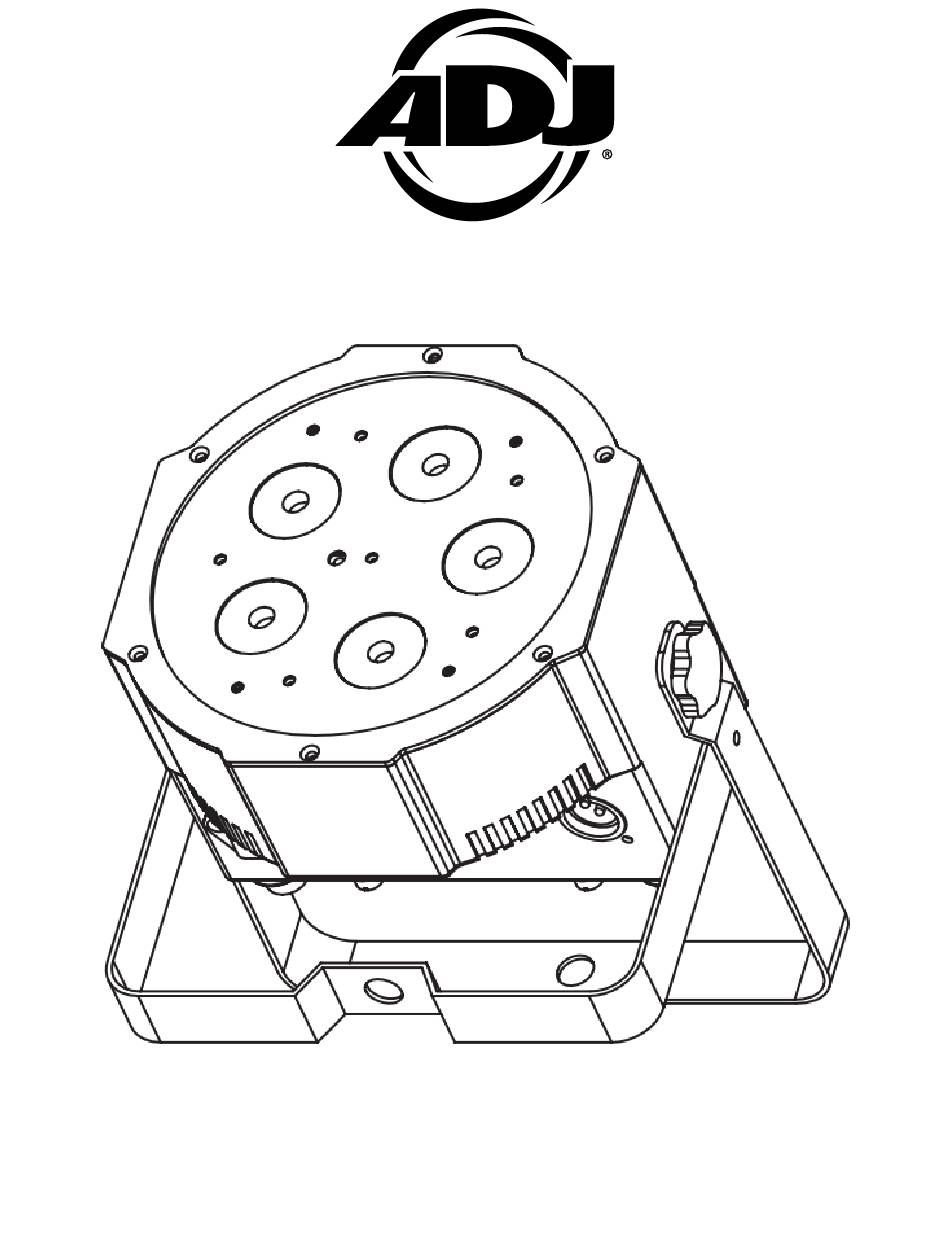

  • Page 1 MEGA QA GO User Instructions...
  • Page 2 ©2021 ADJ Products, LLC all rights reserved. Information, specifications, diagrams, images, and instructions herein are subject to change without notice. ADJ Products, LLC logo and identifying product names and numbers herein are trademarks of ADJ Products, LLC. Copyright protection claimed includes all forms and matters of copyrightable materials and information now allowed by statutory or judicial law or hereinafter granted.
  • Page 3 Do not return this unit to your dealer without first contacting customer support.

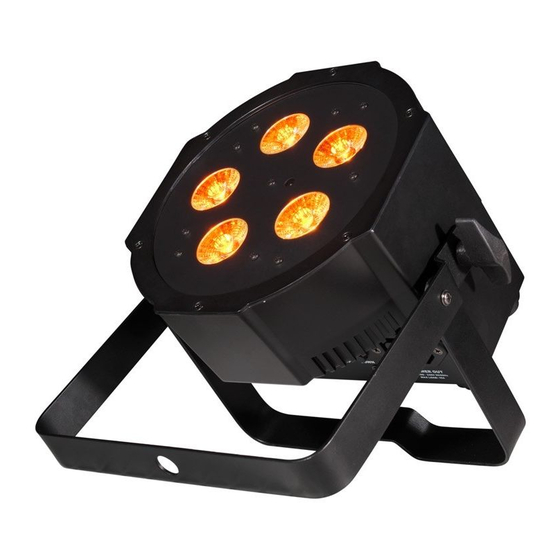

 I ntroduction: The ADJ Mega QA Go is a DMX intelligent, high powered LED par fixture. This fixture can be used in a stand alone mode or connected in a Primary/Secondary configuration. This wash has five operating modes: Sound Active mode, Auto Run mode, RGBA Dimmer mode, Static Color mode, and DMX control mode.

  • Page 4: Warranty Registration

    Mega QA Go Warranty Registration The Mega QA Go carries a 2 year limited warranty. Please fill out the enclosed warranty card to validate your purchase. All returned service items whether under warranty or not, must be freight pre-paid and accompany a return authorization (R.A.) number.

  • Page 5: Safety Precautions

    There is enough insulation layers between wiring and the batteries to provide extra safety protection. The battery pack is constructed in a way that no short circuit will occur which may cause smoke or fire. ADJ Products, LLC — www.adj.com — Mega QA Go - User Manual — Page...
  • Page 6 If the batteries cannot maintain a charge for long periods of time, even when they are charged correctly, this may indicate it is time to change the battery. Battery Disposal: Please dispose of battery according to local regulations. ADJ Products, LLC — www.adj.com — Mega QA Go - User Manual — Page...

  • Page 7: Dmx Setup

    1 Ground 2 Cold Pin 1 = Ground Pin 2 = Data Compliment (negative) 3 Hot 3 Hot Pin 3 = Data True (positive) Figure 3 ADJ Products, LLC — www.adj.com — Mega QA Go - User Manual — Page...
  • Page 8 Data Compliment (- signal) Pin 2 Pin 2 Data True (+ signal) Pin 3 Pin 3 Not Used Do Not Use Not Used Do Not Use ADJ Products, LLC — www.adj.com — Mega QA Go - User Manual — Page...
  • Page 9 This function also allows you to use your fixtures as spot lights. The Mega QA Go has 8 DMX modes: 1 channel mode, 2 channel mode, 3 channel mode, 4 channel mode, 5 channel mode, 6 channel mode, 7 channel mode, and 8 channel mode. See page’s 20-27 for each mode’s DMX traits.
  • Page 10 Press the SET UP button to enter sound sensitivity adjustment. “SJ-X” will be displayed. Use the UP or DOWN buttons to adjust the sensitivity. “SJ-1” is the lowest sensitivity, “SJ-8” is the highest. ADJ Products, LLC — www.adj.com — Mega QA Go - User Manual — Page...
  • Page 11 “ProG” (Auto Run) - If the DMX signal is lost or interrupted, the unit will automatically go into Auto • Run mode. After you have found your desired setting, press SET UP to exit. ADJ Products, LLC — www.adj.com — Mega QA Go - User Manual — Page...
  • Page 12 3. Set the “Primary” unit to your desired mode of operation. Set the “Secondary” unit(s) to the DMX address setting of 001.The “Secondary” unit(s) will now follow the “Primary”. ADJ Products, LLC — www.adj.com — Mega QA Go - User Manual — Page...
  • Page 13 Mega QA Go Operating Instructions ADJ Products, LLC — www.adj.com — Mega QA Go - User Manual — Page...
  • Page 14 30 feet away. To use the ADJ UC IR you must first activate the fixtures infrared sen- sor, to activate the sensor please see the instructions on page 14.
  • Page 15 0 - 255 0% - 100% GREEN 0 - 255 0% - 100% BLUE 0 - 255 0% - 100% AMBER 0 - 255 0% - 100% ADJ Products, LLC — www.adj.com — Mega QA Go - User Manual — Page...
  • Page 16 0 - 255 0% - 100% STROBE 0 - 15 16 - 255 STROBING SLOW - FAST COLOR MACROS 0 - 255 See the Color Macro Chart ADJ Products, LLC — www.adj.com — Mega QA Go - User Manual — Page...
  • Page 17 COLOR CHANGE 12 192 - 207 COLOR CHANGE 13 208 - 223 COLOR CHANGE 14 224 - 239 COLOR CHANGE 15 240 - 255 COLOR CHANGE 16 ADJ Products, LLC — www.adj.com — Mega QA Go - User Manual — Page...

  • Page 18: Channel Mode

    When Channel 7 is between the values of 205-255, Channel 8 is in Sound Active Mode, and Channel 6 will control the sound sensitivity. ADJ Products, LLC — www.adj.com — Mega QA Go - User Manual — Page...

  • Page 19: Color Macro Chart

    101-104 Color59 233-236 Color27 105-108 Color60 237-240 Color28 109-112 Color61 241-244 Color29 113-116 Color62 245-248 Color30 117-120 Color63 249-252 Color31 121-124 Color64 253-255 Color32 125-128 Color65 ADJ Products, LLC — www.adj.com — Mega QA Go - User Manual — Page...

  • Page 20: Photometric Chart

    For a faster recharge, put the Load Switch in the “Off” position and the Battery Switch in the “ON” position. Mega QA Go Photometric Chart ADJ Products, LLC — www.adj.com — Mega QA Go - User Manual — Page...

  • Page 21: Dimmer Curve Chart

    Rise Time (ms) Down Time (ms) Standard (default) Stage 1100 1540 1660 1180 1520 1860 1940 Architectural 1380 1730 2040 2120 Theatre 1580 1940 2230 2280 ADJ Products, LLC — www.adj.com — Mega QA Go - User Manual — Page...

  • Page 22: Troubleshooting

    Always be sure to dry all parts completely before plugging the unit back in. Cleaning frequency depends on the environment in which the fixture operates (i.e. smoke, fog residue, dust, dew). ADJ Products, LLC — www.adj.com — Mega QA Go - User Manual — Page...

  • Page 23: Warranty

    All shipping charges must be pre-paid. If the requested repairs or service (including parts replacement) are within the terms of this warranty, ADJ Products, LLC will pay return shipping charges only to a designated point within the United States. If the entire instrument is sent, it must be shipped in it’s original package. No accessories should be shipped with the product.

  • Page 24: Specifications

    Battery Weight: 1lbs. / 0.42kg • Battery Voltage: 11.1V • Battery Capacity: 6.6AH • Total Lithium Ion Cells: 9pcs • Battery Wrap Material: PVC Sleeving + Highland Barley Paper ADJ Products, LLC — www.adj.com — Mega QA Go - User Manual — Page...
  • Page 25 ADJ Products, LLC 6122 S. Eastern Ave. Los Angeles, CA 90040 USA Follow Us on: Tel: 323-582-2650 / Fax: 323-725-6100 Web: www.adj.com / E-mail: info@americandj.com A.D.J. Supply Europe B.V. Junostraat 2 6468 EW Kerkrade facebook.com/americandj Netherlands twitter.com/americandj service@adjgroup.eu / www.adj.eu youtube.com/adjlighting...
