  • Page 1 User Instructions A.D.J. Supply Europe B.V. Junostraat 2 6468 EW Kerkrade The Netherlands www.americandj.eu 7/16...
  • Page 2 A.D.J. Supply Europe B.V. – www.americandj.eu – Mega QPlus Go Instruction Manual Page 2...
  • Page 3 ©2013 ADJ Products, LLC all rights reserved. Information, specifications, diagrams, images, and instructions herein are subject to change without notice. ADJ Products, LLC logo and identifying product names and numbers herein are trademarks of ADJ Products, LLC. Copyright protection claimed includes all forms and matters of copyrightable materials and information now allowed by statutory or judicial law or hereinafter granted.
  • Page 4: Table Of Contents

    CLEANING....................................18 SPECIFICATIONS ..................................18 ROHS - A great Contribution to the Conservation of Environment ..................18 WEEE – Waste of Electrical and Electronic Equipment ......................19 A.D.J. Supply Europe B.V. – www.americandj.eu – Mega QPlus Go Instruction Manual Page 4...
  • Page 5: Introduction

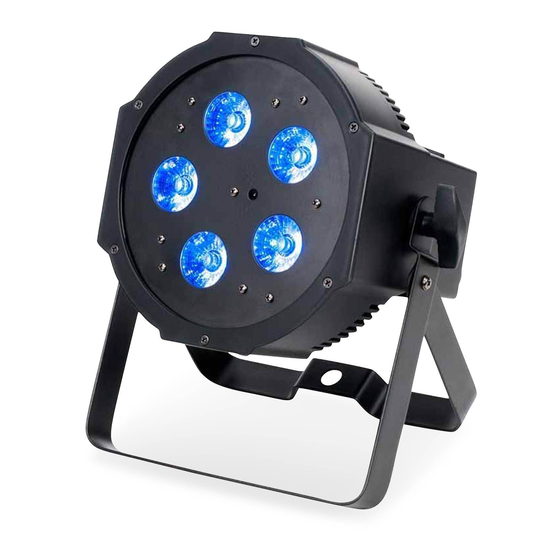

    Do not return this unit to your dealer without first contacting customer support. Introduction: The ADJ Mega QPlus GO is a DMX intelligent, high powered LED par fixture. This fixture can be used in a stand alone mode or connected in a Master/Slave configuration. This wash has five operating modes: Sound Active mode, Auto Run mode, RGB + UV Dimmer mode, Static Color mode, and DMX control mode.
  • Page 6: Safety Precautions

    Electrolyte Gel should not leak from the LIR battery. Should the electrolyte gel come into contact with the skin or eyes, flush the area of contact immediately with fresh water and seek medical attention immediately. BATTERY PRECAUTIONS (continued) A.D.J. Supply Europe B.V. – www.americandj.eu – Mega QPlus Go Instruction Manual Page 6...
  • Page 7: Dmx Set Up

    DMX SET UP Power Supply: The ADJ Mega QPlus GO contains a automatic voltage switch, which will auto sense the voltage when it is plugged into the power source. With this switch there is no need to worry about the correct power voltage, this unit can be plugged in anywhere.
  • Page 8 2 and 3 of a male XLR connector (DATA + and DATA -). This unit is inserted in the female XLR connector of the last unit in your daisy chain to terminate the line. Using a cable terminator (ADJ part number Z-DMX/T) will decrease the possibilities of erratic behavior.
  • Page 9: Operating Instructions

    Operating through a DMX controller gives the user the freedom to create their own programs tailored to their own individual needs. This function also allows you to use your fixtures as spot lights. The Mega QPlus GO has 8 DMX modes: 1 channel mode, 2 channel mode, 3 channel mode, 4 channel mode, 5 channel mode, 6 channel mode, 7 channel mode, and 8 channel mode.
  • Page 10 3. “FS.XX” will be displayed, this is Flash mode. The Flash can be adjusted between “FS.00” (flash off) to “FS.15” (fastest flash). OPERATING INSTRUCTIONS (continued) DMX State: A.D.J. Supply Europe B.V. – www.americandj.eu – Mega QPlus Go Instruction Manual Page 10...
  • Page 11: Master-Slave Configuration

    3. Set the “Master” unit to your desired mode of operation. Set the “Slave” unit(s) to the DMX address setting of 001.The “Slave” unit(s) will now follow the “Master”. A.D.J. Supply Europe B.V. – www.americandj.eu – Mega QPlus Go Instruction Manual Page 11...
  • Page 12: Cad Drawing

    The UC IR (sold separately) infrared remote gives you control of various functions (See below). To control the fixture you must aim the remote at the front of the fixture and be no more than 30 feet away. To use the ADJ UC...
  • Page 13: Channel Mode

    0 - 255 0% - 100% 0 - 255 0% - 100% MASTER DIMMER 0 - 255 0% - 100% 6 CHANNEL MODE Channel Value Function A.D.J. Supply Europe B.V. – www.americandj.eu – Mega QPlus Go Instruction Manual Page 13...
  • Page 14: Channel Mode

    0 - 255 PROGRAM SPEED SLOW - FAST 0 - 255 SOUND LEAST SENS - MOST SENS 8 CHANNEL MODE (continued) Channel Value Function PROGRAM SELECTION MODE A.D.J. Supply Europe B.V. – www.americandj.eu – Mega QPlus Go Instruction Manual Page 14...
  • Page 15 COLOR FADE 16 8 CHANNEL MODE (continued) When Channel 7 is between the values of 0-51, Channels 1-4 are used, and Channel 6 will control strobing. A.D.J. Supply Europe B.V. – www.americandj.eu – Mega QPlus Go Instruction Manual Page 15...
  • Page 16: Color Macro Chart

    Note: When unplugging the unit from charging and then applying power via battery, there will be a minimal charge drop. For a faster recharge, put the Load Switch in the “Off” position and the Battery Switch in the “ON” position. PHOTOMETRIC CHART A.D.J. Supply Europe B.V. – www.americandj.eu – Mega QPlus Go Instruction Manual Page 16...
  • Page 17: Dimmer Curve Chart

    Remove the bad fuse and replace with a new one. The fuse holder also has a holder for a spare fuse. TROUBLE SHOOTING A.D.J. Supply Europe B.V. – www.americandj.eu – Mega QPlus Go Instruction Manual Page 17...
  • Page 18: Cleaning

    Please Note: Specifications and improvements in the design of this unit and this manual are subject to change without any prior written notice. ROHS - A great Contribution to the Conservation of Environment A.D.J. Supply Europe B.V. – www.americandj.eu – Mega QPlus Go Instruction Manual Page 18...
  • Page 19: Weee - Waste Of Electrical And Electronic Equipment

    The ROHS directive is an important step to the protection of our environment. We, as manufactures, feel obligated to make our contribution in this respect. WEEE – Waste of Electrical and Electronic Equipment A.D.J. Supply Europe B.V. – www.americandj.eu – Mega QPlus Go Instruction Manual Page 19...
  • Page 20 We are happy to answer any of your inquiries and welcome your suggestions at: info@americandj.eu A.D.J. Supply Europe B.V. – www.americandj.eu – Mega QPlus Go Instruction Manual Page 20...
