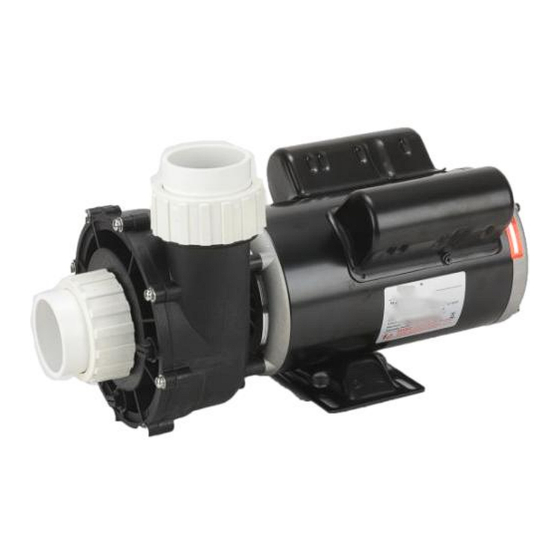

SPA PUMPS
INSTRUCTION MANUAL
MODEL: 48HT1501-II / 56HT300-II / 56HT400-II
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only represents an
estimate of savings you might benefit from buying certain tools with us compared to the major
top brands and does not necessarily mean to cover all categories of tools offered by us. You
are kindly reminded to verify carefully when you are placing an order with us if you are
actually saving half in comparison with the top major brands.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for VEVOR 48HT1501-II
Summary of Contents for VEVOR 48HT1501-II
- Page 1 SPA PUMPS INSTRUCTION MANUAL MODEL: 48HT1501-II / 56HT300-II / 56HT400-II We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to cover all categories of tools offered by us.
- Page 3 This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.
-
Page 4: Read And Follow All Instructions
Warning-To reduce the risk of injury, user must read instructions manual carefully. IMPORTANT SAFETY INSTRUCTIONS When installing and using this electrical equipment, basic safety precautions should always be followed, including the following: 1) READ AND FOLLOW ALL INSTRUCTIONS 2) WARNING - To reduce the risk of injury, do not permit children to use this product unless they are closely supervised at all times. -
Page 5: Product Parameter
We decline responsibility for any damage caused by not following these instructions. PRODUCT PARAMETER Model 48HT1501-II 56HT300-II 56HT400-II Speed type Two-speed Two-speed... -
Page 6: Installation Instructions
INSTALLATION INSTRUCTIONS 1.Installation The pumps should be installed horizontally, securing them with screws through the holes in the supports to prevent undesirable noise and vibration. The suction, pipe of the pump should be as short as possible. The rating Label must be visible after installation. Parts containing live parts, except parts supplied with safety extra low voltage<12V, must be inaccessible to a person in the bath. - Page 7 The diagrams in Fig.(1) correct electrical connection. The electric connection must be carried out by qualified staff following strictly the "UL1563、 UL1081"standard. Be sure that the grounding connection is correctly made.The grounding conductor shall not be smaller than NO.12AWG(3.3mm) Be sure that the equipotential connection between the bath and the pump is correctly made.
- Page 8 Installation circuit diagram As the colors of the wires in the mains lead of this appliance may not correspond with the colored markings identifying the terminals in your connection unit proceed as follows. The wire, which is colored green, must be connected to the terminal in the connection unit which is marked with the letter E or by the earth symbol or colored green or green-and-yellow.
- Page 9 OPERATION DECLARATION 1.Controls Prior to Initial Start-up Verify that the pump shaft turns freely. Check that the mains voltage and frequency are according to the nameplate. The hydromassage assembly should be equipped with a system to prevent the pump from starting up if a minimum water level is not present. Check the rotating direction of the motor, which should concur with that indicated on the fan cover.
-
Page 10: Troubleshooting Guide
TROUBLE SHOOTING GUIDE SYMPTOM POSSIBLE CAUSE CHECK -incoming power to the pump? NO POWER -Is circuit breaker on? TO PUMP -Is GFCI operating properly? -Is the air switch plugged in? PUMP DOES NO TURN -Is the air switch hose connected to AIR SWITCH the pump? DISCONNECTED... - Page 12 Technical Support and E-Warranty Certificate www.vevor.com/support...
