Technical Support and E-Warranty Certificate
www.vevor.com/support

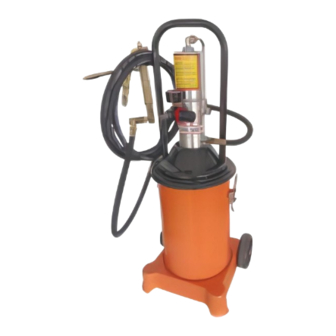

GREASE PUMP USER MANUAL
MODEL: FF-08B-12L,FF-08B-20L,FF-09B-40L
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only represents an
estimate of savings you might benefit from buying certain tools with us compared to the major
top brands and does not necessarily mean to cover all categories of tools offered by us. You
are kindly reminded to verify carefully when you are placing an order with us if you are
actually saving half in comparison with the top major brands.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for VEVOR FF-08B-12L
Summary of Contents for VEVOR FF-08B-12L
- Page 1 Technical Support and E-Warranty Certificate www.vevor.com/support GREASE PUMP USER MANUAL MODEL: FF-08B-12L,FF-08B-20L,FF-09B-40L We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to cover all categories of tools offered by us.
- Page 2 This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.
-
Page 3: General Safety Rules
1. Read carefully and understand all ASSEMBLY AND OPERATION INSTRUCTIONS before operating. 2. Failure to follow the safety rules and other basic safety precautions may result in serious personal injury. GENERAL SAFETY RULES 1.Wear goggles. During operation, dust, sparks and dust are harmful to the gas. - Page 4 2. When using, please put the butter gun lightly; do not put it on the ground at will, because the head of the gun is sharp, to prevent the injury or the residual butter outflow inside. 3. Don't point the gun at a person's face when used. 4.
-
Page 5: Structure Diagram
STRUCTURE DIAGRAM FF-08A-20L，FF-09A-40L： 1.Grease Pump 2.Grease Bucket Cap 3.Quick Clip 4.Grease Bucket 5.Casters 6.Grease Gun 7.Hose 8.Handle 9.Pressure Valve FF-08A-12L： 1.Grease Pump 2.Grease Bucket Cap 3.Quick Clip 4. Grease Bucket 5.Casters 6.Grease Gun 7.Hose 8.Handle 9.Pressure Valve - 4 -... - Page 6 OPERATING INSTRUCTIONS Step1：Install Casters,Lock with nuts and spring washers(X) FF-08B-20L，FF-09B-40L： Install the wheels and insert the pins. FF-08B-12L： - 5 -...
- Page 7 Step2: Remove the handle first, adjust the direction of the handle and fasten with the bolt.(FF-08B-20L，FF-09B-40L) Note:The handle of FF-08B-12L has been installed. Handle Bolt Step3：Open the butter bucket cap and pour butter into it. Then install the butter bucket cap and fasten it. (FF-08B-12L，FF-08B-20L) For Model FF-09B-40L:Put the standard butter barrel into the butter bucket, then install the butter bucket cap and fasten it.
- Page 8 Step4：Connect the hose to the grease pump inlet and the grease gun to the other end of the hose.Access the air source, adjust the intake pressure through the pressure valve. Note:Wrap a few loops of raw material around the joint as needed. Quick Jack for Air Source - 7 -...
-
Page 9: Maintenance
MAINTENANCE 1. The air entering the pump needs to be filtered to avoid damage to the pump. 2. When using the hose, avoid excessive bending and overloading of the hose, as this can lead to damage. 3. After using the product, please disconnect the gas source, and then clean the gun. -
Page 10: Troubleshooting
TROUBLESHOOTING Problem Possible Cause Possible Solution Install the charging plate The internal slide is loose and tighten the screws outlet blocked Check and clean the outlet Pump not working Choose the right viscosity grease. grease viscosity is too high 1~2# in Winter, 2# in Spring and Autumn, 2~3# in Summer. - Page 11 Address：Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi Shanghai Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730 SHUNSHUN GmbH Römeräcker 9 Z2021, 76351 Linkenheim-Hochstetten, Germany Pooledas Group Ltd Unit 5 Albert Edward House, The Pavilions Preston, United Kingdom...
- Page 12 Technical Support and E-Warranty Certificate www.vevor.com/support...
