Assa Abloy ACCENTRA 7116 Installation Instructions

9VDC Hardwire Harness
Supplemental
Installation Instructions
This Installation Instruction Supplement is for adding the 9VDC hardwire option to the existing alarm products (7116, & SDA16).
Installation
1. Connect the (two wire) terminal of the Wiring Harness to J1 on the Circuit Board.
2. Connect the (three wire) terminal to J3.
3. Connect the (six wire) terminal to J4.
4. Connect the Grounding Lug to the 2nd Mounting Hole on the Circuit Board (see Figure 1) by removing the screw, placing the grounding lug
over the screw, and then re-installing the screw.
* 5. For SVR option see Figure 2. Connect SVR Ingress Signal Switch to the Wire Harness via (2) Methode Connector as shown.
Grounding Lug
Black
WARNING
This product can expose you to lead which is known to the state of California to cause cancer and birth defects or other
reproductive harm. For more information go to www.P65warnings.ca.gov.
WARNING
Attention Installer: Any retrofit or other field modification to a fire rated opening can potentially impact the fire rating of the
opening, and ASSA ABLOY makes no representations or warranties concerning what such impact may be in any specific
situation. When retrofitting any portion of an existing fire-rated opening, or specifying and installing a new fire-rated opening,
please consult with a code specialist or local code official (Authority Having Jurisdiction) to ensure compliance with all
applicable codes and ratings.
1-855-557-5078 Ext. 2 • www.accentra-assaabloy.com
Copyright © 2013, 2024, ASSA ABLOY ACCENTRA™ Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole
or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.
Green (Ground)
Red
J1
J2
Tan
Pink
Gray
Violet
Orange
J4
White
J3
Brown
Blue
Yellow

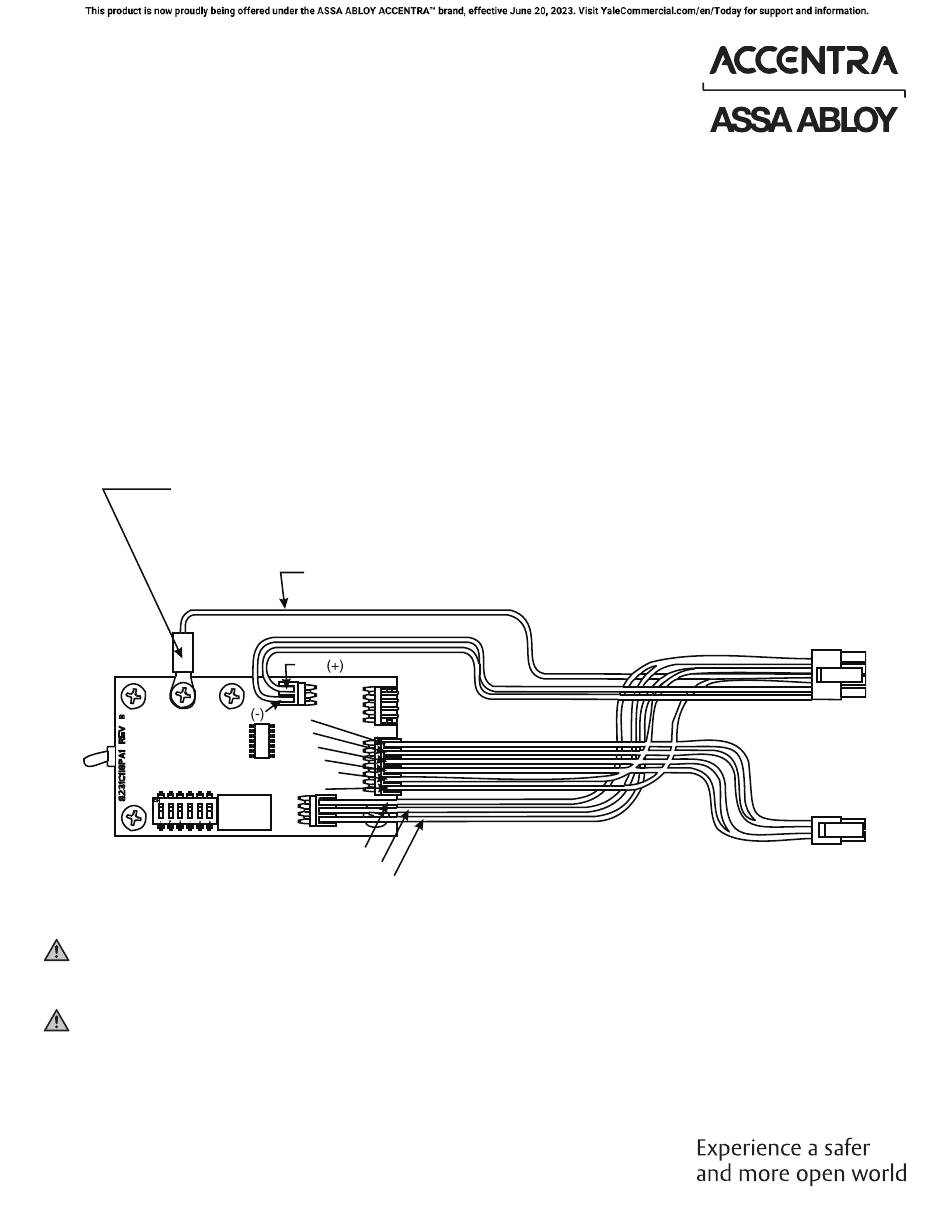

Figure 1
80-8470-0095-000 04/24
