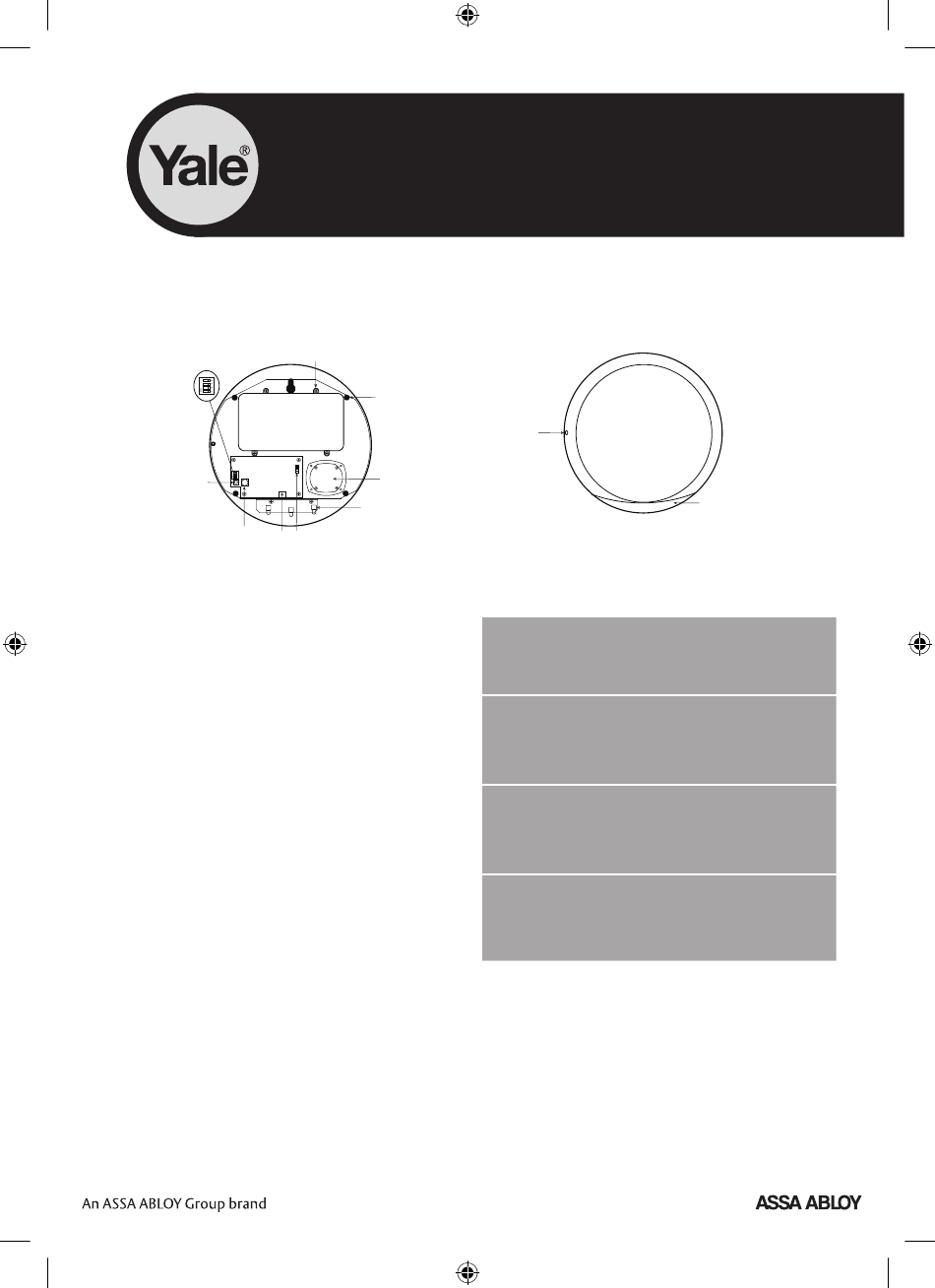

SmartHome Alarm series
Wirefree Yale ENA-BX
External Siren
4
ON
OFF
1
2
9
3
Feature:
1. Learn button
2. Tamper Spring
3. Power On/Off switch
4. Dip Switch Block
5. Strobe Lights
6. Sounder
7. Siren fixing holes (x4)
8. Battery compartment screws (x4)
9. DC power terminal block
10. Strobe window
11. Lid fixing screw
Pack content:
1x External Siren
4x Screws
4x Wall Plug
8
7
6
5
Dip Switch (SW) function table
Dip SW 1
ON
OFF
Dip SW 2
ON
OFF
Dip SW 3
ON
OFF
Dip SW 4
Notes:
• Do not slide all the switches to the ON
position simultaneously. Do it one at a
time.
• If supervision is enabled in the control panel,
Dip Sw 3 must be turned On (Enable) or else
the "Supervision Fail" fault will be shown.
11
10
Clear Siren memory
Clear
Normal (Default)
Interference detection
Enable
Disable (Default)
Supervision
Enable
Disable
Function not used. Dip switch
must be in the off position.
Advertisement
Related Manuals for Assa Abloy Yale SmartHome Alarm Series
Summary of Contents for Assa Abloy Yale SmartHome Alarm Series
- Page 1 SmartHome Alarm series Wirefree Yale ENA-BX External Siren Dip Switch (SW) function table Feature: 1. Learn button 2. Tamper Spring Dip SW 1 Clear Siren memory 3. Power On/Off switch Clear 4. Dip Switch Block Normal (Default) 5. Strobe Lights 6.
- Page 2 “Confirm Sound” Programming Notify users of the system status via siren beeps. One beep for arm and two beeps for disarm. Select Enable or Disable to enable or disable this function. Step 1. Remove the siren front cover. “Entry Sound” Step 2. Make sure the Dip Switch #4 is set to the Notify users of the entry countdown via siren beeps. OFF position. Also set the power switch of the siren Select Enable or Disable to enable or disable this to the ON position. function. Step 3. Login to the Control Panel’s Engineering “Siren Tamper” menu. Select “Zone Settings” -> “Zone Config” -> Once the tamper protection is disabled, the siren will “Add Zone”. Press OK and the LCD of the Control automatically revert to enable after an hour (if user has Panel will display “*Push button on* Device to add”. not already enabled it manually). Step 4. Press & hold the siren’s Learn button for 1 “Comfort LED” second. The siren will beep once, with the LED #1 (Left) and LED #3 (Right) flashing once to indicate Control the siren’s LED flash interval during non- the “learn signal” has been transmitted. alarm mode. Press ▲ or ▼ to increase or decrease the flash interval time from Disable or 5, 10 to 60 seconds (at 10 seconds increments). Please note that NOTE enabling this feature will decrease the siren’s battery To exit Learn Mode: Press the Learn button again, life.
- Page 3 Siren Audible Performance Step 3. Ensure the Power Switch is switched to the ON position. Replace the siren cover. The siren produces a minimum of 105 dBA sound pressure at 1 metre. The siren duration Step 4. Enable the siren tamper using the control depends on the parameter in the Control Panel. panel. Select “Zone Settings” -> “Zone Config“ Burglar / Emergency / Tamper Alarm- the siren -> “Edit Ext.Siren” -> “Siren Tamper”. This option needs to be enabled. gives a continuous alarm sound with sequential flashes until the preset siren length comes to a stop (default: 3 minutes). Step 5. Test the siren by arming and disarming with the Control Panel. If there are 5x siren beeps Fire alarm- the siren gives a continuous alarm and 3x LED flashes while arming, the tamper sound (2-second on and 1-second off) with spring(s) are not depressed properly. You may need sequential flashes until the preset siren length to disable the siren tamper (Step 1) and physically adjust the siren mounting position. Otherwise the (default: 3 minutes). installation is now completed. At low battery condition, beeping occurs irregularly. Operation The siren is silenced when either the programmed siren duration expires or when the user disarm the system. Siren Reset Changing Batteries Step 1: Slide the Power Switch to OFF position.
- Page 4 2 Year Instruction Statement: Specification This product is guaranteed for consumers against faulty workmanship, materials and Environmental conditions: function for a period of 2 years from the date -10c to 40c , relative humidity 85% non- of purchase providing the full installation and condensing. For Outdoor/Indoor use, IP44. maintenance instructions are followed. Please keep your proof of purchase safe, this must Radio be submitted when making a claim under this 868.35MHz FM guarantee. Battery: Please note that it is a condition of this 4x 1.5V D Cell Alkaline battery guarantee that your Yale product: • Has been correctly installed and maintained Dimension: in accordance with the Yale installation and 257.5 mm (diameter) x 60.65mm maintenance instructions provided to you at the time of purchase. Standard : • Has not been modified or damaged in any way. EN300-220-1 • Has not been subjected to unauthorized EN301489-1,3 repairs. EN60950 PD6662:2010 Grade 2 Class 3 Yale are responsible under this guarantee for repairing the product or replacing the product as we deem necessary. If there is fault with the product, please contact Customer Services on 01902 364647, who will give you the name of an expert and confirm what you need to do to make...
