Assa Abloy 7116 Installation Instructions Manual

7116 Exit Alarm
Installation Instructions
These instructions pertain to 7116 alarm assemblies shipped after October 2012.
For units shipped prior, please refer to 80-9470-7116-000.
See section A for instructions on updating an alarm assembly shipped prior to October 2012.
See section B for installation instructions for where an existing alarm assembly is not present.
Section A
The following instructions should be used when updating an existing alarm assembly.
Existing Touchbar Switch Disassembly

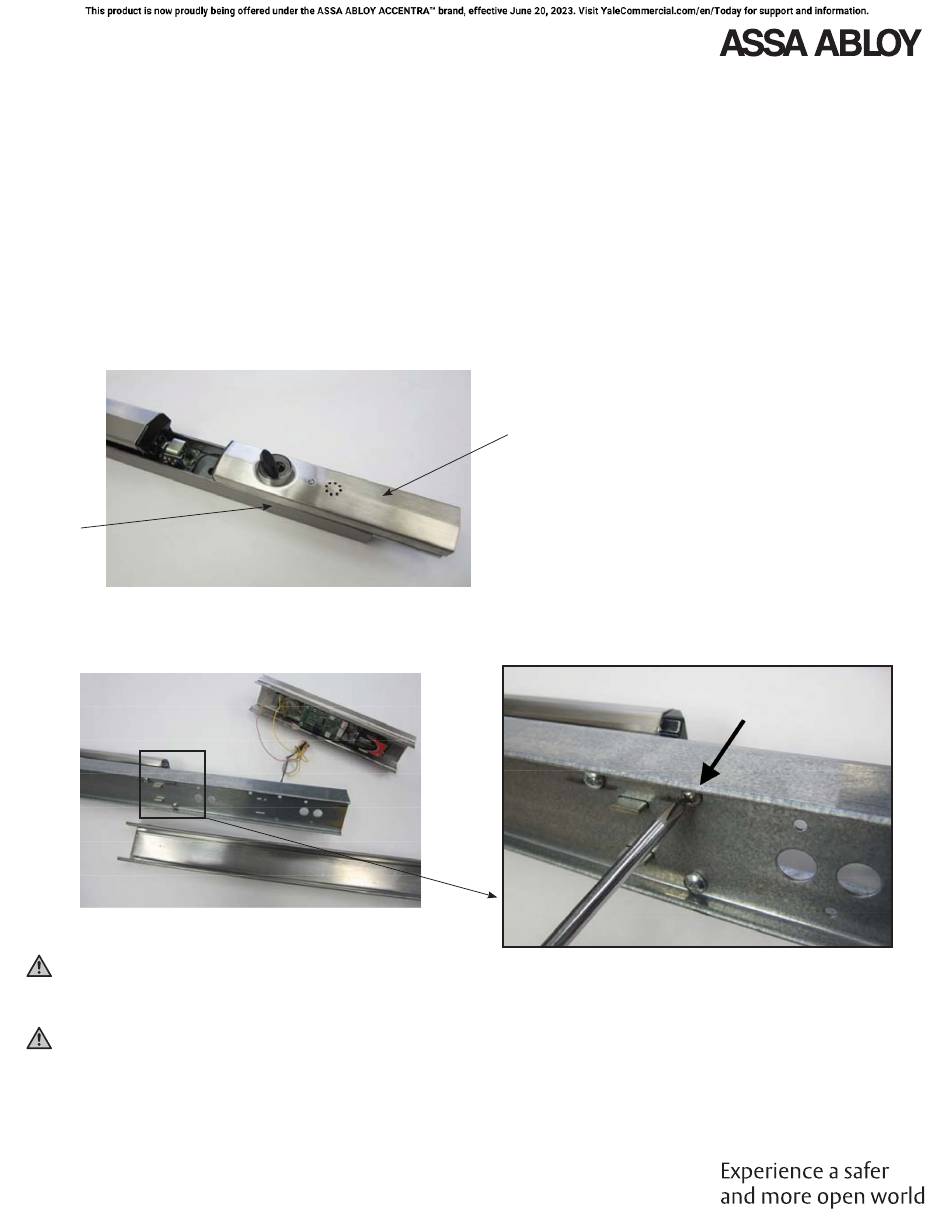

1. After removing device from door, slide existing alarm cover and rail sleeve out (Figure 1).
Figure 1
Rail
Sleeve
2. After removing the existing cover and sleeve, unscrew the one screw shown on Figure 2.
Figure 2
WARNING
This product can expose you to lead which is known to the state of California to cause cancer and birth defects or other
reproductive harm. For more information go to www.P65warnings.ca.gov.
WARNING
Attention Installer: Any retrofit or other field modification to a fire rated opening can potentially impact the fire rating of the opening,
and ASSA ABLOY makes no representations or warranties concerning what such impact may be in any specific situation. When
retrofitting any portion of an existing fire-rated opening, or specifying and installing a new fire-rated opening, please consult with a
code specialist or local code official (Authority Having Jurisdiction) to ensure compliance with all applicable codes and ratings.
1-855-557-5078• www.assaabloy.com
Copyright © 2012, 2013, 2023, ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole
or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.
Cover
80-9470-7116-010 12/23
