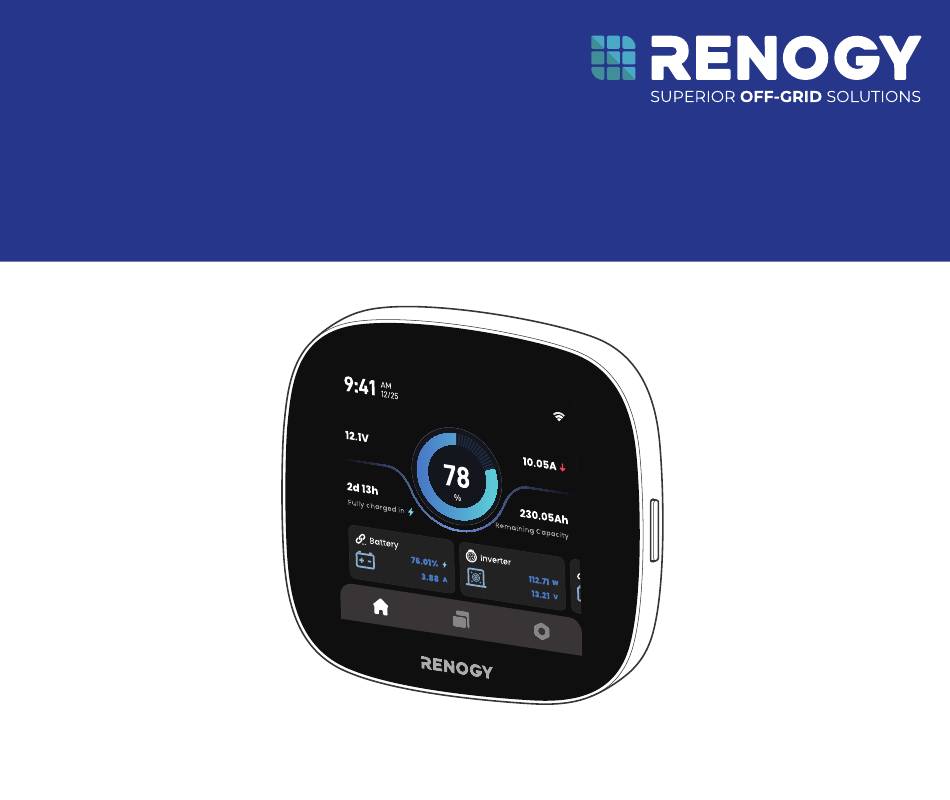

- Page 1 RENOGY ONE Core RSHGWSN-W02W-G1/RSHGWSN-W02W-G2 VERSION A2 August 30, 2024 QUICK GUIDE...
- Page 2 The illustrations in the quick guide are for demonstration purposes only. Details may appear slightly different depending on product revision and market region. Renogy reserves the right to change the information in the quick guide without notice. For the latest quick guide, visit renogy.com.
-
Page 3: Installation Site And Environment
NOTE To enable the RV leveling function on Renogy ONE Core, ensure it is installed in a spot with the screen pointing to the front, rear, left, or right side of the RV, vertically to the RV floor. It is recommended that RV leveling blocks should be used during the leveling process. - Page 4 You can use either a skill saw or an electric drill with hole saw. Step 1 (A). Place Renogy ONE Core on a Table The package box is environmentally friendly. You can use it as a bracket to hold the Core when installing it on the wall is not required.
-
Page 5: Mounting Template
Mounting Template Please tear off this piece of paper and paste it to the mounting location for drilling holes. 2.17 in (55 mm) 0.635 in (16 mm) 2.17 in 0.9 in (55 mm) (23 mm) 0.635 in (16 mm) 0.635 in 0.9 in 0.635 in (16 mm) - Page 6 - 1 - - 4 -...
- Page 7 Step 1 (B). Mount Renogy ONE Core on a Wall NOTE You can also use another piece of paper as the mounting template. The installation hole comes in 2.17 in × 2.17 in (55 mm x 55 mm). ho le...
- Page 8 Mounting Screws 45° Click - 1 - - 6 -...
- Page 9 Step 2. Connect Renogy ONE Core to a Power Supply You can connect Renogy ONE Core to a power supply through the included power cable or a Type-C cable (not included). Installed on a Wall Power Cable Type-C Cable (included)
- Page 10 Step 3. Install a Communication Cable (Optional) For details, see the Renogy ONE Core User Manual by scanning the QR code in the guide. Communication Cable (Max length: 19.6 ft / 6 m) Devices (RS-485 or CAN for RSHGWSN-W02W-G2) Step 4. Power On/Off Long press the On/Off Button for 5s to power the Core on or off.
- Page 11 For initial startup, follow the startup wizard on the Core to pair it with the DC Home app. Alternatively, go to > System > Pair with App. Step 6. Add Devices Renogy ONE Core can wirelessly connect to Renogy Bluetooth, Bluetooth mesh, and Zigbee devices concurrently. Internet - 1 -...
-
Page 12: Important Safety Instructions
Core. You can use an extended power cable on demand. For details, see Renogy ONE Core User Manual by scanning the QR code in the guide. - Page 13 FCC Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
- Page 14 To discuss inaccuracies or omissions in this quick guide or user manual, visit or contact us at: renogy.com/support/downloads contentservice@renogy.com Questionnaire Investigation To explore more possibilities of solar systems, visit Renogy Learning Center at: renogy.com/learning-center - 1 - - 12 -...
- Page 15 All information in the quick guide is subject to copyright and other intellectual property rights of Renogy and its licensors. The quick guide may not be modified, reproduced, or copied, in whole or in part, without the prior written permissions of Renogy and its licensors.
- Page 16 Save 105 gallons of water from being consumed Renogy Power PLUS Renogy Power Plus allows you to stay in the loop with upcoming solar energy innovations, share your experiences with your solar energy journey, and connect with like-minded people who are changing the world in the Renogy Power Plus community.
