Summary of Contents for Renogy MT-150

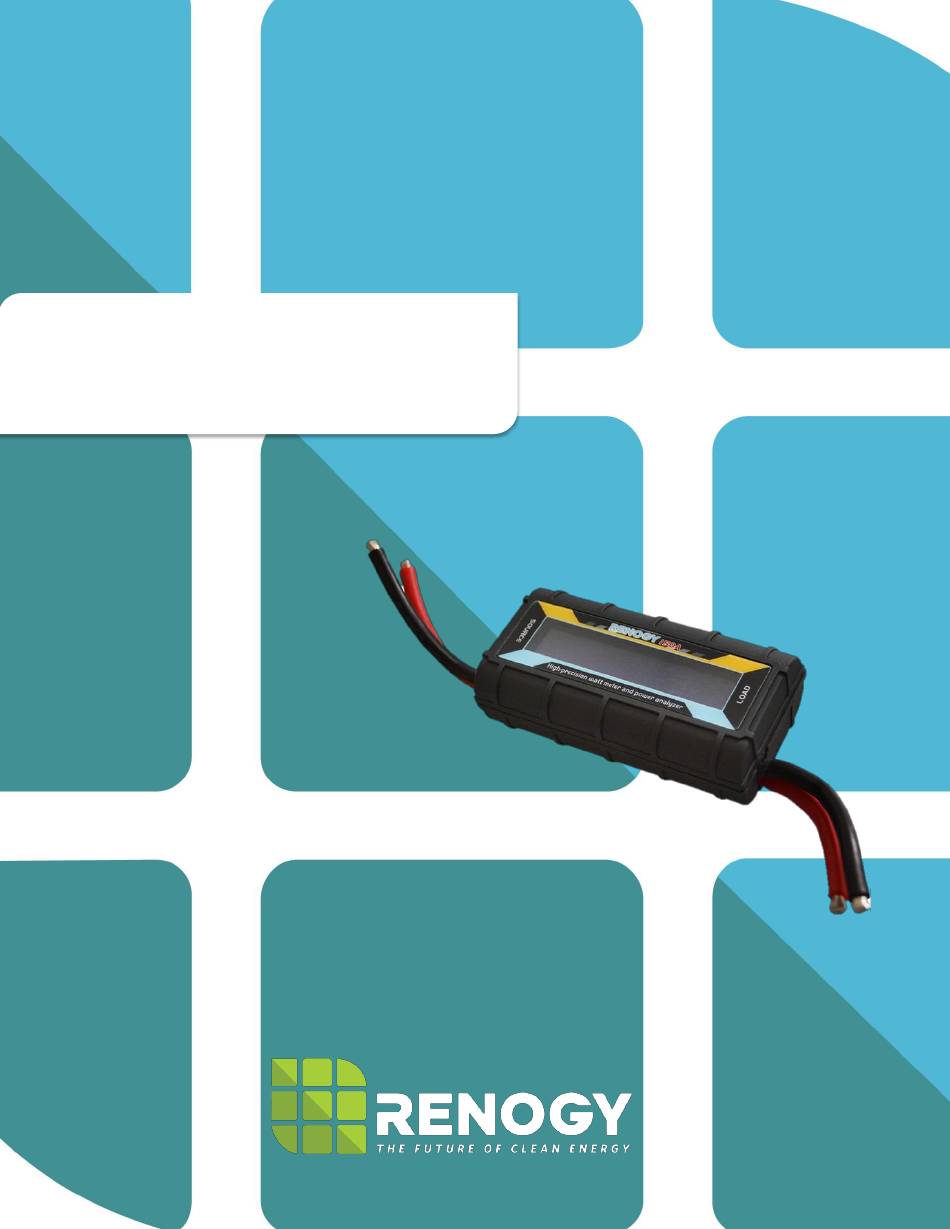

- Page 1 MT-150 RENOGY 150A Peak High Precision Watt Meter and Power Analyzer 2775 E. Philadelphia St., Ontario CA 91761 1-800-330-8678 Version: 1.1...
- Page 2 Important Safety Instructions Please save these instructions. This manual contains important safety, installation, and operating instructions for the meter. The following symbols are used throughout the manual to indicate potentially dangerous conditions or important safety information. WARNING: Indicates a potentially dangerous condition. Use extreme caution when performing this task.
-
Page 3: Table Of Contents
Table of Contents General Information ...................... 3 Optional Component ..................... 3 Identification of Parts ....................4 Installation ........................4 Operation ........................5 Measurement Screen Glossary ..................6 Using Auxiliary Power ....................7 System Status Troubleshooting .................. 9 Dimensions ........................10... -
Page 4: General Information
NOTE: Although the cable is an accessory to our product, it is not required. Also, Renogy currently does not carry this accessory and users will need to find their own means on attaining this cable. -
Page 5: Identification Of Parts
Identification of Parts Key Parts 1. Source Side Connection 2. Load Side Connection 3. Negative Wire 4. Positive Wire 5. Auxiliary Battery Port (Optional Component) Installation WARNING: Poor connections and reckless wiring can have serious consequences including personal injury, electrical shock, and may cause a fire. CAUTION: Make sure connections are secure and expose no wire that may short. -
Page 6: Operation
Make sure your system does not exceed the values rated on the Renogy 150A Tracer Meter Once the circuit is complete, the watt meter will turn on, display the default screen, then cycle through the remaining displays. -
Page 7: Measurement Screen Glossary
Measurement Screen Glossary Parameter Description Only the current from SOURCE to LOAD is measured. The Amp value displayed is the average current over the last screen update interval Peak Amp value (Ap) display is the maximum current drawn from the LOAD side. Peaks lasting only a fraction of a second can Amps, A &... -
Page 8: Using Auxiliary Power
Using Auxiliary Power The MT-150 allows users to connect a battery (pack) or other power source into the 3-pin connector on the SOURCE side. This power source needs to be at least 4.8V and would allow the meter to measure down to 0V. The 3-pin connector will accept a Futaba J Connector J Type, JR, or HiTec type servo plug connector. - Page 9 The following chart demonstrates different uses with the MT-150...
-
Page 10: System Status Troubleshooting
4.8V connected to the SOURCE side. Wiring is warm It is normal for the MT-150 to get warm during high currents. You can cool it with a small fan. CAUTION: Make sure connections are secure and expose no wire that may short. Also make sure operation does not exceed rated technical specifications. -
Page 11: Dimensions
Dimensions NOTE: Dimensions are in inches.
Need help?
Do you have a question about the MT-150 and is the answer not in the manual?
Questions and answers
I have one of your watt meter power analyzers wired between solar panel cable close to the controller via anderson plugs. I leave everything connected for days.When there is no sun at night, next morning the meter just has a bar across the top and have had to disengage it from the cable to get it to start reading. Is this the norm or will it restart if there is enough sun light to get it back up.
