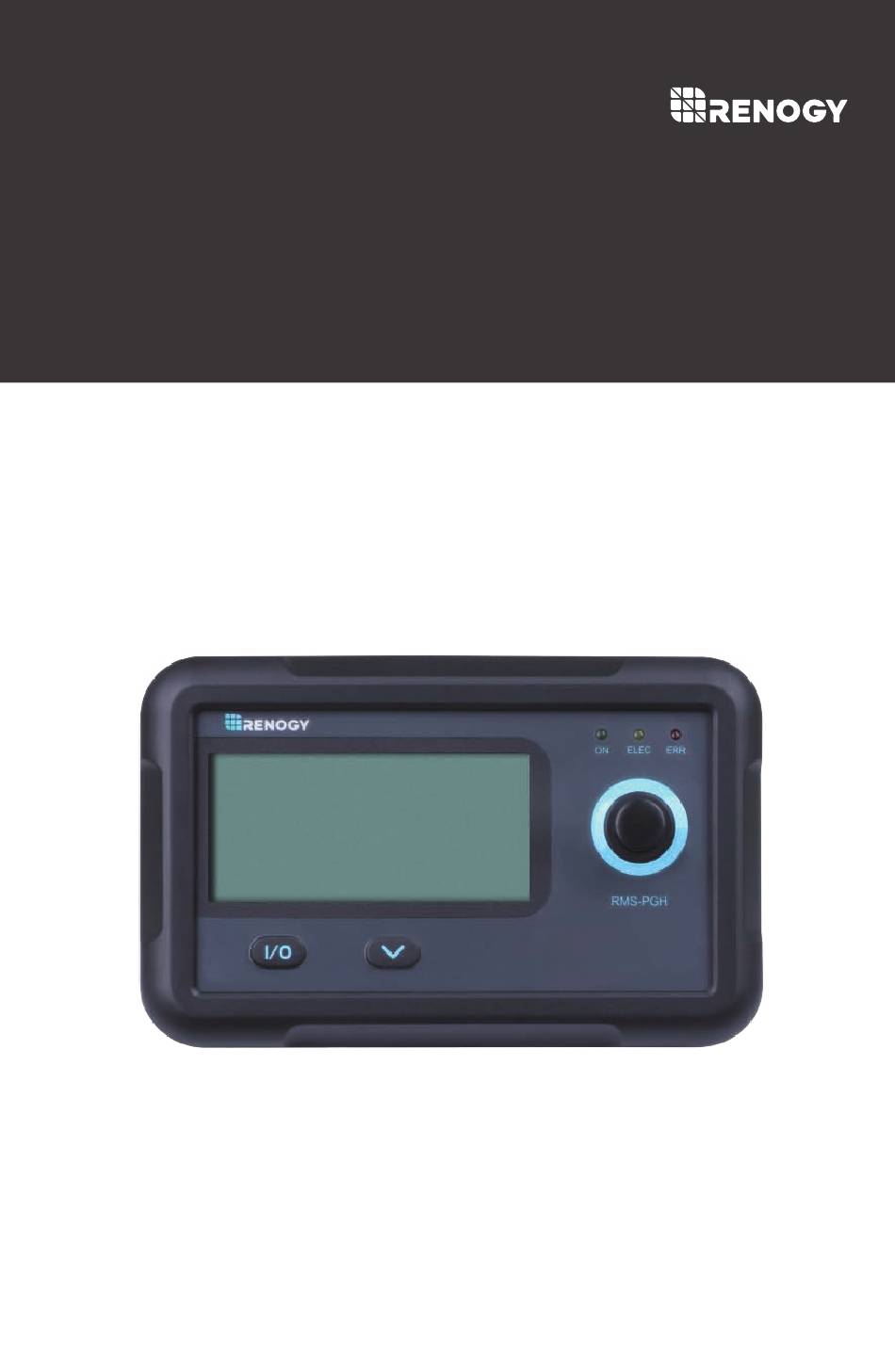

- Page 1 MONITORING SCREEN FOR PGH INVERTER SERIES Version 1.0...
-
Page 2: Important Safety Instructions
Important Safety Instructions Please save these instructions. This manual contains important installation and operation instructions for your Renogy monitoring screen. Please review and observe these instructions and keep them located near the monitoring screen for further reference. The following symbols are used throughout the manual to indicate potentially dangerous conditions or important safety information. - Page 3 General Safety Information Installation and wiring must comply with the Local and National Electric Codes (NEC) and must be done by a certified technician. Read all the instructions and cautions in the manual before beginning the installation. There are no serviceable parts for this inverter.
- Page 4 Inverter Series. DO NOT attempt connecting the monitoring screen to other inverters or systems. The RMS-PGH will operate when the PGH Inverter is in the ON or REM position. Only in the REM position, will the RMS-PGH be able to manually turn the inverter ON/OFF in addition to monitoring the inverter.
-
Page 5: Table Of Contents
Table of Contents Important Safety Instructions General Information Product Overview Identification of Parts Dimensions Installation Operation LCD User Interface: Overview Voltage (V) Current (A) Watts (W) Frequency (Hz) Error Code Normal / ECO Mode LED Indicators Troubleshooting Technical Specifications... -
Page 6: General Information

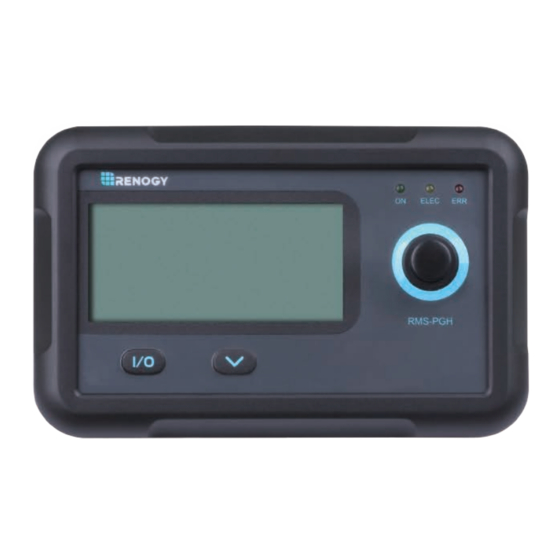

General Information The RMS-PGH is a high precision meter designed for PGH series pure sine wave inverters. Featuring a backlit display and flush-mountable, it is engineered for an aesthetically clean and professional look on RVs or camper walls. Utilize the 2-key input to easily navigate through your system information as well as identify any error codes. -
Page 7: Product Overview
Product Overview Identification of Parts ⑤ ELEC RMS-PGH ① ② ③ ④ ⑥ ⑦ ⑧ ⑨ LCD Screen LED Status Lights ① ⑤ Input/output Front Cover Plate ② ⑥ Parameter Switch Key Mounting Holes ③ ⑦ Main On/Off power key RJ45 Communication Port ④... -
Page 8: Dimensions
Dimensions 110.0mm 4.3in ELEC RMS-PGH 87.5mm 3.4in 31.8mm 1.3in 19.5mm 0.8in... - Page 9 Additional Components RJ45 Communication Cable The RJ45 Communication Cable (5m/16.4ft) is used to connect the monitoring screen to the "COMM" port for data transmission. RJ12 Communication Cable The RJ12 Communication Cable (5m/16.4ft) is used to connect the monitoring screen to the "REMOTE" port for power supply. Self-tapping Screws (4) The Self-tapping Screws (M2.9*13mm) are used to fix the monitoring screen on the mounting surface.
-
Page 10: Installation
Resolve any issues before installation of monitoring screen and cable. The RMS-PGH requires a flush mount installation. The RMS-PGH’s faceplate will be flush with the mounting surface and the body of the meter. Preparation Before installing the monitoring screen, it is recommended to... - Page 11 Mounting the Monitoring Screen Remove the snap-fit Front Cover Plate from the monitoring screen. Use the monitoring screen as a template to mark the screw holes and trace the cut-out area on the mounting surface with a pencil. Cut out a rectangle area for the monitoring screen on the mounting surface with a jigsaw.
- Page 13 Cutout Dimensions (L x H x W): 86.7 x 58.02 x 19.8mm...
- Page 15 Connecting to the PGH Inverter series The RMS-PGH will operate when the PGH Inverter is in the ON or REM position. Only in the REM position, will the RMS-PGH be able to manually turn the inverter ON/OFF in addition to monitoring the inverter.
-
Page 16: Operation
The following key is used to navigate through the screen parameters The following key allows you to switch between input and output parameters LCD Information Overview INPUT OUTPUT NOTE The RMS-PGH is ONLY compatible with PGH Inverter Series. -
Page 17: Voltage (V)
Voltage (V) Input Output The voltage indicates the DC The voltage indicates the AC Input voltage of the battery Load Voltage. bank. Volts will be in DC Volts will be AC Current (A) Input Output The real-time current flowing from the inverter to the AC appliances. -
Page 18: Frequency (Hz)
NOTE The RMS-PGH will not calculate the watts below 100 watts. Instead the following code will display depending on the watts Output AC Watts < 50W 50W < AC Watts < 100W Frequency (Hz) The monitoring screen will only be able to monitor the working mode. -
Page 19: Normal / Eco Mode
The error code indicates potentially abnormal conditions of the inverter. During normal operation this will not display on the screen. Error Code Parameter Battery Under-Voltage Warning Battery Over-Voltage Warning NOTE The error code will flash, and the inverter will beep the alarm. Upon the battery reaching the error state, the monitor screen will shut down just like the inverter. -
Page 20: Led Indicators
LED Indicators Color Behavior Parameter The inverter is powered Solid on in normal mode Green The inverter is powered in ECO mode detecting a Slow Flash load to power >50W ELEC Yellow Solid GFCI Trip Solid Fault Troubleshooting Indicator Potential Issue Troubleshoot Error Use a multimeter to check the... - Page 21 Use a multimeter to check the voltage of the battery bank to Inverter make sure you're above 11V. under-voltag Disconnect loads if any and e protection make sure you're only using 12V battery bank systems. Use a multimeter to check the voltage of the battery bank to Inverter make sure you're below 15V.
-
Page 22: Technical Specifications
Technical Specifications Electrical Specifications Model RMS-PGH Supply Voltage 5VDC Supply Current 30mA Power Consumption ＜1W Operating Temperature Range -4℉~113℉ / -20℃~45℃ Voltage Accuracy ±0.1V Current Accuracy ±0.1A FCC Part 15 Class B, Certification CE, RoHS Mechanical Specifications Communication Port RJ45, RJ12... - Page 23 FCC Compliance: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must withstand any interference received, including interference that may cause undesired operation.
- Page 24 RENOGY.COM Renogy reserves the right to change the contents of this manual without notice. 2775 E Philadelphia St, Ontario, CA 91761, USA 909-287-7111 www.renogy.com support@renogy.com 苏州高新区科技城培源路1号5号楼-4 400-6636-695 https://www.renogy.cn support@renogy.cn https://www.renogy.jp supportjp@renogy.com https://ca.renogy.com supportca@renogy.com https://au.renogy.com supportau@renogy.com https://uk.renogy.com supportuk@renogy.com https://de.renogy.com supportde@renogy.com...
