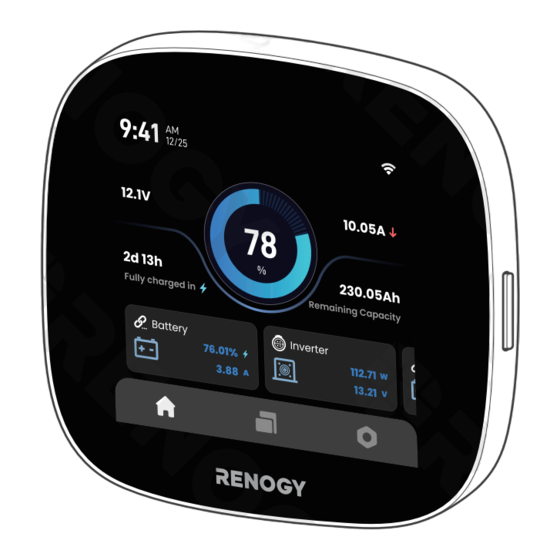

Renogy ONE Core User Manual
Hide thumbs
Also See for ONE Core:
- Quick manual (11 pages) ,
- Quick manual (16 pages) ,
- Quick start manual
Table of Contents
Advertisement
Advertisement
Table of Contents
Related Manuals for Renogy ONE Core
Summary of Contents for Renogy ONE Core

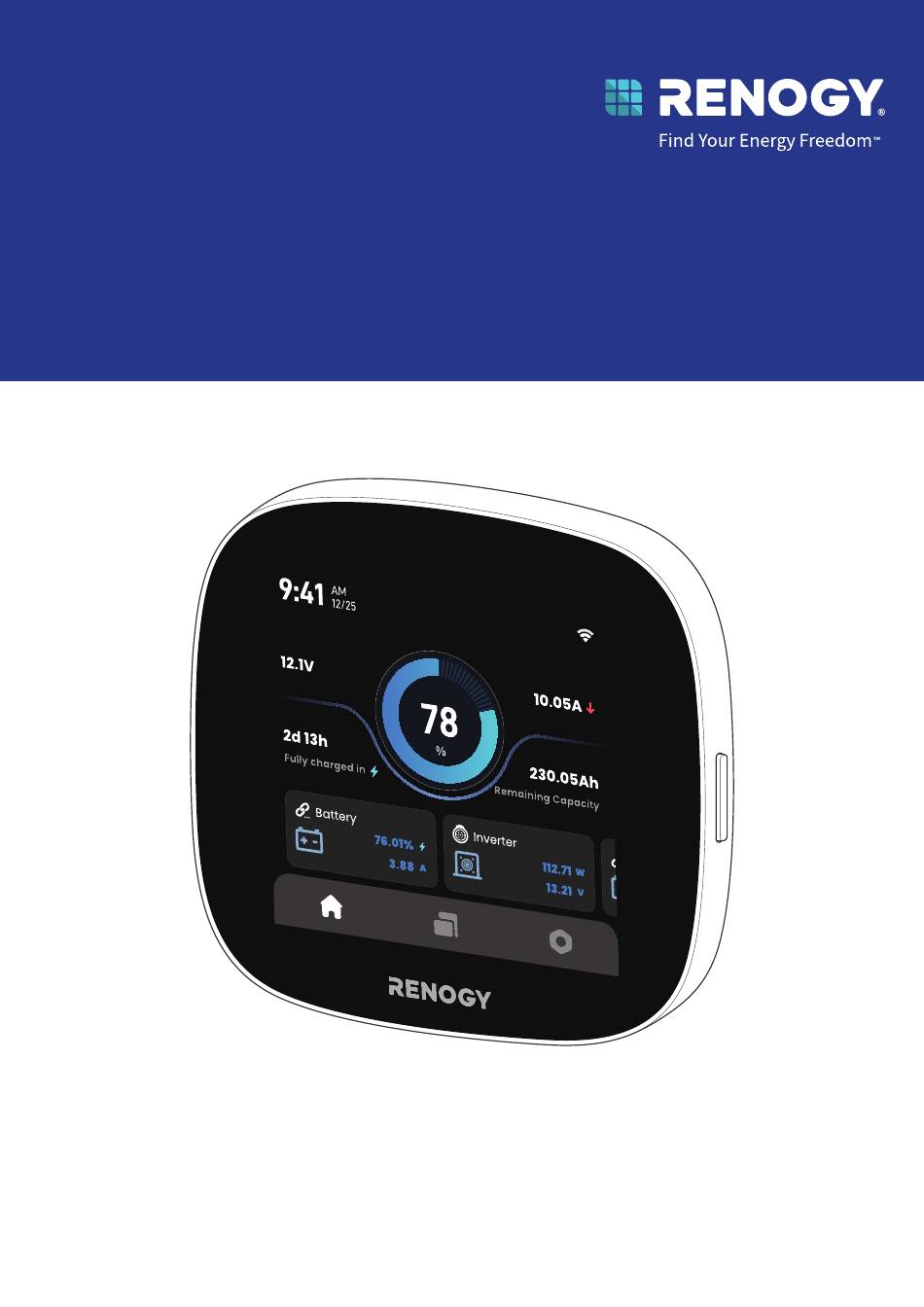

- Page 1 RENOGY ONE Core RSHGWSN-W02W-G1 VERSION A0 USER MANUAL...
- Page 2 The illustrations in the user manual are for demonstration purposes only. Details may appear slightly different depending on product revision and market region. z Renogy reserves the right to change the information in the quick guide without notice. For the latest user manual, visit renogy.com.
-
Page 3: Table Of Contents
Symbols Used .............................. 1 1.2. Introduction ..............................1 1.3. Key Features ..............................1 1.4. SKU ................................. 1 Get to Know RENOGY ONE Core ......................2 2.1. What’s In the Box? ............................. 2 2.2. Required Tools ............................2 2.3. Product Overview ............................3 2.4. - Page 4 Emergency Responses ..........................24 Fire ..................................24 Flooding ................................. 24 Smell ..................................24 Noise ..................................24 Renogy Support ............................25 FCC & RSS ..............................26 FCC Statement ..............................26 FCC Radiation Exposure Statement ........................ 26 RSS Standard ............................... 26 Privacy Policy ............................27 Definitions ................................
-
Page 5: General Information
Renogy ONE Portal and DC Home app. Additionally, the ONE Core features an RV leveling system for optimal stability and can function as a smart home hub, seamlessly connecting with other smart home appliances. -
Page 6: Get To Know Renogy One Core
Get to Know RENOGY ONE Core 2.1. What’s In the Box? RENOGY ONE Core RSHGWSN-W02W-G1 VERSION A0 QUICK GUIDE Quick Guide × 1 M3.5*14 mm Mounting Screws × 4 Power Cable (5 m) × 1 RENOGY ONE Core × 1 (1 extra) Make sure that all accessories are complete and free of any signs of damage. -
Page 7: Product Overview
2.3. Product Overview █ Front On/Off Button █ Rear Communication Port Mounting Holes Bubble Level Mounting Base Mounting Holes Mounting Holes Type-C Port Power Port — 3 —... -
Page 8: System Setup
2.4. System Setup Positive Negative Communication DC Power (8V to 60V) 5V, DC Devices (RS-485) You can choose either the Power Port or the Type-C port to supply Renogy ONE Core. — 4 —... -
Page 9: Preparation
3.1. Installation Site and Environment To ensure proper running of the RV leveling function on Renogy ONE Core, ensure it is installed in a spot with the screen pointing to the front, rear, left, or right side of the RV, vertically to the RV floor. It is recommended that RV leveling blocks should be used during the leveling process. -
Page 10: Checking Dc Power
Renogy ONE Core. 3.4. Extend the Power Cable If the included power cable is not long enough for connecting Renogy ONE Core to your DC power supply, re-select a mounting position or use an extension cable (≥ 22 AWG). Recommended Tools & Accessories Wire stripper Bare Wires (≥... -
Page 11: How To Connect Rs-485 Communication Devices (Optional)
You can choose an appropriate communication method according to the actual situation. z For Bluetooth wireless communication, communication wiring is not required. z For RS-485 communication, you need to wire Renogy ONE Core with energy devices. Recommended Components & Accessories... - Page 12 RJ45 Ethernet Cable When adding multiple devices to Renogy ONE Core through the Communication Hub, connect every single device to Renogy ONE Core individually through the hub first, and then reconnect all devices to the hub. Turn to the hub’s manual for more details.
-
Page 13: Installation
5V, DC When installing the power cable, always connect the negative first, and then the positive. You can connect Renogy ONE Core to a power supply through the included power cable or a Type-C cable (not included). RJ45 Ethernet Cable... -
Page 14: Mount Renogy One Core On A Wall
4.2. Mount Renogy ONE Core on a Wall Please tear off quick guide mounting template or print this piece of paper, and paste it to the mounting location for drilling holes. You can also draw your own Mounting Template based on the dimensions indicated in the following image. - Page 15 5V, DC When installing the power cable, always connect the negative first, and then the positive. You can connect Renogy ONE Core to a power supply through the included power cable or a Type-C cable (not included). — 11 —...
- Page 16 RJ45 Ethernet Cable (Max length: 6 m) Devices (RS-485) For details, see “3.5. How to connect RS-485 Communication Devices (Optional)”. 45° Click — 12 —...
-
Page 17: Configure Renogy One Core
For initial startup, follow the startup wizard on the Core to pair it with the DC Home app. Alternatively, go > System > Pair with App. 5.3. Add Devices Renogy ONE Core can connect to Bluetooth, Bluetooth mesh, and Zigbee Renogy devices concurrently. Internet — 13 —... -
Page 18: Rv Leveling
5.4. RV Leveling > RV Leveling RV leveling calibration on Renogy ONE Core is required each time the installation site for the Core is changed. — 14 —... -
Page 19: Troubleshooting
Enter the correct Wi-Fi SSID and Wrong password failure password. Ensure that there is no metal object around Renogy ONE Core and the Wi- Signal shielding Fi router because it may undermine the wireless communication. Unplug the BT-1 or BT-2 Bluetooth... - Page 20 RV the Core and DC Home leveling on the Core. The performance of the built- Install the Renogy ONE Core in a well- in 6-axis sensor is affected by ventilated location to prevent RV environmental factors such as leveling data discrepancies due to temperature.
-
Page 21: Interoperability Matrix
Interoperability Matrix Product With a Built-in Bluetooth Module REGO 12V 400Ah Lithium Iron Phosphate Battery RBT12400LFPL-SHBT REGO 12V 60A MPPT Solar Charge Controller RCC60REGO REGO 12V 60A DC-DC Battery Charger RCB1260DO-100506PR REGO 12V 3000W Pure Sine Wave Inverter Charger w/ LCD Display RIV1230RCL-1SS 12V 100Ah Lithium Iron Phosphate Battery w/ Bluetooth RBT100LFP12-BT... - Page 22 12V 50A Dual Battery Charging 200W Solar Flex Bundle RKIT200DB-50D1S 350 Watt Solar Flexible Kit RKIT350DB-RVRE40 Zigbee Motion Sensor RSHMSZ03P-US Door & Window Sensor RSHDWZ03P-US Smart Plug RSHPGZ01P-US Smart Relay RSHSRZ02P-US For the latest products that are compatible with Renogy ONE Core, visit renogy.com. — 18 —...
-
Page 23: Faq
No, the Renogy ONE Core does not support RV-C communication. █ How can I check the RV leveling status? You can check it locally on Renogy ONE Core or remotely on the DC Home app when the app is paired with the Core via Bluetooth. - Page 24 Zigbee 3.0. █ What kind of power systems can Renogy ONE Core work with? Renogy ONE Core can be supplied by a 5V DC source via Type-C or an 8V to 60V DC source via the power cable.
-
Page 25: Dimensions And Specifications
2.09 in (53 mm) 0.50 in (12.6 mm) Dimension tolerance: ±0.5 mm (0.2 in) 9.2. Technical Specifications Product Name Renogy ONE Core Model Name RSHGWSN-W02W-G1 z Power Port: 8 to 60 VDC Operating Voltage z USB Type-C: 5 VDC z Operating, Wi-Fi On, 100% illumination: 3.2 W z Operating, Wi-Fi On, 50% illumination: 2.4 W... - Page 26 Operating Temperature -4°F to 158°F(-20°C to 70°C) Operating Humidity 0% to 95% RH Operating Altitude Less than 16,404 ft (5000m) Installation Flush mount or place on a table Dimensions 4.17 x 4.17 x 1.05 in (106 x 106 x 26.6 mm) Weight 0.28 lb (128g) Certifications...
-
Page 27: Maintenance
Cleaning Follow the steps below to clean the Renogy ONE Core regularly. z Shut down Renogy ONE Core. If you clean the inside of the device, you need to disconnect the power supply. z Wipe the charger housing and connector contacts with a damp cloth or non-metallic brush. If it is not clean after wiping, use a household cleaner. -
Page 28: Emergency Responses
Put out the fire with a fire extinguisher. Acceptable fire extinguishers include water, CO2, and ABC. Do not use type D (flammable metal) fire extinguishers. Flooding If the Renogy ONE Core is submerged in water, stay away from the water. Disconnect all cables connected to the Renogy ONE Core. Smell Disconnect all cables connected to the Renogy ONE Core. -
Page 29: Renogy Support
To explore more possibilities of solar systems, visit Renogy Learning Center at: renogy.com/learning-center For technical questions about your product in the U.S., contact the Renogy technical support team through: renogy.com/contact-us 1(909)2877111 For technical support outside the U.S., visit the local website below: Canada ca.renogy.com... -
Page 30: Fcc & Rss
FCC & RSS FCC Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. -
Page 31: Privacy Policy
Definitions █ Service Service includes but not limited to, serving as a central control panel for your RENOGY ONE system, enabling you to control your entire system from one single touchscreen, connecting energy devices and smart accessories, and synchronizing this data to your RENOGY server and mobile App. - Page 32 █ Retention of Data RENOGY will retain your Personal Data only for as long as is necessary for the purposes set out in this Privacy Policy. We will retain and use your Personal Data to the extent necessary to comply with our legal obligations (for example, if we are required to retain your data to comply with applicable laws), resolve disputes and enforce our legal agreements and policies.
-
Page 33: Disclosure Of Data
(e.g. a court or a government agency). █ Legal Requirements RENOGY may disclose your Personal Data in the good faith belief that such action is necessary to: z To comply with a legal obligation... -
Page 34: Service Providers
You are advised to review this Privacy Policy periodically for any changes. Changes to this Privacy Policy are effective when they are posted on this page. Contact Us If you have any questions about this Privacy Policy, please contact us via renogy.com/contact-us. — 30 —... - Page 35 Save 105 gallons of water from being consumed Renogy Power PLUS Renogy Power Plus allows you to stay in the loop with upcoming solar energy innovations, share your experiences with your solar energy journey, and connect with like-minded people who are changing the world in the Renogy Power Plus community.
