SC1000 Series Vision Sensor Quick Start Guide

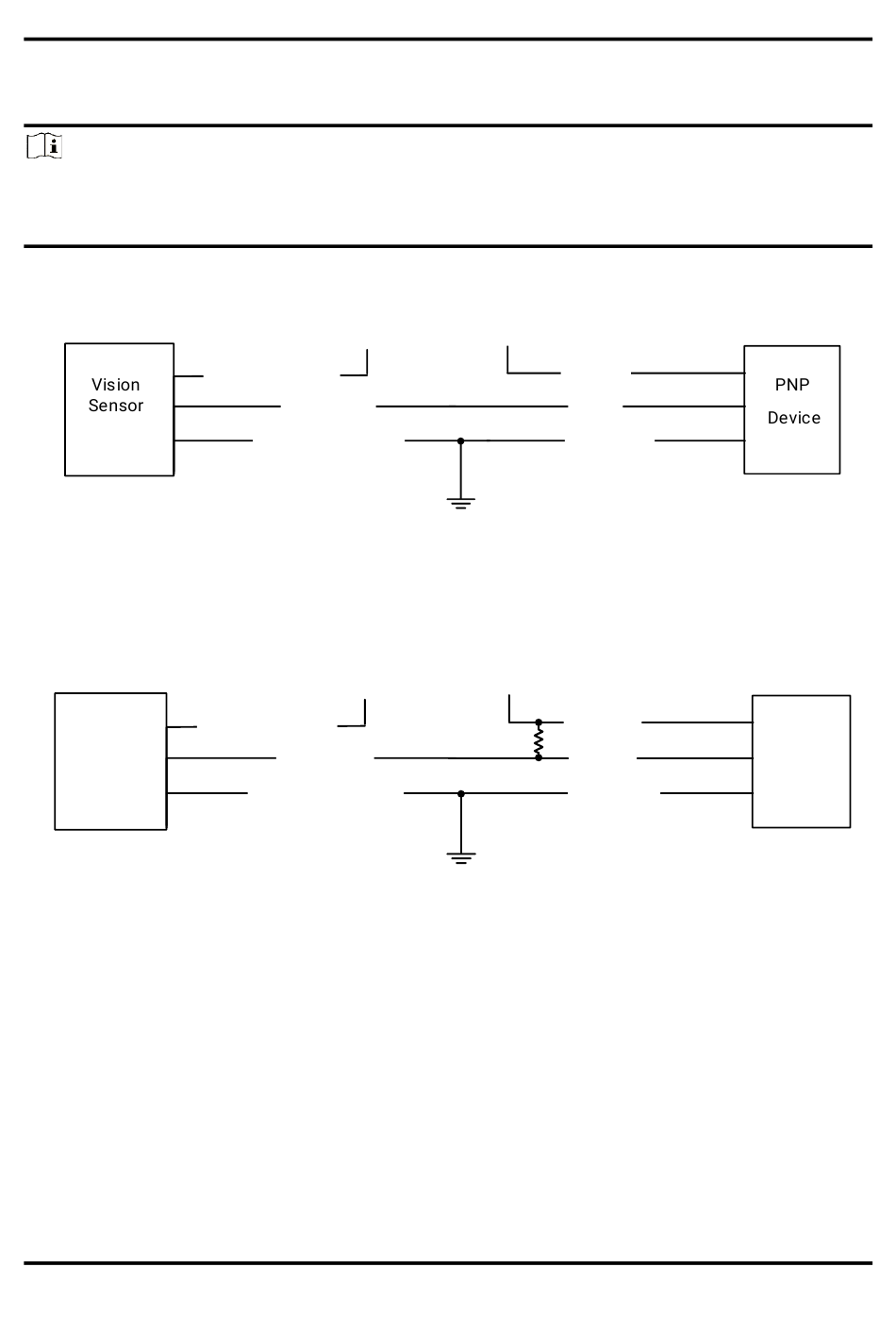

8.2.2 Output Signal Wiring

Note
● Output signal wiring may differ by external device types.
● The voltage of VCC should not higher than that of PWR. Otherwise, the device's output
signal may have exception.
PNP Device
VCC
PWR
PNP Device
Device Power
Power
Non-Isolated
Signal Line
Output
PNP Power
(With Cable)
Device Power Ground
Ground
GND of PWR and VCC
Figure 8-8 Output Signal Connecting to PNP Device
NPN Device
The pull-up resistor is connected to the device. A 1 KΩ pull-up resistor is recommended.
VCC
PWR
NPN Device
Device Power
Vision
Power
NPN
Sensor
Non-Isolated
Signal Line
Output
Device
NPN Power
(With Cable)
Device Power Ground
Ground
GND of PWR and VCC
Figure 8-9 Output Signal Connecting to NPN Device

8.3 RS-232 Serial Port

The device supports outputting via the RS-232 serial port. You can refer to the table below
