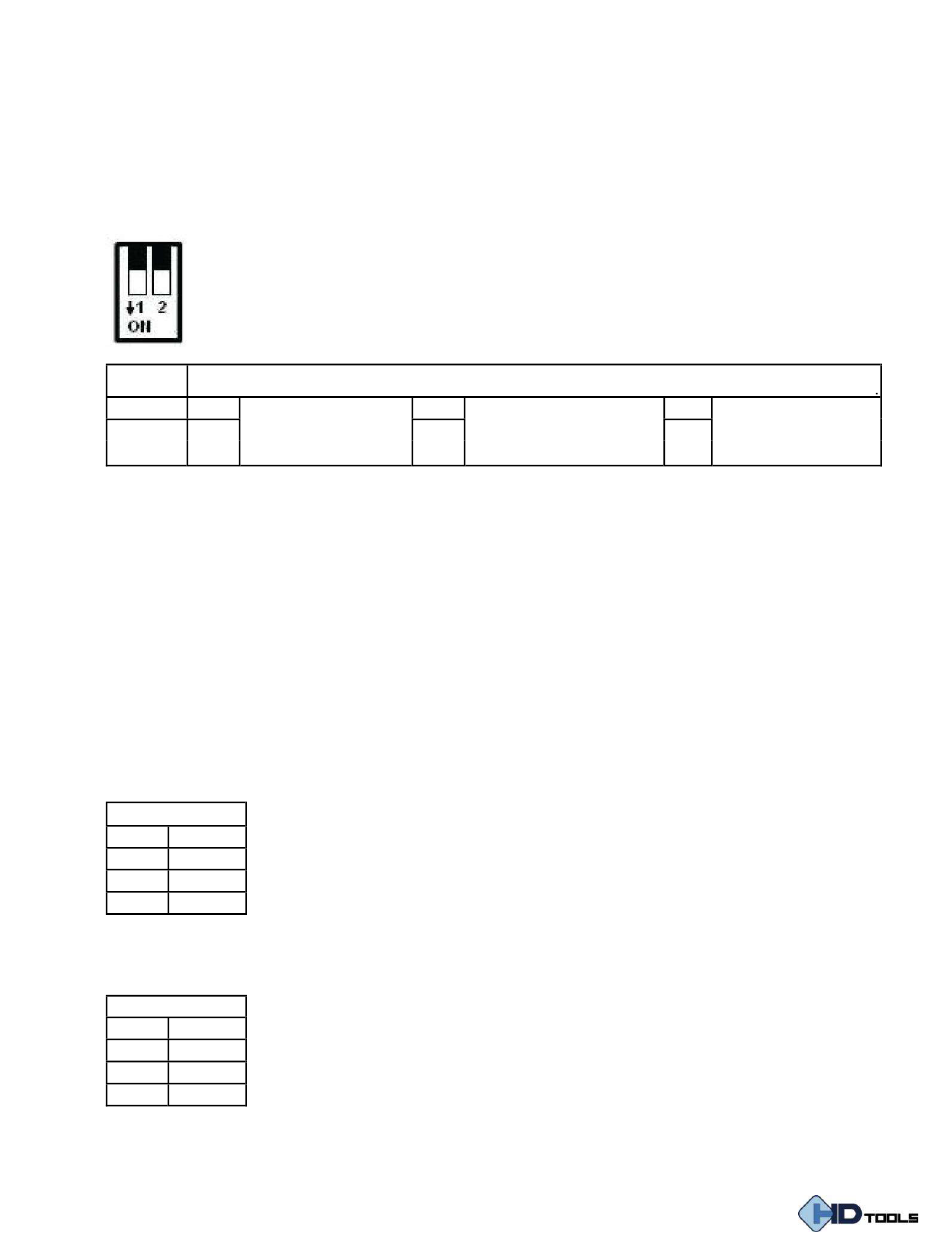

Dip Switch Settings

Switch
SW 1 ON IR Extender Function
SW 2 OFF
SWITCH position 1 and 2 must be positioned as above instructed above:
IR: SW1 ON (down position) + SW2 OFF (up position)
RS232: SW1 OFF (up position) + SW2 ON (down position)
USB: SW1 ON (down position) + SW2 ON (down position)

RS232

DB9 (F)
RS232
Pin Define
Pin 2 TX
Pin 3 RX
Pin 5 GND
DB9 (M)
RS232
Pin Define
Pin 2 RX
Pin 3 TX
Pin 5 GND
Purelink DOF-T2.0 User Manual V1.1
Function
OFF RS232 Extender Function
ON
ON USB Keyboard
ON
Mouse Extender
Function
