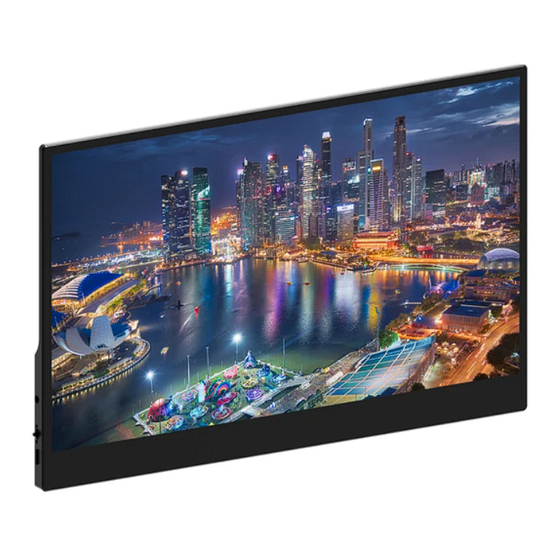

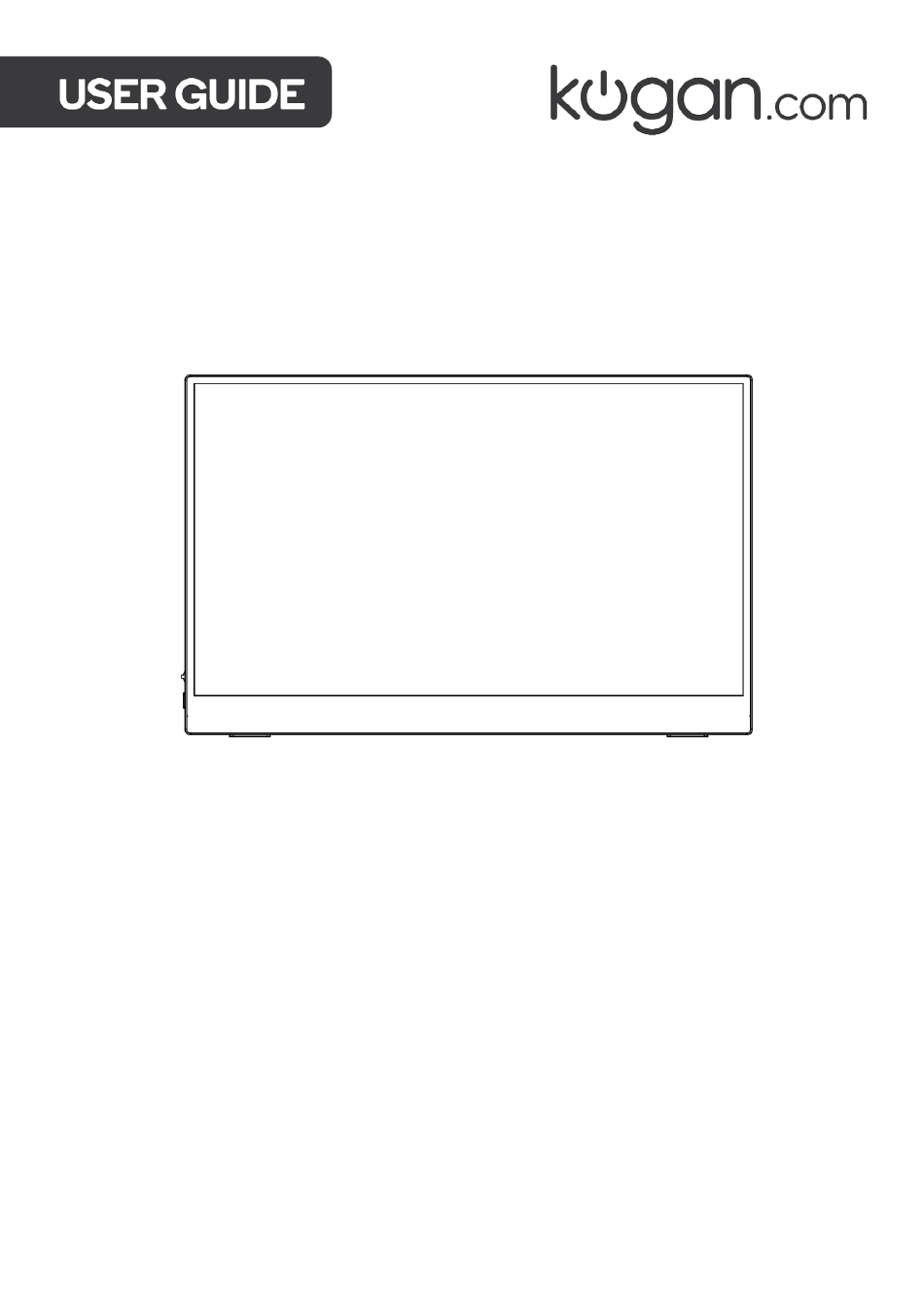

- Page 1 XPRESSO 15.6" IPS PORTABLE LED MONITOR (1920 X 1080, FULL HD, USB-C, TOUCHSCREEN) KAMN15TFUPA...
- Page 3 COMPONENTS Portable monitor USB-C to USB-C cable USB-C to USB-A cable Mini HDMI to HDMI cable Power adapter Cover case User guide...
- Page 4 OVERVIEW 3.5mm headphone port Menu / Confirm button Function selection button Power / Back button Mini HDMI port Secondary USB-C port Primary USB-C port Ports Introduction Port Description The all-in-one ports that supply power and transmit audio, Full function USB-C ports image at same time.
- Page 5 CONNECTIVITY Computer (via USB-C) This portable monitor can be connected to a compatible computer using the supplied USB- C cable. This must be connected to the primary USB-C port on the right side of the monitor. The computer will provide power and signal to the monitor and can be used to mirror or extend the computer screen.
- Page 6 Notes: • When connecting the portable monitor and mobile phone via USB-C, the brightness of the monitor will automatically be set to low when connected to a mobile phone that supports reverse power supply. • It is recommended to use a power adapter with this portable monitor to achieve optimal brightness and extended usage duration.
- Page 7 Other Devices (via HDMI & USB-A to USB-C) Connect the supplied power adapter to the USB-C port on the right side of the monitor and plug the power adapter into an electronical outlet. Connect the HDMI end of the supplied mini-HDMI to HDMI cable to the device and the other end to the mini-HDMI port on the right side of the portable monitor.
-
Page 8: Operation
OPERATION Turn the Monitor On/Off • Press the power button to turn the portable monitor on. • Press and hold the power button for 3 seconds to turn the portable monitor off. On-Screen Display (OSD) • Press the Menu button to enter the OSD menu. •... - Page 9 Adjust the Volume On the main menu, press the upward or downward arrow button to select the volume menu and confirm by menu button. Press upward or downward arrow to adjust the volume. Press the power button to return to previous menu and the adjustment is confirmed by default.
- Page 10 Using Cover Case When the cover case is attached to the monitor, it uses a built-in magnet to stay securely in place over the screen. It can also be folded back to function as an upright stand. Back side (with one line) Fold the LED side of the cover case over the LED display...
-
Page 11: Specifications
SPECIFICATIONS Product Portable monitor Product size 368 x 225 x 10.5mm Resolution 1920 x 1080 Colour 16.7M Viewing angle L:85/R:85/T:85/D:85 (Typ.) (CR≥10) Best perspective Full view Input interface x1 Mini HDMI, x2 USB-C Output interface 3.5mm headphone port Screen size 15.6inch Panel type Aspect ratio... - Page 12 Need more information? We hope that this user guide has given you the assistance needed for a simple set-up. For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com...
