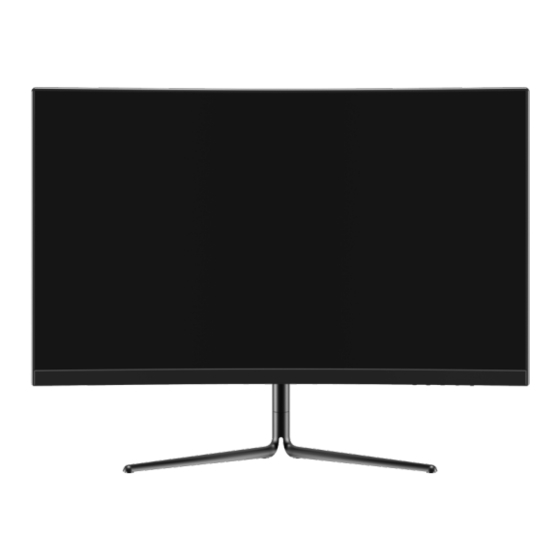

- Page 1 27" CURVED GAMING MONITOR 2560 x 1440, 144Hz KAMN27RQ1LB...
-
Page 2: Table Of Contents
Safety & Warnings Components Overview Stand Assembly VESA Mount Connectivity Operation Cleaning & Care Specifications... -
Page 3: Safety & Warnings
SAFETY & WARNINGS Ensure to read all instructions and warnings in this user guide prior to first use. Retain this user guide for future reference. • Do not position the monitor on unstable surfaces. If the monitor falls, it may lead to damage and injuries to people around its vicinity. -
Page 4: Components
COMPONENTS A Monitor (x1) B Stand stem (x1) C Stand base (x1) D Stand plate (x1) E Screw (x4) F VESA connector (x4) G DisplayPort cable (x1) H Power cable (x1) I Power adapter (x1) J User guide (x1) -
Page 5: Overview
OVERVIEW Menu/enter button Down button Up button Exit button Power button LED indicator Ports HDMI 2.0 HDMI 1.4 3.5mm headphone jack DisplayPort port HDMI port (x1 HDMI 2.0, x2 HDMI 1.4) Power port... -
Page 6: Stand Assembly
STAND ASSEMBLY 1. Ensure all components are present before disposing of any packaging. Using a screwdriver (not supplied), secure the stand stem (B) to the stand base (C) with one screw. Stand stem Screw Stand base 2. Press the release button to remove the stand plate (D) from the packaging. Stand plate Release button Foam... - Page 7 4. Take out the monitor (A) and lay it on a flat surface. 5. Pull the release button on the stand plate (D) upwards and clamp the monitor (A) onto the stand stem (B) and stand plate (D). Release button...
-
Page 8: Vesa Mount
VESA MOUNT 1. Open the packaging, and with the foam attached, take out the monitor (A) and place it gently on a flat surface. Remove the foam covering the back of the monitor. If the monitor is attached to the stand stem (B) or stand base (C), detach it. 2. -
Page 9: Connectivity
CONNECTIVITY The panel on the bottom of the monitor can be removed to gain easier access to the input ports. Replace the panel when done. Detachable panel Power adapter Connect one end of the power adapter into the power port of the monitor then connect the battery end into one end of the power cable, Plug the power cable into a power socket. - Page 10 HDMI To allow the monitor to receive HDMI signals from the computer, plug one end of an HDMI cable (not supplied) into the monitor. Plug the other end of the cable into the HDMI output port on your computer. HDMI cable (not supplied) Earphones Plug in earphones (not supplied) into the 3.5mm headphone jack on the monitor.
-
Page 11: Operation
OPERATION 1. Connect the monitor to your computer via DisplayPort/HDMI. HDMI DisplayPort 2. Connect one end of the power adapter into the power port of the monitor then connect the battery end into the power cable, Plug the power cable into a power socket. - Page 12 Navigation window Whilst turned on, press any button located underneath the monitor to bring up the navigation window. These include options to go to the on-screen display menu, as well as shortcuts to sub-menus. GamePlus menu Input source menu ECO mode menu Power menu OSD menu •...
- Page 13 On-screen display menu The On-Screen Display (OSD) menu can be used to adjust the monitor’s settings. When the monitor is used for the first time, optimal settings will be set as default. 1. Press any one of the buttons located underneath the monitor to activate the navigation window.
- Page 14 OSD menu options Below is a list of the various settings that can be adjusted through the OSD menu. Category Sub-Menu Options Description None Switches to DP signal input HDMI 1 Input Source Switches to HDMI signal HDMI 2 None input HDMI 3 Adjusts the display...
- Page 15 Sharpness 0–100 Sets the display sharpness Response Changes the response time Off, High, Middle, Low Time of the monitor Reduces the interference of Noise image noise caused by Off, High, Middle, Low Reduction possible signal source interference When the resolution of the Picture display screen is low, this Quality...
- Page 16 English, 简体中文, Language Sets the OSD language Русский, Español, 日本語, Francais Adjusts the horizontal OSD H-Position 0–100 position of the OSD menu Adjusts the vertical position OSD V-Position 0–100 of the OSD menu Sets the level of 0–100 transparency of the OSD Transparency menu Set how long the OSD menu...
- Page 17 ECO modes There are various pre-set colour modes available on this monitor. These can be accessed using the ECO modes menu. The modes include the following: • Standard (suitable for most activities) • Photo (best suited when viewing photos) • Movie (best suited when watching movies) •...
-
Page 18: Cleaning & Care
• Ensure the monitor is turned off, unplugged, and cooled before cleaning. • Clean the screen by wiping it with a dry microfibre cloth. • Clean the monitor body with a slightly damp cloth with water. SPECIFICATIONS Model KAMN27RQ1LB Screen size 27" Aspect ratio 16:9 Backlight E–LED... - Page 19 Audio Audio out Speakers Accessories Power cable Power adapter DisplayPort cable Additional functions Low blue light Flicker free Physical dimensions Dimensions (with stand) 616.2 x 453.1 x 195.7mm Dimensions (without stand) 616.2 x 367.2 x 96.3mm Net weight 4.85kg Gross weight 6.72kg...
- Page 20 Need more information? We hope that this user guide has given you the assistance needed for a simple set-up. For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com...
