Summary of Contents for Kogan KAMN15SMSB

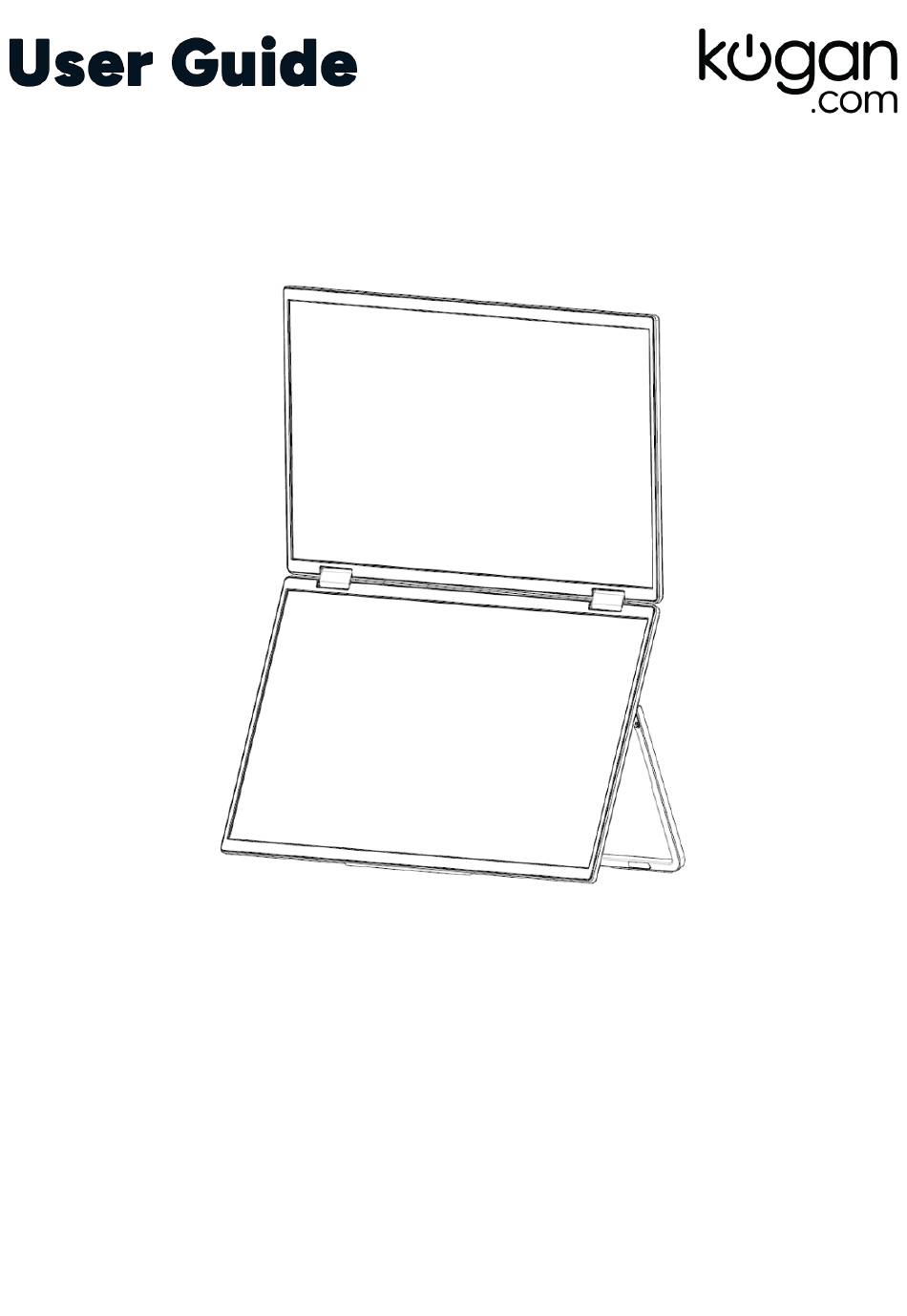

- Page 1 15.6” Full HD Stackable Multi- Display USB-C Portable Monitor (1920 x 1080) KAMN15SMSB...
-
Page 2: Table Of Contents
Safety & Warnings Components Overview Assembly Driver Installation Connectivity Operation Specifications Notes... -
Page 3: Safety & Warnings
Do not remove safety covers. This product has no user-serviceable parts. • Unauthorised servicing is hazardous and may result in irreparable damage or serious personal injury. • Repairs should only be conducted by authorised personnel. Contact help.Kogan.com for assistance if required. -
Page 4: Components
Components Portable Monitor USB-C Power Adaptor USB-A to USB-C Cable USB-C to USB-C Cable (Video & Power) (60cm Video & Power) USB-C to USB-C Cable HDMI Cable (120cm Power Only) Cleaning Cloth User Guide... -
Page 5: Overview
Overview 355.76mm 15.6” 15.6” USB-C Connection Portable Monitor Connect one end of the USB-C cable to the USB-C port (full function) USB-C port on the display and the other end USB-C port (full function) to a video output device (e.g., a laptop or HDMI port computer) with a full-featured USB-C port. - Page 6 Kickstand Folding Angles Screen Folding Angles...
-
Page 7: Assembly
Assembly Remove the portable monitor from the box. Unfold the kickstand to the desired angle so the monitor can sit securely. Unfold the upper screens upward to your desired angle. The kickstand can be opened 180° to allow the lower screen to sit flat on your surface. The upper screen can be rotated 315°... -
Page 8: Driver Installation
QR code below. Download Drivers Scan the QR code to access the driver download page: Alternatively, go to help.Kogan.com and search for ‘KAMN15SMSB’ to locate the driver download page. Windows Operating System Connect the portable monitor to your laptop. - Page 9 Windows macOS Operating System Connect the portable monitor to your laptop. Wait for the "USBDISPLAY" disk to appear on the desktop. Open the installation program and double-click the ‘USBDisplay_macOS_VX.X.X.XX.dmg’ file. Click Continue, then click Install. If prompted, enter your Mac’s password and click Install Software. Wait for the installation to complete, then click Restart.
- Page 10 Setting Screen Recording Permissions on macOS Screen recording permissions are required to allow the driver to properly capture and display content from your laptop onto the portable monitor. This is a normal step in the installation process to enable screen mirroring functionality. This permission allows the driver to access the display data locally and does not share or transmit any information externally.
-
Page 11: Connectivity
Connectivity This portable monitor supports multiple connectivity methods based on your laptop’s capabilities and requirements. Follow the steps below to set up your monitor for optimal performance. All required cables and a USB-C power adaptor are included in the box: •... - Page 12 If your laptop's USB-C port is compatible, it should supply both data and power to the monitor. Check for symbols next to your USB-C port: • Ports with green-checked symbols in the reference table below indicate compatibility. Notes: • MacBook users’ ports should be compatible even if no symbols are present. •...
- Page 13 USB-A Connection (Single Cable) Connect one end of the USB-A to USB-C cable to the USB-A port on your laptop and the other end to the portable monitor. • If your laptop does not supply sufficient power, connect the portable monitor to an electrical outlet using the provided USB-C power cable and power adaptor.
- Page 14 Connect the HDMI Cable: Use the HDMI cable to connect the HDMI port on the monitor to the HDMI port on your laptop. HDMI HDMI HDMI cable Connect the USB-A to USB-C Cable: Use the USB-A to USB-C cable to connect the USB-A port on your laptop to the USB-C port on the portable monitor.
-
Page 15: Operation
Operation The monitor's settings can be customised using the On-Screen Display (OSD) menu, accessed and navigated via the power button. Follow the instructions below to adjust the monitor's functions and preferences: Accessing the OSD Menu • Open the OSD Menu: Short press the power button to display the OSD menu on the screen (The menu will automatically exit after 8 seconds without user input). - Page 16 Color Settings • Color Temperature: Adjust the color temperature mode displayed on the screen. • Blue Light: Reduce blue light levels for eye comfort (adjustable 0-100). Audio Settings • Mute: Toggle mute mode On/Off. • Volume: Adjust the volume level (0-100).
- Page 17 Other Settings • Aspect Ratio: Select or switch the image aspect ratio (e.g., Full). • Language: Change the menu language (e.g., English). • Reset: Restore the monitor to factory settings. Input Source • Type-C1: Select the first USB-C signal input. •...
-
Page 18: Specifications
Specifications Screen size 15.6” x2 Resolution 1920 x 1080 Brightness 250cd/m (Typ) Viewing angle 178° Refresh rate 60Hz Aspect ratio 16:10 Backlight type W-LED Power 9V-3A, 12V-2.5A, 15V-2A, 20V-1.5A Colour gamut 115% RGB Response time 20ms (rising + falling) Colour range 16.7M colour Static contrast 1000:1... -
Page 19: Faq
Q: Why is the USB 3.0 mode default output not 1080P@60Hz? A: If this issue occurs, follow these steps to troubleshoot: • Ensure the USB port is properly connected. If not, unplug and reconnect the cable. • Verify that the driver is installed correctly. If it isn’t, reinstall the driver. •... - Page 20 Q: How can I uninstall the drivers on macOS without an installation package? A: Follow these steps to uninstall drivers on macOS: • Open Finder and navigate to ‘usr/local/bin/’. • Locate the ‘usbdisplay_uninstall’ program or a file with "uninstall" in its name and run it.
- Page 21 Q: How do I use the upper and lower screens in stretching mode? • Open System Settings and drag the display screens to arrange them as desired. • Place the secondary screen on top of the main screen and click Apply. •...
-
Page 22: Notes
Notes... - Page 24 Need more information? We hope that this user guide has given you the assistance needed for a simple set-up. For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.Kogan.com.
