Summary of Contents for Kogan KAMN27Q18CWA

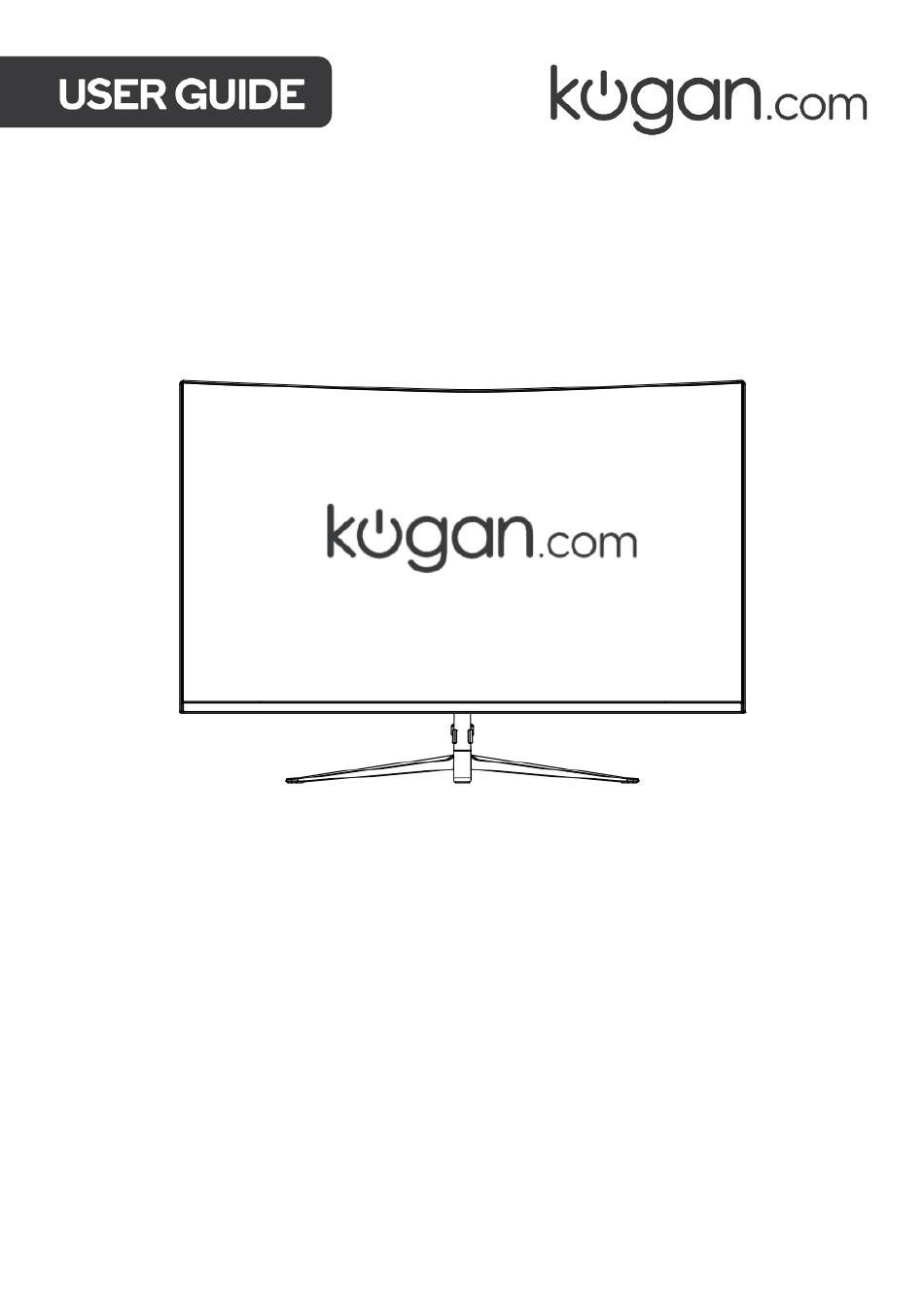

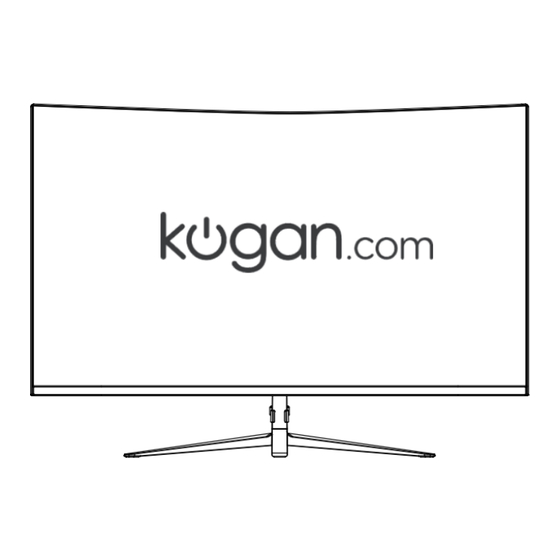

- Page 1 27" CURVED QHD 180HZ 1MS GAMING MONITOR (2560 X 1440) KAMN27Q18CWA...
- Page 3 SAFETY & WARNINGS • Read all instructions before using the appliance and retain for reference. • This monitor is designed with ventilation holes on the back of the casing. Do not cover or block them. • Do not insert any object or spray any liquid into the vents. •...
- Page 4 COMPONENTS Monitor Stand arm M4x14 Screws (x2) Stand Base (x4 white screws) (x1 spare) Power Adapter DP Cable Cable Clip Stand Cushion Rear Cover User Guide...
- Page 5 OVERVIEW Auto button Allows to exit the current menu or to exit the OSD menu. If not inside the OSD menu, it allows to display a crosshair on the screen. Menu button Press to display OSD menu and enter sub-menus. Up button The up-direction button allows you to move between the different menus and modify values.
- Page 6 Ports AC Input HDMI port (x2) DP port (x2) Audio output...
- Page 7 ASSEMBLY Lay the monitor on a cloth with the LCD panel facing down to prevent the LCD panel from being damaged. Fix the stand body to the back of the monitor with the screws. Fix the stand base to the stand body by tightening the screw. Attach the rear cover by pressing it onto the stand body.
- Page 8 VESA MOUNT Before installing the monitor on the wall, please detach the stand from the monitor. • To ensure sufficient ventilation, Install the monitor at least 10 cm (4 inches) away from the wall and leave about 10 cm of space at each side of the monitor. •...
- Page 9 ADJUSTMENTS The angle of the screen can be adjusted forward 5° or backward 15° for a comfortable viewing experience. Be careful not to touch or press the screen area when adjusting the angle of the monitor. Note: Drawings are for reference only and please refer to the actual monitor. CONNECTIVITY Before connecting the monitor to computer, shut off the power supply for the computer and the display.
- Page 10 HDMI Connect the provided HDMI cable (not supplied) from the computer's HDMI port to one of the monitor's HDMI port. HDMI cable (not included) HDMI Output Connect ta DisplayPort cable from the computer's DisplayPort to one of the monitor's DP ports .
- Page 11 Audio out Earphones, headphones or other audio devices can be connected to the 3.5mm audio port (Audio Out) on the monitor. The monitor may need to be set as the PC's default sound output device. Audio out (not included)
- Page 12 OPERATION Insert one end of the HDMI, DP cable into your computer’s HDMI port. Connect the other end of the cable to the corresponding connector on your monitor. Connect the power cable to your monitor then connect the other end to your power source.
- Page 13 SPECIFICATIONS Screen Size 27” Aspect Ratio 16:9 Backlight E-LED Brightness 240(Type.) cd/m² Panel Resolution 2560 x 1440 Refresh Rate 180Hz Response Time 1ms (With OD) Viewing Angle ≥178°(H)/≥178°(V) Contrast Ratio 4000:1 VESA Mounting 100 x 100 Colours 16.7M FreeSync Signal Inpt HDMI x 2, DP x 2 Power DC 12V=4A...
- Page 14 NOTES...
- Page 16 Need more information? We hope that this user guide has given you the assistance needed for a simple set-up. For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com...
