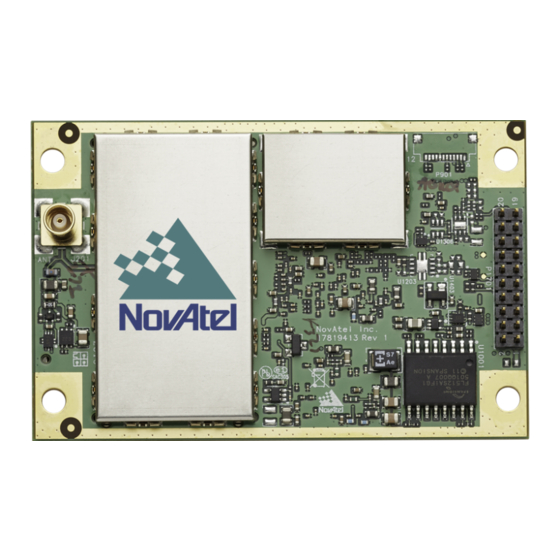

Novatel OEM7 Installation And Operation User Manual
  1. Manuals
  2. Brands
  3. Novatel Manuals
  4. Receiver
  5. OEM7 SPAN
  6. Installation and operation user manual

Novatel OEM7 Installation And Operation User Manual

Hide thumbs Also See for OEM7:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual, Operation & Installation Manual
®
OEM7
Installation and Operation
User Manual
OM-20000168 v1
February 2017

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OEM7 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Novatel OEM7

Summary of Contents for Novatel OEM7

  • Page 1 ® OEM7 Installation and Operation User Manual OM-20000168 v1 February 2017...

  • Page 2: Oem7®Installation And Operationuser Manual

    Information in this document is subject to change without notice and does not represent a com- mitment on the part of NovAtel Inc. The software described in this document is furnished under a licence agreement or non-disclosure agreement. The software may be used or copied only in accordance with the terms of the agreement.

  • Page 3: Table Of Contents

    1.2.6 Data Communications Equipment 1.2.7 OEM719 Receiver Overview 1.2.8 OEM729 Receiver Overview 1.2.9 OEM7700 Receiver Overview Chapter 2 Installation of OEM7 Family Receiver Cards 2.1 Shipping Box 2.2 Additional Equipment Required 2.3 Selecting a GNSS Antenna 2.4 Choosing a Coaxial Cable 2.5 Power Supply Requirements for Receiver Cards...
  • Page 4 3.9.2 Veripos Subscriptions 3.10 RTK ASSIST 3.11 Transferring Time Between Receivers 3.11.1 GPS to Receiver Time Synchronization 3.11.2 Time Definitions 3.11.3 Procedures to Transfer Time 3.12 Interference Toolkit 3.12.1 Monitoring GNSS Signals Example: OEM7 Installation and Operation User Manual v1...
  • Page 5 6.4 Corrections Over CAN 6.4.1 Example for Receiving Corrections from Any Source 6.4.2 Example for Transmitting Corrections to 0x1C Node 6.5 NovAtel Messages Over CAN 6.6 Configuring OEM7 Receivers to Use OEM6 CAN Settings OEM7 Installation and Operation User Manual v1...
  • Page 6 B.6.2 P1803 Expansion Connector 16-Pin Header APPENDIX C OEM7700 Technical Specifications C.1 OEM7700 Performance Specifications C.2 OEM7700 Mechanical Specifications C.3 OEM7700 Electrical and Environmental Specifications C.4 OEM7700 Data Communication Specifications C.5 OEM7700 Strobe Specifications OEM7 Installation and Operation User Manual v1...
  • Page 7 APPENDIX D Importance of Antenna Selection APPENDIX E Accessories and Replacement Parts E.1 Manufacturers’ Part Numbers APPENDIX F Electrostatic Discharge (ESD) Practices F.1 Handling ESD Sensitive Devices F.2 Prime Static Accumulators F.3 Handling Printed Circuit Boards OEM7 Installation and Operation User Manual v1...

  • Page 8: Notices

    WEEE If you purchased your OEM7 family product in Europe, please return it to your dealer or supplier at the end of life. The objectives of the European Community's environment policy are, in par- ticular, to preserve, protect and improve the quality of the environment, protect human health...

  • Page 9: Rohs

    RoHS The OEM7 GNSS receivers are in conformity with Directive 2011/65/EU of the European Parlia- ment and of the Council of 8 June 2011 on the restriction of the use of certain hazardous sub- stances in electrical and electronic equipment.
  • Page 10 6. The primary and secondary lightning protections should be as close to the building's entrance as possible. Where feasible, mount onto the grounding plate itself (refer to the figure below). OEM7 Installation and Operation User Manual v1...

  • Page 11: Conventions

    A caution that actions, operation or configuration may lead to incorrect or improper use of the hardware. A warning that actions, operation or configuration may result in regulatory noncompliance, safety issues or equipment damage. OEM7 Installation and Operation User Manual v1...

  • Page 12: Customer Support

    If you are having a hardware problem, send a list of the troubleshooting steps taken and the res- ults. Contact Information Log a support request with NovAtel Customer Support using one of the following methods: Log a Case and Search Knowledge: OEM7 Installation and Operation User Manual v1...
  • Page 13 Customer Support Website: www.novatel.com/support Log a Case, Search Knowledge and View Your Case History: (login access required) Web Portal: https://novatelsupport.force.com/community/login E-mail: support@novatel.com Telephone: U.S. and Canada:   1-800-NOVATEL (1-800-668-2835) International:   +1-403-295-4900 OEM7 Installation and Operation User Manual v1...

  • Page 14: Chapter 1 Introduction

    Enclosure and wiring harness Power supply Data communications equipment GNSS antenna An OEM7 receiver system is illustrated in Figure 1: OEM7 Receiver System on the next page and described in the sections that follow. OEM7 Installation and Operation User Manual v1...

  • Page 15: Oem7 Family Card

    The heart of the digital section is NovAtel’s MINOS7 ASIC (Application Specific Integrated Cir- cuit). The digital section digitizes and processes the IF signals to obtain a GNSS solution (pos- ition, velocity and time). It also processes the system I/O, shown in Figure 1: OEM7 Receiver System above.

  • Page 16: Optional External Frequency Reference

    A computer or other data communications device is necessary to communicate with the receiver and to receive and store the data that the receiver provides. 1.2.7 OEM719 Receiver Overview The OEM719 has the same form and fit as NovAtel’s OEM615™ receiver, with the following fea- tures: Four-frequency/Multi-constellation: GPS L1, L1C, L2C, L2P, L5;...

  • Page 17: Oem7700 Receiver Overview

    OEM729 technical specifications are provided in OEM729 Technical Specifications on page 130. 1.2.9 OEM7700 Receiver Overview The OEM7700 is the same size as NovAtel’s OEM615™ receiver with the following features: Four-frequency/Multi-constellation: GPS L1, L1C, L2C, L2P, L5; GLONASS L1, L2, L2P, L3; BeiDou B1, B2, B3; Galileo E1, E5, E5a, E5b, E6, AltBOC;...
  • Page 18 Chapter 1   Introduction Enhance interference mitigation Mechanical mounting rails Figure 4: OEM7700 Receiver Board OEM7700 technical specifications are provided in OEM7700 Technical Specifications on page 150. OEM7 Installation and Operation User Manual v1...

  • Page 19: Chapter 2 Installation Of Oem7 Family Receiver Cards

    Optional NovAtel OEM7 Development Kit (01019433) OEM7 Development Kit Guide (GM-14915145) When the OEM7 family receiver is installed in a permanent location, it should be pro- tected by a lightning protection device according to local building codes (refer to the Lightning Protection Installation and Grounding Procedure on page 9).

  • Page 20: Choosing A Coaxial Cable

    European Union’s Restriction of Hazardous Substances (RoHS) and Waste Electrical and Electronic Equipment (WEEE). If a non-NovAtel GNSS antenna is chosen, a typical antenna LNA gain between 26 dB to 30 dB is recommended in a rover station application.

  • Page 21: Card Installation Overview

    2.6.1 Electrostatic Discharge (ESD) Precautions When the OEM7 family card is removed from the original packing box, keep the box and ESD pro- tection for future storage or shipment. Leave the OEM7 family card in the static shielding bag or clamshell when not connected in a normal operating environment.

  • Page 22: Planning The Mount Location

    Location to securely mount the receiver using screws 2.7.1 Planning the Mount Location When planning the mount location for the OEM7 receiver, ensure there is enough room for the card. There is an area around the card, called a keep-out zone, where other components in the enclosure do not intrude.

  • Page 23: Mounting Options

    2.7.3 Mounting Options OEM7 receivers can be mounted using standoffs, rails or rails and edge clamping. Figure 5: Mounting with Standoffs OEM7 Installation and Operation User Manual v1...
  • Page 24 Figure 7: Mounting with Rails and Edge Clamps The mounting holes in the OEM7 receiver cards accept M3 fasteners with a maximum projected head diameter of 7.5 mm (0.295"). For the exact spacing of the mounting holes, see Figure 39: OEM719 Dimensions on page 113, Figure 46: OEM729 Dimensions on page 133 and Figure 49:...
  • Page 25 Chapter 2   Installation of OEM7 Family Receiver Cards For proper grounding and mechanical integrity, mount the OEM719 and OEM7700 with four screws. For proper grounding and mechanical integrity, mount the OEM729 with six screws. When installing cards, ensure all standoffs are properly installed.
  • Page 26 Figure 8: Mounting the High-Density, 60 Pin Connector OEM7 receivers have an area on the edge of the cards to allow the use of mounting rails. This is the area of bare copper outside of the keep-out zone. On the OEM719 and OEM7700, this area is 1.75 mm wide.

  • Page 27: Thermal Dissipation

    The OEM7 receivers have been designed to efficiently transfer heat from the receiver com- ponents into the printed circuit board. Mounting the OEM7 receiver on rails, or attaching heat sinks to the mounting areas, will transfer the heat from the receiver card to adjacent circuit boards, the enclosure or the air.
  • Page 28 RF signal input Optional external frequency reference For all OEM7 family cards, the power, status and data inputs and outputs are accessed from one connector. The interface therefore, must be designed to mate with this connector. Table 2: OEM7 Communication and I/O Connectors...
  • Page 29 Chapter 2   Installation of OEM7 Family Receiver Cards Figure 9: OEM719 Connector and Indicator Locations Top View Bottom View OEM7 Installation and Operation User Manual v1...
  • Page 30 Chapter 2   Installation of OEM7 Family Receiver Cards Figure 10: OEM729 Connector and Indicator Locations Top View Bottom View OEM7 Installation and Operation User Manual v1...

  • Page 31: Mounting The Gnss Antenna

    See Receiver Card Inter- face Examples on page 173 for examples of these interface circuits. 2.9 Mounting the GNSS Antenna The OEM7 receiver is designed to operate with any of the NovAtel single, dual and triple-fre- quency GNSS antenna models. When installing the antenna: Choose an antenna location with a clear view of the sky so each satellite above the horizon can be tracked without obstruction.

  • Page 32: Connecting The Antenna To The Receiver Card

    The power to the antenna LNA is provided through the receiver’s RF port center conductor. To achieve the required input gain to the receiver, NovAtel coaxial cables are designed to introduce no more than 10 dB loss. Antenna supply over current protection limits the LNA power.

  • Page 33: Applying Power To The Receiver Card

    To restore power, power cycle the receiver. The Receiver Status word, available in the RXSTATUS log (see OEM7 Commands and Logs Reference Manual (OM-20000169)), provides more information about the cause of the problem.

  • Page 34: Oem719 Multiplexed Port

    Chapter 2   Installation of OEM7 Family Receiver Cards Transmitted Data (TX) Received Data (RX) Request To Send (RTS) [ports with flow control] Clear To Send (CTS) [ports with flow control] Port settings (bit rate and parity, for example) are software configurable. See Communications with the Receiver on page 41.

  • Page 35: Oem729 Rs-422 Port

    To select RS-422, pull pin 2 of P1802 to 3.3 VDC during start-up. Do not apply 3.3 VDC directly to pin 2. NovAtel recommends using a 1 kΩ resistor to pull pin 2 high. See OEM729 Interface Connectors on page 142 for pin-out details for COM1 RS-232 and RS-422 configurations.

  • Page 36: Oem7700 Multiplexed Port

    To enable MARK2: 1. Issue the following command: MARKCONTROL MARK2 ENABLE 2. Issue the following command: INTERFACEMODE COM3 NONE NONE OFF Refer to the OEM7 Commands and Logs Reference Manual (OM-20000169) for further command information. OEM7700 Multiplexed Port A fifth serial port (COM5) is optionally available on the flow control (RTS and CTS) pins of COM2 (pins 5 and 11 of P2001).
  • Page 37 USB interface circuit, see USB Interface on page 178. Multiple USB Ports OEM7 receivers with a 60 pin interface connector (such as the OEM7700) have two USB ports, one configured as a device and one configured as a host. The state of the USB Port Mode Select pin (pin 51) determines which USB port is configured as host.

  • Page 38: Ethernet Ports

    2.12.4 SPI Ports The Serial Peripheral Interface (SPI) port provides communications between other components in the GNSS system. For example, the OEM7 receiver can use the SPI port to communicate with some IMUs in a SPAN system. A SPI port is only available on OEM7700 receivers.

  • Page 39: Test That The Receiver Is Working

    2.14 Installing NovAtel PC Utilities The NovAtel PC Utilities application contains complete instructions for the installation and use of the NovAtel PC utilities. The utilities include tools for accessing and manipulating data from the OEM7 receivers. NovAtel Connect version 2.0 or greater is required for OEM7 receivers. Download the latest NovAtel Connect PC Utilities suite of software and documentation, including NovAtel Connect from www.novatel.com/support/info/documents/809.

  • Page 40: Chapter 3 Oem7 Receiver Operation

    Before operating the receiver for the first time, read the installation instructions in Installation of OEM7 Family Receiver Cards on page 19. The following instructions are based on a con- figuration similar to Figure 14: Basic OEM7 Family Card Connection Interfaces (example) below.

  • Page 41: Communications With The Receiver

    When connected to the receiver, enter commands directly from the terminal or through terminal emulation software (such as NovAtel Connect or HyperTerminal) on a computer. NovAtel Connect version 2.0 or greater is required for OEM7 receivers. Download the latest NovAtel Connect PC Utilities suite of software and documentation, including NovAtel Connect from www.novatel.com/support/info/documents/809.

  • Page 42: Communicating Using A Remote Terminal

    Refer to Connecting Data Communications Equipment on page 33 for additional default setting details. The following ports are supported and can be configured using the commands listed. Refer to the commands listed in the OEM7 Commands and Logs Reference Manual (OM-20000169) for detailed instructions. Table 7: Serial Ports Supported...

  • Page 43: Communicating Using A Computer

    The Convert utility is a Microsoft Windows based utility used to convert between data formats (like ASCII to binary and NovAtel raw format to RINEX) and strip unwanted records during data file compilation.
  • Page 44 RXSTATUSEVENTA log ONNEW on all ports. See RXSTATUSEVENT Log on page 72 for more details. 2. If NovAtel Connect is unable to locate the OEM7 family receiver, use a different COM port to communicate with the receiver. When communication has been established, issue a FRESET STANDARD command.

  • Page 45: Transmitting And Receiving Corrections

    3 Connect a radio device to COM2 (user 3 Connect a radio device to COM2 (user supplied) supplied) 4 Connect a storage device to COM1 4 Connect a computer to COM1 for setup and monitoring (user supplied) (user supplied) OEM7 Installation and Operation User Manual v1...

  • Page 46: Base Station Configuration

    To receive corrections, a data link between the base station and the rover sta- tion is required. The base and rover stations can both be NovAtel receivers, however NovAtel receivers will work with some other brands. Contact Customer Support for further details (refer to Customer Support on page 12 for details).

  • Page 47: Rover Station Configuration

    NOVATELX none off 3.4 Configuration Notes For compatibility with other GNSS receivers and to minimize message size, use the standard form of RTCMV3 corrections shown in the base and rover examples in Transmitting and OEM7 Installation and Operation User Manual v1...

  • Page 48: Align Heading Master And Remote Configurations

    51.11358042 -114.04358013 1059.4105 log com2 rtcm1004b ontime 2 1. Interface mode must be set to NOVATEL for the receiver to issue logs with an A or B suffix. 2. Using the receiver in NOVATEL mode consumes more CPU bandwidth than using the native differential messages as shown in Base Station Configuration on page 46.

  • Page 49: Glide

    1.0 3.6 GLIDE NovAtel’s GLIDE™ is a positioning algorithm for single-frequency GPS and GPS/GLONASS applic- ations. GLIDE produces a smooth position output tuned for applications where time relative accuracy (pass-to-pass) is more important than absolute accuracy. Because of this, it is well suited for agricultural applications.

  • Page 50: Steadyline

    The effect is especially evident when a receiver transitions from an RTK position mode solution to a lower accuracy “fall back” solution, such as NovAtel CORRECT PPP, DGPS, WAAS+GLIDE or even autonomous GLIDE (see Figure 16: Positioning Change Without STEADYLINE below).

  • Page 51: Transition

    RTK positions at a default rate of 0.005 m/s or the time specified in the STEADYLINE command. Figure 19: STEADYLINE Prefer Accuracy OEM7 Installation and Operation User Manual v1...

  • Page 52: Ual

    When the solution type is OUT_OF_BOUNDS, the STEADYLINE feature is disabled. The thresholds used to determine the solution type (OPERATIONAL, WARNING or OUT_OF_ BOUNDS), can be specified using the UALCONTROL command. Refer to the OEM7 Commands and Logs Reference Manual (OM-20000169) for more information.

  • Page 53: Enabling Sbas Positioning

    SBASCONTROL command: sbascontrol enable auto When the command is entered, the OEM7 family card automatically tracks the SBAS that is oper- ating in the region (e.g., WAAS or EGNOS) and applies the corrections from the service. On a simulator, leave the test mode parameter off or specify NONE explicitly. For more on SBAS,...

  • Page 54: Terrastar Subscriptions

    A subscription is required to use TerraStar service for land, airborne and near shore applic- ations. Near shore applications are defined as vessels operating within 10 km of shore. To obtain a subscription, contact your local NovAtel sales representative or visit www.nova- tel.com/products/terrastar-gnss-corrections.

  • Page 55: Veripos Subscriptions

    RTK ASSIST also requires a subscription to the RTK ASSIST service. To obtain a subscription, contact your local NovAtel sales representative or visit www.novatel.com/products/terrastar- gnss-corrections/. The NovAtel product serial number (PSN) is needed to obtain a subscription. The PSN is available from the VERSION log. OEM7 Installation and Operation User Manual v1...

  • Page 56: Transferring Time Between Receivers

    COARSE or FINE, among others. For a complete list of the time status values and definitions, refer to the GPS Time Status section in Chapter 1 of the OEM7 Commands and Logs Reference Manual (OM-20000169).

  • Page 57: Procedures To Transfer Time

    (except FINE or FINESTEERING) that includes UNKNOWN. Warm Clock An OEM7 family receiver that has its clock adjusted to greater than 500 ms. Refer to the TIME log to view the clock offset. The OEM7 Commands and Logs Reference Manual (OM-20000169) contains details of the logs mentioned above.
  • Page 58 2. Issue the following command to the fine clock receiver: log com2 timesyncb ontime 1 3. Connect the 1PPS signal of the fine clock receiver to the Mark 1 input (Event1) of the cold clock receiver. OEM7 Installation and Operation User Manual v1...
  • Page 59 1 PPS to the incoming 1 PPS of the fine clock receiver. It does not adjust the one second TOW counter or the receiver’s week number. This procedure is used to make small cor- rections to the warm clock receiver’s clock. OEM7 Installation and Operation User Manual v1...
  • Page 60 Receiver on the previous page and Figure 24: Transfer FINE Time from Fine Clock to Warm Clock Receiver above are for the transfer of time. If a position is needed, the receiver must be tracking satellites and must have a valid almanac. OEM7 Installation and Operation User Manual v1...

  • Page 61: Interference Toolkit

    [USB1] 3.12.2 Monitoring Signals Using a Command Line Use the results to examine the signals that are being received by the OEM7 receiver and determ- ine if there is an interference signal within the GNSS signals. OEM7 Installation and Operation User Manual v1...

  • Page 62: Example

    42185 42727 42702 42540 42207 42294 41979 41915 41726 41779 41862 41685 41991 41997 42321 42357 42274 42263 42219 42339 42352 42312 42221 41634 41229 41167 41479 41504 41645 41933 42026 41807 41386 41333 41313 41369 OEM7 Installation and Operation User Manual v1...
  • Page 63 36550 36157 36423 37175 37264 37144 36676 36450 35872 36116 36097 36431 36455 36651 36868 37243 37410 37655 37562 37327 36952 36885 36757 36690 36399 36155 35981 36043 36676 36943 37053 36657 36700 36365 36442 36668 OEM7 Installation and Operation User Manual v1...

  • Page 64: Monitoring Signals Using Novatel Conect

    3.12.3 Monitoring Signals Using NovAtel CONECT 2.0 Download NovAtel Connect from www.novatel.com/support/info/view/firmware-options, install and open a connection to the OEM7 receiver. With CONNECT 2.0 open, scroll down to the Interference Toolkit and double click on the Inter- ference/s Detected tile.
  • Page 65 Chapter 3   OEM7 Receiver Operation The following example shows a typical signal. Placing the cursor over any place in the signal band will display additional information regarding that location in the signal band. OEM7 Installation and Operation User Manual v1...

  • Page 66: Configure Filters

    To configure HDR mode, use the ITFRONTENDMODE command. To configure a bandpass filter, use the ITPROGFILTCONFIG command or the ITBANDPASSCONFIG command. The notch and bandpass filters can also be configured using NovAtel CONNECT. Download NovAtel Connect from www.novatel.com/support/info/view/firmware-options, install and open a connection to the OEM7 receiver.
  • Page 67 When a bandpass filter is applied to this signal, the upper and lower ends of the signal band are filtered out to reduce the signal power of the interference signal. The following example shows interference at 1750 in the signal band. The following example shows post filtering with interference. OEM7 Installation and Operation User Manual v1...
  • Page 68 Summarizes the filter configuration for each frequency and indicates ITFILTTABLE which bandpass or notch filters are enabled and configured. ITPROGFILTBANK Provides the allowable filter configurations. Provides the process power spectral density information along with ITPSDFINAL √ samples for the spectral analysis. OEM7 Installation and Operation User Manual v1...

  • Page 69: Logging And Retrieving Data Overview

    There are several pass-through logs: PASSCOM1, PASSCOM2, PASSCOM3, PASSXCOM1, PASSXCOM2, PASSXCOM3, PASSUSB1, PASSUSB2, PASSUSB3, PASSICOMX, PASSNCOM and PASSAUX are available on OEM7 family receivers for logging through serial ports. Refer to the PASSCOM logs in the OEM7 Commands and Logs Reference Manual (OM-20000169) for details.

  • Page 70: External Oscillator

    However, if handling a card directly, observe anti-static practices. The OEM729 input impedance is 50 ohms. When the external oscillator is installed, use the EXTERNALCLOCK command (refer to OEM7 Commands and Logs Reference Manual (OM-20000169) for details) to set the clock type (e.g: cesium, rubidium or ovenized crystal) and frequency.

  • Page 71: Chapter 4 Built-In Status Tests

    Use the STATUSCONFIG command to configure the various status mask fields in the RXSTATUS log. Use the masks to specify whether various status fields generate errors or event messages when set or cleared. OEM7 Installation and Operation User Manual v1...

  • Page 72: Error Strobe Signal

    The RXSTATUSEVENT log is used to output event messages, as indicated in the RXSTATUS log. On start up, the OEM7 family receiver is set to log the RXSTATUSEVENTA log ONNEW on all ports. You can remove this message using the UNLOG command.

  • Page 73: Error Word

    Figure 29: Reading the Bits in the Receiver Error Word Refer to the RXSTATUS log and RXSTATUSEVENT log in the OEM7 Commands and Logs Refer- ence Manual (OM-20000169) for more detailed log descriptions. If the receiver error word indic- ates an error, refer to Examining the RXSTATUS Log on page 94.

  • Page 74: Status Code Arrays

    1 status word. Likewise, bit 30 of the receiver status word cor- responds to the auxiliary 2 status word and bit 29 to the auxiliary 3 status word. Refer also to the RXSTATUS log in the OEM7 Commands and Logs Reference Manual (OM- 20000169) for a more detailed description.

  • Page 75: Set And Clear Mask For All Status Code Arrays

    Any bit set in the error word results in a RXSTATUSEVENT log broadcast (unless unlogged). Refer also to the RXSTATUS log in the OEM7 Commands and Logs Reference Manual (OM- 20000169) for a more detailed description. 4.5 Status LED The diagnostic LED provided on the OEM7 family cards blinks green on and off approximately once per second to indicate normal operation.
  • Page 76 Least Significant Bit of Binary Value Start of Next Sequence Refer to the RXSTATUS log and associated tables in OEM7 Commands and Logs Reference Manual (OM-20000169) for more information about this log and receiver error status. OEM7 Installation and Operation User Manual v1...

  • Page 77: Chapter 5 Ethernet Configuration

    Chapter 5 Ethernet Configuration This chapter describes how to configure the Ethernet port on an OEM7 receiver. It provides the step-by-step process for connecting to the OEM7 receiver through the Ethernet interface, setting up a base/rover configuration through Ethernet connectivity and utilizing the NTRIP interface.

  • Page 78: Static Ip Address Configuration-Receiver

    Follow these steps to set up a static IP address on the OEM7 receiver: 1. Connect a computer to the OEM7 receiver using a null modem serial cable or USB cable. 2. Establish a connection to the receiver using either NovAtel Connect or another terminal pro- gram such as Windows HyperTerminal.

  • Page 79: Static Ip Address Configuration-Windows 7

    Chapter 5   Ethernet Configuration NovAtel Connect version 2.0 or greater is required for OEM7 receivers. Download the latest NovAtel Connect PC Utilities suite of software and documentation, including NovAtel Connect from www.novatel.com/support/info/documents/809. 3. Enable the Ethernet port on the receiver by entering: ETHCONFIG ETHA AUTO AUTO AUTO AUTO 4.

  • Page 80: Confirming Ethernet Setup

    5.3 Dynamic IP Address Configuration Figure 33: Dynamic IP Address Configuration through a DHCP Server—OEM7 Receiver Card on the next page shows the connections when an OEM7 receiver uses a dynamic IP address con- figuration. OEM7 Installation and Operation User Manual v1...
  • Page 81 To set up a dynamic IP address configuration, follow these steps: 1. Connect a computer to the OEM7 receiver using a null modem serial cable or USB cable. 2. Establish a connection to the receiver using either NovAtel Connect or another terminal pro- gram such as Windows HyperTerminal.

  • Page 82: Base/Rover Configuration Through Ethernet Connectivity

    OEM7 receiver are connected using Ethernet. Figure 34: Base/Rover Ethernet Setup—OEM7 Receiver Card 1. Connect your computer to both OEM7 receivers using null modem serial cables or USB cables. 2. Establish a connection to the receiver using either NovAtel Connect or another terminal pro- gram such as Windows HyperTerminal.

  • Page 83: Large Com Port Data Throughput

    NovAtel Connect from www.novatel.com/support/info/documents/809. 3. Connect the power cables to both of the OEM7 receivers and apply power to the receivers. 4. Connect the Ethernet cables to the Ethernet ports on both OEM7 receivers. 5. Establish an Ethernet connection, either static or dynamic configurations. Refer to Static IP Address Configuration on page 77 or Dynamic IP Address Configuration on page 80 for more...

  • Page 84: Ntrip Configuration

    Chapter 5   Ethernet Configuration 5.6 NTRIP Configuration An OEM7 receiver can be configured as either an NTRIP server or an NTRIP client. For more information about NovAtel’s NTRIP, refer to www.novatel.com/products/firmware-option- s/ntrip/. Figure 35: NTRIP System The NTRIP caster is an HTTP internet service that acts as a communication medium between NTRIP servers and NTRIP clients.
  • Page 85 Chapter 5   Ethernet Configuration 2. Connect the Ethernet cable to the Ethernet ports on both OEM7 receivers. For this setup, use a cross-over Ethernet cable. 3. Establish a static or dynamic Ethernet connection. For information about creating the connection, refer to Static IP Address Configuration on page 77 or Dynamic IP Address Configuration on page 80.

  • Page 86: Chapter 6 Can Bus

    The addresses and PGNs are typically allocated when the overall CAN bus topology is determ- ined. Because the OEM7 receiver can operate on 2 CAN buses concurrently, it can run 0, 1 or 2 CAN Nodes. A Node has a unique CAN J1939 NAME and address.

  • Page 87: Default Configuration

    Identity Number 6.2 Configuring the CAN Bus To enable an OEM7 receiver to communicate over the CAN bus, configure CAN and place the receiver on bus, triggering a J1939 Address Claim Procedure. 1. Use the J1939CONFIG command to specify J1939 NAME and desired address.

  • Page 88: Configuration Notes

    < J1939STATUS NODE1 CLAIMING 1 <address> < J1939STATUS NODE1 CLAIMED <attempt count> <address> 6.2.4 Example of Detecting an Address Claim Failure and Reconfiguring 1. LOG J1939STATUS ONCHANGED 2. J1939CONFIG NODE1 CAN1 <addresses> 3. CANCONFIG CAN1 ON OEM7 Installation and Operation User Manual v1...

  • Page 89: Address Claim Procedure

    < J1939STATUS NODE1 CLAIMED <attempt count> <address> 6.2.5 Address Claim Procedure To become operational on the CAN bus, an OEM7 receiver must claim a J1939 address. The pre- ferred address and a range of alternative addresses are specified using the J1939CONFIG com- mand.

  • Page 90: Example Of Nmea2000 Log Configuration

    3. LOG CCOM1 PGN129026 ONTIME 0.25 4. SAVECONFIG 6.3.2 Example of Custom PGN Configuration The following is an example of the optional specification of a custom PGN for the OEM7 specific INSPVACMP NMEA2000 log. 1. PGNCONFIG INSPVACMP 129500 3 2. LOG CCOM1 INSPVACMP ONTIME 1 3.

  • Page 91: Example For Receiving Corrections From Any Source

    The CCOM port requires special configuration and has the following limitations: A single CCOM port cannot be used for both Binary and ASCII / NovAtel ASCII messages. A single CCOM port cannot be used for both Binary messages and corrections.

  • Page 92: Configuring Oem7 Receivers To Use Oem6 Can Settings

    CAN port bit rate. 6.6.2 Configuration on OEM7 To configure an OEM7 receiver to log the same commands and use the same logging rate and CAN port bit rate, enter the following commands:...

  • Page 93: Chapter 7 Troubleshooting

    Try to resolve the problem using the troubleshooting guide in Table 9: Troubleshooting Based on Symptoms below, then try our Knowledge Base at www.novatel.com/support/. If you are still not able to resolve the problem, contact Customer Support on page 12.

  • Page 94: Examining The Rxstatus Log

    The RXSTATUS log provides detailed status information about your receiver and can be used to diagnose problems. Refer to the OEM7 Commands and Logs Reference Manual (OM-20000169) for details on this log and on how to read the receiver error word and status word. Table 10: Resolving a Receiver Error Word below, Table 11: Resolving an Error in the Receiver Status Word on the next page and Table 12: Resolving an Error in the AUX1 Status Word on page 97...
  • Page 95 Table 11: Resolving an Error in the Receiver Status Word Bit Set Action to Resolve Check the Error Word in the RXSTATUS log. See also Table 10: Resolving a Receiver Error Word on the previous page OEM7 Installation and Operation User Manual v1...
  • Page 96 None. This bit only indicates if the receiver has calculated a position. None. This bit is a status bit indicating if the receiver’s position has been manually fixed and does not represent a problem. Refer also to the FIX command in the OEM7 Commands and Logs Reference Manual (OM-20000169).

  • Page 97: Examining The Aux1 Status Word

    None. This bit indicates if any bits in the auxiliary 3 status word are set. The auxiliary 3 word provides status information and does not contain any new information on problems. Refer also to the FRESET command in the OEM7 Commands and Logs Reference Manual (OM-20000169).

  • Page 98: Safe Mode

    (Reserved bits) 7.3 Safe Mode Safe Mode is an error condition triggered on the OEM7 receiver if it encounters certain critical problems during start-up. The receiver does not track GNSS satellites in this state, but the user interface is still available to allow for diagnosis of the problem.

  • Page 99: Chapter 8 Novatel Firmware And Software

    Firmware *.shex file WinLoad software utility WinLoad and SoftLoad instructions follow. 8.1 Firmware Updates and Model Upgrades A local NovAtel dealer can provide all the information needed to upgrade or update a receiver. Refer to www.novatel.com/where-to-buy for contact information or contact sales@novatel.com...

  • Page 100: Authorization Code

    Chapter 8   NovAtel Firmware and Software Contact a local NovAtel dealer to assist in selecting the upgrade options that best suit your GNSS needs at www.novatel.com/where-to-buy. Contact NovAtel Customer Support www.nova- tel.com/support NovAtel Sales to request a temporary upgrade authorization code for trial purposes.

  • Page 101: Updating Or Upgrading Using The Winload Utility

    Chapter 8   NovAtel Firmware and Software Once the trial period has expired, a new auth-code will need to be obtained from NovAtel Cus- tomer Support (support@novatel.com). 8.3 Updating or Upgrading Using the WinLoad Utility WinLoad is the simplest and most common way to update or upgrade an OEM7 receiver.
  • Page 102 Figure 36: WinLoad’s Open Window When a file is selected, the filename appears in the main WinLoad display area and in the title bar (Figure 37: Open File in WinLoad below). Figure 37: Open File in WinLoad OEM7 Installation and Operation User Manual v1...

  • Page 103: Updating Using Softload Commands

    The receiver stops tracking GNSS satellites during the SoftLoad process. Do not attempt to SoftLoad when GNSS satellite tracking on the unit is required. If the unit is connected to the NovAtel Connect utility, only the Console and ASCII Message windows may remain open in the Connect Utility.

  • Page 104: Working With S-Records

    S70000 S70500000000FA Records beginning with S3 contain the actual firmware image data. Aside from the header, each pair of characters forms the ASCII representation of a binary byte. The format is as follows: OEM7 Installation and Operation User Manual v1...

  • Page 105: Sending Firmware Data

    S3 record and the "data" and "data length" are updated to include the new data. Refer to the OEM7 Commands and Logs Reference Manual (OM- 20000169) for more information regarding the SOFTLOADDATA command.

  • Page 106: Softload Update Method

    Refer to specific SoftLoad command in the OEM7 Commands and Logs Reference Manual (OM- 20000169) for more information on responses, and the timeout values for SoftLoad com- mands.
  • Page 107 SOFTLOADSREC "<S-RECORD>" Data within S0 records can also be sent to the receiver by converting them to SOFTLOADSETUP commands. Refer to the OEM7 Commands and Logs Reference Manual (OM-20000169) for details on how to convert from S0 S-Records to SOFTLOADSETUP commands.

  • Page 108: Softload Errors

    8.4.5 SoftLoad Errors It is possible for errors to occur during the SoftLoad update. All command responses should be checked to verify all issued commands were accepted. The SoftLoad status should also be OEM7 Installation and Operation User Manual v1...

  • Page 109: Upgrading Using The Auth Command

    SoftLoad process to reload the new firmware image and the error will be resolved. 8.5 Upgrading Using the AUTH Command The AUTH command is used to upgrade to a new OEM7 family model with an authorization code that enables (unlocks) model features. This command only functions with a valid auth-code...

  • Page 110: Appendix A Oem719 Technical Specifications

    OEM719 Performance Specifications on the next page OEM719 Mechanical Specifications on page 113 OEM719 Electrical and Environmental Specifications on page 120 OEM719 Data Communication Specifications on page 122 OEM719 Strobe Specifications on page 124 OEM719 Interface Connector on page 126 OEM7 Installation and Operation User Manual v1...

  • Page 111: Oem719 Performance Specifications

    GPS system characteristics, U.S. DOD operational degradation, ionospheric and tropospheric conditions, satellite geometry, baseline length and multipath effects. GPS-only. Requires a TerraStar subscription which is available direct from NovAtel www.novatel.com/products/novatel- correct-ppp. Performance dependent on local observing conditions.
  • Page 112 Time accuracy does not include biases due to RF or antenna delay. L2 P for GLONASS L2 C/A for GLONASS Export licensing restricts operation to a maximum of 515 metres per second, message output impacted above 500 m/s. OEM7 Installation and Operation User Manual v1...

  • Page 113: Oem719 Mechanical Specifications

    Figure 41: OEM719A Dimensions on page 115 Figure 42: OEM719A Keep-outs on page 116 Figure 43: OEM719B Dimensions on page 117 Figure 44: OEM719B Keep-outs on page 118 Figure 45: OEM719 Mounting Surface on page 119 Figure 39: OEM719 Dimensions OEM7 Installation and Operation User Manual v1...
  • Page 114 APPENDIX A   OEM719 Technical Specifications Figure 40: OEM719 Keep-outs OEM7 Installation and Operation User Manual v1...
  • Page 115 APPENDIX A   OEM719 Technical Specifications Figure 41: OEM719A Dimensions OEM7 Installation and Operation User Manual v1...
  • Page 116 APPENDIX A   OEM719 Technical Specifications Figure 42: OEM719A Keep-outs OEM7 Installation and Operation User Manual v1...
  • Page 117 APPENDIX A   OEM719 Technical Specifications Figure 43: OEM719B Dimensions OEM7 Installation and Operation User Manual v1...
  • Page 118 APPENDIX A   OEM719 Technical Specifications Figure 44: OEM719B Keep-outs OEM7 Installation and Operation User Manual v1...
  • Page 119 The mounting surfaces are shown in gray. These mounting surfaces apply to all variants of the OEM719. These mounting surfaces are designed to work with mounting rails. Assembly tolerances must be considered when using mounting rail features. OEM7 Installation and Operation User Manual v1...

  • Page 120: Oem719 Electrical And Environmental Specifications

    In-Rush Power 1.71 A for less than 1.5 ms (typical) Consumption Requires mechanical mounting rails to meet 20 g; meets 7.7 g without rails. OEM7 Installation and Operation User Manual v1...
  • Page 121 LNA Power is generated from the 3.3 V supply input for the OEM719. Note: Pin 1 of P1701 is not electrically connected on the OEM719. This was the external LNA power input (LNA-PWR) on the OEM615. OEM7 Installation and Operation User Manual v1...

  • Page 122: Oem719 Data Communication Specifications

    230400 bit/s and 460800 bit/s. COM3 is disabled by default. Event2 is enabled by default, but is multiplexed with CAN1. CAN functionality must be disabled for Event2 to work properly. OEM7 Installation and Operation User Manual v1...
  • Page 123 Hi-speed (480 Mb/s) and Full-speed (12 Mb/s) Signals supported USB D (+), USB D (-) USB data rate defaults to Full-speed (12 Mb/s). The data rate can be changed to Hi-speed (480 Mb/s) using the USBCONFIG command. OEM7 Installation and Operation User Manual v1...

  • Page 124: Oem719 Strobe Specifications

    Active (Variable Output Note: VARF is the default behavior for pin 6 of connector Frequency) P1701. The secondary behavior for pin 6 is CAN1Rx. If CAN1 is enabled, the VARF output is disabled. OEM7 Installation and Operation User Manual v1...
  • Page 125 APPENDIX A   OEM719 Technical Specifications Table 20: OEM719 Strobe Electrical Specification Current Strobe (mA) Event1 (Mark1) Event2 (Mark2) nRESET_IN VARF OEM7 Installation and Operation User Manual v1...

  • Page 126: Oem719 Interface Connector

    This is one half of a USB differential pair (pins 3 Input/ and 4), match lengths USB_D- Analog Output and route as 90 Ω differential pair if USB is used. OEM7 Installation and Operation User Manual v1...
  • Page 127 VARF is the VARF: default. Output VARF: Variable Frequency Output. Rising VARF/ 3.3V or falling edge active. CAN1RX CMOS CAN1RX: a CMOS-level signal, requiring an CAN1RX: external CAN Input transceiver. Internal 10 kΩ pullup. OEM7 Installation and Operation User Manual v1...
  • Page 128 CMOS configured to output a timing signal periodically (generally 1PPS). COM1 Receive Data (UART) 3.3V RXD1 Input CMOS Internal weak (40 kΩ to 100 kΩ) pullup. Power Supply Return (Ground) OEM7 Installation and Operation User Manual v1...
  • Page 129 CMOS GNSS-synchronized time output (commonly Pulse Per Second but can operate at other rates as well). CAN2TX is a CMOS-level 3.3V signal, requiring an CAN2TX Output CMOS external CAN transceiver. OEM7 Installation and Operation User Manual v1...

  • Page 130: Appendix B Oem729 Technical Specifications

    OEM729 Performance Specifications on the next page OEM729 Mechanical Specifications on page 133 OEM729 Electrical and Environmental Specifications on page 136 OEM729 Data Communication Specifications on page 138 OEM729 Strobe Specifications on page 140 OEM729 Interface Connectors on page 142 OEM7 Installation and Operation User Manual v1...

  • Page 131: Oem729 Performance Specifications

    GPS system characteristics, U.S. DOD operational degradation, ionospheric and tropospheric conditions, satellite geometry, baseline length and multipath effects. GPS-only. Requires a TerraStar subscription which is available direct from NovAtel www.novatel.com/products/novatel- correct-ppp. Performance dependent on local observing conditions.
  • Page 132 Time accuracy does not include biases due to RF or antenna delay. L2 P for GLONASS. L2 C/A for GLONASS. Export licensing restricts operation to a maximum of 515 metres per second, message output impacted above 500 m/s. OEM7 Installation and Operation User Manual v1...

  • Page 133: Oem729 Mechanical Specifications

    APPENDIX B   OEM729 Technical Specifications B.2 OEM729 Mechanical Specifications Figure 46: OEM729 Dimensions below Figure 47: OEM729 Keep-outs on the next page Figure 48: OEM729 Mounting Surfaces on page 135 Figure 46: OEM729 Dimensions OEM7 Installation and Operation User Manual v1...
  • Page 134 APPENDIX B   OEM729 Technical Specifications Figure 47: OEM729 Keep-outs OEM7 Installation and Operation User Manual v1...
  • Page 135 APPENDIX B   OEM729 Technical Specifications Figure 48: OEM729 Mounting Surfaces The mounting surfaces are shown in gray. Assembly tolerances must be considered when using mounting rail features. OEM7 Installation and Operation User Manual v1...

  • Page 136: Oem729 Electrical And Environmental Specifications

    Use them as a guide for what you might expect but not as absolute values In-Rush Power 2.0 A for less than 1.8 ms (typical) Consumption OEM7 Installation and Operation User Manual v1...
  • Page 137 Refer to the EXTERNALCLOCK command Frequency 5 MHz or 10 MHz Input Impedance 50 Ohm nominal Input VSWR <2:1 Signal Level 0 dBm minimum to +13.0 dBm maximum Frequency Stability ±0.5 ppm maximum Wave Shape Sinusoidal OEM7 Installation and Operation User Manual v1...

  • Page 138: Oem729 Data Communication Specifications

    230400 bit/s and 460800 bit/s. Upon power-up, COM3 is enabled by default. COM3 is multiplexed with Event 2 To enable EVENT2, issue the following commands: INTERFACEMODE COM3 NONE NONE MARKCONTROL MARK2 ENABLE OEM7 Installation and Operation User Manual v1...
  • Page 139 Signals supported USB D (+), USB D (-) ETHERNET Physical layer 10BASE-T/100BASE-TX USB data rate defaults to Full-speed (12 Mb/s). The data rate can be changed to Hi-speed (480 Mb/s) using the USBCONFIG command. OEM7 Installation and Operation User Manual v1...

  • Page 140: Oem729 Strobe Specifications

    Hold the RESETIN pin low for >150 ms after power is applied VARF A programmable variable frequency output ranging from Active (Variable Output 0 Hz to 50 MHz (refer to the FREQUENCYOUT Frequency) command) OEM7 Installation and Operation User Manual v1...
  • Page 141 APPENDIX B   OEM729 Technical Specifications Table 29: OEM729 Strobe Electrical Specifications Current Strobe (mA) ERROR Event1 (Mark ) Event2 (Mark2) nRESET_IN VARF OEM7 Installation and Operation User Manual v1...

  • Page 142: Oem729 Interface Connectors

    On power up, if pin 2 is set LOW or not connected, COM1 will be configured as RS-232. If pin 2 is set high then COM1 will be configured as RS-422 API functionality will not be available until the fourth quarter of 2017 OEM7 Installation and Operation User Manual v1...
  • Page 143 A high output on this pin indicates that the 3.3V Output receiver has computed CMOS a valid GNSS position. Internal 10 kΩ pulldown. Through firmware, the COM3 UART may be configured on pins 7 and 19. OEM7 Installation and Operation User Manual v1...
  • Page 144 For SPAN applications, CMOS this pin can be configured to output a timing signal periodically (generally 1PPS). COM2 Receive Data input 3.3V COM2_RX Input CMOS Internal weak (40 kΩ to 100 kΩ) pullup. OEM7 Installation and Operation User Manual v1...
  • Page 145 This is an RTS/ optional flow control COM1_ signal for the COM1 TXD- UART (±25V tolerant). COM1_ COM1_TXD-: This is one TXD-: Output half of the COM1 RS- 422 transmit differential pair. (2V differential typical) OEM7 Installation and Operation User Manual v1...
  • Page 146 (generally 1PPS). COM1_ TXD+: COM1_TXD+: This is Output one half of the COM1 RS-422 transmit differential pair (2V differential typical) API functionality will not be available until the fourth quarter of 2017 OEM7 Installation and Operation User Manual v1...

  • Page 147: P1803 Expansion Connector 16-Pin Header

    (mA) This is one half of the ETH_ Ethernet receive Analog Input differential pair (100 Ω pair). This is one half of the ETH_ Ethernet receive Analog Input differential pair (100 Ω pair). OEM7 Installation and Operation User Manual v1...
  • Page 148 CAN1 Receive data CMOS 3.3V CAN2TX Output CAN2 Transmit data CMOS 3.3V CAN2RX Input CAN2 Receive data CMOS USB Identification 3.3V Input/ according to USB 2.0 CMOS Output specification. Selects Host or Device mode. OEM7 Installation and Operation User Manual v1...
  • Page 149 APPENDIX B   OEM729 Technical Specifications Signal Signal Signal Drive Description Name Type Direction (mA) 5V output for hosted VUSB devices Ground reference OEM7 Installation and Operation User Manual v1...

  • Page 150: Appendix C Oem7700 Technical Specifications

    OEM7700 Performance Specifications on the next page OEM7700 Mechanical Specifications on page 153 OEM7700 Electrical and Environmental Specifications on page 156 OEM7700 Data Communication Specifications on page 158 OEM7700 Strobe Specifications on page 160 OEM7700 Interface Connector on page 162 OEM7 Installation and Operation User Manual v1...

  • Page 151: Oem7700 Performance Specifications

    GPS system characteristics, U.S. DOD operational degradation, ionospheric and tropospheric conditions, satellite geometry, baseline length and multipath effects. GPS-only. Requires a TerraStar subscription which is available direct from NovAtel www.novatel.com/products/novatel- correct-ppp. Performance dependent on local observing conditions.
  • Page 152 Time accuracy does not include biases due to RF or antenna delay. L2 P for GLONASS. L2 C/A for GLONASS. Export licensing restricts operation to a maximum of 515 metres per second, message output impacted above 500 m/s. OEM7 Installation and Operation User Manual v1...

  • Page 153: Oem7700 Mechanical Specifications

    APPENDIX C   OEM7700 Technical Specifications C.2 OEM7700 Mechanical Specifications Figure 49: OEM7700 Dimensions below Figure 50: OEM7700 Keep-outs on the next page Figure 51: OEM7700 Mounting Surfaces on page 155 Figure 49: OEM7700 Dimensions OEM7 Installation and Operation User Manual v1...
  • Page 154 APPENDIX C   OEM7700 Technical Specifications Figure 50: OEM7700 Keep-outs OEM7 Installation and Operation User Manual v1...
  • Page 155 APPENDIX C   OEM7700 Technical Specifications Figure 51: OEM7700 Mounting Surfaces The mounting surfaces are shown in gray. These mounting surfaces are designed to work with mounting rails. Assembly tolerances must be considered when using mounting rail features. OEM7 Installation and Operation User Manual v1...

  • Page 156: Oem7700 Electrical And Environmental Specifications

    In-Rush Power 2.0 A for less than 1.8 ms (typical) Consumption Requires mechanical mounting rails to meet 20 g; meets 7.7 g without rails. OEM7 Installation and Operation User Manual v1...
  • Page 157 L-Band: +5.0 VDC ±5%, 0 mA to 200 mA (supplied by card through center conductor of RF connector). LNA Power LNA Power is generated from the 3.3 V supply input for the OEM7700. OEM7 Installation and Operation User Manual v1...

  • Page 158: Oem7700 Data Communication Specifications

    COM4_Tx, COM4_Rx Electrostatic discharge protection Data rates higher than 115200 bit/s are not supported by standard PC hardware. Special PC hardware may be required for higher rates, including 230400 bit/s and 460800 bit/s. OEM7 Installation and Operation User Manual v1...
  • Page 159 Upon power-up, COM5 is enabled by default. COM5 is multiplexed with COM2 hardware flow control. USB data rate defaults to Full-speed (12 Mb/s). The data rate can be changed to Hi-speed (480 Mb/s) using the USBCONFIG command. OEM7 Installation and Operation User Manual v1...

  • Page 160: Oem7700 Strobe Specifications

    Active Output calculated GNSS Time. The polarity, period and pulse width can be configured using the PPSCONTROL command Table 37: OEM7700 Strobe Electrical Specifications Current Strobe (mA) ERROR OEM7 Installation and Operation User Manual v1...
  • Page 161 APPENDIX C   OEM7700 Technical Specifications Current Strobe (mA) EVENT_IN1 (Mark ) EVENT_IN2 (Mark2) EVENT_IN3 (Mark3) EVENT_IN4 (Mark4) EVENT_OUT1 EVENT_OUT2 EVENT_OUT3 EVENT_OUT4 0.55 POS_VALID nRESET_IN 2.55 0.55 OEM7 Installation and Operation User Manual v1...

  • Page 162: Oem7700 Interface Connector

    (generally 1PPS). COM1 Transmit Data (UART) For SPAN applications, COM1_ 3.3V this pin can be Output 0.55 CMOS configured to output a timing signal periodically (generally 1PPS). OEM7 Installation and Operation User Manual v1...
  • Page 163 COM2_CTS: COM2 Clear to Send Optional hardware flow control signal for the COM2 serial port. COM1 Clear To Send COM1_ 3.3V Optional hardware flow Input CMOS control signals for the COM1 serial port. OEM7 Installation and Operation User Manual v1...
  • Page 164 EVENT1 (Mark1) Output Rising edge triggered. Outputs a user- EVENT_ 3.3V specified timing signal. Output OUT1 CMOS Can be synchronized with PPS. Supports Variable Frequency Output function. OEM7 Installation and Operation User Manual v1...
  • Page 165 At the time ERROR is asserted, POS_VALID signal is changed to not asserted. In the rare case of a fatal, unrecoverable error that leads to a reboot of the receiver, ME_RDY, ERROR and POS_VALID are all not asserted while the receiver restarts. OEM7 Installation and Operation User Manual v1...
  • Page 166 Edges can be synchronized to GNSS time reference. EVENT4 (Mark4) Output Rising edge triggered. Outputs a user- EVENT_ 3.3V specified timing signal. Output OUT4 CMOS Can be synchronized with PPS. Supports Variable Frequency Output function. OEM7 Installation and Operation User Manual v1...
  • Page 167 EVENT4 (Mark4) input Rising or falling edge triggered. This input is EVENT_ 3.3V used to provide a Input CMOS position or time data log based on an external trigger. Internal 10 kΩ pull up. OEM7 Installation and Operation User Manual v1...
  • Page 168 This is a CMOS-level CAN0_ 3.3V Input signal, requiring an CMOS external CAN transceiver. Reserved Reserved for future use Reserved Reserved for future use Serial Peripheral SPI_ 3.3V Output Interface Master MOSI CMOS Output/Slave Input OEM7 Installation and Operation User Manual v1...
  • Page 169 90 Ω differential pair. USB1 signal. This is one half of the USB1 differential pair. USB1_ Analog USB1_D+ and USB1_D- must be length- matched and routed as a 90 Ω differential pair. OEM7 Installation and Operation User Manual v1...
  • Page 170 Resets the receiver card when low. This pin nRESET_ 3.3V Input 2.55 must be held low for a CMOS minimum of 100 microseconds to guarantee operation. Internal 10 kΩ pullup. Ground Ground reference OEM7 Installation and Operation User Manual v1...
  • Page 171 ETH_TX- must be routed as a 100 Ω differential pair. Ethernet Receive One half of the Ethernet receive differential ETH_RX- Analog Input pair. ETH_RX+ and ETH_RX- must be routed as a 100 Ω differential pair. OEM7 Installation and Operation User Manual v1...
  • Page 172 Signal Signal Drive Description Name Type Direction (mA) Ethernet Transmit One half of the Ethernet transmit differential ETH_TX- Analog Output pair. ETH_TX+ and ETH_TX- must be routed as a 100 Ω differential pair. OEM7 Installation and Operation User Manual v1...

  • Page 173: Receiver Card Interface Examples

    Receiver Card Interface Examples Receiver Card Interface Examples The OEM7 receiver cards provide a number of 3.3V CMOS-level I/O pins for status indication and timing: COMx: CMOS-level UART ports Ethernet: 10/100 Ethernet port CAN1 and CAN2: CMOS-level CAN ports (external CAN transceivers required)
  • Page 174 The 10 kΩ pullups (R5, R6) are required if the buffers are used on the EVENT_IN lines. If the buf- fers are not used, the OEM7 cards have built-in 10 kΩ pullup resistors – external pull resistors are not required.

  • Page 175: Position Valid (Pv) Led Driver

    The PV signal may be used to indicate that the receiver card has computed a valid position. Many NovAtel enclosure products use it to drive a green LED on the enclosure. It may also be used to monitor the status of the receiver with an external microcontroller.

  • Page 176: Communication Ports

    LT L29S-N1R2-25-Z C.3 Communication Ports The COM ports on OEM7 receivers (except COM1 on the OEM729) are CMOS-level I/O pins only. These ports require the addition of an RS232 or RS422 transceiver to provide appropriate signal levels. Most RS232 or RS422 transceivers will provide some ESD protection (for harsh envir- onments, additional protection may be required).

  • Page 177: Can Controller Ports

    ±25V will be required. C.4 CAN Controller Ports OEM7 receivers provide 3.3V CMOS-level CAN controller ports. An external CAN transceiver is required. The following figure shows a typical CAN transceiver implementation. The combination of ferrite beads and small-value capacitors are not necessarily required but may provide improved EMI performance.

  • Page 178: Usb Interface

    It is imperative for signal integrity and EMI reasons that the differential data traces be routed as a 90Ω differential pair. Use of a small-value common-mode choke (as shown in Figure 56: OEM7 USB Device Interface Example below) may improve the radiated emissions performance (but should not be necessary).
  • Page 179 USB0_D- USB0_D+ USB1_D- USB1_D+ Table 45: USB Device Interface Example Bill of Materials Designator Manufacturer Manufacturer Part Number On Semiconductor ESD7L5.0DT5G Wurth Electronics 744230450 10104110-0001LF Figure 57: OEM7 USB Host Device Interface Example OEM7 Installation and Operation User Manual v1...

  • Page 180: Ethernet Port

    PHY layer is based on the Micrel KSZ8851 Ethernet controller. PHY terminations are provided on the OEM7 receiver card and a 3.3 V output is presented to bias the Ethernet magnetics. The 3.3 V power supplied by the OEM7 receiver card is not to be used for any purposes other than biasing the Ethernet magnetics.
  • Page 181 Run 100 Ω differential pairs over unbroken reference planes directly to the jack. Ensure the integrated magnetics in the jack meet the specifications in Table 49: Ethernet Transformer Char- acteristics below. Ensure that the jack is no more than 15 cm (6 inches) from the OEM7 con- nector. Shorter runs are better.
  • Page 182 0 MHz - 65 MHz HIPOT (minimum) 1500 Vrms Table 50: Bill of Materials (critical components) Designator Manufacturer Manufacturer Part Number MMZ1005B800C D1, D2 On Semiconductor ESD7L5.0DT5G Wurth Electronics 7499211121A On Semiconductor MMBT2907ALT1G Fairchild Semiconductor MMBT2907A OEM7 Installation and Operation User Manual v1...

  • Page 183: Appendix D Importance Of Antenna Selection

    The PCO is also frequency dependent which means that there can be a different offset for each signal fre- quency. The PCV identifies how much the phase center moves with respect to the satellite elevation angles. OEM7 Installation and Operation User Manual v1...
  • Page 184 An antenna has to meet the performance, environmental, mechanical, and operational requirements of the intended application. For example, GNSS antennas used for aviation applications should ideally be TSO/FAA certified and be rugged enough to handle extreme OEM7 Installation and Operation User Manual v1...
  • Page 185 Survey rover antennas should be able to survive rough handling by surveyors including a pole drop. The table below highlights some of the important desirable features needed for a GNSS antenna based upon the user’s application. OEM7 Installation and Operation User Manual v1...

  • Page 186: Appendix E Accessories And Replacement Parts

    APPENDIX E Accessories and Replacement Parts The following tables list the replacement parts available for your NovAtel OEM7 receiver. For assistance or to order additional components, contact your local NovAtel dealer or Customer Support. Table 51: Accessories NovAtel Part Part Description...

  • Page 187: Manufacturers' Part Numbers

    (Figure 11: OEM7700 Connector and Indicator Locations on page 31) Samtec ASP- P2001, 60 pin connector 189258-01 See Table 2: OEM7 Communication and I/O Connectors on page 28 for the part number of the mating connector for P2001. OEM7 Installation and Operation User Manual v1...

  • Page 188: Appendix F Electrostatic Discharge (Esd) Practices

    ESD conscious. Do not use torn or punctured static-shielding bags. A wire tag protruding through the bag could act as a "lightning rod", funneling the entire charge into the components inside the bag. OEM7 Installation and Operation User Manual v1...

  • Page 189: Prime Static Accumulators

    1. After you are connected to the grounded wrist strap, remove the circuit board from the frame and place it on a static controlled surface (grounded floor or table mat). 2. Remove the replacement circuit board from the static-shielding bag or clamshell and insert it into the equipment. OEM7 Installation and Operation User Manual v1...
  • Page 190 3. Place the original board into the shielding bag or clamshell and seal it with a label. 4. Do not put repair tags inside the shielding bag or clamshell. 5. Disconnect the wrist strap. OEM7 Installation and Operation User Manual v1...
  • Page 191 OEM7 Installation and Operation User Manual v1...
