- Page 1 Breeze Installation Manual Version 3.1...
-
Page 2: Important Safeguards

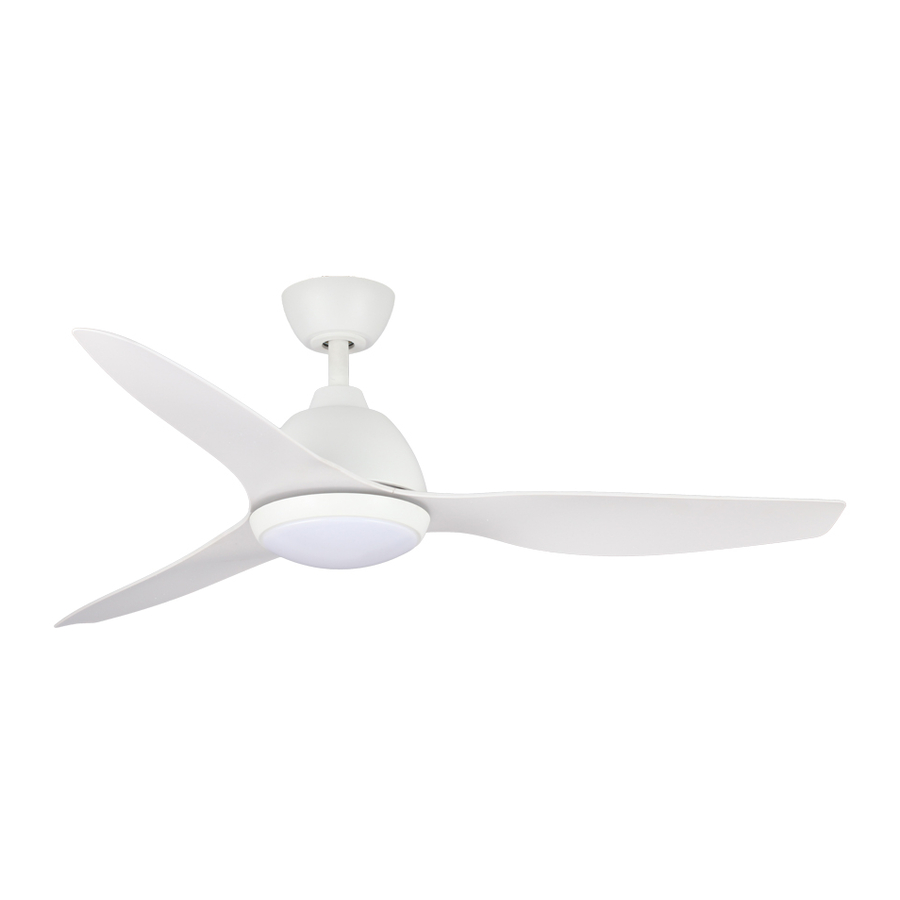

CEILING FAN INSTRUCTION BOOKLET Thank you for purchasing your Fanco Breeze AC Ceiling Fan. Please read all instructions carefully before assembly and use. IMPORTANT SAFEGUARDS: Read all instructions carefully, even if you feel you are quite familiar with this type of appliance. When... -
Page 3: Important Note
22. Reasonable ‘wear and tear’ is not covered under warranty. For comprehensive warranty terms & conditions visit fanco.com.au IMPORTANT NOTE: The important safeguards and instructions given in this manual are not meant to cover all possible conditions and situations that may occur. - Page 4 PREPARATION: 1. Unpack your ceiling fan carefully, then remove all parts and components, and lay on a cloth or soft surface to avoid damage. DO NOT lay the motor housing on its side as the housing may get damaged. 2. Before commencing installation, check that all parts are included. NOTE: You may need to remove all foam packaging material to ensure there are no missing parts.
-
Page 5: Installation And Assembly
INSTALLATION AND ASSEMBLY: CAUTION! Before installing the fan make sure you have turned OFF the electricity supply. SELECTING A LOCATION: 1. Choose a location for mounting the fan where the blades will have at least 2.1 metres of clearance from the floor. 2. -
Page 8: Installation Steps
INSTALLATION STEPS Ensure the power is OFF when installing this fan. 1. Remove 6 screws and plate washer from downrod holder. 2. Remove 6 blade screws from the motor housing. 3. Align the blades with Screw holes on the motor housing and secure with the 6 screws. 4. - Page 9 5. This fan comes with two rod options for installation - 125mm and 250mm. Select a rod to install (ensuring your fan is above the 2.1m required height). The rod installs with the 3 holes up (closest to the roof). Remove cotter-pin and cross-pin from the bottom of the downrod.
- Page 10 Place the cotter-pin on the other side of the cross-pin to secure the downrod to the downrod holder. Put back on side screws and tighten up to make the downrod rigid in the downrod holder. 10. Put the down rod through the decorative ring Snuggle the coupling cover down onto the top of the motor housing.
- Page 11 12. Hang the fan into hanging bracket. Align ball groove on hanging ball with ridge on hanging bracket. Ensure hanging ball sitting into hanging bracket correctly. If fan doesn’t sit properly, hold the downrod and twist it until fan has been secured into hanging bracket. Ball Groove Ridge 13.
-
Page 12: Care And Cleaning
CARE & CLEANING: • Periodic cleaning (approximately every 6 months) of your ceiling fan is the only maintenance required. • Use a soft brush or lint free cloth to avoid scratching the finish. Please turn off electricity when you do so. •... -
Page 13: Troubleshooting
TROUBLESHOOTING: Trouble Possible Cause Suggested Remedy Fans does not start. Loose wire connections or Check wire connections and ensure plugs are plugs to fan/receiver positively connected No power goes into the fan Check RCD/Switch board and wiring on premises Fan keeps beeping, but Loose wire connections or Check wire connections and ensure plugs are will not start. - Page 14 NOTES:...
- Page 15 NOTES:...
