Summary of Contents for Fanco TT Mixflow
- Page 1 Breeze Installation Manual Installation Manual...
- Page 3 Before installing your new Fanco exhaust fan, it is important that you read and follow these instructions prior to installation, even if you feel you are quite familiar with this type of product. Please keep this document handy for future reference as it contains servicing and maintenance requirements.
-
Page 4: Delivery Set

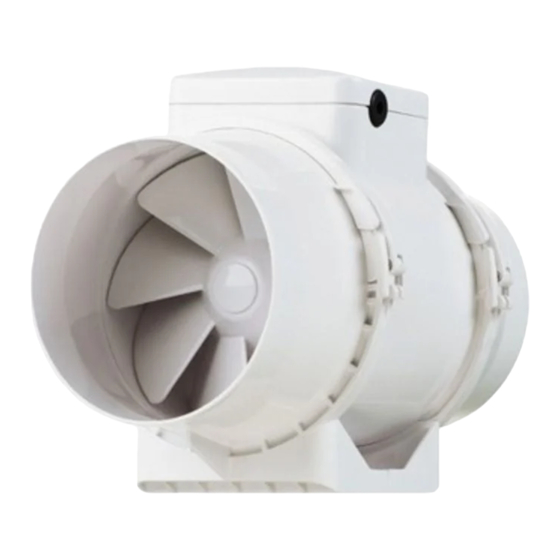

The TT exhaust series described in this user’s manual is a high-performance series of fans specifically designed for supply and exhaust ventilation of premises requiring high pressure, powerful air flow and low noise level. DELIVERY SET 1. Fan: 1 piece 2. - Page 5 MOUNTING The fan is suitable both for horizontal or vertical mounting on the floor, on the wall or on the ceiling (see step 1). The fan can be installed independently or as part of a set with parallel or in- series connection (see step 2).
- Page 6 STEP 2 – Unscrew the screws on the special clamps with latches on the spigots. Pull out the removable central motor block housing the impeller and terminal box from the casing. STEP 3 – Position the fan in your preferred installation location and mark the position of the holes on the fan where the screws will then be placed.
- Page 7 STEP 4 – Drill the holes in compliance with the mounting seats on the fan casing and install the fan with screws. STEP 5 – Place the removable motor block with terminal box in position and fix it to the casing assembled with the spigots by means of the special clamps with latches.
- Page 8 STEPS 7 - 9 ARE FOR HARDWIRED TT/TT PRO MODELS ONLY. NOT FOR SPEED SWITCH MODELS. The TT 150 / TT Pro 200 models with a built-in three-position speed switch and a power cord with an IEC C14 connector come pre-wired and only need to be plugged in. Model is shown below. STEP 7 –...
-
Page 9: Wiring Diagrams
WIRING DIAGRAMS TERMINAL DESIGNATION KEYS AT WIRING DIAGRAMS: L - phase (only for 220-240 V power mains) L1 — minimum speed terminal N - 0 (only for 220-240 V power mains) L2 — maximum speed terminal S — external speed controller QF —... - Page 10 STEP 9 – Cover the fan and secure the cover using the screws. TT Model TT Pro Model STEP 10 – Turn on mains power.
-
Page 11: Maintenance
MAINTENANCE The product surfaces must be regularly cleaned from dirt and dust. Cut off power supply prior to any maintenance operations. Use a soft cloth or compressed air to remove external dust. To clean the internal parts of the fan, unscrew the special clamps with latches on the spigots and pull out the removable central motor. - Page 12 reeze ation Manual...
