4 Specifics of TarisIR® mini – M Version
4 Specifics of TarisIR® mini – M Version
TarisIR® mini can be delivered without the heat sink. This version is specified as TarisIR® mini M. All operations are
similar to the standard version. The form factor of this model and some specifications will differ as follows:
4.1

Dimensions and Specifications

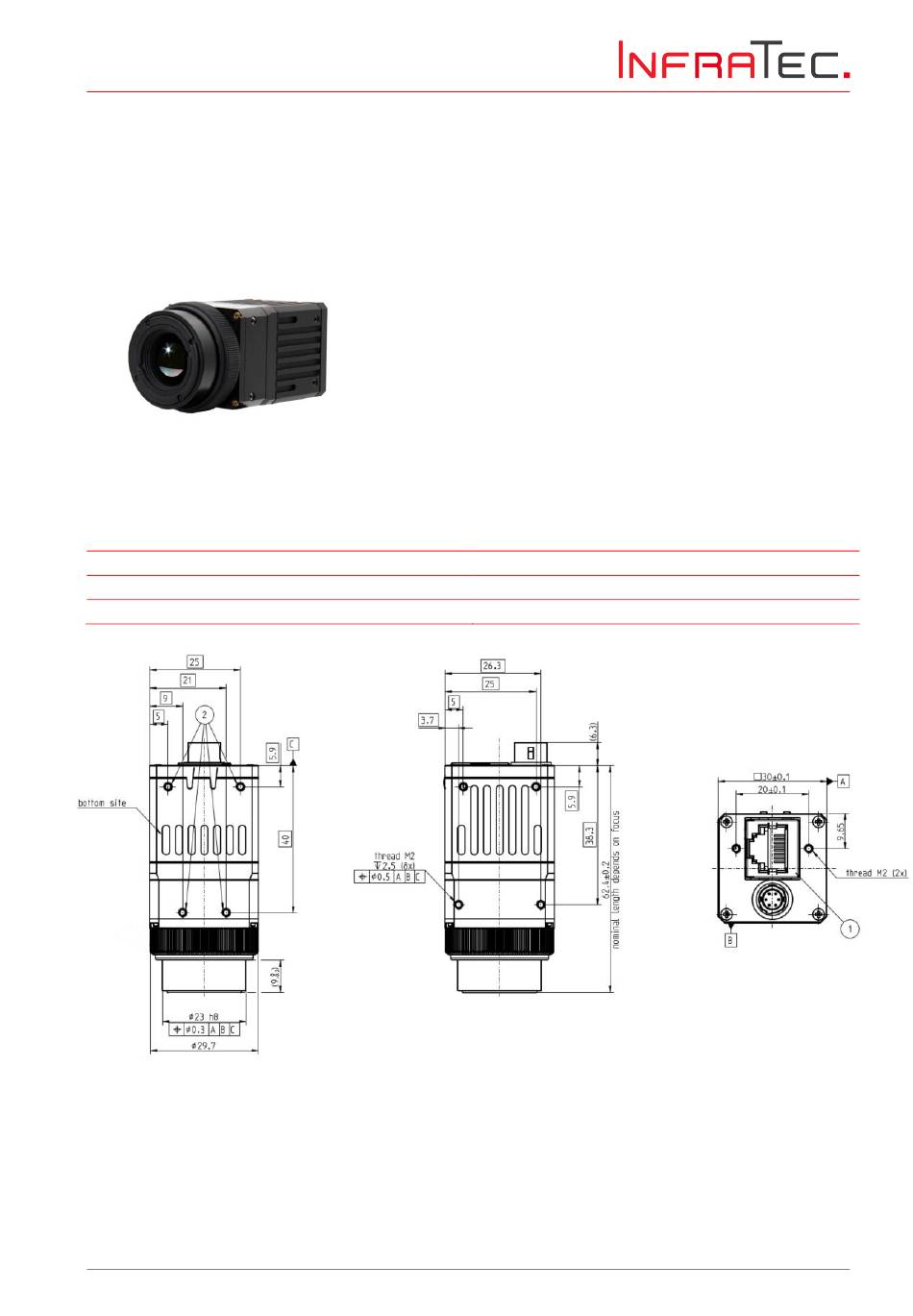

Figure 4: TarisIR® mini M
Measurement accuracy
Operation temperature
Dimensions
Weight (without lens)
Figure 5: TarisIR® mini M with 13.6 mm lens
4.2

Mounting of the body

The housing of the TarisIR® mini M features 4 threaded holes M2, 2.5 mm deep (indicated as "2" in figure 21)
4 on the bottom side

4 on the side
For mounting at least two holes are to be used at each side.
© InfraTec GmbH 2024
± 2 K ((–10°C ... 120) °C, T
camera housing
± 2 % or ± 5 K (larger value, (120 ... 600) °C;
T (10°C ... 50) °C)
camera housing
(-40 ... 70) °C T
camera housing
(50 × 30 x 30) mm
66 g
(10°C ... 50) °C)
