7 GigE Interface
7.3

ConFiguring the Network Adapter

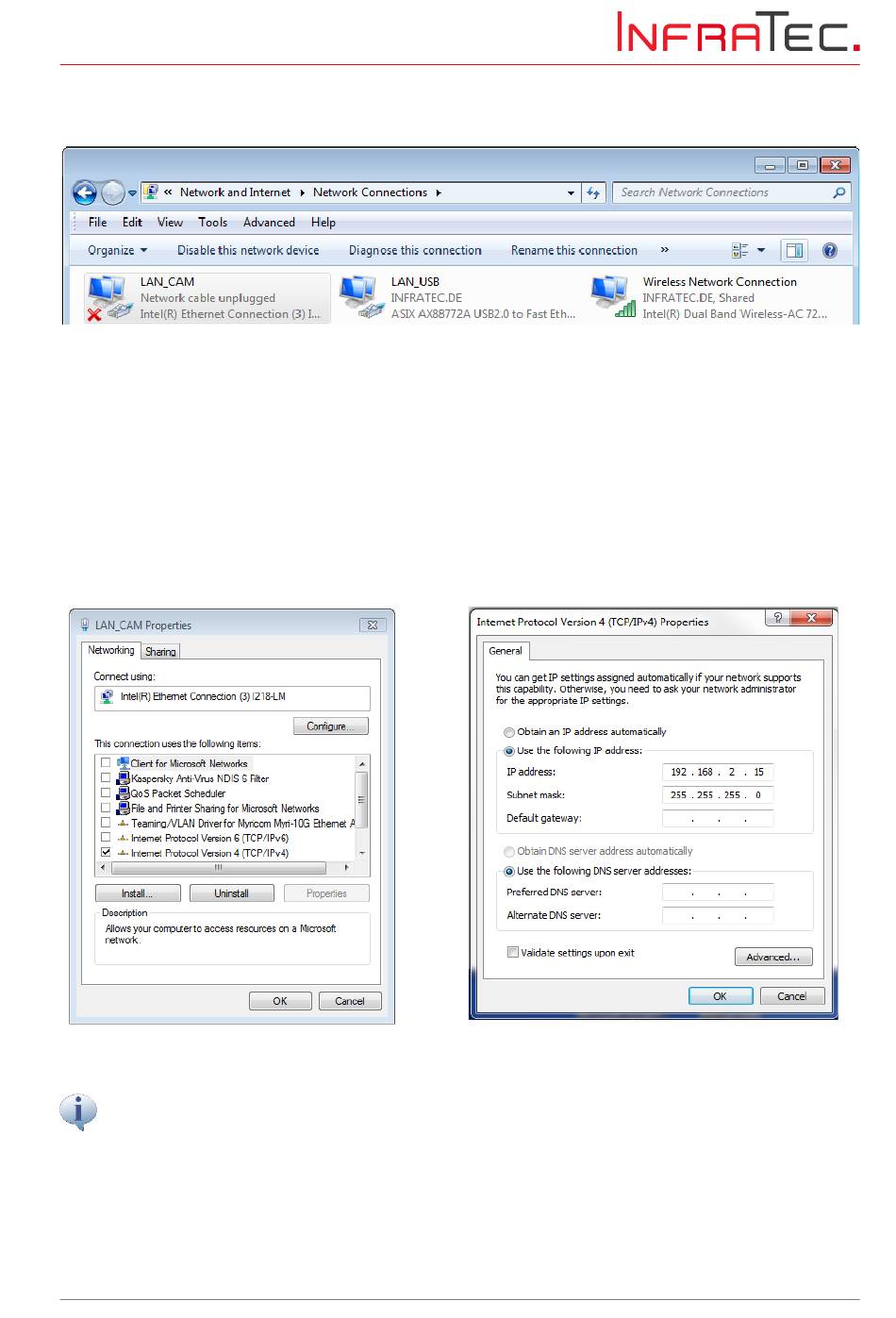

Figure 10: Select LAN Connection
After opening the "Network and Sharing Center", select the "Change adapter settings" menu item. Here, mark the
network card to be used and access its properties via the right mouse button.
7.3.1

Setting the IP Address

The factory IP address of the camera is set to: 192.168.2.201.
Before configuring the network card for use with the camera, you must check the properties of the interface card to
be used. It is important to disable unnecessary functions and assign a fixed IP address. The screenshots below
provide an overview:
Figure 11: LAN Connection Properties
Please note that only Internet protocol V4 is required for the Ethernet connection to the TarisIR® mini.
It is recommended to disable all other components within the input mask.
By marking the entry "Internet Protocol (TCP/IP)", you can set the IP address of the GigE network card via the
"Properties" button. This IP address can be
menu item "Use the following IP address" according to your network's specifications.
© InfraTec GmbH 2024
Figure 12: Set IP Address
defined within the 192.168.2.xxx range except 192.168.2.201
under the
16
