5 Operation
Risk of damage
Do not loosen the focus ring by more than half a turn!
Otherwise, internal parts may come loose and fall out the focus ring.
Do not screw out the focus ring too far, otherwise the whole objective may become loose (and even fall out) and
dust could enter the camera.
5.3

Camera Hardware Interfaces

The two connectors on the GigE camera rear side are end user interfaces.
RJ45 socket – GigE vision compliant interface

A standard cable or an industrial-grade robust cable may be used for interconnection. Custom Ethernet cable max.
length availability is 10 m. Those could also come with fastening screws to improve connection stability if needed.
6-pin Hirose circular connector for

DC power supply

2 I/O ports (3.3 LVTTL)

The optional break-out box (see section 3.2) may be needed for interconnection.

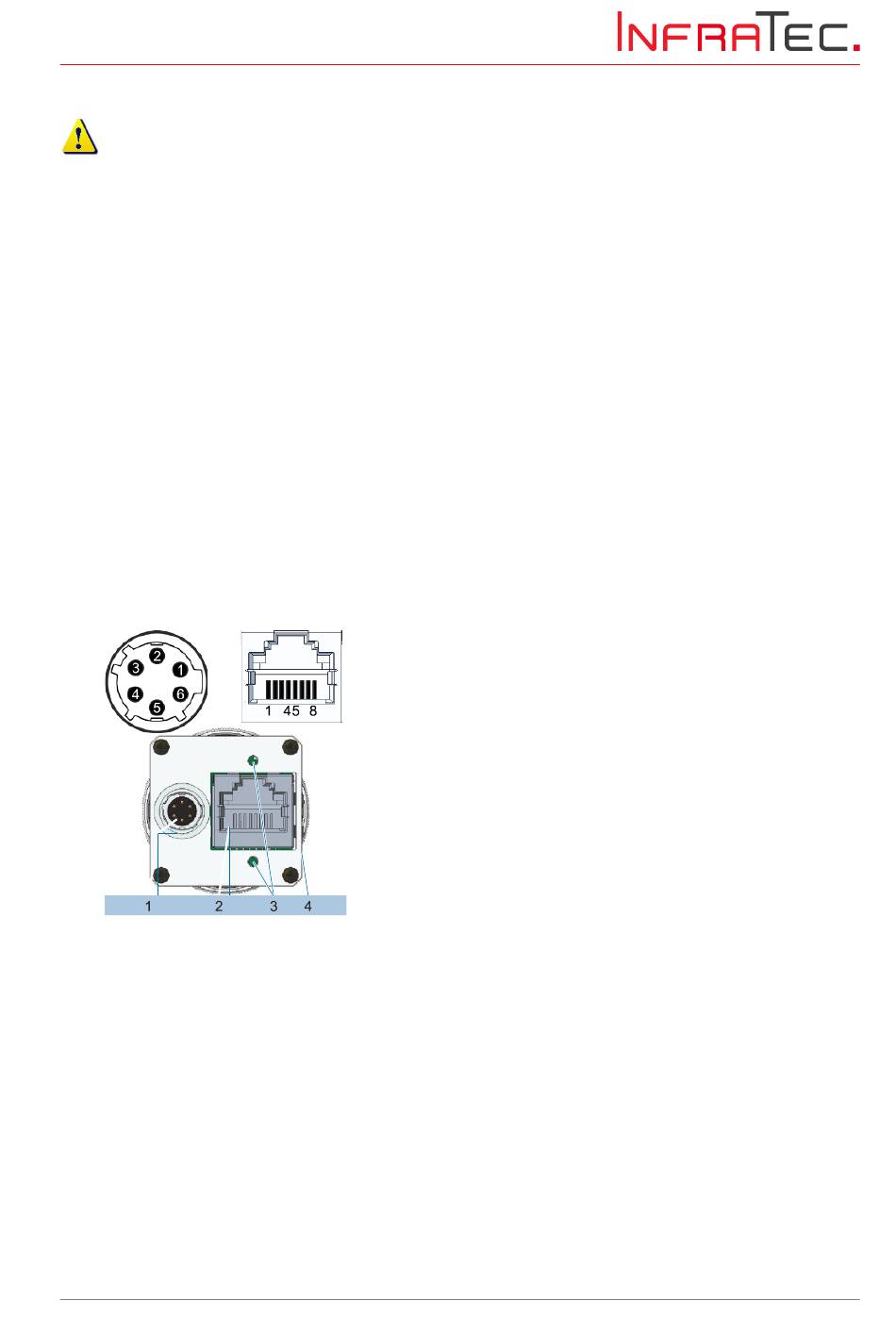

Figure 8: Camera rear side
© InfraTec GmbH 2024
6-pin system Hirose connector
1
RJ45 ethernet jack
2
Screw holes for Ethernet cable
3
Camera body
4
