5 Operation
1
2
3

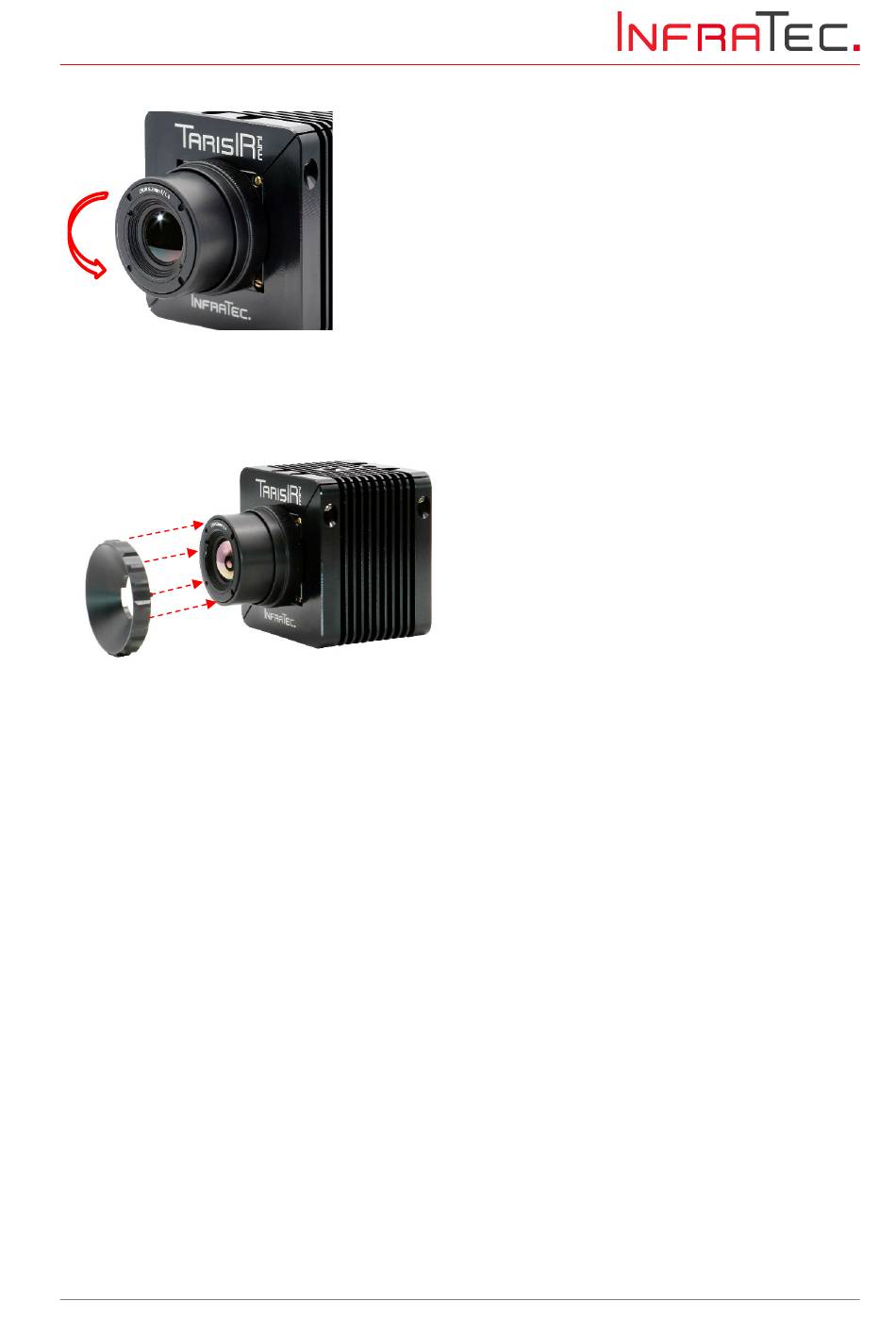

Figure 6: Focus adjustment
1
Figure 7: Lens and focus adjustment ring
Procedure for adjusting the focus
The procedure differs slightly depending on the lens installed.
For 25mm lens the adjustment takes place directly on the focus ring:
Clockwise: increase distance to focus position

Counterclockwise: decrease distance to focus position

For all other lenses please follow the steps below:
1. Make sure the camera's live image is visible on a monitor.
2. Turn the lock ring counterclockwise about half a turn, this will loosen the lens.
3. Insert the focus adjustment ring into the 4 pitches of the focus ring and rotate the focus ring to the required
focus position.
Clockwise: increase distance to focus position

Counterclockwise: decrease distance to focus position

4. Turn the lock ring clockwise to lock the lens position.
© InfraTec GmbH 2024
4
5
2
1 Direction of rotation
2 Lens (Do not touch!)
3 Focus ring with 4 pitches for focus
adjustment ring
4 Lock ring
5 Camera body
1 Focus adjustment ring
2 Camera with lens
