Do you have a question about the KD986 and is the answer not in the manual?

Questions and answers

LA Nasha
March 22, 2025

I have a kd926 and can't get usb to connect or blutooth to show. It's not clear in manual i received from eahora.

1 comments:
Mr. Anderson
March 22, 2025

To connect USB on the Key-Disp KD986, the manual mentions USB connection functionality but does not provide specific steps.

To connect Bluetooth:
1. Open the Key-Disp APP.
2. Enter the APP homepage.
3. Click "My-More Devices-Add Device."
4. Search for Bluetooth devices.
5. Select the display from the searched devices and click "Finish."
6. The display will show a symbol indicating a successful connection.

This answer is automatically generated

Summary of Contents for Key-Disp KD986

  • Page 2: Table Of Contents

    Content Product Model ........................1 Specifications ........................1 Appearance and Size ......................1 Function Summary ....................... 2 General Operation ........................ 2 ◆Definition of Button ......................2 ◆Power on/off ........................2 ◆Display Interface ......................2 ◆6km/h Push-assistance ....................3 ◆Headlight .......................... 4 ◆USB connection .......................
  • Page 3 ◆Multi-system switching ....................13 ◆Navigation interface ...................... 13 Find MY ..........................15 ◆Search for FIND MY ..................... 15 ◆FIND MY connection ....................16 ◆Find MY Unbinding method: ..................15 Quality Assurance and Warranty Scope ..............16 Connection Layout ......................17 Operation Cautions ......................
  • Page 4: Product Model

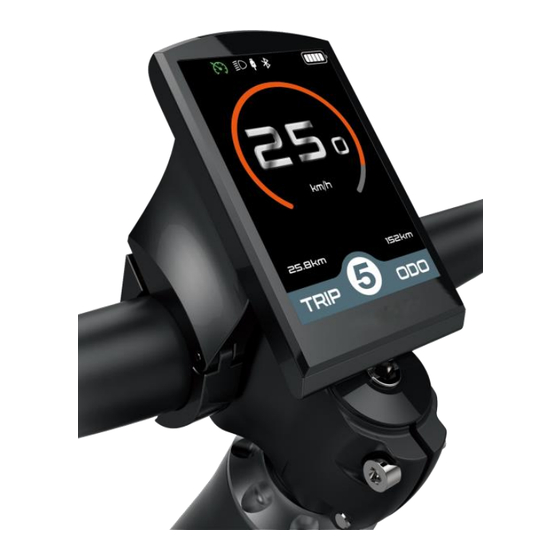

    Product Model Intelligent TFT display for E-bike; model: KD986 Specifications ● 48V Power Supply ● Rated working current: 50mA ● : The maximum working current 200mA ● : Off leakage current <1μA ● :-20~60℃ Operating temperature ● :-30~70℃ Storage temperature...
  • Page 5: Function Summary

    Function Summary KD986 can provide a lot of functions to fit your needs. The indicating contents are as follows: ● Battery SOC indicator ● Motor power indicator ● PAS level adjustment and indicator ● Speed function (incl. real speed, Max. speed and Avg. speed) ●...
  • Page 6: 6Km/H Push-Assistance

    Display Interface ◆6km/h Push-assistance When at level zero, Hold the “DOWN” button≥2S and activate the push-assistance function, after 2s, the E-bike will travel at a uniform speed of 6 Km/h while the screen displays “ ”. The push-assistance function is switched off as soon as you release the “DOWN”...
  • Page 7: Headlight

    Push-assistance Mode ◆Headlight Press and hold the "UP" button for more than 2 seconds to turn on the headlights. After turning on the headlights, the brightness of the backlight will decrease. Press and hold the "UP" button for more than 2 seconds to turn off the headlights and restore the brightness of the backlight.
  • Page 8: Cruise Mode

    ◆Cruise mode When in cruise mode, interface is shown in the figure below. Cruise mode ◆PAS level Short press the "UP" or "DOWN" button to switch the power assist gear of the electric vehicle and change the output power of the motor. The default output power range of the display is PAS level 0-5.
  • Page 9: Error Code

    ◆ Error code When the electronic control system fails, it will automatically display the error code. Here is the detailed message of the error code in Attached list 1. Error Code Interface ■When an error code is displayed, please remove the fault in time, the e-bike will not be able to run normally after a fault occurs ◆...
  • Page 10: Display Settings

    settings) and Information (software information) Setting Interface ▉All the settings are operated on a parked e-bike. Display settings ◆Toggle Unit Press the “UP” button or the “DOWN” button to choose the “Toggle Unit”, and then press the “i” button to enter unit settings, press the “UP” button or the “DOWN” button to switch between “Metric”...
  • Page 11: Wheel Diameter Settings

    ◆Wheel Diameter Settings “Wheel” represents wheel diameter settings. Press the “i” button to enter wheel diameter settings. To change basic settings, press the “UP” or the “DOWN” button to select 24 Inch、27Inch 、700C、28Inch、 the desired value. The values can be selected are 29Inch , press the “i”...
  • Page 12: Lcd Luminance Settings

    ◆LCD luminance settings "LCD Luminance", indicates the backlight brightness setting. Short press "i" to enter the setting, by short pressing "UP" or "DOWN", the backlight brightness range is "100%- 75%-50%-30%-10%" 5 levels of brightness, 100% corresponds to the highest brightness, 10 % corresponds to the lowest brightness;...
  • Page 13: Assistant Num

    ◆Assistant Num “Assistant Num” represents the number of PAS sensor magnets. Short press the "UP" or "DOWN" key to modify the setting, the range of the magnetic steel number of the assist sensor is "05, 08, 12", short press "i" to save and exit to "Assistant Num". Assistant Num interface ◆Speed Sensor Settings "Speed Sensor"...
  • Page 14: Information(Software Version

    Bluetooth Function ◆ Add Bluetooth Device Open the Key-Disp APP and enter the APP homepage, click "My-More Devices-Add Device" to search for Bluetooth to add the display, click "Searched Bluetooth Devices- Finish", the display will show the symbol, which means the connection is successful.
  • Page 15: Adjust The Pas Level

    After the Bluetooth connection is successful, you can use the "+" and "-" functions in the Key-Disp APP to increase or decrease the PAS level of the e-bike to change the output power of the motor. PAS level 0 means no power assist output.
  • Page 16: Turn On The Headlight

    After the Bluetooth connection is successful, you can turn on the headlights through the "Headlights" function of the Key-Disp APP. After turning on the headlights, the brightness of the backlight will decrease. Click "Headlights" again to turn off the headlights, and the brightness of the backlight will return to the original brightness.
  • Page 17: Navigation Interface

    ◆ Navigation interface After the Bluetooth connection is successful, you can open the navigation interface through the "map navigation" function of the Key-Disp APP, enter the destination, and the display will synchronize the mobile phone navigation interface. Connect display navigation interface by APP...
  • Page 18: Find My

    Find MY ◆ Search for FIND MY 1) Press and hold the "+" button for more than 3s, release it, and trigger network distribution; 2) Use the Find APP of the Apple mobile phone to search for FIND MY. ◆ FINDMY connection When FINDMY is connected successfully, see below interface, ◆Find MY Unbinding method:...
  • Page 19: Quality Assurance And Warranty Scope

    whether the unbinding is successful. Quality Assurance and Warranty Scope Ⅰ Warranty (1)The warranty will be valid only for products used in normal usage and conditions. (2)The warranty is valid for 24 months after the shipment or delivery to the customer. Ⅱ...
  • Page 20: Attached List 1:Error Code Definition

    This operating instruction is a general-purpose version. Some of the version for the display software will be different from the specification, which should depend on the actual use version. ■If no operation is performed within one minute, the display will automatically exit the setting state.
