Summary of Contents for Bridgeview BALE KING 6300

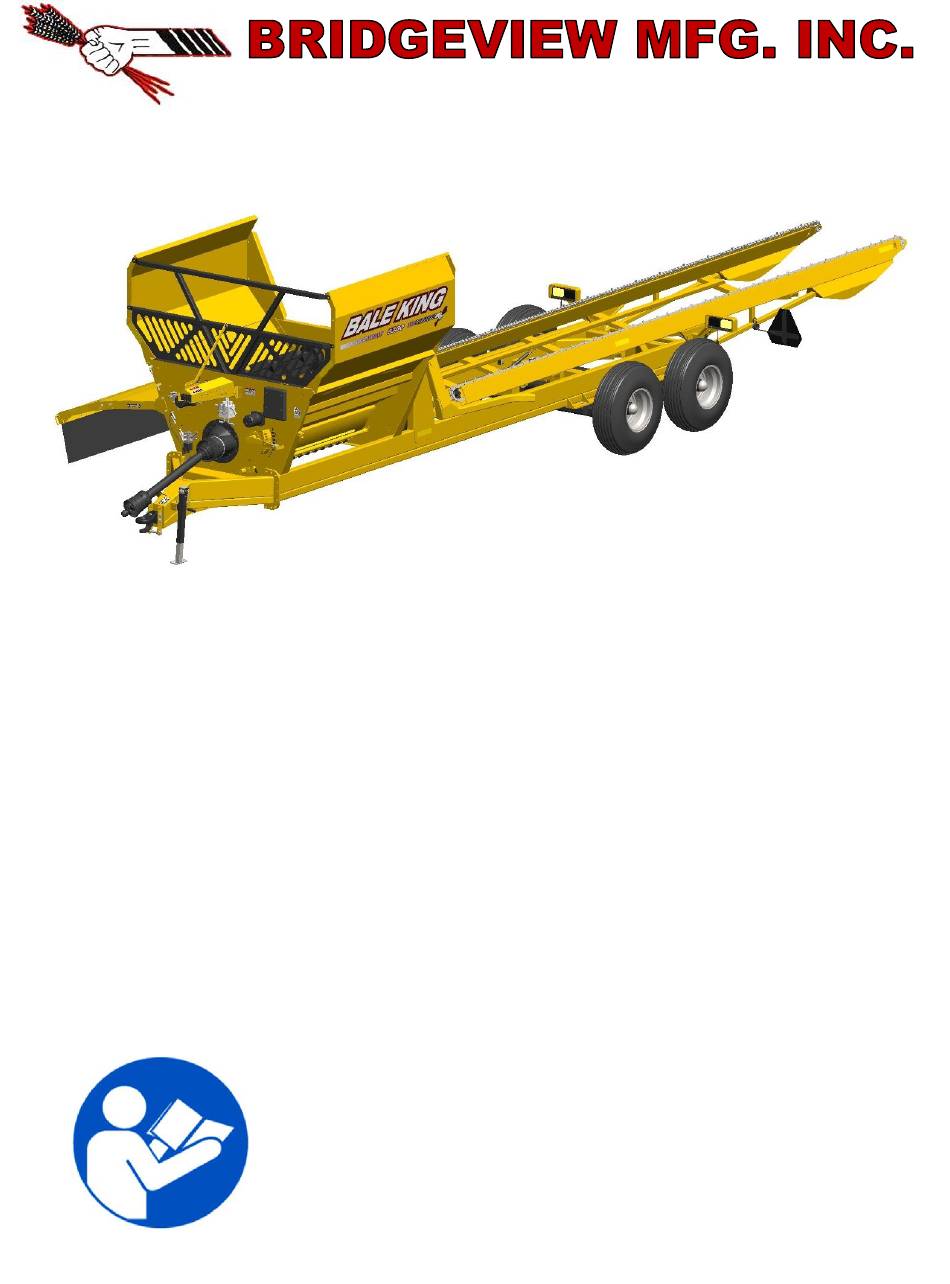

- Page 1 BALE KING 6300 / 6300TR Bale Processor Operator's & Parts Manual Last Updated: June 2024 Bridgeview Manufacturing Inc. P.O. Box 4 Gerald, Saskatchewan, Canada S0A 1B0 Phone: 1-306-745-2711 Fax: 1-306-745-3364 Email: bmi@sasktel.net www.bridgeviewmanufacturing.com...
- Page 2 Bale King 6300 Operator & Parts Manual Bridgeview Manufacturing Inc. Your Authorized Dealer Your Serial Number The Serial Number is located the front tub panel, next to the operator manual box. Page ii...
-
Page 3: Table Of Contents
Bale King 6300 Operator & Parts Manual Bridgeview Manufacturing Inc. TABLE OF CONTENTS INTRODUCTION ........................1 Safety Precautions ........................1 Safety Decals .......................... 2 Transportation ......................... 4 FEATURES & OPERATION .....................6 Power Take-off ........................6 Hydraulics ..........................10 Hose Holder .......................... 12 Implement Tongue ........................ -
Page 4: Introduction
Bale King will provide you with years of trouble-free operation. This is a complete safety, operation and parts manual for the Bale King 6300. The manual covers in detail how to safely and effectively use your new processor. The procedures outlined in this manual should be followed to ensure safe operation and longevity of your machine. -
Page 5: Safety Decals
Bale King 6300 Operator & Parts Manual Bridgeview Manufacturing Inc. Safety Decals Power Take-off: The operator must obey all safety labels and must maintain the proper shielding. A high percentage of drive-line injuries occur when safety shielding is missing or not functioning properly. - Page 6 Bale King 6300 Operator & Parts Manual Bridgeview Manufacturing Inc. Rear Fork Lift Area: DANGER: Stand clear of lift area. Do not stand under the forks if tractor is running or if bale is resting on forks. Automatic hydraulic safety locks are installed.
-
Page 7: Transportation
Bale King 6300 Operator & Parts Manual Bridgeview Manufacturing Inc. Transportation The Bale King 6300 can be safely towed on public roads, provided the following precautions are met: Weights and Dimensions • The towing vehicle must be suitable for the weight being towed. - Page 8 Bale King 6300 Operator & Parts Manual Bridgeview Manufacturing Inc. Safety Chain, Jack, PTO, and Hydraulics • ALWAYS ensure that the safety chain is properly installed. There should be enough slack to allow for turning, but not so much that the chain drags on the ground.
-
Page 9: Features & Operation
Bale King 6300 Operator & Parts Manual Bridgeview Manufacturing Inc. FEATURES & OPERATION Power Take-off The Bale King bale processor has a PTO shaft which is splined on both ends. The implement end uses a 1-3/4"-20 spline with wedge lock bolts. Install onto the gearbox and tighten the wedge bolts. - Page 10 Bale King 6300 Operator & Parts Manual Bridgeview Manufacturing Inc. Shear Bolt All new Bale King processors are equipped with a shear bolt clutch located at the implement end of the PTO shaft. The correct size shear bolt is 3/8 x 2” Fine Thread Grade 5 with Stover Lock Nut.
- Page 11 Bale King 6300 Operator & Parts Manual Bridgeview Manufacturing Inc. PTO Use and Maintenance Shut OFF the tractor engine and remove the key before doing any maintenance on the machine. Use ONLY genuine Weasler parts when replacing any worn or damaged PTO components.
- Page 12 Bale King 6300 Operator & Parts Manual Bridgeview Manufacturing Inc. BEFORE ATTEMPTING ANY REPAIR PROCEDURES, ALWAYS USE APPROPRIATE EQUIPMENT SUCH AS SAFETY GLASSES, SAFETY SHOES, AND GLOVES Shield Removal: • To remove the shield, pop out the red snap, then rotate the guard on the bearing to line up the three tabs with the openings and pull it off away from the knuckle joint.
-
Page 13: Hydraulics
Long Red Turns agitators clockwise The Bale King 6300 processor has a diverter kit which allows it to operate using only 3 hydraulic remotes. The fork, deflector, and bed tilt functions are then controlled by a cab-mounted switch box. This box must be wired up to the tractor's electrical system. You may use the provided plug to plug into the accessory outlet. - Page 14 -12 V / Ground Switched) An optional grain tank kit is available to allow the Bale King 6300 to carry 40 bushels of grain on the side of the machine (see page 21). If this kit is installed, additional motors are added to the hydraulic functions.
-
Page 15: Hose Holder
Bale King 6300 Operator & Parts Manual Bridgeview Manufacturing Inc. Hose Holder The hydraulic hoses may need to be adjusted to avoid damage from rubbing on the PTO shaft. This can be done by lifting or lowering the hose holder. Loosen the pin handle, then lift the end of the hose holder to drop the pin into the slot. -
Page 16: Implement Tongue
• ALWAYS connect the safety chain during road transport Torflex Axles The Bale King 6300 features a pair of Torflex axles, which provide suspension and allows a smooth ride over rough terrain. There are 3 available mounting locations available. From factory, axles are set up in the middle position. -
Page 17: Loading Bales
Bale King 6300 Operator & Parts Manual Bridgeview Manufacturing Inc. Loading Bales When loading bales into your Bale King bale processor, the following procedure should be followed: • Position the processor so that the back of the deck is aligned with the center of the row of bales you wish to load. -
Page 18: Loading Fork
Loading Fork The loading fork on the Bale King 6300 can handle up to 6.5ft bales. The loading fork is designed to load bales into the tub while the deck is inclined or flat. The fork design allows an operator to load all six bales without repositioning the bed tilt. -
Page 19: Hoop Grate Adjustment
Bale King 6300 Operator & Parts Manual Bridgeview Manufacturing Inc. Hoop Grate Adjustment There are eight adjustment settings for the hoop grate on the bale processor. These settings determine the rate of feed of the bale you are processing and the how fine the cut will be. -
Page 20: Agitators
Bale King 6300 Operator & Parts Manual Bridgeview Manufacturing Inc. Agitators The Bale King is equipped with a flow divider/combiner and two hydraulic motors for turning the bale. Once the main rotor is turning at full speed the bale can be turned in either direction to begin processing. -
Page 21: Deflector
The Bale King 6300 deflector will bunk feed to a distance of 35” from the tire when in the lowest position. When the deflector is not folded, the transport width of the machine is 9’-10”. - Page 22 For transport and storage, the deflector lock should be put in place by swinging the lock as shown and fastening with a lynch pin. The Bale King 6300 deflector also has the ability to fold for more compact long-term storage or long-distance transport.
-
Page 23: Optional Fine Chop Kit
Optional Fine Chop Kit The Bale King 6300 processor has an optional fine chop knife kit (BMI # 32117) available to go into the lower tub area. This option is available if you require a finer cut on the material which you are processing such as slough hay and silage bales. -
Page 24: Optional Total Ration Grain Tank (6300Tr)
Optional Total Ration Grain Tank (6300TR) The Bale King 6300 has an available 40-bushel grain tank, which allows grain to be discharged on top of a windrow of processed hay, or independently out the right side of the machine. This bolt- on kit changes the processor to a 6300TR (Total Ration). -
Page 25: Service And Maintenance
Bale King 6300 Operator & Parts Manual Bridgeview Manufacturing Inc. SERVICE AND MAINTENANCE Greasing Locations Lubricating the Bale King bale processor should be done on a regular basis. Every 50 bales 3-5 pumps Rotor Gearbox Every 150 bales Bale Fork Pivot... - Page 26 Bale King 6300 Operator & Parts Manual Bridgeview Manufacturing Inc. PTO/Driveline After storage for long periods of time, lubricate and check the function of every driveline component before operating. Failure to grease all the joints will VOID warranty. All zerks can be accessed while the PTO is connected to the tractor EXCEPT for the telescoping spline, which can only be accessed when the PTO is fully retracted.
- Page 27 Bale King 6300 Operator & Parts Manual Bridgeview Manufacturing Inc. Hydraulic Maintenance The hydraulic cylinders are easily removed for repair or maintenance simply by: • Lowering the fork (or deflector) to the down position and unhooking the hydraulic lines. Be sure there is no pressure on the lines and mark the line locations so there is no confusion when reinstalling the cylinders.
-
Page 28: Wheels & Tires
Bale King 6300 Operator & Parts Manual Bridgeview Manufacturing Inc. Wheels & Tires Wheel bearings should be inspected annually for adjustment and lubricated annually. Inspect more often for extensive traveling. • Lift up each wheel (one at a time) until the wheel spins freely. - Page 29 Bale King 6300 Operator & Parts Manual Bridgeview Manufacturing Inc. Proper tire inflation will help to alleviate puncture problems when towing and operating on rough terrain. Examine the tires for cuts, bruises, cracks, bulges, and penetrations. Check for proper tire inflation...
-
Page 30: Twine Removal
• Loose straw and hay remaining in the machine may ignite causing a fire in the processor. • Excessive buildup of melted plastic. • Dry out bushings causing them to wear prematurely. NOTE: Bridgeview Manufacturing Inc. VOIDS warranty for any damage caused by twine burning in the processor. Page 27... -
Page 31: Feeding Chain
Bale King 6300 Operator & Parts Manual Bridgeview Manufacturing Inc. Twine guards are installed on the machine to keep bale twine out of important areas such as bearings. • The wheel hubs have a twine guard to keep anything from getting tangled in the wheel bearing. -
Page 32: Gearbox And Flail Replacement Procedure
Bale King 6300 Operator & Parts Manual Bridgeview Manufacturing Inc. Gearbox and Flail Replacement Procedure Flail replacement is accomplished by removing the 3/4”x 4-3/4” bolt holding the flail to the rotor. The flail is then lifted away from the rotor. The bushing can now be removed by using slight pressure to push it out of the flail. -
Page 33: Trouble-Shooting Guide
Bale King 6300 Operator & Parts Manual Bridgeview Manufacturing Inc. Trouble-shooting Guide Problem Possible Cause Remedy • Idle tractor to engage PTO then bring up to full Engaging PTO at high engine speed or too quickly operating speed • Feather PTO lever into position •... -
Page 34: Features And Specifications
Bale King 6300 Operator & Parts Manual Bridgeview Manufacturing Inc. • Plug in the control box. Needs power from the Control box is not plugged in Deflector or tilt tractor. • Plug the control box to the 4-pin plug on the... - Page 35 Bale King 6300 Operator & Parts Manual Bridgeview Manufacturing Inc. Driveline: Minimum Horsepower 100 HP *Ensure sufficient horsepower for terrain driven. PTO Shaft Weasler: Cat. 6 80 deg. C.V. 3/8 x 2” Fine Thread Gr. 5 Shear Bolt Rated PTO RPM...
-
Page 36: Parts Manual
Bale King 6300 Operator & Parts Manual Bridgeview Manufacturing Inc. PARTS MANUAL Machine Overview ........................ 34 Jack & Hitch ......................... 35 Wheels & Hub........................36 Spindle ..........................37 Rotor & Drive Components ....................38 Gearbox..........................39 PTO Shaft ......................... 41 Grates ............................ -
Page 37: Machine Overview
Bale King 6300 Operator & Parts Manual Bridgeview Manufacturing Inc. Machine Overview Jack & Hitch Page 35 Rear Tub Components Page 51 Wheels & Hub Page 36 Bale Deck Page 52 Rotor & Drive Components Page 38 Decals Page 57... -
Page 38: Jack & Hitch
Bale King 6300 Operator & Parts Manual Bridgeview Manufacturing Inc. Jack & Hitch DESCRIPTION PART # Bolt, 3/4 x 2” 13800 Nut, 3/4” Stover Lock 11823 Hitch Frame 35562 Bolt, 1 x 6" 21728 Nut, 1" Stover Lock 21746 Jack, 7000 lb... -
Page 39: Wheels & Hub
Bale King 6300 Operator & Parts Manual Bridgeview Manufacturing Inc. Wheels & Hub Tire Pressure: 35 psi Wheel Torque: 125 ft-lb DESCRIPTION PART # Torflex Axle, 8000# 22850 Tire & Rim, 14L-16.1SL (12 Ply) See your local tire dealer Wheel Nut 23183 Bolt, 3/4 x 2”... -
Page 40: Spindle
Bale King 6300 Operator & Parts Manual Bridgeview Manufacturing Inc. Spindle DESCRIPTION PART # Complete Torflex Axle Assembly 22850 Seal 23569 Inner Bearing JLM506849 23567 Inner Bearing Race JLM506810 23571 Hub Housing Includes 4,6,12 & 13 23572 Outer Bearing Race... -
Page 41: Rotor & Drive Components
Bale King 6300 Operator & Parts Manual Bridgeview Manufacturing Inc. Rotor & Drive Components DESCRIPTION PART # Rotor Shaft Cap 17380 Bolt, 5/8" x 1-3/4" NF Gr. 8 10274 Lock Collar 10268 Rotor Bearing Includes # 3 & 6 10221 Nut, 5/8"... -
Page 42: Gearbox
Bale King 6300 Operator & Parts Manual Bridgeview Manufacturing Inc. Gearbox Page 39... - Page 43 Bale King 6300 Operator & Parts Manual Bridgeview Manufacturing Inc. Gearbox DESCRIPTION PART # Complete Gearbox Assembly 22158 Housing End Cap Output Gear Input Gear Output Shaft Input Shaft Bearing (32012) 60mm 10496 Bearing (32009) 45mm 10497 Seal, 45 x 60 x 8...
-
Page 44: Pto Shaft
24983 NOTE: Ensure that the PTO shaft on the machine is correct to the drawings below. Equal length CV cross (4.19") with bearing cup diameter 1.38". If the damaged PTO has different dimensions, consult the Bridgeview Manufacturing website. Page 41... -
Page 45: Grates
Bale King 6300 Operator & Parts Manual Bridgeview Manufacturing Inc. Grates Page 42... - Page 46 Bale King 6300 Operator & Parts Manual Bridgeview Manufacturing Inc. Grates DESCRIPTION PART # Bolt, 1" x 2-1/2" 21820 Grate Pivot Bushing 22417 Flat Washer, 1" 14472 Nut, 1" Stover Lock 21746 Grate Assembly 29944 Grate Adjustment Cam 31720 Bolt, 1/2” x 2”...
-
Page 47: Agitators
Bale King 6300 Operator & Parts Manual Bridgeview Manufacturing Inc. Agitators DESCRIPTION PART # Agitator Shaft Cap 17381 Bolt, 1/2" x 1-1/2" 10174 Lock Collar 10040 Grease Zerk, 1/8" NPT Straight 10270 Agitator Bearing Includes # 3 & 4 10038 Nut, 1/2"... -
Page 48: Deflector & Hose Cover
Bale King 6300 Operator & Parts Manual Bridgeview Manufacturing Inc. Deflector & Hose Cover Page 45... - Page 49 Bale King 6300 Operator & Parts Manual Bridgeview Manufacturing Inc. Deflector & Hose Cover DESCRIPTION PART # Bolt, 3/8" x 1" 13806 Deflector Rubber Channel 22423 Deflector Rubber 10477 Nut, 3/8" Nylon Lock 10806 Carriage Bolt, 3/8" x 3/4" 14072...
-
Page 50: Top Tub Components
Bale King 6300 Operator & Parts Manual Bridgeview Manufacturing Inc. Top Tub Components DESCRIPTION PART # Wing 31692 Front Rack 31730 Front Rack Grating 32479 Wing Bolt-on Bracket (Right) 22431 Wing Bolt-on Bracket (Left) 22430 Bolt, 1/2" x 1 1/4"... -
Page 51: Rear Forks
Bale King 6300 Operator & Parts Manual Bridgeview Manufacturing Inc. Rear Forks DESCRIPTION PART # Back Fork 30504 Grease Zerk 1/4” x 90° 16389 Hydraulic Cylinder (3 x 18 x 1.5) 21717 Seal Kit 20807 Hydraulic Hose Clamp 1/2" 21561 Hose Clamp Top 1/2"... -
Page 52: Front Tub Components
Bale King 6300 Operator & Parts Manual Bridgeview Manufacturing Inc. Front Tub Components DESCRIPTION PART # Hose Holder See page 50 Flow Divider Valve 25778 Operator Manual Holder 22409 Threaded Pin 13231 Nut, 1/2” Serrated Flange 10273 Bolt, 3/8 x 2” Fine Thread Gr.5... -
Page 53: Hose Holder
Bale King 6300 Operator & Parts Manual Bridgeview Manufacturing Inc. Hose Holder DESCRIPTION PART # Adjustable Hose Holder 35038 Hose Holder Pin 31745 Hairpin, 3/32 x 5/8” 11786 Hose Holder Pivot Bracket 35041 Hose Holder Linkage 35040 Threaded Adjustable Handle 34944 Bolt, 1/2 x 1-1/4”... -
Page 54: Rear Tub And Hydraulic Components
Bale King 6300 Operator & Parts Manual Bridgeview Manufacturing Inc. Rear Tub and Hydraulic Components DESCRIPTION PART # Diverter Valve # 11743 Nut & O-Ring Kit 17977 Magnet Kit 11798 Diverter Valve Plug 13657 Bolt, 5/16 x 3” Socket Head 11783 Washer, 5/16”... -
Page 55: Bale Deck
Bale King 6300 Operator & Parts Manual Bridgeview Manufacturing Inc. Bale Deck DESCRIPTION PART # Bale Deck 24727 2082 Chain with Tabs (Includes conn. link) 24748 Connector Link 23093 Chain Motor Assembly See breakdown pg. 53 Idler Sprocket Assembly See breakdown pg. 54 Light Assembly See breakdown pg. -
Page 56: Chain Motor Assembly
Bale King 6300 Operator & Parts Manual Bridgeview Manufacturing Inc. Chain Motor Assembly DESCRIPTION PART # Hydraulic Motor, Left Hand 28702 Seal Kit 25891 Hydraulic Motor, Right Hand 28703 Seal Kit 25891 Bolt, 1/2 x 4-1/2” 15574 Nut, 1/2" Nylon Lock... -
Page 57: Idler Sprocket Assembly
Bale King 6300 Operator & Parts Manual Bridgeview Manufacturing Inc. Idler Sprocket Assembly DESCRIPTION PART # Idler Sprocket Bearing 23757 Bushing, Snap Ring Side 27681 Spacer 27680 Idler Sprocket (Sprocket only) 27497 Snap Ring 23755 Bushing, Non-Snap Ring Side 27682... -
Page 58: Lights And Smv Sign
Bale King 6300 Operator & Parts Manual Bridgeview Manufacturing Inc. Lights and SMV Sign DESCRIPTION PART # Light Bracket 28689 Left Light (shown) 31087 Right Light 31088 Bolt, 1/4 x 1" 11810 Nut, 1/2" Stover Lock 20154 Bolt, 1/2 x 2-1/4"... - Page 59 Bale King 6300 Operator & Parts Manual Bridgeview Manufacturing Inc. Page 56...
-
Page 60: Decals
Bale King 6300 Operator & Parts Manual Bridgeview Manufacturing Inc. Decals Page 57... - Page 61 Bale King 6300 Operator & Parts Manual Bridgeview Manufacturing Inc. DECALS DESCRIPTION PART # “BALE KING” 32804 “6300” 35075 “DANGER”, PTO 12219 “DANGER”, Discharge 12230 “DANGER”, Stand Clear of Lift 12229 AMC Member 12239 FEMA Member 25347 Wheel Torque Reminder...
-
Page 62: Total Ration Grain Tank Option
Bale King 6300 Operator & Parts Manual Bridgeview Manufacturing Inc. Total Ration Grain Tank Option Item # Description Tank Front Page 60 Tank Rear Page 62 Cross Auger Page 64 Page 66 Page 59... -
Page 63: Total Ration Tank Front
Bale King 6300 Operator & Parts Manual Bridgeview Manufacturing Inc. Total Ration Tank Front Page 60... - Page 64 Bale King 6300 Operator & Parts Manual Bridgeview Manufacturing Inc. Total Ration Tank Front DESCRIPTION PART # 1 Total Ration Grain Tank 30199 2 Bolt, 5/16” x 3/4” 20903 3 Tank Cleanout Cover 30237 4 Nut, 5/16” Serrated Flange 11814 5 Nut, 5/16”...
-
Page 65: Total Ration Tank Rear
Bale King 6300 Operator & Parts Manual Bridgeview Manufacturing Inc. Total Ration Tank Rear Page 62... - Page 66 Bale King 6300 Operator & Parts Manual Bridgeview Manufacturing Inc. Total Ration Tank Rear DESCRIPTION PART # Total Ration Grain Tank 30199 5300 SMV Sign Mount 5300TR Only 30389 Flow Control Valve 10455 Bolt, 1/4 x 2-1/2” 20954 Tank Auger 30175 Nut, 3/8”...
-
Page 67: Total Ration Cross Auger
Bale King 6300 Operator & Parts Manual Bridgeview Manufacturing Inc. Total Ration Cross Auger Page 64... - Page 68 Bale King 6300 Operator & Parts Manual Bridgeview Manufacturing Inc. Total Ration Cross Auger DESCRIPTION PART # Cross Auger Pipe 30179 Cross Auger Half Clamp 30401 Bolt, 3/8” x 1” 13806 Nut, 3/8” Stover Lock 17586 Bolt, 5/16” x 1.75”...
-
Page 69: Total Ration Tank Lid
Bale King 6300 Operator & Parts Manual Bridgeview Manufacturing Inc. Total Ration Tank Lid DESCRIPTION PART # Grain Tank Lid 30165 Bolt, 1/2” x 1-1/4” 10240 Washer, 1/2” Fender 10238 Bushing, 1/2” ID x 1.250” OD 10239 Nut, 1/2” Stover Lock 14393 Nut, 5/16”... -
Page 70: Fine Chop Option
Bale King 6300 Operator & Parts Manual Bridgeview Manufacturing Inc. Fine Chop Option Page 67... - Page 71 Bale King 6300 Operator & Parts Manual Bridgeview Manufacturing Inc. Fine Chop Option DESCRIPTION PART # Fine Chop Cover * IF NO FINE CHOP INSTALLED * Fin Bolt, 3/8" x 3/4" 10807 Fine Chop Cover Plate 22438 Nut, 3/8" Serrated Flange...
-
Page 72: Twine Cutter Option
Bale King 6300 Operator & Parts Manual Bridgeview Manufacturing Inc. Twine Cutter Option DESCRIPTION PART # Twine Cutter Kit 17686 Twine Cutter Handle Kit Twine Cutter Holder Kit 21549 Rubber Handle Cap 17587 Twine Cutter Handle 20862 Bolt, 1/4" x 3/4" Truss Head 17638 Nut, 1/4"... -
Page 73: Diverter Control Box
Bale King 6300 Operator & Parts Manual Bridgeview Manufacturing Inc. Diverter Control Box DESCRIPTION PART # Complete Control Box with Harness (Standard) 24466 Complete Control Box with Harness (4 Function) # 33134 Complete Control Box with Cab to Hitch Harness (6300 Series) - Page 74 Bale King 6300 Operator & Parts Manual Bridgeview Manufacturing Inc. Diverter Machine Side Harness Page 71...
- Page 75 Bale King 6300 Operator & Parts Manual Bridgeview Manufacturing Inc. Diverter Control Box #24466 Page 72...
- Page 76 Bale King 6300 Operator & Parts Manual Bridgeview Manufacturing Inc. Diverter Machine Side Harness (TR Option) Page 73...
- Page 77 Bale King 6300 Operator & Parts Manual Bridgeview Manufacturing Inc. Diverter Control Box #33134 (4 Function with Additional Push Button Switch) Page 74...
-
Page 78: Hydraulic Schematics
Bale King 6300 Operator & Parts Manual Bridgeview Manufacturing Inc. Hydraulic Schematics HYDRAULIC COMPONENTS DESCRIPTION PART # Hydraulic Motor 25872 Agitators * Seal Kit 25891 Hydraulic Motor 28702 Left Chain * Seal Kit 25891 Hydraulic Motor 28703 Right Chain * Seal Kit 25891 Hydraulic Motor –... - Page 79 Bale King 6300 Operator & Parts Manual Bridgeview Manufacturing Inc. HYDRAULIC FITTINGS DESCRIPTION PART # Adaptor, 12MB-8MJ90 22174 Adaptor, 10MB-8MJ90 12169 Adaptor, 10MB-8MJ45 23844 Adaptor, 10MB-8MJ 10161 Adaptor, 10MB-6MJ45 22722 Adaptor, 10MB-6MJ 11739 Adaptor, 8MB-8MJ 10561 Adaptor, 8MB-8MJ90 12169 Adaptor, 8MB-6MJ...
- Page 80 Bale King 6300 Operator & Parts Manual Bridgeview Manufacturing Inc. HYDRAULIC HOSES DIA. LENGTH ENDS 1/2" 260" OAL 8FJX - 8FJX 1/2" 132" OAL 8FJX - 8MB 1/2" 122" OAL 8FJX - 8MB 1/2" 122" OAL 8FJX - 8FJX90 1/2"...
- Page 81 Bale King 6300 Operator & Parts Manual Bridgeview Manufacturing Inc. FRONT PANEL – AGITATORS Page 78...
- Page 82 Bale King 6300 Operator & Parts Manual Bridgeview Manufacturing Inc. FRONT PANEL - DEFLECTOR Page 79...
- Page 83 Bale King 6300 Operator & Parts Manual Bridgeview Manufacturing Inc. FRONT PANEL – 6300TR Page 80...
- Page 84 Bale King 6300 Operator & Parts Manual Bridgeview Manufacturing Inc. REAR FORK & TILT Page 81...
- Page 85 Bale King 6300 Operator & Parts Manual Bridgeview Manufacturing Inc. BALE DECK CHAIN Page 82...
- Page 86 Bale King 6300 Operator & Parts Manual Bridgeview Manufacturing Inc. TR GRAIN TANK KIT Page 83...
-
Page 87: Notes
Bale King 6300 Operator & Parts Manual Bridgeview Manufacturing Inc. NOTES --------------------------------------------------------------------------------------------------------------------- --------------------------------------------------------------------------------------------------------------------- --------------------------------------------------------------------------------------------------------------------- --------------------------------------------------------------------------------------------------------------------- --------------------------------------------------------------------------------------------------------------------- --------------------------------------------------------------------------------------------------------------------- --------------------------------------------------------------------------------------------------------------------- --------------------------------------------------------------------------------------------------------------------- --------------------------------------------------------------------------------------------------------------------- --------------------------------------------------------------------------------------------------------------------- --------------------------------------------------------------------------------------------------------------------- --------------------------------------------------------------------------------------------------------------------- --------------------------------------------------------------------------------------------------------------------- --------------------------------------------------------------------------------------------------------------------- --------------------------------------------------------------------------------------------------------------------- --------------------------------------------------------------------------------------------------------------------- --------------------------------------------------------------------------------------------------------------------- --------------------------------------------------------------------------------------------------------------------- --------------------------------------------------------------------------------------------------------------------- --------------------------------------------------------------------------------------------------------------------- --------------------------------------------------------------------------------------------------------------------- --------------------------------------------------------------------------------------------------------------------- --------------------------------------------------------------------------------------------------------------------- --------------------------------------------------------------------------------------------------------------------- --------------------------------------------------------------------------------------------------------------------- --------------------------------------------------------------------------------------------------------------------- --------------------------------------------------------------------------------------------------------------------- --------------------------------------------------------------------------------------------------------------------- ---------------------------------------------------------------------------------------------------------------------...
