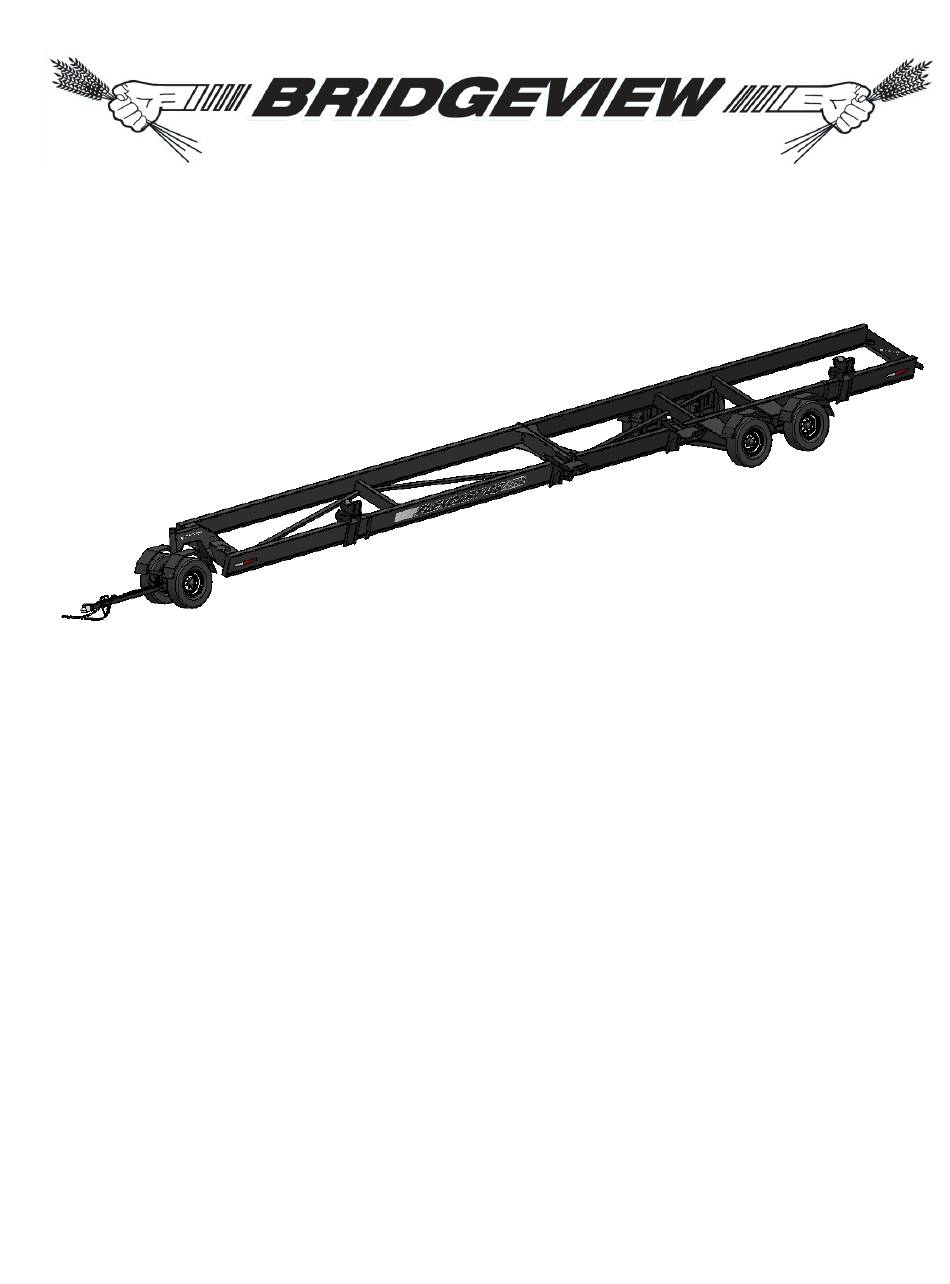

- Page 1 FLEXCART 48 Header Transport Operator’s Manual Last Updated: July 11, 2022 Bridgeview Manufacturing Inc. P.O. Box 4 Gerald, Saskatchewan, Canada S0A 1B0 Phone: 1-306-745-2711 Fax: 1-306-745-3364 Email: bmi@sasktel.net...
- Page 2 Bridgeview Manufacturing Inc. FlexCart 48 Header Transport The Serial Number is located the front gooseneck, Your Authorized Dealer Your Serial Number...
-
Page 3: Table Of Contents
Bridgeview Manufacturing Inc. FlexCart 48 Header Transport TABLE OF CONTENTS OPERATION MANUAL ......................1 Introduction ..........................1 Safety Precautions ........................2 Loading the Header .........................3 Transportation .........................6 Service & Maintenance ......................10 PARTS BOOK .......................... 12 Main Frame ........................... 12 Rear Hub Breakdown ......................14 Dolly Assembly........................ -
Page 5: Operation Manual
OPERATION MANUAL Introduction The FlexCart 48 is a 48ft long trailer designed to safely and securely transport today’s large combine headers on the road. It is designed to handle headers up to 50 ft cutting width and up to 14700 lb. -
Page 6: Safety Precautions
Bridgeview Manufacturing Inc. FlexCart 48 Header Transport Safety Precautions The following safety precautions MUST be followed to ensure safe operation of the FlexCart Header Transport. • Fully read through and understand this document. • Special care is required when transporting this equipment on public roads. Follow all local regulations. -
Page 7: Loading The Header
Saddle Adjustment The FlexCart 48 comes with 3 separate types of support brackets designed to work with 45 ft & 50 ft draper and flex draper headers. They are able to be slid along the length of the trailer to best fit the particular header being transported. - Page 8 Bridgeview Manufacturing Inc. FlexCart 48 Header Transport C – Pipe Supports • Adjust so that the plastic pad will catch the large pipe running lengthwise on the header. Adjust side-to-side to be centered between two of the main support ribs. Make sure that the pipe support is located near to the tie-down location.
- Page 9 Bridgeview Manufacturing Inc. FlexCart 48 Header Transport Loading the Header Always follow the specific instructions as laid out in the header manual, but in general: • Make sure the reel is fully down and in • Fully retract the gauge wheels •...
-
Page 10: Transportation
FlexCart 48 Header Transport Transportation The FlexCart 48 can be safely towed on public roads, provided the following precautions are met: The trailer is considered a farm implement, and does not need to be licensed in most jurisdictions. Always comply with local regulations regarding transportation on public roads. Follow all local laws regarding lighting and marking. - Page 11 Bridgeview Manufacturing Inc. FlexCart 48 Header Transport Hitch and Safety Chain • The FlexCart features a telescoping hitch beam for ease of connection to the tow vehicle. To operate: o Remove the safety pin o Lift the handle and pull forward. The hitch should extend up to 14”...
- Page 12 First 25 km (15 mi) if loaded * 160 ft-lb * • Periodically inspect the tire treads for wearing, bulging, flat spots, etc. Tire issues are not covered by Bridgeview and must be dealt with by your local tire shop. Tires ST235/80 R16, 10 ply 16x6, 8 on 6.5”...
- Page 13 Bridgeview Manufacturing Inc. FlexCart 48 Header Transport Brakes • The trailer features electric drum brakes on the two rear axles. The towing vehicle MUST HAVE a functioning trailer brake controller. • The trailer features an electric breakaway kit to activate the trailer brakes in the case of the trailer separating from the towing vehicle.
-
Page 14: Service & Maintenance
Bridgeview Manufacturing Inc. FlexCart 48 Header Transport Service & Maintenance With proper service and maintenance, your FlexCart trailer will provide years of trouble-free operation. As is typical with other seasonal pieces of equipment, setting up for long term storage in the off season is critical for longevity. - Page 15 Bridgeview Manufacturing Inc. FlexCart 48 Header Transport Lights: Inspect the wires for bare spots, fraying, etc. Inspect the weather pack connectors. Make sure they are properly connected. Check that the 7-pin plug functions properly Tires: Check tire pressure 80 psi...
-
Page 16: Parts Book
Bridgeview Manufacturing Inc. FlexCart 48 Header Transport PARTS BOOK Main Frame... - Page 17 28 Washer, 1/4” Flat 11666 14 Front Storage Cover Plate 34161 29 Nut, 1/4” Nylon Lock 11664 Tires & rims are not available from Bridgeview. See your local tire dealer. Breakaway kit includes breakaway plug & battery / control box...
-
Page 18: Rear Hub Breakdown
Bridgeview Manufacturing Inc. FlexCart 48 Header Transport Rear Hub Breakdown Description ID # Description ID # Complete Brake Assembly LH 4 Inner Bearing 34224 34220 # Individual parts through Dexter 5 Outer Bearing 34225 Complete Brake Assembly RH 34221 # Individual parts through Dexter... -
Page 19: Dolly Assembly
12 Nut, 5/8” Stover Flange NF 5 Wheel, ST235/80R16, 10 ply 15398 13 Grease Zerk, 1/8” NPT 10270 6 Wheel Nut 15948 7 Bolt, 3/4 x 5-1/2” 14471 Tires & rims are not available from Bridgeview. See your local tire dealer. -
Page 20: Hitch Assembly
Bridgeview Manufacturing Inc. FlexCart 48 Header Transport Hitch Assembly Description ID # Description ID # 1 Dolly Mount 34158 13 Bolt, 5/8 x 1-1/2” Gr.8 33953 14 Nut, 5/8” Stover Lock 2 Inner Drawbar 34156 18055 15 Bolt, 1/2 x 1-1/2”... -
Page 21: Front Fenders
Bridgeview Manufacturing Inc. FlexCart 48 Header Transport Front Fenders Description ID # Description ID # 5 Nut, 1/2” Stover Lock 1 Fender 34162 14393 6 Bolt, 3/8 x 1” Carriage 15718 2 Front Fender Mount A 34164 7 Nut, 3/8” Nylon Lock... -
Page 22: Front Hub Breakdown
Bridgeview Manufacturing Inc. FlexCart 48 Header Transport Front Hub Breakdown Description ID # Description ID # Complete Hub Assembly 4 Outer Bearing 34225 34230 # Includes studs & races 5 D-Washer 34231 1a Drive-in Stud, 9/16” 34223 6 Nut 34232... -
Page 23: Header Mounts
Bridgeview Manufacturing Inc. FlexCart 48 Header Transport Header Mounts John Deere HD50R Bracket Package #33908 Description ID # Description ID # 9a Ratchet Strap, 2” x 102” 1 Ratchet Holder Bracket 34169 33944 9b Ratchet Strap, 2” 36” 2 Center Support Plate Bracket... -
Page 24: Decals
Bridgeview Manufacturing Inc. FlexCart 48 Header Transport Decals Description ID # Description ID # 1 BRIDGEVIEW, 3 x 20” 33947 4 FEMA Member 25347 2 FLEXCART 48, 6 x 112” 5 Conspicuity Tape, 18” 13600 33946 3 AMC Member 12239... -
Page 25: Electrical Schematic
Bridgeview Manufacturing Inc. FlexCart 48 Header Transport Electrical Schematic... - Page 26 Bridgeview Manufacturing Inc. FlexCart 48 Header Transport _________________________________________________________________________________...
- Page 27 Bridgeview Manufacturing Inc. FlexCart 48 Header Transport _________________________________________________________________________________...
- Page 28 Bridgeview Manufacturing Inc. FlexCart 48 Header Transport _________________________________________________________________________________...
-
Page 29: Notes
Bridgeview Manufacturing Inc. FlexCart 48 Header Transport NOTES _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________...
