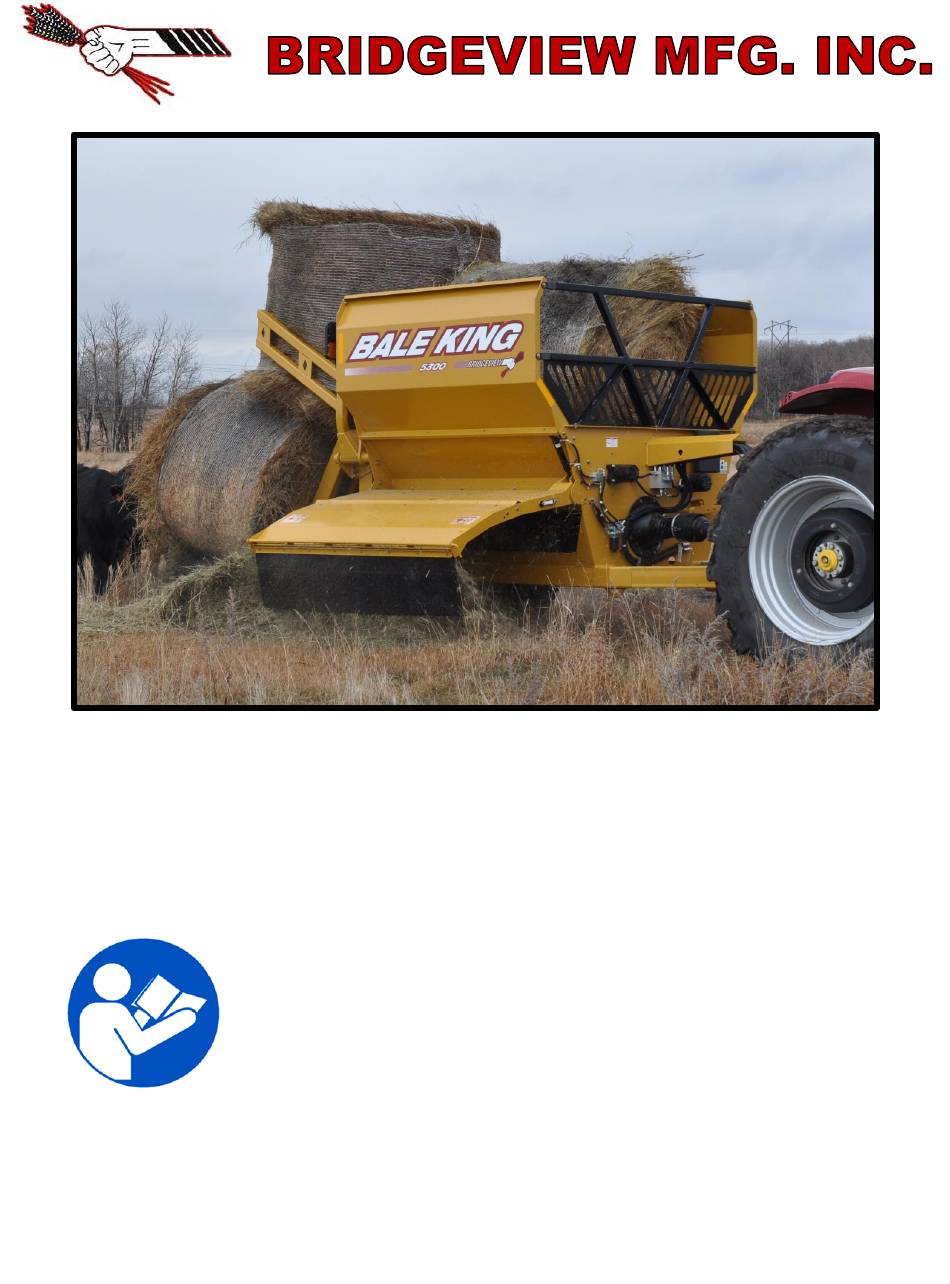

Page 1 *SHOWN WITH OPTIONAL 3 BALE KIT BALE KING 5300 Bale Processor Operator's & Parts Manual Last Updated: July 2019 Bridgeview Manufacturing Inc. P.O. Box 4 Gerald, Saskatchewan, Canada S0A 1B0 Phone: 1-306-745-2711 Fax: 1-306-745-3364 Email: bmi@sasktel.net www.bridgeviewmanufacturing.com...
Page 2 Your Authorized Dealer Your Serial Number The Serial Number is located the front tub panel, next to the operator manual box. Bridgeview Manufacturing Inc.
Page 3: Table Of Contents
Rear Forks ........................50 Deflector & Hose Cover ....................52 Hose Holder and Manual Holder .................. 56 Slow Moving Vehicle (SMV) Sign Kit ................ 57 Hose Holder ........................58 Decals ..........................60 3 Bale Kit Option ......................61 Bridgeview Manufacturing Inc.
Page 4 TR Kit Option ....................... 70 Fine Chop Option ......................80 Twine Cutter Option ..................... 82 Diverter Control Box ....................83 HYDRAULIC AND ELECTRICAL SCHEMATICS ..............84 Hose Layout ........................84 Hydraulics ........................85 Lights & Electrical ......................98 NOTES ............................101 Bridgeview Manufacturing Inc.
Page 5: Introduction
• ALWAYS turn off the machine when cleaning the machine, removing twine, or hooking/unhooking the machine • ALWAYS use safety chain when towing the machine on a highway. • DO NOT operate if any part of the PTO safety shielding is missing or is not secured. Bridgeview Manufacturing Inc.
Page 6: Safety Decals
The operator must obey all safety labels and must maintain the proper shielding. A high percentage of drive-line injuries occur when safety shielding is missing or not functioning properly. DANGER: Contact with a rotating drive-line can cause serious injury or death. Bridgeview Manufacturing Inc.
Page 7 Discharge DANGER: Do not stand on the discharge side of the machine while it is in operation. Bridgeview Manufacturing Inc.
Page 8 Rear Fork Lift Area DANGER: Stand clear of lift area. Do not stand under the forks unless safety locks are installed. Deflector Safety Lock: Unlock for Operation, Lock for Transport and Storage. Update picture Bridgeview Manufacturing Inc.
Page 9: Features & Operation
Engage the PTO at idle. After the PTO is fully engaged, increase PTO speed until it reaches 1000 RPM. The processor must not run at any speed less than 1000 PTO RPM as it may result in the flails springing back against the rotor after they come in contact with the bale. This “backslap” Bridgeview Manufacturing Inc.
Page 10 The hydraulic hoses may need to be adjusted to best fit your tractor, to avoid damage from rubbing on the PTO shaft shield. This can be done by loosening the bolt on top of the plastic hose clamp, then pushing or pulling on the hoses to adjust the length. Bridgeview Manufacturing Inc.
Page 11 PTO shaft. Storage: When not in use, cover or protect the drive shaft from the weather. When removed from the machine store both halves together to prevent damage. Check all components for proper function and lubrication before use. Bridgeview Manufacturing Inc.
Page 12 • Remove the nylon bearing from the shaft by spreading it open. Shield Assembly: • Be sure to lubricate the groove in the inner yokes where the shield bearing rides. Reinstall shields in the reverse order that they were removed. Bridgeview Manufacturing Inc.
Page 13: Hydraulics
Turn agitators clockwise Long Blue Lift rear fork or deflector Always set the tractor's hydraulic flow at a lower rate and adjust it upward until the desired speed is reached. Excessive oil flow may damage the flow divider cartridge. Bridgeview Manufacturing Inc.
Page 14: Cylinder Maintenance
PTO shaft for proper PTO length. • Adjust the hitch height to reduce the PTO angle as much as possible. • DO NOT install the insert if using a tractor with a hammer strap as this will bend the hitch pin. Bridgeview Manufacturing Inc.
Page 15: Rear Fork Tines
Bridgeview Manufacturing Inc.
Page 16: Hoop Grate Adjustment
NOTE: Processing a bale too rapidly may cause unnecessary machine deterioration. NOTE: Upper grate position should be approximately 1/8” flail protrusion. Lower grate position should allow 2-1/2” flail protrusion. Contact your Bale King dealer if this can’t be achieved. Bridgeview Manufacturing Inc.
Page 17: Deflector
The Bale King 5300 deflector will bunk feed to a distance of 35” from the tire when in the lowest position. When the deflector is not folded, the transport width of the machine is 9’10”. Bridgeview Manufacturing Inc.
Page 18 Be sure that the outer deflector fits nicely outside the tub walls. Some fine tuning may be required. Replace the bolts on the front and back in the available holes as shown. The deflector should now fit inside the width of the wings. Bridgeview Manufacturing Inc.
Page 19: Agitators
Turning bales too fast can result in rotor overloading resulting in flail “backslap” which in turn causes flail and bushing damage. High agitator speed may also cause damage to the hydraulic motors and excessive twine and material build-up on the agitators. Bridgeview Manufacturing Inc.
Page 20: Loading Bales
• When the first bale has been processed, it is common practice to leave the rotor running at full speed when loading the second bale into the bale chamber from the rear forks. Bridgeview Manufacturing Inc.
Page 21: Optional Diverter Kit
If the switch in the tractor is activated, the deflector can be controlled. On 5300 machines with an option, this box can also control grain flow or the 3 Bale Clamp. Bridgeview Manufacturing Inc.
Page 22: Optional Fine Chop Kit
There are two settings for the fine chop, depending on how fine you wish to cut the material. These settings achieved by pulling on the handle (towards the back of the machine), then selecting the desired hole. Bridgeview Manufacturing Inc.
Page 23: Optional Total Ration Grain Tank (5300Tr)
They should be connected at best convenience for the tractor's controls. Note that the hoses are paired by colour and the following tables show the operation when pushing oil into the hose with the longer marker. Bridgeview Manufacturing Inc.
Page 24 Lift rear fork or deflector, or discharge grain Cleanout doors are located at the bottom end of both the cross-auger, and the grain tank. It is recommended that both be cleaned out at the end of every season. Bridgeview Manufacturing Inc.
Page 25: Optional 3 Bale Kit (5300X)
After the first bale processing is complete, the clamp can be opened (while the third bale is supporting the second), and the fork can be lifted until the third bale pushes the second into the tub. Bridgeview Manufacturing Inc.
Page 26 (parallel with the ground) or slightly above. If you see the second bale press on the bale in the tub, you have lifted too high, and need to lower the bale. Bridgeview Manufacturing Inc.
Page 27 9. Back under the third bale and lift the forks until the third bale is lightly supporting the second bale. You will see when to stop lifting as the clamped bale will tilt forward slightly. Bridgeview Manufacturing Inc.
Page 28 5300 3 Bale Kit – 4 Remotes Set up Hose Marker Function Long Red Turn agitators clockwise Long Blue Lift rear fork Long Yellow Lift discharge deflector Long Green Close Clamp Bridgeview Manufacturing Inc.
Page 29 Alternatively, if the clamp or fork have collided with each other, the plunger can be adjusted downwards to increase the lockout sensitivity and prevent future collision. Bridgeview Manufacturing Inc.
Page 30 Nut is available to move plunger by wrench if necessary, otherwise turn by hand on larger radius of plate. Once moved to new position, retighten jam nut and test hydraulics to confirm proper function. Bridgeview Manufacturing Inc.
Page 31: Dual Option Machine (5300Xtr)
Lift rear fork and deflector and close clamp Long Green Discharge Grain 5300 Dual Option Machine – 2 Remotes Setup Hose Marker Function Long Red Turn agitators clockwise Lift rear fork and deflector and close clamp and Long Blue discharge grain Bridgeview Manufacturing Inc.
Page 32: Lubrication And Maintenance
3 Bale Kit Arm Pivot (x2) (3 Bale Kit Only) 150 Bales or 8 hours Agitator Bearings (x 2) whichever comes first Rotor Bearing Bale Fork Pivot (x 2) Wheel Hubs (x 2) Seasonally (or 300 hours) Bridgeview Manufacturing Inc.
Page 33 (approximately 500 mL) and checked on a regular basis. The oil should also be changed at the following intervals: • 25 hours after first use • 50 hours after first use • Every 300 hours or annually (whichever comes first) Bridgeview Manufacturing Inc.
Page 34: Tire Inflation And Rating
NOT in front of or over the tire assembly. Note: Warranty does not cover damaged rims and hubs due to loose wheel bolts or flat tires. Tire warranty is covered by the tire manufacturer. Bridgeview Manufacturing Inc.
Page 35: Twine Removal
• Loose straw and hay remaining in the machine may ignite causing a fire in the processor. • Excessive buildup of melted plastic. • Dry out bushings causing them to wear prematurely. NOTE: Bridgeview Manufacturing Inc. VOIDS warranty for any damage caused by twine burning in the processor. Bridgeview Manufacturing Inc.
Page 36: Gearbox And Flail Replacement Procedure
Tighten lock collar counter-clockwise. Apply loc-tite to the set screw and torque it to 100 in-lb. • Fill gearbox with oil (GL5 80W-90) up to the bottom of the side plug (~500 mL) • Grease 80 pumps into the front zerk Bridgeview Manufacturing Inc.
Page 37 Inspect the bolt, bushing, and the flail for wear. If wear is excessive, replace with new parts. Bridgeview Manufacturing Inc. recommends when changing flails to change in PAIRS (opposite each other). Processing bales with broken flails causes the rotor to be out of balance and excessive vibration may cause machine deterioration.
Page 38: Transportation
• Ensure that the PTO and hydraulic hoses are properly secured NOTE: With the deflector folded and no grain tank, the overall width of the processor is 8'-6". Check with local authorities regarding transport on public roads. Follow all applicable laws and regulations. Bridgeview Manufacturing Inc.
Page 39: Trouble-Shooting Guide
Lockout mechanism is set too pressure early fork position • Lower fork and open 3 Bale Kit fully before lifting With 3 Bale Kit, 3 Bale Kit is slightly closed fork is not lifting to full stroke Bridgeview Manufacturing Inc.
Page 40: Features And Specifications
1-15/16” Bearing Rotor Shaft 1-3/4” Bearings Agitator Shaft Twine Guards Rotor, Agitators, Axles PTO Shaft Weasler: Cat. 6 80 deg. C.V. 3/8 x 2” Gr. 5 Shear Bolt Gearbox Oil GL5 80W90 Gearbox Oil Capacity 500 mL Bridgeview Manufacturing Inc.
Page 41: Parts Manual
Machine Overview Item # Description Item # Description Jack & Hitch Deflector and Hose Cover Wheels & Hub Hose and Manual Holder Inner Tub Components & Drive Decals Rear Tub Components Options Rear Forks Diverter Control Box Bridgeview Manufacturing Inc.
Page 42: Jack & Hitch
Nut, 1” Stover Lock [S/N 7169 & Up] 21746 Safety Chain, 11000lb x 53" 21715 Bolt, 1/2" x 2"[S/N 7168 & Down] 10322 Bolt, 1” x 2”[S/N 7169 & Up] 18992 Bolt, 3/8” x 4” 14379 PTO Cradle 31760 Nut, 3/8” Nylon Lock 10806 Bridgeview Manufacturing Inc.
Page 43: Wheels & Hub
* See your local tire dealer * Spindle Assembly *See breakdown* 29679 Stover Lock Nut, 9/16” 21165 Bolt, 3/4" x 2" 13800 Lock Washer, 3/4" 10284 Nut, 3/4" 10283 Axle Extension *TR ONLY* 30259 Bolt, 9/16” x 3.5” 15575 Bridgeview Manufacturing Inc.
Page 44: Spindle
* Includes #4 & #6 * 10343 Outer Bearing Race 10346 Outer Bearing Cone, 1-3/8" ID 10348 Cotter Pin, 3/16" x 1-1/2" 10072 Flat Washer, 1-1/6" ID x 2" OD 10071 Castle Nut, 1" NF 10153 Dust Cap 10350 Bridgeview Manufacturing Inc.
Page 45: Rotor & Drive Components
Bolt, 1/2" x 1-1/2" 10174 PTO Shaft * See Breakdown * Gearbox Twine Guard 23002 Nut, 1/2" Serrated Flange 10273 Gearbox Assembly * See Breakdown * PTO Safety Shield 10421 Flat Washer, 3/8" 11667 Bolt, 3/8 x 1" 13806 Bridgeview Manufacturing Inc.
Page 46: Gearbox
Gearbox Bridgeview Manufacturing Inc.
Page 47 O-Ring 24018 Shim, 125 x 164 x 0.1 24022 Shim, 125 x 164 x 0.3 24023 Name Plate (Bridgeview) End Cap Seal, 60 x 85 x 10 10500 Shim, 68 x 74.5 x 0.1 24024 Shim, 68 x 74.5 x 0.3 24025 Grease Zerk, 1/4"-28 Straight...
Page 48: Pto Shaft
NOTE: Ensure that the PTO shaft on the machine is correct to the drawings below. Equal length CV cross (4.19") with bearing cup diameter 1.38". If the damaged PTO has different dimensions, consult the Bridgeview Manufacturing website. Bridgeview Manufacturing Inc.
Page 49: Grates
22187 Roll Pin, 3/16" x 1-1/4" 10302 Grate Handle Spring 10301 Handle Spring Guide 31711 Nut, 3/4" Nylon Lock 10007 Grate Shackle 31709 Grate Shackle Bushing 22415 Bolt, 3/4" x 2-1/2" 14470 Nut, 1/2” Nylon Lock 10241 Bridgeview Manufacturing Inc.
Page 50: Agitators
Nut, 3/8" Serrated Flange 10271 Agitator Twine Guard 22419 Bolt, 3/8" x 3/4" 11816 Agitator Insert 22084 Agitator Motor, 8" Long 25872 * Seal Kit 25891 Lock Washer, 1/2" 14447 Socket Head Bolt, 1/2" x 3" 25952 Bridgeview Manufacturing Inc.
Page 51: Rear Tub Components - Rear Deflector / Lights
Bolt, 1/4” x 3/4” 11809 Nut, 1/4” Serrated Flange 11812 Nut, 3/8" Serrated Flange 10271 Bolt, 3/8" x 1" 13806 Wiring Clamp 13629 Rear Deflector, Right Hand 31699 Rear Deflector, Left Hand 31695 Bolt, 3/8" x 3/4" 11816 Wing 31692 Bridgeview Manufacturing Inc.
Page 52: Rear Tub Components - Wing And Bale Slide
DESCRIPTION PART # QTY/SIDE Bolt, 3/8" x 1" 13806 Nut, 3/8" Serrated Flange 10271 Nut, 1/2" Serrated Flange 10273 Wing 31692 Flat Washer, 1/2" 11668 Bolt, 1/2" x 1" 10824 Bale Slide 31703 Flat Washer, 3/8" 11667 Bridgeview Manufacturing Inc.
Page 53: Front Rack
Front Rack DESCRIPTION PART # Bolt, 1/2" x 1" 10824 Flat Washer, 1/2" 11668 Front Rack 31730 Nut, 1/2" Serrated Flange 10273 Bridgeview Manufacturing Inc.
Page 54: Rear Forks
Rear Forks Bridgeview Manufacturing Inc.
Page 55 Hydraulic Cylinder, 3" x 18" x 1-1/2" 21717 * Seal Kit 20807 * Stopper Kit 21860 Cylinder Pin, 1" x 3-1/2" 10339 Cylinder Safety Lock 31761 Cotter Pin, 1/4" x 2" 10580 Flat Washer, 1" 14472 Fork Tine 22421 Fork Tine Pin 10031 Bridgeview Manufacturing Inc.
Page 56: Deflector & Hose Cover
Deflector & Hose Cover S/N BK7168 & Down Bridgeview Manufacturing Inc.
Page 57 Deflector Rubber Flipper 24463 Outer Deflector 31754 Nut, 1/2" Serrated Flange 10273 Bolt, 1/2" x 1" 10824 Bolt, 1/2" x 2" 10322 Deflector Lock 22422 Pin Stud 13231 Lynch Pin 13233 Hose Cover Front 22945 Flat Washer, 3/8" 11667 Bridgeview Manufacturing Inc.
Page 58 S/N BK7169 & Up Bridgeview Manufacturing Inc.
Page 59 * Seal Kit 23738 Deflector Rubber Flipper 24463 Outer Deflector 31754 Nut, 1/2" Serrated Flange 10273 Bolt, 1/2" x 1" 10824 Bolt, 1/2" x 2" 10322 Deflector Lock 22422 Pin Stud 13231 Lynch Pin 13233 Flat Washer, 3/8" 11667 Bridgeview Manufacturing Inc.
Page 60: Hose Holder And Manual Holder
Manual Holder Bracket 31781 Shear Bolt, 3/8” x 2” GRADE 5 10279 Nut, 3/8” Stover Lock 17586 Flat Washer, 3/8" 11667 Bolt, 3/8" x 1" 13806 Operator Manual Holder 22409 Flat Washer, 1/4” 11666 Bolt, 1/4” x 1-1/4” 10240 Bridgeview Manufacturing Inc.
Page 61: Slow Moving Vehicle (Smv) Sign Kit
Nut, 1/4" Serrated Flange Galvanized Sign Bracket Plastic SMV Sign Pan Head Bolt, 1/4" x 5/8" Nut, 5/16" Lock Washer, 5/16" Galvanized Tapered Receiver Bracket Carriage Bolt, 5/16" x 1/2" Carriage Bolt, 5/16" x 2" Lock Washer, 1/4" Bridgeview Manufacturing Inc.
Page 62: Hose Holder
Hose Holder Bridgeview Manufacturing Inc.
Page 63 Hydraulic Hose Clamp Cap, Large 21725 Hydraulic Hose Clamp Cap, Small 22182 Bolt, 5/16" x 3-1/2" 13765 Bolt, 5/16" x 3" 22844 Bolt, 5/16" x 1-3/4" 21726 Wiring Clamp 13629 Bolt, 5/16” x 4-1/2” 21836 NOTE: Quantities are as required Bridgeview Manufacturing Inc.
Page 64: Decals
"BALE KING 5300" 31657 "DANGER", PTO 12219 "DANGER", Discharge 12230 "DANGER", Stand Clear of Lift 12229 AMC Member 12239 Hoop Adjustment 31658 Deflector Safety Lock 22292 Red Reflector 28383 Amber Reflector 28384 "TOTAL RATION" * 24862 * TR only Bridgeview Manufacturing Inc.
Page 65: Bale Kit Option
3 Bale Kit Option Item # Description Left Arm Lockout Mechanism Center Right Arm Bridgeview Manufacturing Inc.
Page 66 Left Arm Bridgeview Manufacturing Inc.
Page 67 Lockout Mechanism – SEE DETAIL Bolt, 1/2” x 1-3/4” Fine Thread 32151 Bolt, 1/2” x 3-1/2” 10353 Bolt, 1/2” x 1-1/4” Fine Thread 32152 Tub Mount 31873 Nut, 3/8” Nylock 10806 Bolt, Shoulder 1/2” x 2-1/4” x 3/8” 31358 Bridgeview Manufacturing Inc.
Page 68 Lockout Mechanism Bridgeview Manufacturing Inc.
Page 69 Nut, 5/16” Serrated Flange 11814 Nut, 3/8” Nylock 10806 Nut, 1/2” Fine Thread 32167 Clevis Pin, 1/2” x 6” 31835 Bolt, 5/16” x 3-1/2” 30914 Lynch Pin 13233 Lockout Door 31928 Nut, 5/16” Nylock 11815 Bolt, 5/16” x 4” 31837 Bridgeview Manufacturing Inc.
Page 70 Center Bridgeview Manufacturing Inc.
Page 71 3 Bale Kit Slider 31892 Bolt, 1/2” x 1-1/4” Fine Thread 32152 3 Bale Kit Cylinder Mount 31887 Bolt, 1/2” x 1-3/4” Fine Thread 32151 Cylinder Pin 22291 Hydraulic Cylinder 30126 Nut, ¾” Nylon Lock 15436 Brass Spacer Bushing 29063 Bridgeview Manufacturing Inc.
Page 72 Right Arm Bridgeview Manufacturing Inc.
Page 73 Tub Mount 31873 Bolt, 1/2” x 1-1/4” Fine Thread 32152 3 Bale Kit Right Arm 31854 Grease Zerk 16364 Arm Pin 31660 Nut, 1/2” Nylock 16741 Bolt, 1/2” x 1-3/4” Fine Thread 32151 Bolt, 1/2” x 3-1/2” 10353 Bridgeview Manufacturing Inc.
Page 74: Tr Kit Option
TR Kit Option Bridgeview Manufacturing Inc.
Page 75 TR Kit Option Item # Description Tank Front Tank Rear Cross Auger Bridgeview Manufacturing Inc.
Page 76 Tank Front Bridgeview Manufacturing Inc.
Page 77 Nut, 1/2” Serrated Flange 10273 Bolt, 5/16” x 1.75” 21726 Hydraulic Hose Clamp Cap, Large 21715 Hydraulic Hose Clamp, 1/2” 21561 Washer, 5/8” Flat 13975 Bolt, 1/2” x 1.5” 10174 Jack Stow Position Mount *6200 ONLY* 30501 Bridgeview Manufacturing Inc.
Page 78 Tank Rear Bridgeview Manufacturing Inc.
Page 79 Bearing Lock Collar 10367 Nut, 5/8” Stover Lock 20150 5300 Rear Mount Strap 30245 6200 Rear Mount Strap 30255 Bolt, 5/8” x 1.5” 10173 5300 Rear Mount Bracket 30247 6200 Rear Mount Bracket 30257 Washer, 5/8” Flat 13975 Bridgeview Manufacturing Inc.
Page 80 Cross Auger Bridgeview Manufacturing Inc.
Page 81 Lock Pin, 1/4” x 1.25” 13951 Chain, 3/16” x 20 links 25121 Bolt, 3/8” x 2” 10279 Auger Spout 10543 Nut, 5/16” Nylock 11815 Nut, 5/16” Serrated Flange 11814 Bolt, 5/16” x 1.25” 24418 Cross Auger Bottom Clamp 30189 Bridgeview Manufacturing Inc.
Page 82 Bridgeview Manufacturing Inc.
Page 83 Bolt, 1/2” x 1.50” 10174 Washer, 1/2” Fender 10238 Bushing, 1/2” ID x 1.250” OD 10239 Nut, 1/2” Stover Lock 14393 Nut, 5/16” Nylock 11815 Bolt, 3/8” x 5/8” Shoulder 30466 Lid Upper Support 30163 Lid Lower Support 30166 Bridgeview Manufacturing Inc.
Page 84: Fine Chop Option
Fine Chop Option Bridgeview Manufacturing Inc.
Page 85 Fine Chop Front Mount 32122 Nut, 1/2" Nylon Lock 10241 Fine Chop Pivot 32127 Bolt, 1/2” x 2-3/4” 12378 Flat Washer, 1/2” 11668 Bolt, 1/2” x 2-1/2” 10804 Compression Spring 21713 Fine Chop Handle 32132 Rubber Cover 10297 Bridgeview Manufacturing Inc.
Page 86: Twine Cutter Option
17587 Twine Cutter Handle 20862 Bolt, 1/4" x 3/4" Truss Head 17638 Nut, 1/4" Serrated Flange 11812 Twine Cutter Blade 17438 Twine Cutter Holder Inside Bracket 17690 Twine Cutter Holder Outside Bracket 17691 Flat Washer, 1/4” 11666 Bridgeview Manufacturing Inc.
Page 87: Diverter Control Box
25079 3-way Switch 13561 Complete Hitch to Valve Harness (5300 Series) 24693 Cover-up Sticker (for "Wing/Feed") 25125 * NOTE: 1 plug is needed for each diverter valve. # NOTE: Only used on 5300TR with 3 remote kit. Bridgeview Manufacturing Inc.
Page 88: Hydraulic And Electrical Schematics
Lift Rear Fork, or Lift Discharge Deflector, or 5300XTR 3 Remote Long Blue Close Clamp Long Green Discharge Grain Long Red Turn Agitators Clockwise 5300XTR 2 Remote Lift Rear Fork, or Lift Discharge Deflector, or Long Blue Close Clamp, or Discharge Grain Bridgeview Manufacturing Inc.
Page 89: Hydraulics
Hydraulics Bridgeview Manufacturing Inc.
Page 90 Bridgeview Manufacturing Inc.
Page 91 Bridgeview Manufacturing Inc.
Page 92 Bridgeview Manufacturing Inc.
Page 93 Bridgeview Manufacturing Inc.
Page 94 Bridgeview Manufacturing Inc.
Page 95 Bridgeview Manufacturing Inc.
Page 96 Bridgeview Manufacturing Inc.
Page 97 Bridgeview Manufacturing Inc.
Page 98 Bridgeview Manufacturing Inc.
Page 99 Hose Marker, Short Green 17053 Hydraulic Motor - Agitator (8" Long) 25872 * Seal Kit 25891 Flow Divider Valve (4-1/4" Deep) 25778 WS080 Hydraulic Motor – Cross Auger 30132 NOTE: Quantities vary depending on machine set-up. Order as required. Bridgeview Manufacturing Inc.
Page 100 Adaptor, 6MJ90BH 10187 Adaptor, 6MJ-6FJX90 12162 Adaptor, 6MB-6MJ Orifice (1/32") 17436 Adaptor, 8MJBH 28774 Adaptor, 12MB-8MJ 25937 Adaptor, 6MJBH 11767 Adaptor, 8MB Plug 31013 Adaptor, 12MB-8MJ90 22174 NOTE: Quantities vary depending on machine set-up. Order as required. Bridgeview Manufacturing Inc.
Page 101 6FJX – 6FJX45 3/8” 87” OAL 6FJX – 6FJX45 3/8” 29” OAL 8FJX – 6FJX45 NOTE: Quantities vary based on machine set-up. Hoses are not available for sale. Use the information above to have replacement hoses made up locally. Bridgeview Manufacturing Inc.
Page 102: Lights & Electrical
Lights & Electrical Diverter Controls Bridgeview Manufacturing Inc.
Page 103 Bridgeview Manufacturing Inc.
Page 104 Lights Bridgeview Manufacturing Inc.
Page 105: Notes
