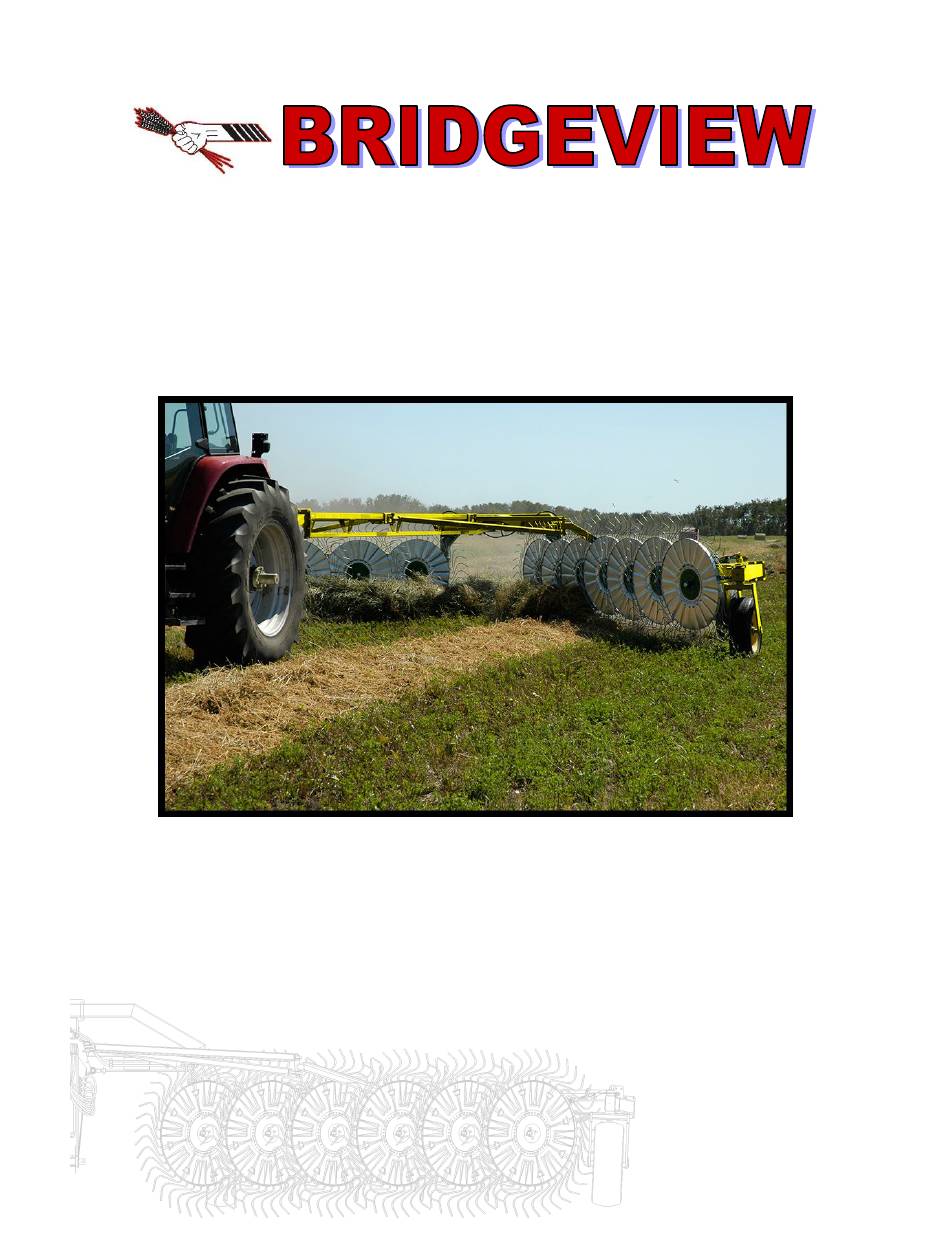

- Page 1 BALE KING V-MAX 1214 Operator and Parts Manual Bridgeview Manufacturing Inc. P.O. Box 4 Gerald, SK S0A 1B0 (306) 745-2711 www.bridgeviewmanufacturing.com bmi@sasktel.net...
-
Page 2: Table Of Contents
Table of Contents 1.0 INTRODUCTION 2.0 SAFETY AND OPERATIONS 2.1 SAFETY PRECAUTIONS 2.2 MACHINE MAINTENANCE AND LUBRICATION 2.3 WHEEL AND TIRE INFORMATION 2.4 WHEEL EXTENSION KIT 2.5 HYDRAULIC HOOK UP 2.6 HIGHWAY TRANSPORT 2.6.1 S AFETY HAINS 2.6.2 C YLINDER AFETY OCKS 2.6.3 R... - Page 3 4.1 R - 12 W HEEL 4.1.1 M 4.1.2 H YDRAULICS 4.1.3 R 4.1.4 L 4.1.5 F RONT ASTERS 4.1.6 R HEELS 4.2 E – U 12 W 14 W XTENSION PGRADE FROM HEEL TO HEEL 4.2.1 R XTENSION 4.2.2 H ITCH XTENSION 4.2.3 C...
-
Page 4: Introduction
The part manual covers all the parts you may need to order in case of accidents or breakdown .Included in this manual is the procedures on how to assemble the Bridgeview 14 Wheel Rake and optional 16 Wheel Extension Kit. Please read through this manual before beginning assembly. -
Page 5: Safety And Operations
2.0 SAFETY AND OPERATIONS 2.1 SAFETY PRECAUTIONS The following safety precautions MUST be followed to ensure the safe operation of the V-MAX: 1. This trailed machine was designed and intended for on-farm use only. Tow at speeds not to exceed 20 MPH. Slow down for hills, curves, rough areas, and in advance of braking to prevent loss of control and possible injury or death. -
Page 6: Machine Maintenance And Lubrication
2.2 MACHINE MAINTENANCE AND LUBRICATION General maintenance of your V-MAX should be done on a regular basis. This includes checking all bolts to ensure they are tight, making sure all grease zerks are accepting grease and ensuring that all moving parts are functioning correctly. -
Page 7: Wheel And Tire Information
2.3 WHEEL AND TIRE INFORMATION The proper tire pressure for the Bale King V-MAX is 35 psi. Proper tire inflation will help alleviate a puncture problem when pulling and operating the machine in rough terrain. The optimum tire size is 9.5L15SL, 8 Ply. ... -
Page 8: Hydraulic Hook Up
2.5 HYDRAULIC HOOK UP There are six hydraulic hoses to be connected to the tractor. All six hoses run out of the gooseneck of the rake, near the hitch. Green Hose controls the main wing cylinder, used to open and close the rake arms. -
Page 9: Retract Windrow Arms
2.6.3 Retract Windrow Arms Ensure that the rear opening is in the narrow position by fully stroking the windrow adjustment cylinder. Then bring in the arms by retracting the wing cylinder until the front castors are brought in near the hitch. 2.6.4 Transport Links Ensure that the rear opening is in the narrow position by fully stroking the windrow adjustment cylinder. - Page 10 Next insert the large end into the bracket at the bottom of the main frame. Pull out the self-locking pin and allow the inside tube to freely slide, then insert the small end into the bracket on the arm. Retract the wing cylinder until the self- locking pin locks in transport position.
-
Page 11: Windrow Width Adjustment
Ensure that all of the tires are at the correct pressure and that all wheel bolts are secured. 2.7 WINDROW WIDTH ADJUSTMENT The rear opening of the V-Rake is adjustable using the windrow adjustment cylinder. It must be in the narrow position to be able to transport on the highway. -
Page 12: Field Operation
2.8 FIELD OPERATION The recommended raking speed is 8 mph (13 km/h), depending on field conditions. Rougher land and heavier windrows require slower operation. This will prevent damage to the rake wheels, and ensure that hay is picked up properly. For faster operation, it is recommended that rake wheel spring tension is increased to prevent bouncing of the tines. - Page 13 2.10 TINE REPLACEMENT Note: If a tine on one of the rake wheels needs to be replaced, the following procedure can be used: 1. The bolt on the back of the rake wheel that corresponds to that tine should 2. loosened and removed completely. 3.
-
Page 14: Specifications
2.10 SPECIFICATIONS Dimensions and Weights Specifications 12 Wheel 12 Wheel Raking Width (Front/Rear) 38’ / 4’-8” 42’ / 4’-8” Transport Width 9’ 6” 12”-7’ Transport Length 33’ 6” 36’ 10” Weight 4813 lbs 5605 lbs Tires Tire Size 9.5L15SL 8Ply Tire Pressure 35psi Wheel Bolt &... -
Page 15: Parts Diagrams And Part Numbers
3.0 Parts Diagrams and Part Numbers 3.1 General Assembly Name Part # QTY. 1 Main Frame See Section 3.3 2 Rear End See Section 3.6 3 Gooseneck Assembly See Section 3.2 4 Scissor Assembly See Section 3.4 5 Right Arm Assembly See Section 3.9 6 Left Arm Assembly See Section 3.9... -
Page 16: Gooseneck Assembly
3.2 Gooseneck Assembly #. Name Part # QTY. 1 Spring Hose Holder 18080 2 Gooseneck Hitch 21368 3 Hitch Extension 18197 4 Hydraulic Hose Holder 18176 5 Transport Lock Mount 22018 6 Transport Lock Bracket 18186 7 BOLT 0.5000x0.75 15851 8 Transport lock U-bolt 16531 9 LOCKNUT 0.3750... -
Page 17: Main Frame Assembly
3.3 Main Frame Assembly Name Part # QTY. Leading Center Frame 21366 Trailing Center Frame 21367 Hydraulic ‘T’ 10188 90 Fitting 12162 Hydraulic 90 Fitting 10187 Bulkhead Base 21363 SFN 0.6250 11614 BOLT 0.3750x1.25 10253 SFN 0.3750 10271 BOLT 0.6250x1.75 12379... -
Page 18: Scissor Assembly
3.4 Scissor Assembly Name Part # QTY. 1 F Rake Arm Linkage 21372 2 R Rake Arm Linkage 21371 3 Left Riser Arm 21355 4 Right Riser Arm 21356 5 Rake Arm Linkage Pin 21296 6 Roll Pin 15872 7 Washer 21384 8 Width Adj. -
Page 19: Slides
3.5 Slides # Name Part # QTY. 1 Slide Plate, BF48 18185 2 Slide Plate 18189 3 Slide Side See Section 3.5.1 4 Scissor Arm Pin 18188 5 BOLT 0.7500x5 17826 6 NUT 0.7500 10283 7 Roll Pin 0.2500x2 15872 8 Lock Washer 0.7500 13795 9 Ram Cylinder Pin... -
Page 20: Rear End Assembly
3.6 Rear End Assembly Name Part # QTY. 1 Rear Frame 21348 2 Rear/Center Frame Connection 21349 3 Hydraulic Hose Clamp 18131 4 Rake Arm Pivot Pin 21302 5 0.7500x5x5 U-bolt 16091 6 SFN 0.7500 10283 7 BOLT 0.6250x1.75 12379 8 SFN 0.6250 11614 9 NLN 0.3750... -
Page 21: Left/Right Tandem Wheel Assembly
3.7 Left/Right Tandem Wheel Assembly # Name Part # QTY. 1 Spindle W/ Flange 18091 2 Wheel Stud Bolt 1/2x1-3/4 16307 3 Hub Assembly See Section 3.8 4 5 Bolt Rim 18425 5 Tire 9.5L-15 18835 3.8 Hub Replacement Parts # Name Part # QTY 1 Dust Cap... -
Page 22: Right/Left Arm Assembly
3.9 Right/Left Arm Assembly Name Part # QTY. 1 Castor Brake 16137 2 Castor Damper 16138 3 Bolt-on Castor Mount 21379 4 Width Adj. Box Pivot LH 21350 4(b) Width Adj. Box Pivot RH 21351 5 Right Knuckle 18093 6 1.5" x 7-5/16" Welded Pin 18094 7 2-1/8 Welded Pin 18168... -
Page 23: Right/Left Long Arm
3.10 Right/Left Long Arm # Name Part # QTY. 1 Rake Arm - Right 21353 1(b) Rake Arm - Left 21352 2 Lift Arm Adj. Right 21360 2(b) Lift Arm Adj. Left 21359 3 Square Retainer With Hook 21389 4 Cylinder Lock 21373 5 Filler Plate 18193... -
Page 24: Right/Left Outer Extension
3.11 Right/Left Outer Extension # Name Part # 1 Front Caster Support RT 18160 1(b) Front Caster Support LT 18159 2 Castor Brake 16137 3 Castor Damper 16183 4 Spring 16093 5 Nut 0.5000 14393 6 HBOLT 0.6250x1.75 12379 7 Rake Arm Extension RH 18100 7(b) Rake Arm Extension LH 18099... -
Page 25: Arm Wheel Assembly
3.12 Arm Wheel Assembly # Name Part # QTY. 1 Caster Hub Assembly See Section 3.10 2 Caster Fork 170931 3 Spindle Spacer 1 18178 4 Brake Disk (2 Inch) 17330 5 Spindle Spacer 2 18179 6 Caster Axle 1620 18187 7 Caster Tear Trop 18105... -
Page 26: Right/Left Rake Wheel Assembly
3.14 Right/Left Rake Wheel Assembly # Name Part # QTY. 1 Rake Wheel See Section 3.16 2 Rake Wheel Arm (LF) 18112 2(b) Rake Wheel Arm (RT) 18114 3 Spring Assembly See Section 3.15 4 Yoke 18116 5 Rake Wheel Hub 16413 6 Oil Seal 16083... -
Page 27: Spring Assembly
3.15 Spring Assembly # Name Part # Qty 1 Spring Slide Rod 16493 1 2 Pull Spring Retainer Guide 16240 1 3 Pull Spring Retainer Guide Pivot 16101 1 4 STFN 0.6250 11614 2 5 Large Rake Spring 16095 1 6 Roll Pin 0.1875x1 10302 2 7 Washer 0.6250... -
Page 28: Cylinder - 8In
3.17 Cylinder – 8in Complete Cylinder - 17442 Cylinder Rod – 17614 Cylinder Seal Kit - 17613 3.18 Cylinder - 20in Complete Cylinder - 17328 Cylinder Rod – N/A Cylinder Seal Kit - 16396 3.19 Cylinder - 30in Complete Cylinder - 16301 Cylinder Rod –... -
Page 29: Parts List
4.0 Parts List Before assembly, ensure that all of the components are included. The parts list for the Bridgeview 12 Wheel Rake and optional 14 Wheel Extension Kit is available below. Note: Some of the hardware used in assembly may be used as packaging hardware. -
Page 30: Hydraulics
Hardware 6 – 3/8” x 1 ¼” Bolt 2 – 3/8” x 3” 8 – 3/8” x 3 ½” 2 – 3/8” U-bolt 6 – ¾” x 5” x 6 ½” U-bolt 12 – ¾” x 5” Bolt ... -
Page 31: Lift Rods
1 – Left Rake Arm 1 – Right Rake Arm 1 – Left Riser Arm 1 – Right Riser Arm 4 – Knuckle Pin Hardware 12 – 5/8” x 1 ¾” Bolt 12 – 5/8” Serrated Flange Nut ... -
Page 32: Rake Wheels
Hardware 2 – 3/8” x 2 ¾” Roll Pin 2 – 1 ¼” Castle Nut 2 – ¼” x 3” Cotter Pins 4 – 3/8” x 1 ¾” Nylon Locking Nuts 2 – ½” Stover Locking Nut ... -
Page 33: Extension Kit - Upgrade From 12 Wheel To 14 Wheel
4.2 Extension Kit – Upgrade from 12 Wheel to 14 Wheel 4.2.1 Rake Arm Extension Kit Parts List 1 – Rake Wheel – Left 1 – Rake Wheel – Right 1 – Rake Arm Extension – Left ... - Page 34 2 – Caster Spindle Spacer Small 2 – Brake Disk 2 – Bottom Brake Pad (w/ bolt) 2 – Top Brake Pad Hardware List 10 – 1/2” Wheel Nuts 4 – 3/4” x (6 x 7”) Square U-Bolts w/ Serrated Flange Nuts – Caster Mount ...
-
Page 35: Extension Kit: 14 Wheel Hitch
5.0 Extension Kit: 14 Wheel Hitch 5.1 Introduction This section describes the assembly process in order to attach the Bridgeview Rake Extension Kit. Please read through this before beginning assembly of the kit. Before assembly, ensure that all of the components are included. -
Page 36: Fastener Information
Impact Wrench Basic Hand Tools 5.4 Fastener Information Your Bale King V-Rake is fastened with a variety of bolts. For these bolts to work properly the correct washer and nut must be used in the proper situation. Please consult this guide for correct fastener information. Also ensure that all fasteners are securely tightened. -
Page 37: Rake Wheel Extension Assembly Procedure
5.5 Rake Wheel Extension Assembly Procedure The following is the standard procedure used to attach the VMAX Extension Kit. For ease of connection, extend the V-rake to the open position (space permitting). Note: Left and right, as referred to in this guide, are taken as if you are standing at the rear of the rake, looking along the length of the rake towards the tractor hitch. -
Page 38: Reinstall Wrap-Around Caster Extension
sure that the lift arm brackets are located on the same side and that the rake arm hinges are at the same angle as on the rake wheel arm. Ensure that the left arm extension is on the left side of the machine, and vice versa. Rake arm extension 5.5.3 Reinstall Wrap-around Caster Extension The wrap around caster extension can now be remounted on the end of the... -
Page 39: Install Lift Rod Extension
5.5.4 Install Lift Rod Extension The lift rod extension can now be installed. This extension mounts directly to the end of the regular lift rods. Slide the plastic bushing over the lift rod extension and slide the lift rod extension into the bracket. The extension is bolted to the end of the lift rod using a 1/2”... -
Page 40: Install Spring Assembly
5.5.6 Install Spring Assembly To mount the spring assembly, first insert the yoke shaft into the rake wheel arm pivot, and insert the clevis over the bracket on the lift rod extension, as shown. Attach the clevis to the bracket using a 1/2” x 1 ½” bolt and Stover lock nut. Insert a 1/4”... - Page 41 The wheels are mounted using ½” tapered wheel nuts. FOR MOUNTING THE RAKE WHEELS, THE TAPERED EDGE OF THE NUTS FACES OUT. This means that the flat edge of the nut is tightened against the rake wheel. Torque nuts to 90 ft-lb. Taper facing out Finally, the ¼”...
-
Page 42: Hitch Extension Assembly Procedure
5.6 Hitch Extension Assembly Procedure This part of the manual covers the steps involved in adding the hitch extension. Ensure that the hydraulic pressure is relieved and disconnected before beginning. 5.6.1 Install Hydraulic Hose Extensions In order to extend the hitch length, the hydraulic hoses must first be extended. This is accomplished using the connections at the rear of the machine. -
Page 43: Install Hitch Extension
and save for later use. Also, remove the hose clamp from the front hitch, and feed the hose out through the hole. Feed hose out through this hole Remove bolts from flange connection Remove hose clamp 5.6.3 Install Hitch Extension Once the hitch is removed, the hydraulic hose should be run through the top pipe of the hitch extension, then the hitch extension should be bolted to the flange on the hitch of the machine using 10 bolts (5/8”x1 ¾”) and serrated flange nuts. -
Page 44: Reinstall Front Hitch
5.6.4 Reinstall Front Hitch Next, the front hitch can be reinstalled. First, feed the hydraulic hoses back through the opening, and reconnect the flange using the bolts removed earlier. Reattach the hose clamp and run the hoses down along the hitch as before. 5.6.5 Move Transport Lock Bracket Finally, the transport lock bracket needs to be moved. -
Page 45: Caster Kit Assembly Procedure
5.7 Caster Kit Assembly Procedure This part of the manual involves the steps required to install the caster kit. It is strongly recommended that this be installed along with the extension kit. 5.7.1 Install Wheel and Tire The caster kit is shipped pre-assembled. However, the wheel needs to be installed. -
Page 46: Reinstall Axle
Mount the wheel to the hub using the tapered 1/2” wheel nuts. The wheel should be mounted so the tapered edge of the nuts fit into the tapered holes of the wheel (flat edge facing outwards). Torque wheel nuts to 90 ft-lb. 5.7.2 Reinstall Axle Next, reinstall the axle to the caster forks according to which side it is mounted. -
Page 47: Install Flanged Caster Mount
Insert the 3/8”x1 ¾” bolts and nylon lock nuts into the teardrops, making sure that the spacers are between the forks and hub. Finally, tighten the assembly with the castle nut, and secure with the cotter pin. 5.7.3 Install Flanged Caster Mount Once the wheel is reinstalled on the axle, the entire caster assembly should be bolted to the rake arm. - Page 48 Bridgeview Manufacturing Inc. P.O. Box 4 Gerald, SK S0A 1B0 (306) 745-2711 www.bridgeviewmanufacturing.com bmi@sasktel.net...
