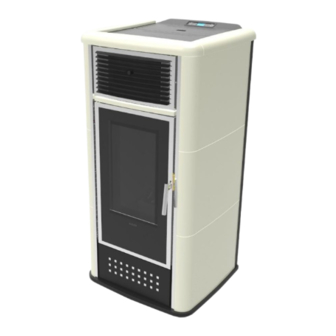

- Page 1 BELVEDERE 28 ENGLISH pellet-burning stove INSTALLATION, USE, MAINTENANCE AND HELPFUL TIPS...
- Page 3 DoP/KLOVER-034 Identification number : BV28 Model and/or lot no. and/or serial no. (Art.11-4) : BELVEDERE 28 Intended use of the product according to the relevant Home heating appliance fed with wood pellets harmonised technical specification which can also produce domestic hot water KLOVER s.r.l.
-
Page 4: Table Of Contents
CONTENTS CONTENTS ..................................1 INTRODUCTION ................................. 3 ........................... 3 MPORTANT SAFETY INSTRUCTIONS THE MACHINE AND THE PELLETS ..........................4 ............................. 4 OMPONENTS OF THE APPLIANCE ..............................6 VERALL DIMENSIONS .............................. 7 ONNECTIONS DATA SHEET ............................. 8 ECHNICAL PECIFICATIONS ................................ 9 ELLET PROPERTIES REQUIREMENTS OF THE PLACE OF INSTALLATION .................... - Page 5 EN - Rev. 1.7 Dear client, First of all we would like to thank you for choosing a “KLOVER” product and we hope you will be satisfied with this product. Please read the warranty certificate carefully. This is found on the last page of this User Guide. Please contact the authorised Technical Assistance Centre (TAC) for the initial start-up of your stove and to validate the warranty.
-
Page 6: Introduction
They will be responsible for the definitive installation of the appliance and its proper operation. KLOVER srl shall not be held liable if these precautions are not observed. - During the installation and use of the appliance, all local regulations - including those referring to national and European Standards - must be observed. -
Page 7: The Machine And The Pellets
- This user guide constitutes an integral part of the appliance. If the product is sold to another user, this manual must be passed on to the new owner. KLOVER S.R.L. DECLINES ALL LIABILITY IN CASE OF ACCIDENTS DUE TO FAILURE TO COMPLY WITH THE SPECIFICATIONS OF THIS MANUAL. - Page 8 BELVEDERE 28 PELLET-BURNING STOVE EN - Rev. 1.7 TOP TECHNICAL COMPARTMENT Right side flue gas pass Combustion chamber Left side flue gas pass Manual air vent valve. overpressure valve. scraper. scraper. Safety thermostat with manual reset. Terminal for room thermostat REAR TECHNICAL COMPARTMENT connection.
-
Page 9: Overall Dimensions
BELVEDERE 28 PELLET-BURNING STOVE EN - Rev. 1.7 Overall dimensions... -
Page 10: Connections Data Sheet
BELVEDERE 28 PELLET-BURNING STOVE EN - Rev. 1.7 Connections data sheet REAR VIEW Description of connections M = System Delivery 3/4" F R = System Return 3/4" M F = Domestic cold water inlet (on prepared models only) 1/2" M C = Domestic hot water outlet (on prepared models only) 1/2"... -
Page 11: Technical Specifications
BELVEDERE 28 PELLET-BURNING STOVE EN - Rev. 1.7 Technical Specifications Heat input (nominal setting) kW (Kcal/h) 25,0 (21.500) Heat input (reduced setting) kW (Kcal/h) 7,2 (6.192) Nominal thermal output kW (Kcal/h) 23,7 (20.382) Reduced thermal power kW (Kcal/h) 6,9 (5.934) -
Page 12: Pellet Properties
BELVEDERE 28 PELLET-BURNING STOVE EN - Rev. 1.7 Pellet properties The appliance has been tested with all types of pellets available on the market. The pellets must have the following properties: - Diameter 6 mm. - Maximum length 35 mm. -
Page 13: Spaces Around And Above The Appliance
BELVEDERE 28 PELLET-BURNING STOVE EN - Rev. 1.7 The unit must be installed on a floor with a suitable load capacity. If the existing building does not fulfil this requirement appropriate measures (e.g. load distribution plate) must be taken. The minimum safety distance from flammable materials must be at least 200 mm from the sides and 100 mm from the back of the appliance. -
Page 14: The Flue And Connection To The Same
BELVEDERE 28 PELLET-BURNING STOVE EN - Rev. 1.7 The UNI 10683 Standard FORBIDS the drawing of combustion air from garages, warehouses storing combustible materials, or from business premises with a fire hazard. Do not connect the external air vent directly to the appliance through piping. If there are other heating or extraction devices inside the room, the air vents must guarantee a sufficient amount of air for properly operating all the devices. - Page 15 BELVEDERE 28 PELLET-BURNING STOVE EN - Rev. 1.7 - It is prohibited to use counter sloping elements; - The flue gas pipe must allow for the recovery of soot or be cleanable, and must have a constant cross-section; - It is forbidden to allow other air intake conduits and system pipes to transit inside the flue gas pipes, even if they are over-sized.
-
Page 16: Chimney
Do not pass electric cables in the immediate vicinity of the flue gas pipe, unless they are insulated with suitable materials. KLOVER srl declines all responsibility for injury to persons and animals or damage to objects due to failure to connect the appliance to earth or to comply with IEC specifications. -
Page 17: Control Of Any Coupled Boiler
BELVEDERE 28 PELLET-BURNING STOVE EN - Rev. 1.7 Control of any coupled boiler If the pellet appliance is to be coupled with a previously installed boiler in the system (e.g. wall-hung gas boiler), you must ensure that the standard boiler stops when the pellet appliance takes over the heating of the system. The electrical... -
Page 18: Connection To The Room Thermostat
BELVEDERE 28 PELLET-BURNING STOVE EN - Rev. 1.7 Connection to the room thermostat On the back of the appliance there is a bridged terminal which is used to connect the environment thermostat that will command the operation. OPERATING PRINCIPLE Open contact: The appliance switches directly to economy mode operation “T-OFF... -
Page 19: The Display
BELVEDERE 28 PELLET-BURNING STOVE EN - Rev. 1.7 When connecting the appliance to the system, you should provide a zone that is always open (such as bathroom area) to enable the excess heat dissipation of the water in the body of the boiler. - Page 20 BELVEDERE 28 PELLET-BURNING STOVE EN - Rev. 1.7 The following figure describes the meanings of the status signals appearing on the display left side (1st LED SERIES). ROOM THERMOSTAT: the LED is on when the thermostat contact is open. PROGRAMMABLE THERMOSTAT: the LED lights up when at least one start-up and switch-off program is active.
-
Page 21: The Menu
BELVEDERE 28 PELLET-BURNING STOVE EN - Rev. 1.7 The table explains how the buttons on the display work. DESCRIPTION MODE ACTION Changes/increases the value of the selected menu Programming mode.. item. Increase temperature (1) It increases the temperature of the room/water Working/off.. - Page 22 BELVEDERE 28 PELLET-BURNING STOVE EN - Rev. 1.7 Menu 02 – Set timer Sub-menu 02 – 01 – enable timer Allows you to globally enable and disable all programmable thermostat functions. For the correct operation it is recommended to enable it (“ON”) when at least one on/off programme (daily, weekly or weekend programme) is activated.
- Page 23 BELVEDERE 28 PELLET-BURNING STOVE EN - Rev. 1.7 PROGRAMME 3 MENU LEVEL SELECTION MEANING POSSIBLE VALUES 02 – 03 – 20 START PROG 3 Turn-on time of the third programme Time – OFF 02 – 03 – 21 STOP PROG 3 Turn-off time of the third programme Time –...
- Page 24 (detected with KLOVER “Remote control” ) is reached..to control the appliance with both the KLOVER “Remote control” room temperature and the boiler thermostat: - enable the room sensor on the “Remote control” (Stove settings menu -> Enable room sensor -> ON) - enable the boiler thermostat contact on the display of the appliance (Menu 4 - Enable contact ->...
-
Page 25: Initial Start-Up
BELVEDERE 28 PELLET-BURNING STOVE EN - Rev. 1.7 Summary: REMOTE CONTROL MENU 04 – ENABLE R.T. CASE ACTION ROOM SENSOR CONTACT It works with room thermostat contact. It works with room thermostat contact. It works with remote control room sensor only. -
Page 26: Pellet Loading And Connection To The Mains Power Supply
BELVEDERE 28 PELLET-BURNING STOVE EN - Rev. 1.7 In intensely cold periods it is good practice to leave the heating system running. In the event of a prolonged absence, anti-freeze must be added to the heating water or the system must be completely emptied. -
Page 27: Working Mode
BELVEDERE 28 PELLET-BURNING STOVE EN - Rev. 1.7 Working mode During the working phase, by pressing 1, you can set the “SET H2O” (maximum water temperature in the boiler). When this temperature is reached, the appliance enters economy mode operation “T-H2O ECONOMY”. -
Page 28: Changing The Air Fan Speed
BELVEDERE 28 PELLET-BURNING STOVE EN - Rev. 1.7 - Room Temperature (used only in case of the “Remote control” connection) To modify the ambient temperature, simply select “SET ROOM TEMPERATURE” by pressing button 2. Now use buttons 1 and 2. During this operation, the display will appear as in the following picture. -
Page 29: Problems, Alarms, Useful Advices
BELVEDERE 28 PELLET-BURNING STOVE EN - Rev. 1.7 PROBLEMS, ALARMS, USEFUL ADVICES Useful info… Listed below is some important information regarding the appliance: - It is normal for the appliance to emit a smell of paint during its first few days of operation. We recommend ventilating the installation room during the initial start-up. -
Page 30: Alarm Signals
BELVEDERE 28 PELLET-BURNING STOVE EN - Rev. 1.7 If the outage lasts longer than Pr48, when power is restored, the appliance will enter the “STOP FIRE” (stand-by) mode running the entire switch-off cycle until cooling. When this phase is over, the appliance can be restarted resuming work at the set power. -
Page 31: Cleaning And Maintenance
BELVEDERE 28 PELLET-BURNING STOVE EN - Rev. 1.7 CLEANING AND MAINTENANCE Precautions before cleaning Before carrying out any cleaning or maintenance operations, make sure that: - the appliance is off and has cooled down completely; - the ash is completely cold. -
Page 32: Non-Routine Cleaning
BELVEDERE 28 PELLET-BURNING STOVE EN - Rev. 1.7 Thoroughly clean the brazier from combustion residues by taking it out from its position and removing any residues inside (Figure Use a suitable ash vacuum device to remove any ash deposited under the brazier... - Page 33 BELVEDERE 28 PELLET-BURNING STOVE EN - Rev. 1.7 Clean the two side passages inside the combustion chamber using the supplied brush, passing it repeatedly between one passage and the other (Figure To remove any deposits, it is also recommended that you scrape the inner walls of the combustion chamber with a spatula.
- Page 34 BELVEDERE 28 PELLET-BURNING STOVE EN - Rev. 1.7 Remove the front panel below (Figure 8). The front panel is fixed to the frame with two magnets; to remove it, just pull it towards you. After unscrewing the hand-wheels, extract the side flue gas pass inspection vent (Figure 9).
-
Page 35: Cleaning The Ceramic Glass
You must periodically check the seals because the latter guarantee the air- and water-tightness of the appliance and its good functioning; if they are worn or damaged you need to be replace them immediately by contacting a Klover Authorised technical assistance centre. -
Page 36: Pcb Parameters
The following parameters are already stored during the testing of the appliance directly in the factory; these parameters are the result of special tests using several types of pellets and must not be changed without the authorisation of Klover srl so as not to impair the operation of the appliance. - Page 37 BELVEDERE 28 PELLET-BURNING STOVE EN - Rev. 1.7 Pr11 M – 9 – 6 – 11 Alarm delay ALARM DELAY Seconds 1 – 90 Pr12 M – 9 – 6 – 12 Brazier cleaning duration BRAZIER CLEANING Seconds 0 – 120...
-
Page 38: Wiring Diagram
BELVEDERE 28 PELLET-BURNING STOVE EN - Rev. 1.7 WIRING DIAGRAM... -
Page 39: Warranty Conditions
- A copy of the initial start-up report issued by the Authorised Technical Assistance Centre must be preserved along with the proof of purchase receipt. - KLOVER s.r.l. disclaims any liability for accidents resulting from failure to comply with the instructions contained the user and maintenance manual attached to the appliance. - Page 40 Cod. CS.IST.BV28-EN KLOVER Srl Via A. Volta, 8 37047 San Bonifacio (VR) VAT No. 02324280235 www.klover.it...
