BELVEDERE 22
Pellet boiler
stove
INSTALLATION, USE AND
MAINTENANCE, USEFUL TIPS
Applies to:
BV22
BV22-V (with room fan)
BV22-P (combi boiler)
BV22-PV (combi boiler with room fan)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BELVEDERE 22 and is the answer not in the manual?

Questions and answers

Summary of Contents for klover BELVEDERE 22

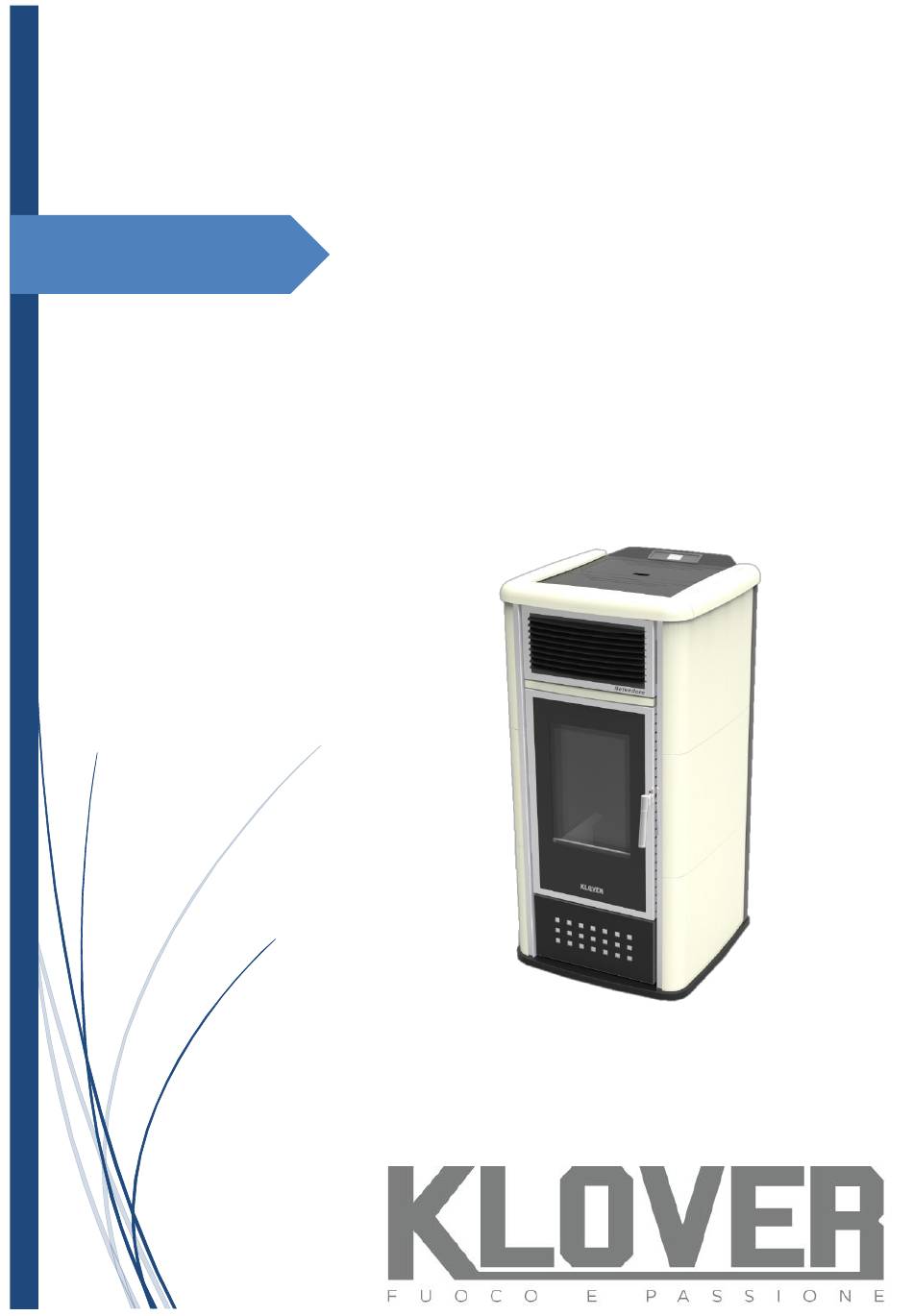

  • Page 1 BELVEDERE 22 ENGLISH Pellet boiler Main Revision 1.5 FPH_supplement: 001 stove INSTALLATION, USE AND MAINTENANCE, USEFUL TIPS Applies to: BV22 BV22-V (with room fan) BV22-P (combi boiler) BV22-PV (combi boiler with room fan)
  • Page 3 Identification number : DVM Model and/or lot no. and/or serial no. (Art.11-4) : DIVA MID – BELVEDERE 22 Home heating appliance fed with wood Intended use of the product according to the relevant pellets which can also produce domestic hot...
  • Page 4: Table Of Contents

    CONTENTS CONTENTS .......................................... 1 INTRODUCTION ......................................... 4 .................................. 4 MPORTANT SAFETY INSTRUCTIONS .................................... 5 NSTALLATION EGULATIONS CO A ........................................5 LARMS ............................5 ONTROL OF UBSTANCES AZARDOUS TO EALTH ..................................... 5 XTRACT VENTILATION ..........................................5 EARTH ................................... 6 ISTANCE TO COMBUSTIBLES ....................................
  • Page 5 BELVEDERE 22 PELLET BOILER STOVE EN - Rev. 1.5 ....................................36 LEANING THE FLUE PIPE ........................................ 36 AINTENANCE PCB PARAMETERS ......................................37 WIRING DIAGRAM ......................................39 WARRANTY CONDITIONS ..................................... 40...
  • Page 6 EN - Rev. 1.5 Dear Customer, First of all we would like to thank you for choosing a “KLOVER” product and we hope you will be satisfied with this product. Please read the warranty certificate carefully. This is found on the last page of this User Guide. Please contact the authorised Technical Assistance Centre (TAC) for the initial start-up of your stove and to validate the warranty.
  • Page 7: Introduction

    - The Klover pellet products are not suitable for use in smokeless zones. KLOVER S.R.L. DECLINES ALL LIABILITY IN CASE OF ACCIDENTS DUE TO FAILURE TO COMPLY WITH THE SPECIFICATIONS OF THIS MANUAL.
  • Page 8: Installation Regulations

    BELVEDERE 22 PELLET BOILER STOVE EN - Rev. 1.5 EXTERNAL AIR VENT AND THE CORRECTNESS OF THE PROPOSED INSTALLATION SOLUTIONS. ALL THE SAFETY REGULATIONS SET OUT IN THE SPECIFIC LAWS IN FORCE IN THE COUNTRY OF THE STOVE'S INSTALLATION MUST BE OBSERVED.
  • Page 9: Distance To Combustibles

    Health and Safety Care must be taken when installing a Klover pellet appliance to ensure that the requirements of the Health and Safety at Work Act are met. Adequate Handling facilities must be available for loading, unloading and site handling the appliance bearing in mind the...
  • Page 10: The Machine And The Pellets

    BELVEDERE 22 PELLET BOILER STOVE EN - Rev. 1.5 THE MACHINE AND THE PELLETS Components of the appliance The table below shows the standard features of the appliance: Expansion tank Safety valve 2.5 bar Pressure gauge 0 – 4 bar...
  • Page 11 BELVEDERE 22 PELLET BOILER STOVE EN - Rev. 1.5 Anti-interference filter Main switch, connection for power supply cable with 2 built-in fuses (4A 250V). REAR TECHNICAL COMPARTMENT Terminal for room thermostat connection. Safety thermostat with manual reset. Heating system return.
  • Page 12: Overall Dimensions

    BELVEDERE 22 PELLET BOILER STOVE EN - Rev. 1.5 Overall dimensions...
  • Page 13: Connections Data Sheet

    BELVEDERE 22 PELLET BOILER STOVE EN - Rev. 1.5 Connections data sheet REAR VIEW Description of connections M = Heating system flow 3/4" F R = Heating system return 3/4" M F = Domestic cold water inlet (on BV22-P and BV22-PV models only) 1/2"...
  • Page 14: Technical Specifications

    BELVEDERE 22 PELLET BOILER STOVE EN - Rev. 1.5 Technical Specifications Nominal heat input kW (Kcal/h) 22.4 (19,300) Reduced thermal capacity kW (Kcal/h) 7.8 (6,700) Nominal thermal output kW (Kcal/h) 20 (17,200) Reduced thermal power kW (Kcal/h) 6.9 (5,900) Nominal power released to heating water kW (Kcal/h) 17.1 (14,700)
  • Page 15: Pellet Properties

    BELVEDERE 22 PELLET BOILER STOVE EN - Rev. 1.5 Pellet properties The appliance has been tested with all types of pellets available on the market. The pellets must have the following properties: - Diameter 6 mm. - Maximum length 35 mm.
  • Page 16: Spaces Around And Above The Appliance

    BELVEDERE 22 PELLET BOILER STOVE EN - Rev. 1.5 The unit must be installed on a floor with a suitable load capacity. If the existing building does not fulfil this requirement appropriate measures (e.g. load distribution plate) must be taken.
  • Page 17 Fig. A Chimney and Flue pipe The chimney is essential to the efficient operation of a Klover appliance. The chimney should be designed and constructed according to these instructions, and relevant regulations including Building Regulations Approved Document Shape and size of chimney: A round chimney of 125mm diameter is recommended. 125mm is also the minimum diameter which should be used.
  • Page 18 BELVEDERE 22 PELLET BOILER STOVE EN - Rev. 1.5 Orientation and initial vertical rise: The flue system should run as vertically as possible as any deviations off the vertical can adversely affect the draw. 45º is the maximum off-vertical angle than may be used. Non-vertical sections should make up no more than ¼...
  • Page 19: Chimney

    BELVEDERE 22 PELLET BOILER STOVE EN - Rev. 1.5 Height and draught: In order for the appliance to perform satisfactorily the chimney height must be sufficient to ensure a draught of 12 Pa so as to clear the products of combustion and prevent smoke problems into the room.
  • Page 20: Electrical Connection

    Do not pass electric cables in the immediate vicinity of the flue gas pipe, unless they are insulated with suitable materials. KLOVER srl declines all responsibility for injury to persons and animals or damage to objects due to failure to connect the appliance to earth or to comply with IEC specifications.
  • Page 21: Connection To The Room Thermostat

    BELVEDERE 22 PELLET BOILER STOVE EN - Rev. 1.5 the appliance temperature is sufficient (see “Menu 5 – 3 Way Threshol”), the three-way valve is powered, closing the gas boiler water circuit and opening the water circuit of the appliance.
  • Page 22: Plumbing Connections

    BELVEDERE 22 PELLET BOILER STOVE EN - Rev. 1.5 PLUMBING CONNECTIONS The plumbing connections must be made in a rational way using the connections on the template of the appliance. To facilitate the connection of the pipes, all the plumbing connections have been fitted on the rear side, leaving space to make the appropriate connections.
  • Page 23 BELVEDERE 22 PELLET BOILER STOVE EN - Rev. 1.5 1st LED SERIES 2nd LED SERIES The following figure describes the meanings of the status signals appearing on the display left side (1st LED SERIES). ROOM THERMOSTAT: the LED is on when the thermostat contact is open.
  • Page 24 BELVEDERE 22 PELLET BOILER STOVE EN - Rev. 1.5 The following diagram shows the display when setting or programming operating parameters. INPUT M - 2 - 2 - 01 CHRONO MENU LEVEL DIALOGUE The INPUT area shows the entered programming values.
  • Page 25: The Menu

    BELVEDERE 22 PELLET BOILER STOVE EN - Rev. 1.5 THE MENU Access the Menu by pressing key 3 (Set). The menu is divided into different items and levels, providing access to the programming and settings options of the appliance. Buttons 5 and 6 allow you to select the menus to be modified.
  • Page 26 BELVEDERE 22 PELLET BOILER STOVE EN - Rev. 1.5 PROGRAM 2 MENU LEVEL SELECTION MEANING POSSIBLE VALUES 02 – 03 – 11 START PROG-2 Turn-on time of the second programme Time – OFF 02 – 03 – 12 STOP PROG-2 Turn-off time of the second programme Time –...
  • Page 27 (detected with KLOVER “Remote control”) is reached..to control the appliance with both the KLOVER “Remote control” room temperature and the boiler thermostat: - enable the room sensor on the “Remote control” (Stove settings menu +> Enable room sensor -> ON) - enable the boiler thermostat contact on the display of the appliance (Menu 4 - Enable contact ->...
  • Page 28 BELVEDERE 22 PELLET BOILER STOVE EN - Rev. 1.5 ...to control the appliance without using external thermostats, but only with the water temperature in the heating system: - disable the room sensor on the “Remote control” (Stove settings menu +> Enable room sensor -> OFF). The room sensor is automatically disabled if no external “Remote control”...
  • Page 29: Initial Start-Up

    BELVEDERE 22 PELLET BOILER STOVE EN - Rev. 1.5 INITIAL START-UP Filling the system for the first time After the water connection of the appliance, fill the system as follows: - Check the seal of all piping, the expansion vessel, and the circulation pump;...
  • Page 30: Working Mode

    BELVEDERE 22 PELLET BOILER STOVE EN - Rev. 1.5 Step 3 - PELLET P-LOAD = Pellet pre-load (initial continuous load) and resistance ignition. (Not as standard settings) Step 4 - HOLD FLAME = Loading pellets (intermittent load) and resistance operating.
  • Page 31: Changing The Air Fan Speed (On The Bv22-V And Bv22-Pv Models Only)

    BELVEDERE 22 PELLET BOILER STOVE EN - Rev. 1.5 70° After setting the desired value, press button 4 or wait a few seconds to confirm. During the working mode the appliance enters “Economy mode operation” when that temperature value is reached (See “Working...
  • Page 32: Remote Control

    BELVEDERE 22 PELLET BOILER STOVE EN - Rev. 1.5 Remote control The following table shows the function of each button on the remote control: Button 1 - Increase temperature. Button 2 - Decrease temperature. Button 3 - Switch on/off. Button 4 - Jolly (can be matched to a function depending on the firmware).
  • Page 33: Problems, Alarms, Useful Advices

    BELVEDERE 22 PELLET BOILER STOVE EN - Rev. 1.5 PROBLEMS, ALARMS, USEFUL ADVICES Useful info… Listed below is some important information regarding the appliance: - It is normal for the appliance to emit a smell of paint during its first few days of operation. We recommend ventilating the installation room during the initial start-up.
  • Page 34: Alarm Signals

    BELVEDERE 22 PELLET BOILER STOVE EN - Rev. 1.5 If the outage lasts longer than Pr48, when power is restored, the appliance will enter the “STOP FIRE” (stand-by) mode running the entire switch-off cycle until cooling. When this phase is over, the appliance can be restarted resuming work at the set power.
  • Page 35: Cleaning And Maintenance

    BELVEDERE 22 PELLET BOILER STOVE EN - Rev. 1.5 CLEANING AND MAINTENANCE Precautions before cleaning Before carrying out any cleaning or maintenance operations, make sure that: - the appliance is off and has cooled down completely; - the ash is completely cold.
  • Page 36: Non-Routine Cleaning

    BELVEDERE 22 PELLET BOILER STOVE EN - Rev. 1.5 Thoroughly clean the brazier from combustion residues by taking it out from its position and removing any residues inside (Figure Use a suitable ash vacuum device to remove any ash deposited under the brazier...
  • Page 37 BELVEDERE 22 PELLET BOILER STOVE EN - Rev. 1.5 Clean the pipes inside the combustion chamber using the supplied brush and passing it repeatedly between one and the other pipe (Figure To remove any deposits, it is also recommended that you scrape the inner walls of the combustion chamber with a spatula.
  • Page 38 BELVEDERE 22 PELLET BOILER STOVE EN - Rev. 1.5 Remove the front panel below (Figure 8). The front panel is fixed to the frame with two magnets; to remove it, just pull it towards you. After unscrewing the hand-wheels, extract the side flue gas pass inspection vent (Figure 9).
  • Page 39: Cleaning The Ceramic Glass

    You must periodically check the seals because the latter guarantee the air- and water-tightness of the appliance and its good functioning; if they are worn or damaged you need to be replace them immediately by contacting a Klover Authorised technical assistance centre.
  • Page 40 The following parameters are already stored during the testing of the appliance directly in the factory; these parameters are the result of special tests using several types of pellets and must not be changed without the authorisation of Klover srl so as not to impair the operation of the appliance.
  • Page 41 BELVEDERE 22 PELLET BOILER STOVE EN - Rev. 1.5 BRAZIER Pr12 M – 9 – 6 – 12 Brazier cleaning duration Seconds 0 – 120 CLEANING Flue gas minimum temperature for considering THRESHOL Pr13 M – 9 – 6 – 13 °C...
  • Page 42 BELVEDERE 22 PELLET BOILER STOVE EN - Rev. 1.5 WIRING DIAGRAM New SERIAL connection EXPANSION BOARD I055 FOR 3-WAY VALVE (OPTIONAL) THREE-WAY CONNECTION LEGEND: BLUE = COMMON BLACK = OPENING PHASE BROWN =CLOSING PHASE YELLOW/GREEN = GROUND connect to CN13...
  • Page 43 - A copy of the initial start-up report issued by the Authorised Technical Assistance Centre must be preserved along with the proof of purchase receipt. - KLOVER s.r.l. disclaims any liability for accidents resulting from failure to comply with the instructions contained the user and maintenance manual attached to the appliance.
  • Page 44 Cod. CS.IST.BV22-EN.FP KLOVER Srl Via A. Volta, 8 37047 San Bonifacio (VR) VAT No. 02324280235 www.klover.it...
