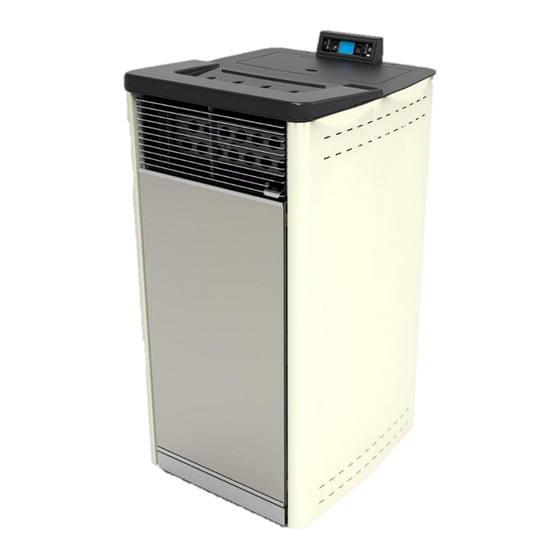

- Page 1 STAR 18 Pellet ENGLISH boiler stove Main Revision 2.2 FPH_supplement: INSTALLATION, USE AND MAINTENANCE, USEFUL TIPS...
- Page 3 Ref. Annex III EU Regulation no. 305/2011 DoP/KLOVER-008 Identification number : ST18 Model and/or lot no. and/or serial no. (Art.11-4) : STAR 18 Intended use of the product according to the relevant : Home heating appliance fed with wood pellets harmonised technical specification KLOVER s.r.l.
-
Page 4: Table Of Contents
CONTENTS CONTENTS ..................................1 INTRODUCTION ................................. 3 ........................... 3 MPORTANT SAFETY INSTRUCTIONS THE MACHINE AND THE PELLETS ..........................4 ............................. 4 OMPONENTS OF THE APPLIANCE ..............................6 VERALL DIMENSIONS .............................. 7 ONNECTIONS DATA SHEET ............................. 8 ECHNICAL PECIFICATIONS ................................ 9 ELLET PROPERTIES REQUIREMENTS OF THE PLACE OF INSTALLATION .................... - Page 5 STAR 18 PELLET BOILER STOVE Dear Customer, First of all we would like to thank you for choosing a “KLOVER” product and we hope you will be satisfied with this product. Please read the warranty certificate carefully. This is found on the last page of this User Guide. Please contact the authorised Technical Assistance Centre (TAC) for the initial start-up of your stove and to validate the warranty.
-
Page 6: Introduction
- The Klover pellet products are not suitable for use in smokeless zones. KLOVER S.R.L. DECLINES ALL LIABILITY IN CASE OF ACCIDENTS DUE TO FAILURE TO COMPLY WITH THE SPECIFICATIONS OF THIS MANUAL. -
Page 7: The Machine And The Pellets
EN - Rev. 2.2 STAR 18 PELLET BOILER STOVE EXTERNAL AIR VENT AND THE CORRECTNESS OF THE PROPOSED INSTALLATION SOLUTIONS. ALL THE SAFETY REGULATIONS SET OUT IN THE SPECIFIC LAWS IN FORCE IN THE COUNTRY OF THE STOVE'S INSTALLATION MUST BE OBSERVED. - Page 8 EN - Rev. 2.2 STAR 18 PELLET BOILER STOVE TOP TECHNICAL COMPARTMENT Manometer (indicates the pressure Front side flue gas pass Manual air vent valve of the heating system). scraper. (with key and rubber pipe). Anti-interference filter Main switch, connection for power supply cable with 2 built-in fuses (4A 250V).
-
Page 9: Overall Dimensions
EN - Rev. 2.2 STAR 18 PELLET BOILER STOVE Overall dimensions... -
Page 10: Connections Data Sheet
EN - Rev. 2.2 STAR 18 PELLET BOILER STOVE Connections data sheet REAR VIEW Description of connections M = Heating system flow 3/4" F R = Heating system return 3/4" M X = Safety valve drain 1/2" F A = Combustion air inlet... -
Page 11: Technical Specifications
EN - Rev. 2.2 STAR 18 PELLET BOILER STOVE Technical Specifications Nominal heat input kW (Kcal/h) 19,9 (17.100) Reduced thermal capacity kW (Kcal/h) 6,2 (5.300) Nominal thermal output kW (Kcal/h) 17,8 (15.300) Reduced thermal power kW (Kcal/h) 5,6 (4.800) Nominal power released to heating water kW (Kcal/h) 12,7 (10.900) -
Page 12: Pellet Properties
EN - Rev. 2.2 STAR 18 PELLET BOILER STOVE Pellet properties The appliance has been tested with all types of pellets available on the market. The pellets must have the following properties: - Diameter 6 mm. - Maximum length 35 mm. -
Page 13: Spaces Around And Above The Appliance
EN - Rev. 2.2 STAR 18 PELLET BOILER STOVE The unit must be installed on a floor with a suitable load capacity. If the existing building does not fulfil this requirement appropriate measures (e.g. load distribution plate) must be taken. -
Page 14: The Flue Pipe And Connection To The Same
EN - Rev. 2.2 STAR 18 PELLET BOILER STOVE Do not connect the external air vent directly to the appliance through piping. If there are other heating or extraction devices inside the room, the air vents must guarantee a sufficient amount of air for properly operating all the devices. - Page 15 EN - Rev. 2.2 STAR 18 PELLET BOILER STOVE FURTHER SPECIFICATIONS TO BE CONSIDERED - The appliance works with the combustion chamber in depression and the flue pipe in pressure; it is essential that the flue gas outlet is hermetically sealed.
-
Page 16: Chimney
Do not pass electric cables in the immediate vicinity of the flue gas pipe, unless they are insulated with suitable materials. KLOVER srl declines all responsibility for injury to persons and animals or damage to objects due to failure to connect the appliance to earth or to comply with IEC specifications. -
Page 17: Connection To The Room Thermostat
EN - Rev. 2.2 STAR 18 PELLET BOILER STOVE The two wires prepared on the back of the appliance (blue and brown wires) will have an output voltage of 220 V when the pellet appliance pump is working, and no voltage when the pump stops. -
Page 18: Plumbing Connections
EN - Rev. 2.2 STAR 18 PELLET BOILER STOVE PLUMBING CONNECTIONS The plumbing connections must be made in a rational way using the connections on the template of the appliance. To facilitate the connection of the pipes, all the plumbing connections have been fitted on the rear side, leaving space to make the appropriate connections. - Page 19 EN - Rev. 2.2 STAR 18 PELLET BOILER STOVE 1st LED SERIES 2nd LED SERIES The following figure describes the meanings of the status signals appearing on the display left side (1st LED SERIES). ROOM THERMOSTAT: the LED is on when the thermostat contact is open.
- Page 20 EN - Rev. 2.2 STAR 18 PELLET BOILER STOVE The following diagram shows the display when setting or programming operating parameters. INPUT M - 2 - 2 - 01 CHRONO MENU LEVEL DIALOGUE The INPUT area shows the entered programming values.
-
Page 21: The Menu
EN - Rev. 2.2 STAR 18 PELLET BOILER STOVE THE MENU Access the Menu by pressing key 3 (Set). The menu is divided into different items and levels, providing access to the programming and settings options of the appliance. Buttons 5 and 6 allow you to select the menus to be modified. - Page 22 EN - Rev. 2.2 STAR 18 PELLET BOILER STOVE PROGRAM 2 MENU LEVEL SELECTION MEANING POSSIBLE VALUES 02 – 03 – 11 START PROG-2 Turn-on time of the second programme Time – OFF 02 – 03 – 12 STOP PROG-2 Turn-off time of the second programme Time –...
- Page 23 (detected with KLOVER “Remote control”) is reached..to control the appliance with both the KLOVER “Remote control” room temperature and the boiler thermostat: - enable the room sensor on the “Remote control” (Stove settings menu +> Enable room sensor -> ON) - enable the boiler thermostat contact on the display of the appliance (Menu 4 - Enable contact ->...
-
Page 24: Initial Start-Up
EN - Rev. 2.2 STAR 18 PELLET BOILER STOVE ...to control the appliance without using external thermostats, but only with the water temperature in the heating system: - disable the room sensor on the “Remote control” (Stove settings menu +> Enable room sensor -> OFF). The room sensor is automatically disabled if no external “Remote control”... -
Page 25: Pellet Loading And Connection To The Mains Power Supply
EN - Rev. 2.2 STAR 18 PELLET BOILER STOVE - Vent all radiators and any other de-aeration systems to ensure that there are no air bubbles in the system. After installation, check the seal of all plumbing joints for the first few days of operation. -
Page 26: Working Mode
EN - Rev. 2.2 STAR 18 PELLET BOILER STOVE Working mode During the working phase, by pressing 1, you can set the “SET H2O” (maximum water temperature in the boiler). When this temperature is reached, the appliance enters economy mode operation “T-H2O ECONOMY”. -
Page 27: Remote Control
EN - Rev. 2.2 STAR 18 PELLET BOILER STOVE - Room Temperature (used only in case of the “Remote control” connection) To modify the ambient temperature, simply select “SET ROOM TEMP” by pressing button 2. Now use buttons 1 and 2. -
Page 28: Problems, Alarms, Useful Advices
EN - Rev. 2.2 STAR 18 PELLET BOILER STOVE PROBLEMS, ALARMS, USEFUL ADVICES Useful info… Listed below is some important information regarding the appliance: - It is normal for the appliance to emit a smell of paint during its first few days of operation. We recommend ventilating the installation room during the initial start-up. -
Page 29: Alarm Signals
EN - Rev. 2.2 STAR 18 PELLET BOILER STOVE If the outage lasts longer than Pr48, when power is restored, the appliance will enter the “STOP FIRE” (stand-by) mode running the entire switch-off cycle until cooling. When this phase is over, the appliance can be restarted resuming work at the set power. -
Page 30: Cleaning And Maintenance
EN - Rev. 2.2 STAR 18 PELLET BOILER STOVE CLEANING AND MAINTENANCE Precautions before cleaning Before carrying out any cleaning or maintenance operations, make sure that: - the appliance is off and has cooled down completely; - the ash is completely cold. -
Page 31: Non-Routine Cleaning
EN - Rev. 2.2 STAR 18 PELLET BOILER STOVE Press repeatedly (from bottom to top and vice versa for the entire length of the rod) the two side scrapers to allow cleaning of the side flue gas pass (Figure WARNING: use suitable ash vacuum devices equipped with a fine mesh filter in order to prevent ash from being blown into the room and to prevent damaging the vacuum cleaner. - Page 32 EN - Rev. 2.2 STAR 18 PELLET BOILER STOVE Use the swab provided to clean the elements above the combustion chamber (figure To remove any deposits, it is also recommended that you scrape the inner walls of the combustion chamber with a spatula.
-
Page 33: Cleaning The Ceramic Glass
EN - Rev. 2.2 STAR 18 PELLET BOILER STOVE After unscrewing the hand-wheels, extract the side flue gas pass inspection vent (Figure 8). Remove the deposits inside using a suitable ash vacuum device (Figure 9). When finished, close the pipes making sure that you have secured the two inspection openings. -
Page 34: Maintenance
You must periodically check the seals because the latter guarantee the air- and water-tightness of the appliance and its good functioning; if they are worn or damaged you need to be replace them immediately by contacting a Klover Authorised technical assistance centre. -
Page 35: Pcb Parameters
The following parameters are already stored during the testing of the appliance directly in the factory; these parameters are the result of special tests using several types of pellets and must not be changed without the authorisation of Klover srl so as not to impair the operation of the appliance. - Page 36 EN - Rev. 2.2 STAR 18 PELLET BOILER STOVE Pr16 M – 9 – 6 – 16 Flue gas extraction speed in ignition phase IGNIT FL GASSPED 500 – 2800 2200 Pr17 M – 9 – 6 – 17 Flue gas extraction speed in start phase START FL GASSPEED 500 –...
-
Page 37: Wiring Diagram
EN - Rev. 2.2 STAR 18 PELLET BOILER STOVE WIRING DIAGRAM... -
Page 38: Warranty Conditions
- A copy of the initial start-up report issued by the Authorised Technical Assistance Centre must be preserved along with the proof of purchase receipt. - KLOVER s.r.l. disclaims any liability for accidents resulting from failure to comply with the instructions contained the user and maintenance manual attached to the appliance. - Page 39 EN - Rev. 2.2 STAR 18 PELLET BOILER STOVE...
- Page 40 Cod. CS.IST.ST18-EN KLOVER Srl Via A. Volta, 8 37047 San Bonifacio (VR) P.IVA 02324280235 www.klover.it...
